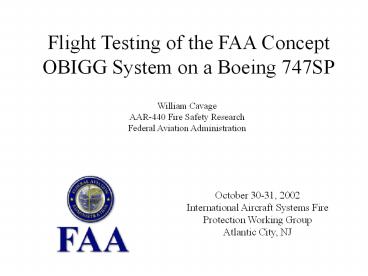

Flight Testing of the FAA Concept OBIGG System on
a Boeing 747SP
William CavageAAR-440 Fire Safety
ResearchFederal Aviation Administration
October 30-31, 2002International Aircraft
Systems FireProtection Working GroupAtlantic
City, NJ
2
Background

• Focus of the Testing is to Validate the Concept
  of In Flight Inerting as Outlined by Ivor Thomas.
• Study Distribution of Inert Gas During the Phases
  of a Typical Commercial Mission
• Study the Cost and Benefit of Potential OBIGG
  Systems.
• Study Diffusion of Inert Gas After a Typical
  Aircraft Operation

3
Work Plan

• Modify OBGI System to Resemble the Ivor Thomas
  Concept
• Validate Existing ASM Performance Data and Obtain
  Additional Altitude and Low Pressure Data
• Reconstruct and Validate the OBOAS
• Model the System Performance and CWT Inerting
  Behavior in Altitude Chamber
• Obtain Flight Test Aircraft, Install System and
  Instrument Aircraft
• Do Testing
• Claim Victory

4
(No Transcript)
5
Simplified OBIGG System
6
Simplified OBIGG System
7
Status

• System Modified and Installed on 747SP Ground
  Test Article
• OBOAS Reconstructed and Validated
• Single Membrane Testing Done
• Preliminary Scale Tank Inerting Testing Completed
• System Readiness Review Completed?
• Need 747SP Flight Test Aircraft Commitment
• Working with Boeing
• Seeking Additional Parties
