Application of Instruction Analysis/Synthesis Tools to x86

1

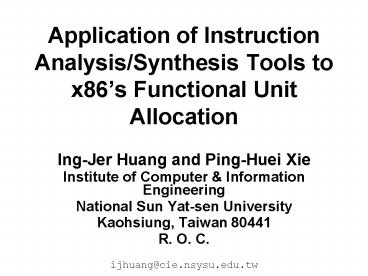

Application of Instruction Analysis/Synthesis
Tools to x86s Functional Unit Allocation

• Ing-Jer Huang and Ping-Huei Xie
• Institute of Computer Information Engineering
• National Sun Yat-sen University
• Kaohsiung, Taiwan 80441
• R. O. C.
• ijhuang_at_cie.nsysu.edu.tw

2
Superscalar Model under Investigation

• Decoupled superscalar architecture
• register renaming
• branch prediction
• Assumptions
• no cache miss
• fast instruction fetcher and decoder
• 100 branch prediction correct
• load/store unit 2 cyclesothers 1 cycle
• large RS and ROB

3
The Problem

• Q How many functional units are needed in an x86
  compatible superscalar core?
• A The distribution of functional unit usage in
  typical x86 programs

4
How to Obtain FU Distribution?

• Simulation-based approaches
• Shinatani, 1995, Davidson, 1995, Hara et
  al., 1996, etc.
• Running on different CPU platforms
• Slow, but can explore many configurations
• Monitoring-based approaches
• Adams et al., 1989, Bhandarkar et al., 1997,
  Huang, 1997, etc.
• Directly running on the same CPU platform
• Fast, but work for only the configuration of the
  underlying CPU platform

5
A Fast Performance/Cost Approximation Environment
6
ASIA Automatic Synthesis of Instruction Set
Architedcture

• GOAL analyzes and synthesizes application-specifi
  c instruction set for pipelined uni-processors.
• APPROACH a micro-operation scheduling engine
  based on a simulated annealing algorithm
• ? The superscalar core is an application-specific
  RISC core for x86 emulation

7
ASIA-II Extensions for Superscalar Architecture

• Register renaming
• Temporary registers are used on the fly to
  resolve anti and data dependencies.
• Execution window
• Instructions are dispatched sequentially.
• Branch prediction
• Effective sizes of basic blocks are enlarged.

8
Register Renaming

• In ASIA-II ignore output, anti dependencies
  during scheduling

9
Realistic Patterns in the Execution Window

• Balanced distribution 0bjective function
  includes both time steps and H/W counts
• Window effect MOPs are displaced with a limited
  distance long distance is possible with many
  iterations of displacement .as long as
  performance is improved.

10
Basic Block Expansion (Eblocks) Due to Branch
Prediction
11
A Small Example from Word97
12
Extended Basic Blocks
13
Scheduled Eblocks
14
A Small Example - FU Usage
15
Description of Benchmark
16
Micro-operation Level Parallelism (MSP)
17
Functional Unit Usage

• Notation
• A - Integer unit
• M - Memory unit
• B - Branch unit
• F - Floating unit
• Others is the sum of that frequent less than 1.0

18
Accumulated Coverage of Functional Unit Allocation
(NSC 98)
(IA-64)
(AMD K6)
(Pentium Pro)
(Base Machine)
19
Conclusions

• Synthesis/analysis tools have been used to
  observe the functional unit usage and MLP in
  superscalar core.
• Speedup over simulation is over 600 times.
• FUTURE WORK investigate various
  microarchitecture features
• register renaming vs. branch prediction
• functional unit optimization
