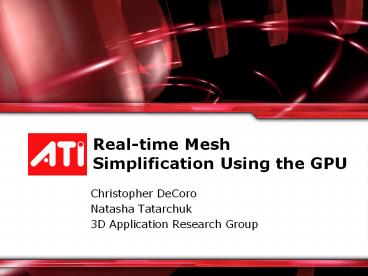

Real-time Mesh Simplification Using the GPU

1
Real-time Mesh Simplification Using the GPU

• Christopher DeCoro
• Natasha Tatarchuk
• 3D Application Research Group

2
Introduction

• Implement Mesh Decimation in real-time
• Utilizes new Geometry Shader stage of GPU
• Achieves a 20x speedup over CPU

3
Project Motivation

• Massive Increases in submitted geometry
• Geometry rendered per shadow map (6x for
  cubemap!)
• Not always needed at highest resolution
• Geometry not always known at build-time
• Dynamically-skinned objects only finalized at
  run-time
• May be customized to users machine based on
  capabilities, would need to be adapted at program
  load time
• Could be dynamically generated per level, need to
  be adapted at level load time
• Simplification therefore needs to be fast (or
  even real-time)
• Also, just as importantly
• We want applications that exercise stress
  GS/GPU
• Evaluate new capabilities of the GPU
• Learn how to adapt previously CPU-bound
  algorithms
• Develop GPU-centric methodologies
• Identify future feature set for GS/GPU as a whole
• Limitations still exist which should be
  addressed?

4
Contributions

• Mapping of Decimation to GPU
• 20x speedup vs. CPU
• Enables load-time or real-time usage
• Detail Preservation by Non-linear Warping
• Also applicable to CPU out-of-core decimation
• General-purpose GPU Octree
• Adaptive decimation w/ constant memory
• Applications not limited to simplification
  collision detection, frustum culling, etc.

5
Outline

• Project Introduction and Motivation
• Background
• Decimation with Vertex Clustering
• Geometry Shaders in Direct3D 10
• Geometry Shader-based Vertex Clustering
• Adaptive Simplification w/ Non-linear Warps
• Probabalistic Octrees on the GPU

6
Vertex Clustering

• Reduces mesh resolution
• High-res mesh as input
• Low-res as output
• All implemented on the GPU
• Ideal for processing streamed out data
• Useful when rendering multiple times (i.e.
  shadows)
• Can handle enormous models from scanned data
• Based on Out-of-Core Simplification of Large
  Polygonal Models, P. Lindstrom, 2000

Figure from Lindstrom 2000
7
Previous Rendering Pipeline

• Vertex Shaders and Pixel Shaders
• Limits 1 output per 1 input
• No culling of triangles for decimation
• Fixed destination for each stage
• Result meshes cannot be (easily) saved and reused

8
DirectX10 Rendering Pipeline

• Geometry Shader in between VS PS
• Called for each primitive (usually triangle)
• Able to access all vertices of a primitive
• Can compute per-face quantities
• Breaks 11 input-output limitation
• Allows triangles to be culled from pipeline
• Allows stream-out of processed geometry
• Decimated meshes can easily be saved and reused

9
Outline

• Project Introduction and Motivation
• Background
• Geometry Shader-based Vertex Clustering
• Overview
• Quadric Generation
• Optimal Position Computation
• Final Clustering
• Adaptive Simplification w/ Non-linear Warps
• Probabilistic Octrees on the GPU

10
Algorithm Overview

• Start with the input mesh
• Shown divided into clusters
• Pass 1 Compute the quadric map from mesh
• Use GS to compute quadric
• Accumulate in cluster map, an RT used as large
  array
• Pass 2 For each cluster, compute optimal
  position
• Solves a linear system given by quadrics
• Pass 3 Collapse each vertex to representative
• 9x9x9 grid shown

Model Courtesy of Stanford Graphics Lab
11
Vertex Clustering Pipeline

• Pass 1 Create Quadric Map
• Input Original Mesh
• Computation
• Determine plane equation, face quadrics for
  triangle
• Compute the cluster and address of each vertex
• Pack quadric into RT at appropriate address
• Output Render Targets representing clusters with
  packed quadrics and average positions

12
Quadric Map Implementation
//Map a point to its location in the cluster map
array float2 writeAddr( float3 vPos ) uint
iX clusterId(vPos) / iClusterMapSize.x uint
iY clusterId(vPos) iClusterMapSize.y
return expand( float2(iX,iY)/float(iClusterMapSize
.x) ) 1.0/iClusterMapSize.x maxvertexcount(
3) void main( triangle ClipVertex input3,
inout PointStreamltFragmentDatagt stream )
//For the current triangle, compute the area and
normal float3 vNormal (cross(
input1.vWorldPos - input0.vWorldPos,
input2.vWorldPos - input0.vWorldPos ))
float fArea length(vNormal)/6 vNormal
normalize(vNormal) //Then compute the
distance of plane to the origin along the normal
float fDist -dot(vNormal, input0.vWorldPos)
//Compute the components of the face
quadrics using the plane coefficients float3x3
qA fAreaouter(vNormal, vNormal) float3 qb
fAreavNormalfDist float qc
fAreafDistfDist //Loop over each vertex
in input triangle primitive for(int i0 ilt3
i) //Assign the output position in
the quadric map FragmentData output
output.vPos float4(writeAddress(inputi.vPos),
0,1) //Write the quadric to be accumulated in
the quadric map packQuadric( qA, qb, qc,
output ) stream.Append( output )

• Start with the input mesh
• Shown divided into clusters
• Compute the quadric map from mesh
• Use GS to compute quadric
• Accumulate in cluster map, an RT used as large
  array
• For each cluster, compute optimal position
• Collapse each vertex to representative
• 9x9x9 grid shown

13
Vertex Clustering Pipeline

• Pass 2 Find Optimal Positions
• Input Cluster Map Render Targets, Full-screen
  Quad
• Computation
• Determine if we can solve for optimal position
• If not, fall back to vertex average
• Output Render Targets representing clusters with
  optimal position of representative vtx.

14
Optimal Positions
Original Mesh

• For each cell, need representative
• Naïve solution Use averages
• Looks very blocky
• Does not consider the original faces, only
  vertices
• Implemented solution Use quadrics
• Quadrics are a measure of surface
• We can solve for optimal position

Simplified w/ Averages
Simplified w/ Quadrics
15
Optimal Positions Implementation
float3 optimalPosition(float2 vTexcoord)
float3 vPos float3(0,0,0) float4 dataWorld,
dataA0, dataB, dataA1 //Read the vertex
average from the cluster map dataWorld
tClusterMap0.SampleLevel( sClusterMap0,
vTexcoord, 0 ) int iCount dataWorld.w
//Only compute optimal position if there are
vertices in this cluster if( iCount ! 0 )
//Read all the data from the clustermap
to reconstruct the quadric dataA0
tClusterMap1.SampleLevel( sClusterMap1,
vTexcoord, 0 ) dataA1 tClusterMap2.Sample
Level( sClusterMap2, vTexcoord, 0 ) dataB
tClusterMap3.SampleLevel( sClusterMap3,
vTexcoord, 0 ) //Then reassemble the
quadric float3x3 qA dataA0.x, dataA0.y,
dataA0.z, dataA0.y,
dataA0.w, dataA1.x,
dataA0.z, dataA1.x, dataA1.y float3 qB
dataB.xyz float qC dataA1.z
//Determine if inverting A is stable, if so,
compute optimal position //If not, default
to using the average position const float
SINGULAR_THRESHOLD 1e-11
if(determinant(quadricA) gt SINGULAR_THRESHOLD )
vPos -mul( inverse(quadricA), quadricB
) else vPos dataWorld.xyz /
dataWorld.w return vPos

• Start with the input mesh
• Shown divided into clusters
• Compute the quadric map from mesh
• Use GS to compute quadric
• Accumulate in cluster map, an RT used as large
  array
• For each cluster, compute optimal position
• Collapse each vertex to representative
• 9x9x9 grid shown

16
Vertex Clustering Pipeline

• Pass 3 Decimate Mesh
• Input Cluster Map Render Targets, Input Mesh
• Computation
• Find clusters, Remap vertices to representative
• Determine if triangle becomes degenerate
• If not, stream output new triangle at new
  positions
• Output Low-resolution Mesh

17
Final Clustering Implementation
maxvertexcount(3) void main( triangle
ClipVertex input3, inout TriangleStreamltStreamou
tVertexgt stream ) //Only emit a triangle if
all three vertices are in diff. clusters if(
all_different(clusterId(input0.vPos),
clusterId(input1.vPos),
clusterId(input2.vPos)) )
for(int i0 ilt3 i) //Lookup
optimal position in the RT computed in Step 2
vPos tClusterMap3.SampleLevel(
sClusterMap3, readAddr(input0.vPos), 0 )
//Output vertex to stream out
stream.Append( vPos ) return

• Start with the input mesh
• Shown divided into clusters
• Compute the quadric map from mesh
• Use GS to compute quadric
• Accumulate in cluster map, an RT used as large
  array
• For each cluster, compute optimal position
• Collapse each vertex to representative
• 9x9x9 grid shown

18
Vertex Clustering Pipeline

• Alternate Pass 2 Downsample RTs
• Input and Output as before
• Computation
• Collapse 8 adjacent cells by adding cluster
  quadrics
• Compute optimal position for 2x larger cell
• Create multiple lower levels of detail without
  repeatedly incurring Pass 1 overhead (75)
• Pass 3 can use previous streamed-out mesh
• Lower levels of detail almost free

19
Timing Results

• Recorded Time Spent in Decimation
• GPU AMD/ATI XXX
• CPU 3Ghz Intel P4
• Significant Improvement over CPU
• Averages 20x speedup on large models
• Scales linearly

20
More Results

• Models shown at varying resolutions

Buddha, 45x130x45 grid
Bunny, 90x90x90 grid
Dragon, 100x60x20 grid
Models Courtesy of Stanford Graphics Lab
21
More Results

• Models shown at varying resolutions

Buddha, 20x70x20 grid
Bunny, 60x60x60 grid
Dragon, 50x25x10 grid
22
More Results

• Models shown at varying resolutions

Buddha, 10x40x10 grid
Bunny, 20x20x20 grid
Dragon, 30x15x6 grid
23
Outline

• Project Introduction and Motivation
• Background
• Geometry Shader-based Vertex Clustering
• Adaptive Simplification w/ Non-linear Warps
• View-dependent Simplification
• Region-of-interest Simplification
• Probabalistic Octrees on the GPU

24
View-dependent Simplification

• Standard simplification does not consider view
• Preserves uniform amount of detail all over
• Simplify in post-projection space to use view
• Preserves more detail closer to viewer (left)

View Direction
25
Arbitrary Warping Functions

• View Transform special case of nonlinear warp
• Can use arbitrary warp for adaptive
  simplification
• Regular grids allow data-independence,
  parallelism
• Constant time mapping from position to grid cell
• Maps well onto GPU render targets
• Forces uniform resolution throughout output mesh
• Irregular geometry grids allow non-uniform output
• Cells can be larger/smaller in certain regions
• Corresponds to lower/greater output triangle
  density
• We lose constant-time mapping of position to cell

• Solution apply inverse warp to vertices
• Equivalent to applying forward warp to grid cells
• Clustering still performed in uniform grid
• Flexibility of irregular geometry w/ speed of
  regular
• One proposal Gaussian weighting functions

26
Region-of-Interest Specification

• Importance specified w/ biased Gaussian
• Highest preservation at mean
• Width of region given by sigma
• Bias prevents falloff to zero
• Integrate to produce corresponding warp function
• (Derivation given in paper)

27
Region-of-Interest Specification

• Warping allows non-uniform/adaptive level of
  detail

• Head has most semantic importance
• Detail lost in uniform simplification
• We can warp first to expand center
• Equivalent to grid density increasing
• Adaptive simplification preserves head detail

28
Outline

• Project Introduction and Motivation
• Background
• Geometry Shader-based Vertex Clustering
• Adaptive Simplification w/ Non-linear Warps
• Probabalistic Octrees on the GPU
• Motivation
• Probablistic Storage
• Adaptive Simplification
• Randomized Construction
• Results

29
Octrees - Motivation

• Basic grid
• regular geometry, regular topology
• Limitations as we discussed
• Warped grid
• irregular geometry, regular topology
• Much improved however, we can do better
• May be difficult to know required detail a priori
• CPU Solution Multi-resolution grid (i.e. octree)
• Irregular topology (irregular geometry w/
  warping)
• Store grid at many levels of detail
• Measure error at each level, use coarse as
  possible
• Efficiency requires dynamic memory, storage O(L3)
• Requires O(L) writes to produce correct tree

30
GPU Solution Probabilistic Octrees

• Proposal
• Successful storage not guaranteed, w/ Prob. lt 1
• However, storage failure detected on read
• Assumptions allow much flexibility
• We can have unlimited depth tree (but lim P0)
• Sparse storage of data
• Require conservative algorithms for task
• Vertex clustering (conveniently!) is such an
  example
• So is collision detection and frustum culling
• Only studied in brief in this paper, we would
  like to analyze more for future work

31
Implementation Details

• Storage Spatial Hashes
• Map (position,level) to cell, cell hashed to
  index
• Additive blending for quadric accumulation
  (app-specific)
• Max blending to store (key,-key) with data (i.e.
  min_key,max_key)
• Retrieval
• Again map (position, level) to index
• Retrieve key value from data, collision iff
  min_key ! max_key
• Use parent level, which will have higher storage
  probability
• Usage for Adaptive Simplification
• For each vertex, find maximum error level below
  some threshold
• Use this as the representative vertex
• Can perform binary search along path
• Conservative, because we can maintain validity
  even when using parent of optimal node (just adds
  some error)

32
Randomized Generation

• Currently hidden
• We can probably skip this we are too long already

33
Probabilistic Octree Results

• Adaptive simplification shown on bunny (4K tris)
• Preserves detail around leg, eyes and ears
• Simplifies significantly on large, flat regions
• Using 8 of storage of total tree, we have lt 10
  collisions
• Only 20 performance hit vs. standard grids

34
Conclusions

• GS is a powerful tool for interactive graphics
• Amplification and decimation are important
  applications of GS

35
Geometry Shaders and Other Feature Wish-List

• Bring back the Point fill mode
• Important for scatter in GPGPU applications
• Data amplification improvements with indexed
  stream out
• Avoiding triangle soups very non-trivial
• Efficient indexable temps

36
Thanks a lot!

• Various people here

37
Questions?
