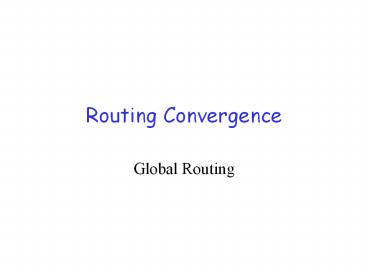

Routing Convergence

1
Routing Convergence

• Global Routing

2
Internet Routing Convergence

• An Experimental Study of Delayed Internet
  Routing Convergence

• Craig Labovitz, Abha Ahuja, Farnam Jahanian,
  Abhijit Bose
• ACM Sigcomm September 2000

3
Hierarchical Routing -- Review

• Untruths about Internet Routing
• all routers identical
• network flat
• not true in practice

• administrative autonomy
• internet network of networks
• each network admin may want to control routing in
  its own network

• scale with 50 million destinations
• cant store all dests in routing tables!
• routing table exchange would swamp links!

4
Hierarchical Routing

• aggregate routers into regions, autonomous
  systems (AS)
• routers in same AS run same routing protocol
• inter-AS routing protocol
• routers in different AS can run different
  inter-AS routing protocol

• special routers in AS
• run inter-AS routing protocol with all other
  routers in AS
• also responsible for routing to destinations
  outside AS
• run intra-AS routing protocol with other gateway
  routers

5
Intra-AS and Inter-AS routing

• Gateways
• perform inter-AS routing amongst themselves
• perform intra-AS routers with other routers in
  their AS

b
a
a
C
B
d
A
network layer
inter-AS, intra-AS routing in gateway A.c
link layer
physical layer
6
Intra-AS and Inter-AS routing
Host h2
Intra-AS routing within AS B
Intra-AS routing within AS A
7
(No Transcript)
8
AS graphs obscure topology!
The AS graph may look like this.
Tim Griffin, Leiden 2000
9
Inter-AS routing (cont)

• BGP (Border Gateway Protocol) the de facto
  standard
• Path Vector protocol and extension of Distance
  Vector
• Each Border Gateway broadcast to neighbors
  (peers) the entire path (ie, sequence of ASs) to
  destination
• For example, Gateway X may store the following
  path to destination Z
• Path (X,Z) X,Y1,Y2,Y3,,Z

10
Inter-AS routing (cont)

• Now, suppose Gwy X send its path to peer Gwy W
• Gwy W may or may not select the path offered by
  Gwy X, because of cost, policy () or loop
  prevention reasons.
• If Gwy W selects the path advertised by Gwy X,
  then
• Path (W,Z) w, Path (X,Z)
• Note path selection based not so much on cost
  (eg, of
• AS hops), but mostly on administrative and policy
  issues
• (e.g., do not route packets through competitors
  AS)

11
Inter-AS routing (cont)

• Peers exchange BGP messages using TCP.
• OPEN msg opens TCP connection to peer and
  authenticates sender
• UPDATE msg advertises new path (or withdraws old)
• KEEPALIVE msg keeps connection alive in absence
  of UPDATES it also serves as ACK to an OPEN
  request
• NOTIFICATION msg reports errors in previous msg
  also used to close a connection

12
Why different Intra- and Inter-AS routing ?

• Policy Inter is concerned with policies (which
  provider we must select/avoid, etc). Intra is
  contained in a single organization, so, no policy
  decisions necessary
• Scale Inter provides an extra level of routing
  table size and routing update traffic reduction
  above the Intra layer
• Performance Intra is focused on performance
  metrics needs to keep costs low. In Inter it is
  difficult to propagate performance metrics
  efficiently (latency, privacy etc). Besides,
  policy related information is more meaningful.
• We need BOTH!

13
What is Routing Policy?

• Description of the routing relationship between
  autonomous systems
• Who are the peers?
• What routes are
• Originated by a peer?
• Imported from each peer?
• Exported to each peer?
• Preferred when multiple routes exist?
• What to do if no route exists?

14
The example I mentioned earlier
Date Fri, 25 Apr 1997 201647 -0500 (CDT)
Subject ALERT Massive Routing Failures
At about 1030 AM today, one of Sprints
customers (AS7007, Florida Internet Exchange)
began announcing a /24 route for every CIDR block
in the core routing table. This was due to a
configuration problem in that they imported all
their routing into a classfull interior routing
protocol and then redistributed the route back
into BGP, becoming a source for the first class C
network in every CIDR block. Sprint does no
border routing filters, so they happily accepted
these routes and gave them away to all
15
Motivation

• Why we should care about convergence?
• Routing reliability/fault-tolerance on small time
  scales (minutes) not previously a priority
• Emerging transaction oriented and interactive
  applications (e.g. Internet Telephony) will
  require higher levels of end2end network
  reliability
• How well does the Internet routing infrastructure
  tolerate faults?

16
Conventional Routing Wisdom

• The Internet is designed to survive a nuclear
  cataclysm.Internet routing is robust under
  faults
• Supports path re-routing and restoral on the
  order of seconds
• The internet supports fast path rerouting and
  restoral. BGP has good convergence properties
• Does not exhibit looping/bouncing problems of RIP
• Internet fail-over will improve with faster
  routers and faster links
• More redundant connections (multi-homing) to
  Internet will always improve site fault-tolerance

17
Contribution

• Labovitz et al show that most of the conventional
  wisdom about routing convergence is not accurate
• Measurement of BGP convergence in the Internet
• Analysis/intuition behind delayed BGP routing
  convergence
• Modifications to BGP implementations which would
  improve convergence times

18
Motivation

• Why has fail-over and fault-tolerance not
  previously been a priority?
• Applications like email not delay sensitive and
  possess fault-tolerance
• TCP/IP fault-tolerance (resend)
• Content replication helps improve reliability for
  static content
• Network support is required for emerging
  transaction oriented and interactive applications
  (e.g. Internet Telephony, QoS)

19
Building a Reliable Internet

• What Network support has been proposed already?
• Significant recent improvement on data-link
  fail-over (e.g. SRP, Sonet). Solves some
  enterprise, intra-domain reliability problems
• Also significant research on QoS and resource
  reservation protocols for the Internet
• But, all of these protocols assume stable
  underlying IP forwarding path

20
Background

• Internet sites multi-home, or purchase
  connectivity from multiple Internet providers to
  improve fault tolerance
• Goal tolerate a single link, router or ISP
  failure
• 35 Internet end-sites currently multi-homed

21
Background Multi-homing
22
PSTN versus Internet

• Public Switched Telephone Network (PSTN) is the
  other network in place.
• Trade-off between
• scalability/extensibility/low cost and
• fault-tolerance/service guarantees/high cost
• PSTN retains significant intermediate state (i.e.
  circuit setup) and services on relatively few
  nodes. A Smart Network
• Internet places all intelligence on end-nodes. A
  Stupid Network

23
Trade-Offs
PSTN
High
State Reliability Service Guarantees Development
Time Switch Cost Coordination
Low
High
Low
Scalability Flexibility Distributed Operation
24
Routing

• Unlike circuit-switched PSTN, packet-switched
  Internet uses hop-by-hop forwarding and next-hop
  selection
• Global state and circuit-setup used in PSTN
• this is like owning an atlas and planning route
• Internet routers only keep local knowledge and
  routes learned from neighbors
• like asking directions at each stop

25
Internet Routing

• Inter-domain Internet routing protocols are
  distance vector (i.e. Bellman-Ford) algorithms.
  Unlike PSTN, no pre-computed backup paths!
• Distance vector protocols are problematic
• Require time to converge
• Suffer from counting to infinity

26
Problems with Distance Vector ProtocolsCounting
to Infinity
B
A
R
R 5
R 7
27
Internet Routing

• The Internet inter-domain routing protocol, BGP,
  solves count-to-infinity problem by keeping
  record of path the route announcement has
  traveled through network
• Internet routing commonly (and incorrectly)
  believed to converge within 30 seconds

28
BGP Routing
R
29
Open Question

• After a fault in a path to multi-homed site, how
  long does it take for the majority of Internet
  routers to fail-over to the secondary path?

• Routing table convergence (backbone routers reach
  steady-state) after a fault
• End-to-end paths stable (normal levels of loss
  and latency)

BGP
Primary ISP
Customer
BGP
Backup ISP
30
Internet Fail-Over Experiments

• Instrument the Internet
• Inject routes into geographically and
  topologically diverse provider BGP peering
  sessions (Mae-West, Japan, Michigan, London)
• Periodically fail and change these routes (i.e.
  send withdraws or new attributes)
• Monitor impact faults through 1) recordings of
  BGP peering sessions with 20 tier1/tier2 ISPs and
  2) active ICMP ECHO measurements (512 byte/second
  to 100 random web sites)
• Write lots of Perl scripts
• Wait two years (125,000 routing events)

31
Experiment (For the Last Two Years)
32
Fault Scenarios

• Tup -- A new route is advertised
• Tdown -- A route is withdrawn (i.e. single-homed
  failure)
• Tshort -- Advertise a shorter/better ASPath (i.e.
  primary path repaired)
• Tlong -- Advertise a longer/worse ASPath
  (i.e.primary path fails)

33
Major Convergence Results

• Routing convergence requires an order of
  magnitude longer than expected (10s of minutes)
• Routes converge more quickly following Tup/Repair
  than Tdown/Failure events (bad news travels more
  slowly)
• Curiously, withdrawals (Tdown) generate several
  times the number of announcements than
  announcements (Tup)

34
Example of BGP Convergence

• TIME BGP Message/Event
• 104030 Route Fails/Withdrawn by AS2129
• 104108 2117 announce 5696 2129
• 104132 2117 announce 1 5696 2129
• 104150 2117 announce 2041 3508 3508 4540 7037
  1239 5696 2129
• 104217 2117 announce 1 2041 3508 3508 4540 7037
  1239 5696 2129
• 104305 2117announce 2041 3508 3508 4540 7037
  1239 6113 5696 2129
• 104335 2117 announce 1 2041 3508 3508 4540 7037
  1239 6113 5696 2129
• 104359 2117 sends withdraw

• BGP log of updates from AS2117 for route via
  AS2129
• One BGP withdrawal triggers 6 announcements and
  one withdrawal from 2117
• Increasing ASPath length until final withdraw

35
CDF of BGP Routing Table Convergence Times
New Route Long-gtShort Fail-over
Short-gtLong Fail-Over
Failure

• Less than half of Tdown events converge within
  two minutes
• Tup/Tshort and Tdown/Tlong form equivalence
  classes
• Long tailed distribution (up to 15 minutes)

36
Impact of Delayed Convergence

• Why do we care about routing table convergence?
  It deleteriously impacts end-to-end Internet
  paths
• ICMP experiment results
• Loss of connectivity, packet loss, latency, and
  packet re-ordering for an average of 3-5 minutes
  after a fault
• Why? Routers drop packets for which they do not
  have a valid next hop. Also problems with cache
  flushing in some older routers.

37
End-to-End Impact Failover

• ICMP loss to 100 randomly chosen web sites with
  VIF source address of our probe
• Tlong/Tshort exhibit similar relationship as
  before

38
Delayed Convergence Background

• Well known that distance vector protocols exhibit
  poor convergence behaviors
• Counting to infinity, looping, bouncing problem
• RIP redefines infinity and adds split-horizon,
  poison reverse, etc.
• Still, slow convergence and not scalable
• BGP advertises ASPaths instead of distance
• Solves counting to infinity and RIP looping
  problem, but
• BGP can still explore invalid paths during
  convergence (i.e. the bouncing problem)

39
BGP Convergence Example
40
N gt 4?
AS6453
AS2497
6453 1239 5696 237
AS6113
2497 5696 237
6113 2914 237
AS6461
6461 5696 237
AS1239
1239 5696 237
AS5696
5696 237
AS2914
2914 237
AS237
237
AS701
701 6461 5696 237
AS5000
5000 237
AS1
AS1673
1 5696 237
1673 5696 237
41
MinRouteAdver Rounds

• Implementation of MinRouteAdver timer and
  receiver-side loop detection timer leads to 30
  second rounds O(n-3)30 seconds time complexity

42
An Experiment with SSF.OS.BGP4

• The Model
• Topology full mesh of N ASes, each with just 1
  router
• No route filtering
• Shortest path is best
• Advertise, Withdraw, Wait and Watch
• Wait for system to reach stable state, then
• AS 1 advertises a bogus destination to everyone
  else
• Wait for system to reach a stable state again,
  then
• AS 1 tells everyone that the bogus route is not
  reachable through it any more
• Wait for system to reach a stable state again

43
4
5
1
bogus
3
2
N 10 20 30 40 50
longest path 9 20 28 40 46
convergence time after withdrawal (sec) 150
480 720 1080 1260
avg updates due to withdrawal (range) 59.50
(35-84) 269.55 (58-397) 539.10 (118-892)
945.20 (160-1647) 1423.66 (196-2377)
44
. . . 1610.040778415 bgp_at_381 snd update to
bgp_at_21 wdsbogus 1610.040778415 bgp_at_381 snd
update to bgp_at_201 wdsbogus 1610.040778415
bgp_at_381 snd update to bgp_at_321
wdsbogus 1610.040778415 bgp_at_381 snd update
to bgp_at_441 wdsbogus 1610.040890567 bgp_at_321
snd update to bgp_at_381 nlribogus,asp32 44 34 38
4 22 2 20 48 10 26 12 6 16 36 8 14 24 28 41 18 51
21 33 45 43 35 3 5 47 23 31 37 49 25 46 39 7 27
13 9 29 11 15 17 50 19 42 40 30 1 1610.040890567
bgp_at_321 snd update to bgp_at_441
wdsbogus 1610.040907352 bgp_at_441 snd update
to bgp_at_381 wdsbogus 1610.040907352 bgp_at_441
snd update to bgp_at_341 nlribogus,asp44 38 34 32
4 22 2 20 48 10 26 12 6 16 36 8 14 24 28 41 18 51
21 33 45 43 35 3 5 47 23 31 37 49 25 46 39 7 27
13 9 29 11 15 17 50 19 42 40 30 1 1610.050930294
bgp_at_441 snd update to bgp_at_321 wdsbogus . . .
45
The Problem with BGP

• If we assume
• unbounded delay on BGP processing and propagation
• Full BGP mesh BGP peers
• Constrained shortest path first selection
  algorithm
• BGP is O(N!), where N number of default-free BGP
  speakers

There exists possible ordering of messages such
that BGP will explore all possible ASPaths of all
possible lengths
46
BGP and RIP

• RIP precisely monotonically increasing. Can
  explore metrics (1N)
• BGP monotonically increasing. Multiple (N!) ways
  to represent a path metric of N.
• BGP solved RIP routing table loop problem by
  making it exponentially worse

2117 5696 2129 2117 1 5696 2129 2117 2041 3508
3508 4540 7037 1239 5696 2129 2117 1 2041 3508
3508 4540 7037 1239 5696 2129 2117 2041 3508 3508
4540 7037 1239 6113 5696 2129 2117 1 2041 3508
3508 4540 7037 1239 6113 5696 2129
47
BGP Best Case

• What is the best we can expect from BGP?
• Implementation of MinRouteAdver timer leads to 30
  second rounds
• Time complexity is O(n-3)30 seconds
• State/Computational complexity O(n)
• At its best, BGP performs as well as RIP2 (but
  uses exponentially more memory in the process)

48
MinRouteAdver

• Minimum interval between successive updates sent
  to a peer for a given prefix
• Allow for greater efficiency/packing of updates
• Rate throttle
• Applied only to announcements (at least according
  to BGP RFC)
• Applied on (prefix destination, peer) basis, but
  implemented on (peer) basis

49
MinRouteAdver

• 30(N-3) delay due to creation mutual
  dependencies. Provide proof that N-3 rounds
  necessarily created during bounded BGP
  MinRouteAdver convergence
• Rounds due to
• Ambiguity in the BGP RFC and lack receiver loop
  detection
• Inclusion of BGP withdrawals with MinRouteAdver
  (in violation of RFC)

50
Simulation Results
51
Intuition for Delayed BGP Convergence

• There exists possible ordering of messages such
  that BGP will explore ALL possible ASPaths of ALL
  possible lengths
• BGP is O(N!), where N number of default-free BGP
  speakers in a complete graph with default policy
• Although seemingly very different protocols, BGP
  and RIP share very similar convergence behaviors.
  Major difference
• RIP explores metrics (1N)
• BGP ASPath provides multiple ways to represent
  metric (path) of length N, or (N-1)!

52
Lower Bound on BGP

• If assume optimal ordering of messages, what is
  the best we can expect from BGP?
• In practice, BGP timers (MinRouteAdver) provide
  synchronization and limit possible orderings of
  messages
• MinRouteAdver timer specifies interval between
  successive updates sent to a peer for a given
  prefix
• Useful for bundling updates together
• According to RFC, MinRouteAdver applies only
  announcements
• But, interaction of MinRouteAdver and vendor
  ASPath loop detection implementation introduce
  artificial delay

53
Conclusions

• Internet does not posses effective inter-domain
  fail-over (15 minutes is a long time for phone
  call)
• Majority of BGP convergence delay due to vendor
  implementation decisions of MinRouteAdver and
  loop detection
• In practice, Internet is not a complete graph and
  same degree of message re-ordering unlikely. Our
  current work
• What is the impact of ISP policy and topology on
  BGP convergence?
• Can we improve BGP convergence times?
