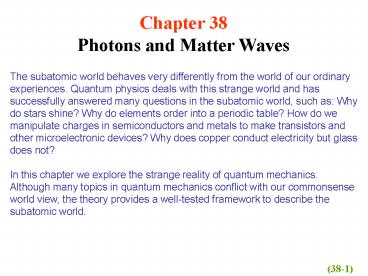

Chapter 38 Photons and Matter Waves The
subatomic world behaves very differently from the
world of our ordinary experiences. Quantum
physics deals with this strange world and has
successfully answered many questions in the
subatomic world, such as Why do stars shine? Why
do elements order into a periodic table? How do
we manipulate charges in semiconductors and
metals to make transistors and other
microelectronic devices? Why does copper conduct
electricity but glass does not? In this chapter
we explore the strange reality of quantum
mechanics. Although many topics in quantum
mechanics conflict with our commonsense world
view, the theory provides a well-tested framework
to describe the subatomic world.
(38-1)
2
38-2 The Photon, the Quantum of Light

• Quantum physics
• Study of the microscopic world
• Many physical quantities found only in certain
  minimum (elementary) amounts, or integer
  multiples of those elementary amounts
• These quantities are "quantized"
• Elementary amount associated with this quantity
  is called a "quantum" (quanta plural)
• Analogy example 1 cent or 0.01 is the quantum
  of U.S. currency.
• Electromagnetic radiation (light) is also
  quantized, with quanta called photons. This means
  that light is divided into integer number of
  elementary packets (photons).

(38-2)
3
The Photon, the Quantum of Light, cont'd
So what aspect of light is quantized? Frequency
and wavelength still can be any value and are
continuously variable, not quantized
where c is the speed of light 3x108 m/s
However, given light of a particular frequency,
the total energy of that radiation is quantized
with an elementary amount (quantum) of energy E
given by
where the Planck constant h has a value
The energy of light with frequency f must be an
integer multiple of hf. In the previous chapters
we dealt with such large quantities of light that
individual photons were not distinguishable.
Modern experiments can be performed with single
photons.
(38-3)
4
38-3 The Photoelectric Effect
When short-wavelength light illuminates a clean
metal surface, electrons are ejected from the
metal. These photoelectrons produce a
photocurrent. First Photoelectric
Experiment Photoelectrons stopped by stopping
voltage, Vstop. The kinetic energy of the most
energetic photoelectrons is
Kmax does not depend on the intensity of the
light! ? single photon ejects each electron
(38-4)
5
The Photoelectric Effect, contd
Second Photoelectric Experiment Photoelectric
effect does not occur if the frequency is below
the cutoff frequency f0, no matter how bright the
light! ? single photon with energy greater than
work function F ejects each electron
(38-5)
6
The Photoelectric Effect, contd
Photoelectric Equation The previous two
experiments can be summarized by the following
equation, which also expresses energy
conservation
Using
equation for a straight line with slope h/e and
intercept F/e
Multiplying this result by e
(38-6)
7
38-4 Photons Have Momentum
(38-7)
8
Photons Have Momentum, Compton shift
Conservation of energy
Since electrons may recoil at speeds approaching
c we must use the relativistic expression for K
where g is the Lorentz factor
Substituting K in the energy conservation equation
Conservation of momentum along x
Conservation of momentum along y
(38-8)
9
Photons Have Momentum, Compton shift contd
Want to find wavelength shift
Conservation of energy and momentum provide 3
equations for 5 unknowns (l, l, v, f, and q ),
which allows us to eliminate 2 unknowns, v and q.
l, l, and f can be readily measured in the
Compton experiment.
is the Compton wavelength and depends on 1/m of
the scattering particle.
Loose end Compton effect can be due to
scattering from electrons bound loosely to atoms
(m me? peak at q ? 0) or electrons bound
tightly to atoms (m matom gtgtme ? peak at q
0).
(38-9)
10
38-5 Light as a Probability Wave
How can light act both as a wave and as a
particle (photon)?
Standard Version Photons sent through double
slit. Photons detected (1 click at a time) more
often where the classical intensity
is maximum.
Light is not only an electromagnetic wave but
also a probability wave for detecting photons.
(38-10)
11
Light as a Probability Wave, cont'd
Single Photon Version Photons sent through
double slit one at a time. First experiment by
Taylor in 1909. 1. We cannot predict where the
photon will arrive on the screen. 2. Unless we
place detectors at the slits, which changes the
experiment (and the results), we cannot say which
slit(s) the photon went through. 3. We can
predict the probability of the photon hitting
different parts of the screen. This probability
pattern is just the two-slit interference pattern
that we discussed in Ch. 35.
The wave traveling from the source to the screen
is a probability wave, which produces a pattern
of "probability fringes" at the screen.
(38-11)
12
Light as a Probability Wave, cont'd
Single Photon, Wide-Angle Version More recent
experiments (Lai and Diels in 1992) show that
photons are not small packets of classical waves.
1. Source S contains molecules that emit photons
at well-separated times. 2. Mirrors M1 and M2
reflect light that was emitted along two distinct
paths, close to 180o apart. 3. A beam splitter
(B) reflects half and transmits half of the beam
from Path 1, and does the same with the beam from
Path 2. 4. At detector D the reflected part of
beam 2 combines (and interferes) with the
transmitted part of beam 1.
5. The detector is moved horizontally, changing
the path length difference between Paths 1 and 2.
Single photons are detected, but the rate at
which they arrive at the detector follows the
typical two-slit interference pattern. Unlike
the standard two-slit experiment, here the
photons are emitted in nearly opposite
directions! Not a small classical wavepacket!
(38-12)
13
Light as a Probability Wave, cont'd
Conclusions from the previous three
versions/experiments 1. Light is generated at
source as photons. 2. Light is absorbed at
detector as photons. 3. Light travels between
source and detector as a probability wave.
(38-13)
14
38-6 Electrons and Matter Waves
If electromagnetic waves (light) can behave like
particles (photons), can particles behave like
waves?
where p is the momentum of the particle
(38-14)
15
38-7 Schrödingers Equation
For light E(x, y, z, t) characterizes its
wavelike nature, for matter the wave function
?(x, y, z, t) characterizes its wavelike nature.
Like any wave, ?(x, y, z, t) has an amplitude and
a phase (it can be shifted in time and/or
position), which can be conveniently represented
using a complex number aib where a and b are
real numbers and i2 -1. In the situations that
we will discuss, the space and time variables can
be grouped separately
where w2pf is the angular frequency of the
matter wave.
(38-16)
16
Schrödingers Equation, contd
What does the wave function mean? If the matter
wave reaches a particle detector that is small,
the probability that a particle will be detected
there in a specified period of time is
proportional to I?2, where I? is the absolute
value (amplitude) of the wave function at the
detectors location.
Since ? is typically complex, we obtain I?2 by
multiplying ? by its complex conjugate ? . To
find ? we replace the imaginary number i in ?
with i wherever it occurs.
(38-17)
17
Schrödingers Equation, contd
How do we find (calculate) the wave function?
Matter waves are described by Schrödingers
equation. Light waves are described by Maxwells
equations, matter waves are described by
Schrödingers equation. For a particle traveling
in the x direction through a region in which
forces on the particle cause it to have a
potential energy U(x), Schrödingers equation
reduces to
where E is the total energy of the particle. If
U(x) 0, this equation describes a free
particle. In that case the total energy of the
particle is simple. Its kinetic energy is
(1/2)mv2 and the equation becomes
(38-18)
18
Schrödingers Equation, contd
In the previous equation, since lh/p, we can
replace the p/h with 1/l, which in turn is
related to the angular wave number k2p/l.
The most general solution is
Leading to
(38-19)
19
Finding the Probability Density I?2
Choose arbitrary constant B0 and let A ?0
(38-20)
20
38-8 Heisenbergs Uncertainty Principle
In the previous example, the momentum (p or k) in
the x-direction was exactly defined, but the
particles position along the x-direction was
completely unknown. This is an example of an
important principle formulated by Heisenberg
Measured values cannot be assigned to the
position r and the momentum p of a particle
simultaneously with unlimited precision.
(38-21)
21
38-9 Barrier Tunneling
As a puck slides uphill, kinetic energy K is
converted to gravitational potential energy U. If
the puck reaches the top its potential energy is
Ub. The puck can only pass over the top if its
initial mechanical energy Egt Ub. Otherwise the
puck eventually stops its climb up the left side
of the hill and slides back. For example, if Ub
20 J and E 10 J, the puck will not pass over
the hill, which acts as a potential barrier.
(38-22)
22
Barrier Tunneling, contd
What about an electron approaching an
electrostatic potential barrier?
Due to the nature of quantum mechanics, even if
Elt Ub there is a nonzero transmission probability
(transmission coefficient T) that the electron
will get through (tunnel) to the other side of
the electrostatic potential barrier!
(38-23)
23
The Scanning Tunneling Microscope (STM)
As the tip is scanned laterally across the
surface, the tip is moved up or down to keep the
tunneling current (tip to surface distance L)
constant. As a result, the tip maps out the
contours of the surface with resolution on the
scale of 1 nm instead of gt300 nm for optical
microscopes!
(38-24)
