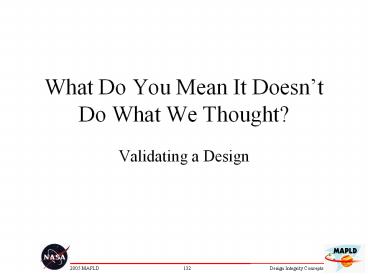

What Do You Mean It Doesnt Do What We Thought?

• Validating a Design

2
Agenda Design Validation

• Concepts and implications
• Specification mitigations
• Design mitigations
• Test set mitigation
• Summary

3
Concepts

• Validation Confirmation, through the provision
  of objective evidence, that the requirements for
  a specified intended use or application have been
  fulfilled

4
Implications

• The issues relating to validation encompass those
  of verification
• Additional concerns with validation
• Caused by the need to match the application to
  the product
• Application has been translated to specification
  through the requirements process
• Requirements process is by nature imperfect
• Sometimes the specification does not satisfy the
  needs of the application
• Result a verified product might be invalid
• May require significant rework to the product
• May require accepting reduced functionality
  (waiver)
• A goal of the development process is to minimize
  validation failures
• Begins in review of the requirements process
  (hopefully primary point)
• Mitigate by design activities
• Reduce by robust test set design

5
The Implication Illustrated

• Alice electronics (detector component and CDH
  component)
• Joint requirement process gt 10 k sustained
  events per second
• Individual requirements defined for detector and
  CDH processing
• Both met individual requirements for processing
• When combined only 6-7 k sustained events per
  second
• Verification of individual units led to invalid
  system
• What went wrong?
• The overall requirements were not broken down
  correctly
• The CDH and DE test sets were not high fidelity
• Verified functionality, not performance
• We got lucky that a waiver was acceptable

6
Specification Mitigation

• Only list requirements, not desirements
• State unambiguous performance requirements
• Build in adequate margin
• Not open-ended enhancement, but
• Enough to accommodate performance shortfalls
• Ruthlessly remove TBDs
• Insist on definite test methods for mitigation
• Remember Unless application needs can be
  unambiguously specified, they wont be met!

7
Design Mitigation

• Implement specification exactly
• Isolate various sub-sections
• Minimizes corner cases and negative
  interactions
• Allows correction with minimal impact when things
  dont work right
• Verify complex functions early, thoroughly, and
  completely
• Allows early look at potential problems
• Analysis / simulation / what ifs should be as
  realistic as possible
• Insist on end-user review of implementation
• Allows user community to comment
• Minimizes misunderstandings upon delivery
• Develop test plans that have high fidelity to the
  end application

8
Test Set Mitigation

• Ensure interfaces are maximally flight-like
• Precludes misunderstandings of characteristics
• Provides early indication of problems
• Dont emulate only one characteristic of
  interface
• Make test set reasonably sophisticated
• Sufficient complexity to reproduce operational
  timing
• Adequate functionality for stress testing
• Run all interfaces at maximum speed with margin
• Dont let the same group build the tested unit
  (design) and the unit tester (test bench)
• Identical assumptions might go into both ends of
  an interface
• Faithful reproduction is dependent on familiarity
  (if possible, test bench should be provided by
  end user)

9
Test Set Mitigation (cont.)

• Make the control interface as application like as
  possible
• Forces correct command structures / types
• Allows all test scripts to be reproduced at
  higher levels
• If at all possible, incorporate early interface
  tests of real engineering hardware
• Keep the test (or simulation) environment unless
  the flight system changes
• Dont change test equipment hardware
  configurations
• Apples to apples comparisons during tests vital
• Ensure that flight changes are reflected in test
  set design

10
Test Set Mitigation (cont.)

• Use the same controls for test set development as
  for flight unit development
• Configuration management
• Software development
• Peer reviews
• Build in diagnostics so that anomalies can be
  traced to test equipment or unit under test
• Ensure that test results mean something
• Pass / fail criteria clear
• Allowable flight parameter variations included
• Reasonable displays (with significant information
  clearly shown)
• Ensure that test set accommodates calibration

11
Summary

• Successful verification does not always guarantee
  successful validation
• Techniques can be incorporated that improve the
  likelihood that validation will succeed
• Careful specification development
• Thorough and cautious design techniques
• Extensive test set fidelity to flight
  requirements
• Effective techniques for validation are extra
  effort
• More time consuming
• More expensive
• But, definitely worth it.
