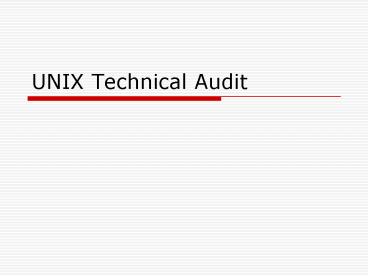

UNIX Technical Audit

1
UNIX Technical Audit
2
UNIX Architecture

• Multi-user, multi-processing system
• Kernel Primary control program
• Daemons System control processes
• Manages system resources
• Shared by multiple users
• Run with Kernel authority

3
UNIX Architecture (Cont.)

• User processes no special privileges unless
  specifically defined
• Root directory /

4
UNIX Users and Groups

• User name and password required (pay attention to
  open accounts user IDs with no passwords)
• Each user will have its own home directory
• Shell a program assigned to user
• Super-user (login name root) super user can do
  ANYTHING

5
UNIX Users and Groups (Cont.)

• Administrators should access root via su
• Maintain an audit trail to identify who become
  root (sulog)
• Establish the users audit ID which is logged
  along with their current user ID when running the
  extended audit facilities
• Force administrators to perform functions that
  could be performed in their personal accounts
• Disable root is possible but not recommended,
  but should restrict root login via Console
  only.

6
UNIX Users and Groups (Cont.)

• SVRx vs. BSD version handle group in a different
  way
• Users can only be in one group at a time
• User activities are identified by user ID rather
  than user name
• Multiple user with the same UID maybe logged in
  at the same time

7
Passwd file

• Passwd file format
• UserpwordUIDGIDGECOShomeprogram
• Passwd field should be encrypted and stored in
  shadow file) (For AIX and Solaris, Shadow is
  enabled by default, for HP-UX, shadow password is
  not enabled by default)
• All system accounts should be disabled
• Identify all Open accounts, accounts with no
  passwords
• Identify users with UID 0, root with UID
  0
• UIDlt 100 system UID 500 1000 application
• GECOS field should contain NO information

8
Passwd file (Cont.)

• Application users should not have access to shell
  (identified from program field.)

9
Shadow Password File

• Never located in the world readable /ect/passwd
  file, owned by root for read/write owner only
• Ensure no Open accounts
• Format lisax()10001000Lisa
  M./home/lisa/bin/sh

10
Password Aging and Other Password Settings

• No facility is provided in standard Unix
• Most Unix versions provide some methods
• May be vendor dependent

11
Group File

• Path etc/group
• Format /etc/group grouppwordGIDuser, user,
  user,
• Anyone knew pword can become a member of the
  group, THIS SHOULD BE KEPT DISABLED
• Only put users in groups created on site. Do not
  put individual users in groups that came with the
  system (e.g SAs put themselves into Sys group)

12
Unix Documents Sources

• System Reference Manuals
• Vendor Documentatuion
• Unix Books
• Manual Commends Format
• uname, whami, mesg, man

13
Unix Files and Directories

• Each file and directory is assigned one inode
  file type, file sizelast modify time (mtime),
  last inode modified time (ctime), etc.
• Ctime related to permission change
• Mtime related to data change
• Ctime vs. mtime Except for installation
  executables, which typically retain the vendors
  modification date, when ctime is greater than
  mtime, it probably indicates that a change was
  made to either the permissions or ownership
  fields.

14
Unix Files and Directories (cont.)

• File and Directories should avoid to start with
  certain special characters, such as space, tab,
  new line, , , \,gt,lt, ,, ?, ,
• SUID /SGID Executables
• Program will execute with the effective UID of
  the program owner instead of UID of caller
• Program will execute with the effective GID of
  the programs group instead of GID of a caller.
• List all the plain files that have wither SUID or
  SGID permission flag set
• find / \ ( -perm -4000 o perm -2000 \) \
  -type f ls

15
SUID SGID (Cont.)

• Verify that all executables are provided by a
  trusted source.
• Any changes to these executables should be
  authenticated (check mtime dates)
• Verify that no capital S or T flags exist on
  executables usually indicates bad permissions.
  (capital T will display is no x is specified S
  specified mandatory locking)
• No Group or world write permissions. Possible DoS
  attack.

16
SUID SGID (Cont.)

• Investigate any user owned executables
• Verify that all executables are binary files.
  SUID shell scripts are very dangerous. Be
  suspicious of small files or test with the file
  or type commands

17
Unix Files and Directories (Cont.)

• File write permission is not required to delete
  a file. Directory write and execute is all that
  is needed
• Be careful with wx permission at directory
  level back door issue. (delete a file, replace
  file with the same name, change owner)

18
Unix Files and Directories (Cont.)
umask, as the man page says, stands for User file
creation mask which is used for determining the
default permission for a new file creation. The
new file creation could either be a file creation
through a normal process or a file copy. umask
command is a shell built-in meaning it is an
internal command. The three file permission
attributes are read, write and execute. These 3
are mapped to octal values as shown below read
- 4write - 2execute - 1
19
Unix Files and Directories (Cont.)
In UNIX, the default file creation value is 666.
6 is 42(read write). Permission 666 means 6
for the User, 6 for the group and 6 for others.
Hence, a new file creation by default is meant to
have read and write permission for User, group
and others. And the default settings for
directories is 777. 7 is 421 (read write
execute). This is the place where the umask comes
into the picture. It is a kind of filter wherein
we can choose to retain or block some of the
default permissions from being applied on the
file. Say, the umask value is 0022. umask is by
default displayed in Octal form, and hence the
first 0 in the umask value is the indication for
octal value. So, the actual umask is 022. This
value together with the default file value(666)
decides the final permission to be given to the
file. Default 666umask 022---------------
Permission644644 is the permission to
be given on the sample file. 644 means read and
write for the User(644), read only for the
group(644) and others(644).
20
Unix Files and Directories (Cont.)

• Default File Permissions umask
• Umask 022 gtgtgt -rwxrwxr-x
• Umask 003 gtgtgt -rwxrwxr
• Umask 022 gtgtgt -rwxr-xr-x
• Umask 023 gtgtgt -rwxr-xr
• Umask 027 gtgtgt -rwxr-x--- good
• Umask 037 gtgtgt -rwxr----- better
• Umask 077 gtgtgt -rwx------ best

21
Sample umask Values and File Creation Permissions
If umask value set to User permission Group permission Others permission
000 all all all
007 all all none
027 all read / execute none
umask value Security level Effective permission (directory)
022 Permissive 755
026 Moderate 751
027 Moderate 750
077 Severe 700
22
Unix Files and Directories (cont.)

• Device Files type code b or c and located in
  /dev or devices firectory
• Important System Directories
• /etc, /bin, /usr/bin, /sbin/, /dev, /tmp, /lib,
  /usr/adm, /var/adm, /usr/ect, /var/etc, /usr/man,
  /usr/spool

23
Baseline

• A baseline is database of information about
  important system files and directories that is
  compared frequently against the existing system
  for unauthorized changes.
• Without a properly maintained baseline and
  associated change control mechanism, it is
  impossible to assure that the system has not been
  compromised.
• How change happened?
• Who made such change?
• Comparison should be performed on daily basis.

24
Permission Risk Evaluation

• System Integrity (root)
• Can be compromised if the superuser execute a
  program or script that can be modified or
  rejected by another user
• Account Integrity (e.g Oracle Database)
• Can be compromised if user executed program or
  program script can be modified or replaced by
  another user
• Data Integrity
• Data file can be modified or replaced by another
  user
• Data Confidentiality
• Data file can be read by another user

25
Shells and Processes

• Verify that the PATH does not contain a dot or
  any public directories
• Verify that all PATH directories are owned by the
  user, root or a disabled system account
• Exam alias statements for alisaes to an
  unprotected command
• Check any executed commands for proper protection

26
Processing Scheduling

• Exam Crontab file
• 1s /var/spool/cron/crontabs
• Cron.allow cron.deny files
• At.allow at.deny files
• E.g 0 2 /prod/payroll/daily.backup1
• Obtain a list of roots crontab and the crontabs
  of any other critical user
• No group or world write permissions
• No user owned executables
• If the executable is a script check the script
  for the permissions ownerships of the programs
  it executes

27
System Initialization

• The /ect/inittab file is read and processed in
  sequence order by init during initialization and
  run level changes.
• Idrrractioncommand options parameters
• /ect/rc2.d (ensure no user owned executables,
  should be all owned by root)
• Plan to exam any script that was modified or
  added since installation for the correct
  permission ownerships of the programs it
  executes.

28
Unix System Logs

• Login Logs
• /var/adm/lastlog
• /etc/utmp
• /etc/wtmp
• Su Logs
• E.g Su 12/10 0830 tty0 Lisa-root
• Syslog Daemon
• Systlog daemon records messages from many parts
  of the system.
• System log daemon will route the message it
  receives according to instructions specified in
  the /etc/syslog.conf file.

29
Unix Networking

• /etc/services assignment of service to port
  protocol is done with this file.
• The internet daemon (inetd) initiates network
  services on an as needed basis, when loaded,
  inetd will read its list of services to manage
  from /etc/inetd.conf and match these services to
  the port number in the /etc/services file.

30
Unix Networking (cont.)

• Remote Procedure Call
• Via rpcinfo command
• External Data Representation protocol
• Key control files
• /etc/hosts
• /etc/services (port protocol)
• /etc/inetd.conf (Service Daemon to start)

31
Unix Networking (cont.)

• Key Files (hosts, services, inetd)
• Verity that these files are protected and have
  not been corrupted
• Verify that each host listed in /etc/hosts has
  the correct IP address and does EXIST in the
  network
• Remove every network service listed I the
  /etc/inetd.conf that is not required, (it is
  generally acceptable to leave the services in
  /etc/services alone as this is primary a
  reference file
• Examine the system start-up scripts for network
  services and remove those that are not required.

32
Common Network Services

• Ftp Services
• HOME/ .netrc client control file for automatic
  login from the client to the named server,
  question the need fot .netrc files that contain
  passwords, even with owner-only read permission,
  they are very dangous
• Recommend creating a ftp only account by giving
  this account a program to run like /bin/false
  and then adding /bin/false to the /etc/shells
  files (make it not a valid shell), if .netrc is
  required because of the automated file transfer.
• List all users that should not be ftped to
  ftpusers file, root should be included!
• Start the daemon with the l option to log each
  login to syslog (daemon.info)

33
Common Network Services

• Ftp (cont.)
• Anonymous ftp
• Change /ftp/pub/ directory permissions to dxxx
  and then name files and directories inside pub
  to password like names that only an authorized
  user would know
• Verify that the ---/ftp/etc/passwd file does not
  contain any real users or passwords
• Isolate the ftp home to its own file system

34
Common Network Services (cont.)

• TFTP (Trival File Transfer Protocol)
• No authentication of the user, get and send
  functions only
• Verity the service is required or disabled
• Must stay in its restricted directory
• Test tftp hostname ? tftp gt get /etc/passwd
• If hangs, tftp is disabled
• Access denied, runs restricted
• Xxx bytes transferred WARNING!
• Verify tftp runs as nobody check
  /etc/inetd.conf file

35
Common Network Services (cont.)

• Smtp
• /ect/sendmail.cf sendmail control file
• /ect/aliases Mail redirection file
• HOME/ .forward User forwarding file
• Smtp socket must run as root, the risk is that
  some one can take over smtp and run as root
• Unless it is required, smtp should be disabled
• If outbound mail is all that is required, remove
  the bd options from the sendmail start-up
  command by checking system start-up script. This
  will allow outbound mail but disables the daemon
  mode.
• If daemon mode is required, verify that sendmail
  is current to all patches

36
Common Network Services (cont.)

• Remote Execution with Telnet
• Telnet client .telnetrc files can be used to
  trace all keystrokes Caution!

37
Common Network Services (cont.)

• Remote Execution with rlogin and rsh
• Be careful with concept of trusted
• Trust host
• System wide trusted user
• /etc/hosts.equiv and .rhost files
• Security Considerations
• Ban trusted users in /etc/host.equiv
• Any trusted hosts in /etc/host.equiv requires
  that user names be consistent on client and
  server and that all disabled accounts be doubly
  disabled with /dev/null
• Strongly consider banning all .rhosts files
• Strongly consider replacing rlogin rsh services
  with Open Secure Shell (sshd)

38
Common Network Services (cont.)

• rlogin rsh (cont.)
• If it is verified that a root .rhosts file is
  required, it is mandatory that trusted host(s)
  listed in the .rhosts file be INCLUDED in the
  audit because the security of the system is only
  as good as the security of the trusted host(s)

39
Common Network Services (cont.)

• Remote Execution with ssh scp
• Designed to replace the Berkeley r commands
• Prevent sniffing by encrypting the data exchange
• Assure the server contacted is the correct server
• Prevent man in the middle attack
• Restrict account activity to a specific command
  by using the forced command public key option
• Provide a secure channel using sftp
• Provide for port forwarding which allows for
  better security of normal insecure data transfers
  such as X windows, mail and others

40
Common Network Services (cont.)

• SSH (cont.)
• Protect users private key
• Using agent may create an opportunity for
  impersonating from users systems
• Disable rlogin and rcp if ssh has been
  implemented (e.g delete /etc/hosts.equiv file and
  replace with /ect/shosts.equiv file)

41
Network File Sharing (NFS)

• Control files
• Server /etc/exports or /etc/dfs/dfstab (several
  control files listing the directories and
  restrictions)
• Client /etc/fstab or /etc/vfstab or
  /etc/filesystms (client control file listing the
  directories and mount options)

42
Network File Sharing (NFS) (Cont.)

• Security Considerations
• The client must mount the directory as nosuid
  to prevent possible server attack
• Consistent network wide UIDs and GIDs
• Servers must export the directory to only
  authorized clients to prevent unauthorized mount.
  (always use access option in /etc/exports
  file
• Avoid client root access unless read-only (anon
  or root value in the server control file)
• Avoid exporting system or critical directories
  unless read-only

43
Unix Based System Comparison

• Using of restrict shell
• AIX /usr/bin/Rsh
• Solaris /usr/bin/rksh
• HP-UX /usr/bin/rksh
• Tru64 /usr/bin/Rsh
• Linux /usr/bin/bash r
• Others check manual for ksh

44
Unix Based System Comparison (Cont.)

• Access Control List
• AIX acledit myfile
• HP-UX chacl
• Tru64 setacl
• Solaris Linux setfacl

45
Unix Based System Comparison (Cont.)

• Unix System Comparison

46

• Q?
• Thank You!
