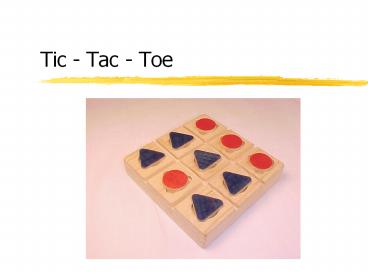

Tic - Tac - Toe

1
Tic - Tac - Toe
2
Narrative

• Objective To design and manufacture
  Tic-Tac-Toe board.
• The project will contain 2 game pieces and 1 game
  board.
• The game pieces will be 2 distinct shapes.
• Shapes are combined to form the pocket on the
  game board.

3
Shape Generation - Pieces Pocket
Piece 1
Piece 2
Combination
Pocket in Board
4
Game Board
5
Fastening Blank to Carrier
Carpet Tape
Centered Aligned on Carrier
Carrier Block
Wood Blank
6
Part Blank Mounted in Vise
7
