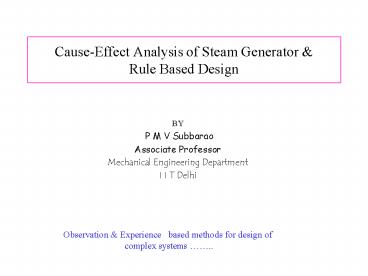

Cause-Effect Analysis of Steam Generator

1
Cause-Effect Analysis of Steam Generator Rule
Based Design

• BY
• P M V Subbarao
• Associate Professor
• Mechanical Engineering Department
• I I T Delhi

Observation Experience based methods for
design of complex systems ..
2
Cause Effect Analysis

• Combustion is a cause
• Steam Generation is an effect
• Heat transfer is a mediation.
• Combustion caused generation of flame heat in
  side furnace volume and finally produces high
  temperature gases.
• These high temperature gases will initiate
  Radiation and convection heat transfer.
• Heat Transfer carries heat to furnace wall.
• Furnace wall transfer heat to steam tubes.
• Steam tubes transfers the same to steam by means
  of Heat Conduction.
• A relatively cold exhaust leaves the furnace.
• This is final effect in the furnace!!!!!!!

3
Analysis of Primary Cause

• Combustion caused generation of flame heat in
  side furnace volume and finally produces high
  temperature gases.
• This cause can be defined as combustion in an
  adiabatic furnace.

CXHYSZOK e 4.76 (XY/4Z-K/2) AIR Moisture
in Air Ash Moisture in fuel ? P CO2 Q H2O R
SO2 T N2 U O2 V CO W C Ash
Adiabatic furnace to increase the enthalpy of
gas
4
Temperature of gasses coming out of an adiabatic
furnace is called as Adiabatic (Flame)
Temperature. Adiabatic Flame Temperature is A
primary Cause.
Furnace with absorbing walls or boiler tubes.
5
Furnace Exit Gas Temperature

• The temperature of products of combustion at the
  exit of the furnace is called FEGT.
• An important design parameter.
• Defines the ratio of furnace heat absorption to
  outside heat absorption.
• High FEGT Compact furnace Large secondary
  section
• FEGT lt Ash Deformation Temperature.
• Generally FEGT Ash Softening Temperature 100.
• General design conditions.
• FEGT lt 1100 0C Strong slag (Molten Ash).
• FEGT lt 1200 0C Moderate slag

6
General Rules for Rule based Design

• The furnace should provide the required physical
  environment and the time to complete the
  combustion of fuel.
• The furnace should have adequate radiative
  heating surfaces to cool the flue gas
  sufficiently to ensure safe operation of the
  downstream convective heating surface.
• Aerodynamics in the furnace should prevent
  impingement of flames on the water wall and
  ensure uniform distribution of heat flux on the
  water wall.
• The furnace should provide conditions favoring
  reliable natural circulation of water through
  water wall tubes.
• The configuration of the furnace should be
  compact enough to minimize the amount of steel
  and other construction material.

7
Basic Geometry of A Furnace
8
Determination of Furnace Size

• What is the boundary of a furnace?
• The boundary of a furnace is defined by
• Central plane of water wall and roof tubes
• Central lines of the first row super heater
  tubes.
• ? 30 to 50O
• ? gt 30O
• ? 50 to 55O
• E 0.8 to 1.6 m
• d 0.25 b to 0.33 b

9
Design ConstrainsHeat Release Rate

• Heat Release Rate per Unit Volume, qv, kW/m3
• Heat Release Rate per Unit Cross Sectional
  Area,qa, kW/m2
• Heat Release Rate per Unit Wall Area of the
  Burner Region, qb, kW/m2

10
Heat Release Rate per Unit Volume, qv

• The amount of heat generated by combustion of
  fuel in a unit effective volume of the furnace.
• Where, mc Design fuel consumption rate, kg/s.
• V Furnace volume, Cu. m.
• LHV Lower heating value of fuel kJ/kg.
• A proper choice of volumetric heat release rate
  ensures the critical fuel residence time.
• Fuel particles are burnt completely.
• The flue gas is cooled to the required safe
  temperature.

11
(No Transcript)
12
Heat Release Rate per Unit Cross Sectional Area,qa

• The amount of heat released per unit cross
  section of the furnace.
• Also called as Grate heat release rate.
• Agrate is the cross sectional area or grate
  area of the furnace, Sq. m.
• This indicates the temperature levels in the
  furnace.
• An increase in qa, leads to a rise in temperature
  in burner region.
• This helps in the stability of flame
• Increases the possibility of slagging.

13
A
14
Heat Release Rate per Unit Wall Area of the
Burner Region

• The burner region of the furnace is the most
  intense heat zone.
• The amount of heat released per unit water wall
  area in the burner region.
• a and b are width and depth of furnace, and Hb is
  the height of burner region.
• This represents the temperature level and heat
  flux in the burner region.
• Used to judge the general condition of the burner
  region.
• Its value depends on Fuel ignition
  characteristics, ash characteristics, firing
  method and arrangement of the burners.

15
(No Transcript)
16
Furnace Depth Height

• Depth (a) to breadth (b)ratio is an important
  parameter from both combustion and heat
  absorption standpoint.
• Following factors influence the minimum value of
  breadth.
• Capacity of the boiler
• Type of fuel
• Arrangement of burners
• Heat release rate per unit furnace area
• Capacity of each burner
• The furnace should be sufficiently high so that
  the flame does not hit the super heater tubes.
• The minimum height depends on type of coal and
  capacity of burner.
• Lower the value of height the worse the natural
  circulation.

17
(No Transcript)
18
Performance of Analysis of Furnace

• Get Fuel Ultimate Analysis.
• Compute Equivalent Chemical Formula.
• Select recommended Exhaust Gas composition.
• Carry out first law analysis to calculate
  Adiabatic Combustion Temperature.
• Total number of moles of wet exhaust gas for 100
  kg of fuel nex.gas PQRTUV
• 100 X CV of fuel Snex. Gashf,gas
• Calculate Adiabatic Flame Temperature.
• Calculate total heat transfer area of furnace,
  Afur

19
Furnace Characterization Criteria

• G Furnace quality factor
• M Temperature Field Coefficient
• Tad Theoretical combustion temperature
• Tout Furnace Exit Gas Temperature
• Afur Total surface area of furnace
• mf Flow rate of fuel

20
Furnace Exit Gas Temperature

• FEGT AST 100
• FEGT lt 1100 0C Strong slag
• FEGT lt 1200 0C Moderate slag
• FEGT lt 1250 0C -- Weak slag
• Any design procedure can be used but it should
  satisfy the requirements of FEGT.

21
Effect of Coal Quality on Furnace Size
22
Role of SG in Rankine Cycle
Using Natural resources of energy.
23
Steam Generator Super Heating Surfaces

• BY
• Dr. P M V Subbarao
• Mechanical Engineering Department
• I I T Delhi

A highly sensitive zone to recover the energy
from hot gases..
24
Super heaters

• Super heater heats the high-pressure steam from
  its saturation temperature to a higher specified
  temperature.
• Super heaters are often divided into more than
  one stage.
• Divisional Panel Super Heater.
• Platen Super Heater.
• Pendent Super Heater.
• Horizontal Super Heater.
• The enthalpy rise of steam in a given section
  should not exceed
• 250 420 kJ/kg for High pressure. gt 17 MPa
• lt 280 kJ/kg for medium pressure. 7 Mpa 17 MPa
• lt 170 kJ/kg for low pressure. lt 7 MPa

25
Thermal Balance Equation for SH
Steam in
Steam out

• Energy given out by flue gas
• Energy absorption for a SH

Gas in
Gas out
26
Mechanism of Heat Transfer Generalized Newtons
Law of Cooling

• Rate of heat transfer from hot gas to cold steam
  is proportional to
• Surface area of heat transfer
• Mean Temperature difference between Hot Gas and
  Cold Steam.

27
Thot gas,in
Thot gas,out
Tcold steam,out
Tcold steam,in
Thot gas,in
Thot gas,out
Tcold steam,out
Tcold steam,in
28
Log Mean Temperature Difference

• Rate of Heat Transfer
• U Overall Heat Transfer Coefficient, kW/m2.K

29
Thermal Structure of A Boiler Furnace
30
Platen Superheater

• Platen Superheater Flat panels of tubes located
  in the upper part of the furnace, where the gas
  temperature is high.
• The tubes of the platen SH receive very high
  radiation as well as a heavy dust burden.
• Mechanism of HT High Radiation Low convection
• Thermal Structure
• No. of platens
• No. of tubes in a platen
• Dia of a tube
• Length of a tube

31
Geometry of Thermal Structure Platen SH

• The outer diameter of platen SH is in the range
  of 32 42 mm.
• The platens are usually widely spaced, S1 500
  900 mm.
• The tubes within a platen are closely spaced,
  S2/d 1.1.
• The number of parallel tubes in a platen is in
  the range of 15 35.
• Design Problem To find out
• Length of tubes.
• Number of PSHs.
• Design Constraints Max. allowable steam flow
  rates.

32
(No Transcript)
33
Convective Superheater (Pendant)

• Convective super heaters are vertical type
  (Pendant ) or horizontal types.
• The Pendant SH is always arranged in the
  horizontal crossover duct.
• Pendant SH tubes are widely spaced due to high
  temperature and ash is soft.
• Transverse pitch S1/d gt 4.5
• Longitudinal pitch S2/d gt 3.5.
• The outside tube diameter 32 51mm
• Tube thickness 3 7mm

34
Convective Superheater (Horizontal)

• The horizontal SH are located in the back pass.
• The tubes are arranged in the in-line
  configuration.
• The outer diameter of the tube is 32 51 mm.
• The tube thickness of the tube is 3 7 mm.
• The transverse pitch S1/d 2 3.
• The longitudinal pitch S2/d 1.6 2.5.
• The tubes are arranged in multiple parallel sets.
• The desired velocity depends on the type of SH
  and operating steam pressures.
• The outside tube diameter 32 51mm
• Tube thickness 3 7mm

35
(No Transcript)
36
Thermal Balance in Super Heater.

• The energy absorbed by steam
• The convective heat lost by flue gas
• Overall Coefficient of Heat Transfer, U

Platen SH, U (W/m2 K) 120 140
Pendent SH, U (W/m2 K) 120 140
Convective SH, U (W/m2 K) 60 80
37
Reheater

• The pressure drop inside reheater tubes has an
  important adverse effect on the efficiency of
  turbine.
• Pressure drop through the reheater should be kept
  as low as possible.
• The tube diameter 42 60mm.
• The design is similar to convective superheaters.
• Overall Heat Transfer Coefficient 90 110 W/m2
  K.

38
Economizer

• The economizer preheats the feed water by
  utilizing the residual heat of the flue gas.
• It reduces the exhaust gas temperature and saves
  the fuel.
• Modern power plants use steel-tube-type
  economizers.
• Design Configuration divided into several
  sections 0.6 0.8 m gap

39
Tube Bank Arrangement
40
(No Transcript)
41
Thermal Structure of Economizer

• Out side diameter 25 38 mm.
• Tube thinckness 3 5 mm
• Transverse spacing 2.5 3.0
• Longitudinal spacing 1.5 2.0
• The water flow velocity 600 800 kg/m2 s
• The waterside resistance should not exceed 5 8
  . Of drum pressure.
• Flue gas velocity 7 13 m/s.

42
Thermal Balance in Economizer.

• The energy absorbed by steam
• The convective heat lost by flue gas
• Overall Coefficient of Heat Transfer, U

43
Air Pre-Heater

• An air pre-heater heats the combustion air where
  it is economically feasible.
• The pre-heating helps the following
• Igniting the fuel.
• Improving combustion.
• Drying the pulverized coal in pulverizer.
• Reducing the stack gas temperature and increasing
  the boiler efficiency.
• There are three types of air heaters
• Recuperative
• Rotary regenerative
• Heat pipe

44
Tubular Air Pre-Heater
45
Design Parameters

• Tubes are generally arranged in staggered
  pattern.
• Steel tubes of Dia 37 63 mm.
• Transverse pitch S1/d 1.5 1.9
• Longitudinal pitch S2/d 1.0 1.2
• The height of air chamber1.4 4.5 m.
• Gas and Air flow velocity 10 16 m/s.
• Plate Recuperators
• Instead of tube, parallel plates are used.
• The gas passage is 12 16 mm wide.
• The air passage is 12 mm wide.

46
Rotary or Regenerative Air Pre-Heater
47
Rotary Plate type Pre-Heater

• Rotates with a low speed 0.75 rpm.
• Weight 500 tons.
• This consists of rotor, sealing apparatus,
  shell etc.
• Rotor is divided into 12 or 24 sections and 12
  or 24 radial divisions.
• Each sector is divided into several trapezoidal
  sections with transverse division plates.
• Heat storage pales are placed in these sections.

48
Stationary-Plate Type Air Pre-Heater
49
Stationary-Plate Type Air Pre-Heater

• The heat storage elements are static but the
  air/gas flow section rotates.
• The storage plates are placed in the stator.

50
Design Considerations
51
Thermal Balance in Air Pre-Heater.

• The energy absorbed by air
• The convective heat lost by flue gas
• Overall Coefficient of Heat Transfer, U

52
Combustion Losses
C R losses
Hot Exhaust Gas losses
APH
Economizer
CSH
Pendent SH
Reheater
Platen SH
Furnace absorption
