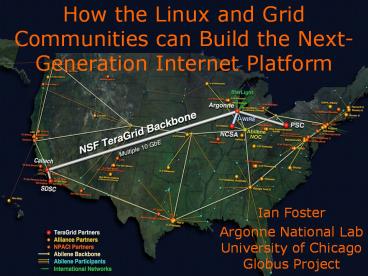

How the Linux and Grid Communities can Build the
Next-Generation Internet Platform
Ian Foster Argonne National Lab University of
ChicagoGlobus Project
2
Ottawa Linux Symposium, July 24, 2003

• Linux has gained tremendous traction as a
  server operating system. However, a variety of
  technology trends, the Grid being one, are
  converging to create a service-based future in
  which functions such as computing and storage are
  virtualized and services and resources are
  increasingly integrated within and across
  enterprises. The servers that will power this
  sort of environment will require new capabilities
  including high scalability, integrated resource
  management, and RAS. I discuss what I see as
  development priorities if Linux is to retain its
  leadership role as a server operating system.

3
The (Power) GridOn-Demand Access to Electricity
Quality, economies of scale
Time
4
By Analogy, A Computing Grid

• Decouple production and consumption
• Enable on-demand access
• Achieve economies of scale
• Enhance consumer flexibility
• Enable new devices
• On a variety of scales
• Department
• Campus
• Enterprise
• Internet

5
Requirements

• Dynamically link resources/services
• From collaborators, customers, eUtilities,
  (members of evolving virtual organization)
• Into a virtual computing system
• Dynamic, multi-faceted system spanning
  institutions and industries
• Configured to meet instantaneous needs, for
• Multi-faceted QoX for demanding workloads
• Security, performance, reliability,

6
For ExampleReal-Time Online Processing
Applications Delivery
Application Services Distribution
Servers Execution
7
Examples of Linux-Based GridsHigh Energy Physics

• Production Run on the Integration Testbed
• Simulate 1.5 million full CMS events for physics
  studies 500 sec per event on 850 MHz processor
• 2 months continuous running across 5 testbed
  sites
• Managed by a single person at the US-CMS Tier 1

8
Examples of Linux-Based GridsEarthquake
Engineering
U.Nevada Reno
www.neesgrid.org
9
Grid Technologies Community

• Grid technologies developed since mid-90s
• Product of work on resource sharing for
  scientific collaboration commercial adoption
• Open source Globus Toolkit has emerged as a de
  facto standard
• International community of contributors
• Thousands of deployments worldwide
• Commercial support providers
• Global Grid Forum serves as a community and
  standards body
• Home to recent OGSA work

10
The Emergence ofOpen Grid Standards
Increased functionality, standardization
Custom solutions
1990
1995
2000
2005
2010
11
Open Grid Services Infrastructure (OGSI)
Resource allocation
Create Service
Authentication Authorization are applied to all
requests
Grid Service Handle
Service factory
Service requestor (e.g. user application)
Service data Keep-alives Notifications Service
invocation
Service discovery
Register Service
Service registry
Service instances
Interactions standardized using WSDL and SOAP
12
Open Grid Services Architecture

Users in Problem Domain X
Applications in Problem Domain X

Application Integration Technology for Problem
Domain X

Generic Virtual Service Access and Integration
Layer

OGSA










OGSI Interface to Grid Infrastructure

Compute, Data Storage Resources




-

Distributed

Virtual Integration Architecture
13
But Its Not Turtles All the Way Down

• Our ability to deliver virtualized services
  efficiently and with desired QoX ultimately
  depends on the underlying platform!
• At multiple levels, including but not limited to
• Dynamic provisioning resource management
• Reliability, availability, manageability
• Performance and parallelism
• New demands on the OS in each area

14
(1) Dynamic Provisioning

• Static provisioning dedicates resources
• Typical of co-lo hosting
• Reprovision manually as needed
• But load is dynamic
• Must overprovision for surges
• High variable cost of capacity
• Need dynamic provisioning toachieve true
  economies of scale
• Load multiplexing
• Tradeoff cost vs. quality
• Service level agreements
• Dynamic resource recruitment

15
Load Is Dynamic

• ibm.com external site
• February 2001
• Daily fluctuations (3x)
• Workday cycle
• Weekends off

M T W Th F S S

• World Cup soccer site
• May-June 1998
• Seasonal fluctuations
• Event surges (11x)
• ita.ee.lbl.gov

Week 6 7 8
16
For ExampleEnergy-Conscious Provisioning

• Light load concentrate traffic on a minimal set
  of servers
• Step down surplus servers to low-power state
• APM and ACPI
• Activate surplus servers on demand
• Wake-On-LAN
• Browndown provision for a specified energy
  target
• Even smarter also manage air conditioning

17
Power Management via MUSEIBM Trace Run (Before)
Power draw (watts) Latency (ms50)
Throughput (requests/s)
1 ms
MUSE Jeff Chase et al., Duke University (SOSP
2003)
18
Power Management via MUSEIBM Trace Run (After)
1 ms
MUSE Jeff Chase et al., Duke University (SOSP
2003)
19
Dynamic Provisioning OS Issues

• Hot plug memory, CPU, and I/O
• For partitioning, core virtualization
  capabilities
• Security
• Containment data integrity in a virtualized
  environment user-mode Linux?
• Scheduler improvements for resource and workload
  management
• Allocate for required resource consumption
• Dynamic, sub processor logical partitioning
• Improved instrumentation accounting
• Determine actual resource consumption

20
(2) Reliability, Availability, Manageablity

• Error log and diagnostics frameworks
• Foundation for automated error analysis and
  recovery of distributed remote systems
• Enable problem determination, automated
  reconfiguration, localization of failure
• Configuration management
• Determine hardware configuration/inventory
• Apply/remove service/support patches
• Isolate failing components quickly

21
(3) Performance and ParallelismE.g., Data
Integration

• Assume
• Remote data at 1 GB/s
• 10 local bytes per remote
• 100 operations per byte

gt1 GByte/s achievable today (FAST, 7 streams,
LA?Geneva)
Local Network
Parallel computation 1000 Gop/s
Remote data
Wide area link (end-to-end switched lambda?) 1
GB/s
Parallel I/O 10 GB/s
22
Performance and Parallelism

• Distributed/cluster/parallel file systems
• Optimized TCP/IP stacks
• Scheduling of computation communication
• Web100 configuration instrumentation

23
Web100 Overcome TCP/IP Wizard Gap
24
Web100 Kernel Instrument Set

• Definition
• Set of instruments designed to collect as much of
  the information as possible to enable a user to
  isolate the performance problems of a TCP
  connection
• How it is implemented
• Each instrument is a variable in a "stats"
  structure that is linked through the kernel
  socket structure
• Linux /proc interface is used to expose these
  instruments outside the kernel

25
For Example

• Recent transAtlantic transfer showed frequent
  drops in data rate
• But no loss or retransmit
• Web100 identified problem as Linux send stall
  congestion events

26
Grid/Linux CooperationWe Have Testbeds, Users,
Applications
27
Evolution of the Server
Increased Flexibility (and Complexity)
Significant implications for the underlying
operating system
Time
28
Summary

• The Grid community is creating middlewarefor
  distributed resource service sharing
• Open source software for resource service
  virtualization, service management/integration
• Motivated by wonderful applications
• But we need help from the OS
• Linux the next-generation Internet platform?
• Could be but significant evolution is required
  to address provisioning/resource management
  availability, manageability performance and
  parallelism and other issues
• Grid community can provide testbeds, users,
  requirements, applications

29
For More Information

• The Globus Project
• www.globus.org
• Global Grid Forum
• www.ggf.org
• Background information
• www.mcs.anl.gov/foster
• GlobusWORLD 2004
• www.globusworld.org
• Jan 2023, San Fran
