The Change in Technology in Psychology

1

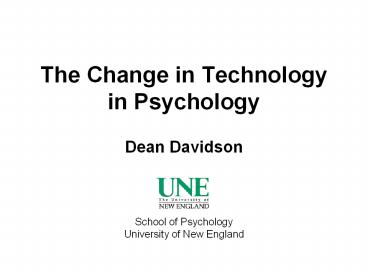

The Change in Technology in Psychology

• Dean DavidsonSchool of PsychologyUniversity
  of New England

2
Types of Experiments

• Perception
• Physiological
• Brain function (Cognition)
• Behaviour

3
Perception

• Stroop BLUE
• Muller Lyer

4
Physiological Experiments
Signal Amplifier
Processor
Recorder
5
Physiological Experiments
KymographEarly (1900s) mechanical recording
equipment
6
Physiological Experiments
GSR AmplifierValve based, 1950s
7
Physiological Experiments
Grass Recorder Transistor based 1970s Combined
amplifier, processor and Recorder in the one unit
8
Physiological Experiments
Biopac Transistor IC based 1990s Amplifiers
feeding into an ADC and processor. Outputted as
data files to a PC for processing and display
9
Physiological Experiments
Stress-O-Meter Silicon Chip 1998 - IC
based Dumb hardware given intelligence by a
program running on a PC. Analysis and results
display using Excel or SPSS
10
Rat Experiments
Control Panel (1960s) Transistors and logic
blocks
11
Rat Experiments
Control Panel (1970s) Transistors and ICs
12
Rat Experiments
Serial Interface (1980s) Provides computer
control of experiment. Serial interface was used
as it provided signals both to and from the
computer. The computer was either a PDP 11 or PC
13
Rat Experiments
Activity box (current). Signals are sent to and
from the box using a digital I/O card, available
in kit form
14
Rat Experiments
Sniffy the Rat Computer simulation used to
model rat behaviour.
15
Hardware to Software
CardmasterUsed for displaying images for a short
amount of time
Jpeg images are now displayed on computer screen
and reaction times are measured directly from a
press of a key on the computer keyboard, or via a
push button box and interface to the PC parallel
port
16
Hardware to Software
Chronoscope -Displayed reaction times
Timer -Turned apparatus on/off for a specified
time
Now all timing is done by computer programs
17
Hardware to Software
Spinning Disks
Now a sequence of images, rotated by 1 degree or
so. These are sequentially displayed on the
computer screen
18
Hardware to Software
Tachistoscope Displayed images for very small
amounts of time
Now done using CRT displays. Limitation is screen
refresh rate. 10mS is the minimum
19
Hardware to Software
Muller-Lyer Apparatus Wooden frame with pulleys
and cords. The illusion is presented on white
cards
Now easily done on the PC
20
Hardware to Software
Voice Operated RelayUsed to measure reaction
times by the subject speaking
Now, using a sound card on a PC, not only can the
reaction time be measured, but also the subjects
response can be recorded
21
1930
1 Logic Circuit (with external discrete
components)
80mm
10 µS
6SN7 Valve
22
1940
1 Logic Circuit (with external discrete
components)
50mm
1 µS
6J6 Valve
23
1950
2 Logic Circuits
150mm
10 µS
Transistor Logic Card
24
1960
2 Logic Circuits
50mm
1 µS
Potted Transistor Logic
25
1970
4 Logic Circuits
20mm
100 nS
7400 Integrated Circuit
26
1980
100,000 Logic Circuits
50mm
250 nS
Zilog Z80 Microcomputer Chip
27
1990
1,000,000 Logic Circuits
30mm
20 nS
Intel 386DX Microcomputer Chip
28
Stress O Meter
29
Voice Operated Relay
30
Staffing 1990

• Professional Officer -Technical coordination,
  PDP11 operations
• Technical Officer - Animal house, Audio
  Visual, Presentation Graphics
• Technical Officer - Electronics and
  Computing
• Technical Officer - Electronics and
  Mechanical

31
Staffing present

• CSO -Technical coordination, Computer
  programming, Computer Support
• Senior TO - Audio Visual,
  Presentation Graphics Computer Support
• Technical Officer - Computer Support (Part time)

32
How do we survive?

• We outsource some of our Computer support and any
  electronic/mechanical construction.
• No electronic design has been needed in the last
  four years. We either buy ready made products or
  build up interfaces from kits.
• All of us are capable of carrying out trivial
  tasks such as soldering, cable manufacture, etc.

33
Future Trends

• Behavioural Genetics
• Brain function mapping
• Web based programs

34
Ongoing Technical Support in Psychology

• Large Animal Houses will always need
  technicians/lab assistants.
• Experiment generator programs cant do
  everything.
• And of course, there remains the need for
  someone to arrange outsourcing both for new
  projects and breakdowns, or even changing the
  laser printer toner cartridge.

35
Future Trends

• Less requirement for manual trades.
• Greater need for computer training
• Greater need for understanding the discipline
• Greater need for interpersonal and team skills
• More interesting and varied work

36
