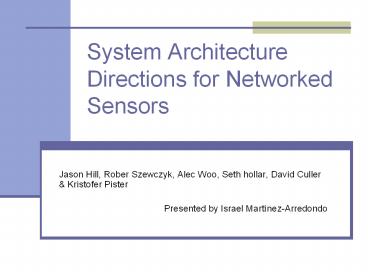

System Architecture Directions for Networked
Sensors

• Jason Hill, Rober Szewczyk, Alec Woo, Seth
  hollar, David Culler Kristofer Pister
• Presented by Israel Martínez-Arredondo

2
Outline

• Networked Sensor Characteristics
• Hardware Organization
• Tiny Microthreading Operating System (TinyOS)
• TinyOS Design
• Components
• Evaluation

3
Networked Sensor Characteristics

• Small Physical size and low power consumption
• Concurrency-intensive Operation
• Limited Physical Parallelism and Controller
  Hierarchy
• Diversity in Desing and Usage
• Robust Operation

4
Hardware Organization

• Three sleep modes (idle, power down power save)
• Three LEDs to represent outputs
• Photo-sensor
• Radio
• Temperature Sensor
• Serial Port

5
Tiny Microthreading OS (TinyOS)

• Requirements (small physical size, modest active
  power load tiny inactive load)
• Two-level scheduling structure
• High levels of concurrency

6
Tiny OS Design

• Tiny Scheduler
• Components
• Frame
• Tasks
• Event Handlers
• Command Handlers

7
Component Types

• Hardware Abstractions
• Synthetic Hardware
• High Level Software Components ?

8
High Level Software Components
9
Putting it All Together
10
Evaluation

• Small Physical Size
• Concurrency-Intensive Operations
• Efficient Modularity
• Limited Physical Parallelism and Controller
  Hierarchy
• Diversity in Usage and Robust Operation

11
Small Physical Size
12
Concurrency-Intensive Operations
13
Efficient Modularity
14
Evaluation (Contd)

• Limited Physical Parallelism and Controller
  Hierarchy
• Diversity in Usage and Robust Operation

15
Discussion

• What are potential avenues for further work and
  improvements?
• RFIDs
• Characteristics
• Usage
• Downside

16
