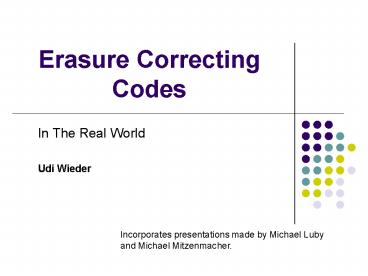

Erasure Correcting Codes

1
Erasure Correcting Codes

• In The Real World
• Udi Wieder

Incorporates presentations made by Michael Luby
and Michael Mitzenmacher.
2
Based On..

• Practical Loss-Resilient Codes
• Michael Luby, Amin Shokrollahi, Dan Spielman,
  Bolker Stemann
• STOC 97
• Analysis of Random Processes Using And-Or Tree
  Evolution
• Michael Luby, Amin Shokrollahi
• SODA 98
• LT Codes
• Michael Luby
• STOC 2002
• Online Codes
• Petar Maymounkov

3
Probabilistic Channels
1-p
1-p
0
0
0
0
p
p
?
p
p
1
1
1
1
1-p
1-p
The binary erasure channel
The binary symmetric channel
4
Erasure Codes
Content
n
Encoding
Encoding
cn
Transmission
Received
n
Decoding
Content
n
5
Performance Measures

• Time Overhead
• The time to encode and decode expressed as a
  multiple of the encoding length.
• Reception Efficiency
• Ratio of packets in message to packets needed to
  decode. Optimal is 1.

6
Known Codes

• Random Linear Codes (Elias)
• A linear code of minimum distance d is capable of
  correcting any pattern of d-1 or less erasures.
• Achieves capacity of the channel with high
  probability, i.e. can be used to transmit over
  erasure channel at any rate Rlt1-p.
• Decoding time O(n3). Unacceptable.
• Reed-Solomon Codes
• Optimal reception efficiency with probability 1.
• Decoding and Encoding in Quadratic time. (About
  one minute to encode 1MB).

7
Tornado Codes
Practical Loss-Resilient Codes Michael Luby, Amin
Shokrollahi, Dan Spielman, Bolker Stemann
(1997) Analysis of Random Processes Using And-Or
Tree Evolution Michael Luby, Amin Shokrollahi
(1998)
8
Low Density Parity Check Codes

• Introduced in the early 60s by Gallager and were
  reinvented many times.

Check bits
Message bits
a b c d e f
g h i j k l
The time to encode is proportional to the number
of edges.
9
Encoding Process.
Standard Loss-Resilient Code.
Bipartite Graph
Bipartite Graph
Length of message k
Check bits
Rate 1-?
10
Decoding Rule

• Given the value of a check bit and all but one of
  the message bits on which it depends, set the
  missing message bit to be the XOR of the check
  bit and its known message bits.
• XOR the message bit with all its neighbors.
• Delete from the graph the message bit and all
  edges to which it belongs.
• Decoding ends (successfully) when all edges are
  deleted.

11
Decoding Process
a
?
c
d
?
f
?
?
12
Decoding Process
?
?
?
?
13
Regular Graphs
Random Permutation of the Edges
Degree 3
Degree 6
14
3-6 Regular Graph Analysis
left
left
right
Pr not recovered ? (1-(1-x)5)2
Pr all recovered (1-x)5
x Pr not recovered
15
Decoding to Completion (sketch)

• Most message bits are roots of trees.
• Concentration results (edge exposure martingale)
  proves that all but a small fraction of message
  bits are decoded with high probability.
• The remaining bits are decoded do to expansion.
  (Original graph is a good expander on small
  sets).
• If a set of size s and average degree a has more
  than as/2 neighbors then a unique neighbor exists
  and decoding continues.

16
Efficiency
Encoding time (sec), 1k packets Encoding time (sec), 1k packets Encoding time (sec), 1k packets
size Reed-Solomon Tornado
250k 4.6 0.06
500k 19 0.12
1 MB 93 0.26
2 MB 442 0.53
4 MB 1717 1.06
9 MB 6994 2.13
16 MB 30802 4.33
Decoding time (sec), 1k packets Decoding time (sec), 1k packets Decoding time (sec), 1k packets
size Reed-Solomon Tornado
250k 2.06 0.06
500k 8.4 0.09
1 MB 40.5 0.14
2 MB 199 0.19
4 MB 800 0.40
9 MB 3166 0.87
16 MB 13829 1.75
Rate 0.5 Erasure probability
0.5 Implementation ?
17
LT Codes
LT Codes Michael Luby (2002)
18
Rateless Codes

• A different model of transmition.
• Sender sends an infinite sequence of encoding
  symbols.
• Time complexity Average time for encoding a
  symbol.
• Erasures are independent of content.
• Receiver may decode when received enough symbols.
• Reception efficiency.
• Digital Fountain approach.

19
Applications

• Unreliable Channels.
• In Tornado codes small rate implies big graphs
  and therefore a lot of memory (proportional to
  the size of the encoding).
• Multi-source download.
• Downloading from different servers requires no
  coordination.
• Efficient exchange of data between users requires
  small rate of the source.
• Multi-cast without feedback (say over the
  internet).
• Rateless codes are the natural notion.

20
Trivial Examples - Repetition

• Each time unit send a random symbol of the code.
• Advantage Encoding complexity O(1).
• Disadvantage Need k k ln(k/?) code symbols to
  cover all k content symbols with failure
  probability at most ?.Example
• k 100,000, ? 10-6Reception overhead
  2400 (terrible)

21
Trivial Examples Reed Solomon

• Each time unit send an evaluation of the
  polynomial on a random point.
• Advantage Decoding possible when k symbols
  received.
• Disadvantage Large time complexity for encoding
  and decoding.

22
Parameters of LT Codes

• Encoding time complexity O(ln n) per symbol.
• Decoding time complexity O(n ln n).
• Reception efficiency Asymptotically zero (unlike
  Tornado codes).
• Failure probability very small (smaller than
  Tornado).

23
LT encoding
Content
Choose 2 random content symbols
2
XOR content symbols
24
LT encoding
Content
Choose 1 random content symbol
1
Copy content symbol
25
LT encoding
Content
Choose 4 random content symbols
4
XOR content symbols
26
LT encoding properties

• Encoding symbols generated independently of each
  other
• Any number of encoding symbols can be generated
  on the fly
• Reception overhead independent of loss patterns
• The success of the decoding process depends only
  on the degree distribution of received encoding
  symbols.
• The degree distribution on received encoding
  symbols is the same as the degree distribution on
  generated encoding symbols.

27
LT decoding
Content (unknown)

1. Collect enough encoding symbols and set up graph
   between encoding symbols and content symbols to
   be recovered

1. Collect enough encoding symbols and set up graph
   between encoding symbols and content symbols to
   be recovered

1. Identify encoding symbol of degree 1. STOP if
   none exists.

1. Identify encoding symbol of degree 1. STOP if
   none exists.

3. Copy value of encoding symbol into unique
neighbor, XOR value of newly recovered content
symbol into encoding symbol neighbors and delete
edges emanating from content symbol.
3. Copy value of encoding symbol into unique
neighbor, XOR value of newly recovered content
symbol into encoding symbol neighbors and delete
edges emanating from content symbol.
4. Go to Step 2.
4. Go to Step 2.
28
Releasing an encoding symbol
xth recovered content symbol releases encoding
symbol
x
x-1
x-1 recovered content symbols
k-x unrecovered content symbols
content symbol can be recovered by encoding
symbol
i-2
encoding symbol of degree i
29
The Ripple

• Definition At each decoding step, the ripple is
  the set of encoding symbols that have been
  released at any previous decoding step but their
  one remaining content symbol has not yet been
  recovered.

x
x recovered content symbols
k-x unrecovered content symbols
collision
encoding symbols in the ripple
30
Successful Decoding

• Decoding succeeds iff the ripple never becomes
  empty
• Ripple small
• Small chance of encoding symbol collisions ?
  small reception overhead
• Risk of ripple becoming empty due to random
  fluctuations is large
• Ripple large
• Large chance of encoding symbol collisions ?
  large reception overhead
• Risk of ripple becoming empty due to random
  fluctuations is small

31
LT codes idea

• Control the release of encoding symbols over the
  entire decoding process so that ripple is never
  empty but never too large
• Very few encoding symbol collisions
• Very little reception overhead

32
Release probability

• Definition Release probability for degree i
  encoding symbols at decoding step x is q(i,x).
• Proposition
• For i 1 q(i,x) 1 for x 0, q(i,x) 0 for
  all x gt 1
• For i gt 1 for x i -1, , k-1,

33
Release probability
xth recovered content symbol releases encoding
symbol
x
x-1
x-1 recovered content symbols
k-x unrecovered content symbols
content symbol can be recovered by encoding
symbol
i-2
encoding symbol is released at decoding step x
34
Release distributions for specific degrees
i 2
i 3
i 4
i 10
i 20
k 1000
35
Overall release probability

• Definition At each decoding step x, r(x) is the
  overall probability that an encoding symbol is
  released at decoding step x with respect to
  specific degree distribution p()
• Proposition

36
Uniform release question

• Question Is there a degree distribution such
  that the overall release distribution is uniform
  over x?
• Why interesting?
• One encoding symbol released for each content
  symbol decoded
• Ripple will tend to stay small ? minimize
  reception overhead
• Ripple will tend not to become empty ? decoding
  will succeed

37
Uniform release answer YES!

• Ideal Soliton Distribution

38
Ideal Soliton Distribution
k 1000
39
A simple way to choose from Ideal SD
Choose A uniformly from the interval 0,1) If
then degree Else degree 1.
4
5
6
1/k
2
3
Degree
0
1/6
1/4
1/3
1/2
1
Value of A
1/k
1/5
40
Ideal SD theorem

• Ideal SD Theorem The overall release
  distribution is exactly uniform, i.e., r(x) 1/k
  for all x 0,,k-1.

41
Overall release distribution for Ideal SD
Release Distribution
k 1000
42
In expected value

• Optimal recovery with respect to Ideal SD
• Receive exactly k encoding symbols
• Exactly one encoding symbol released before any
  decoding steps, recovers one content symbol
• At each decoding step a content symbol is
  recovered, it releases exactly one new encoding
  symbol, which in turn recovers exactly one more
  content symbol
• Ripple size always exactly 1
• Performance Analysis
• No reception overhead
• Average degree

43
When taking into account random fluctuations

• Ideal Soliton Distribution fails miserably
• Expected behavior not equal to actual behavior
  because of variance
• Ripple very likely to become empty
• Fails with very very high probability (even with
  high reception overhead)

44
Robust Soliton Distribution design

• Need to ensure that the ripple never empties
• At the beginning of the decoding process
• ISD ripple is not large enough to withstand
  random fluctuations
• RSD boost p(1)c/ sqrtk so that expected
  ripple size at beginning is c sqrtk
• At the end of the decoding process
• ISD expected rate of adding to the ripple not
  large enough to compensate for collisions towards
  the end of the decoding process when ripple is
  large relative to the number of unrecovered
  content symbols
• RSD boost p(i) for higher degrees i so that
  expected ripple growth at the end of the decoding
  process is higher

45
LT Codes Bottom line

• Using the Robust Soliton Distribution
• Number of symbols needed to recover the data with
  probability ? is
• The average degree of an encoding symbol is

46
Online Codes
We are out of time

• Online Codes
• Petar Maymounkov
