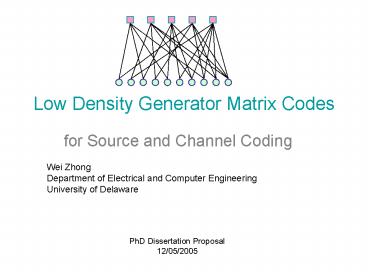

Low Density Generator Matrix Codes

• for Source and Channel Coding

Wei Zhong Department of Electrical and Computer
Engineering University of Delaware
PhD Dissertation Proposal 12/05/2005
2
The Communication Problem
Source 1
Destination
Communication Channel
Source 2
Source coding
Channel coding
Joint-Source-Channel Coding

• The communication channel can be described as
  P(xy)
• At source, source coding and channel coding
• At destination, source decoding and channel
  decoding
• Divide-and-conquer leads to optimum ???

3
Outline and Contributions

• LDGM codes for channel coding
• Comparable to the state-of-the-art
• Serial and parallel structure
• Code optimization
• LDGM codes for distributed source coding (of
  multiple sources) when noisy/noiseless channel is
  present
• Hidden Markov Model correlated sources
• Independent channels
• Multi-Access channel
• Future work

4
Publications

• Journal publication
• Channel coding J. Garcia-Frias and W. Zhong,
  Approaching Near Shannon Performance by
  Iterative Decoding of Linear Codes with
  Low-Density Generator Matrix, IEEE
  Communications Letters, vol. 7, no. 6,
  pp.266-268, June 2003.
• Source coding J. Garcia-Frias and W. Zhong,
  LDPC Codes for Compression of Multi-Terminal
  Sources with Hidden Markov Correlation, IEEE
  Communications Letters, vol. 7, pp. 115-117,
  March 2003.
• Joint-Source-Channel coding over independent
  channels W. Zhong and J. Garcia-Frias, LDGM
  Codes for Channel Coding and Joint-Source-Channel
  Coding of Correlated Sources, EURASIP Journal on
  Applied Signal Processing, vol. 6, pp. 942-953,
  2005.
• Joint-Source-Channel coding over multiple-access
  channel Y. Zhao, W. Zhong, and J. Garcia-Frias,
  Transmission of Correlated Senders over a
  Rayleigh Fading Multiple Access Channel, to
  appear in EURASIP Journal on Applied Signal
  Processing special issue on distributed coding,
  2006.

5
Channel Coding
6
Review Linear Block Codes

• An (n,k) linear block code is determined by
• Length of information message k
• Length of codeword message n
• Generator matrix G
• Parity-check matrix H

7
Review Linear Block Codes

• Let uu1 u2uk be the information message

• Encoding
• Codeword c uG u1u2ukG, where G is the
  generator matrix
• Channel
• ccn, where n is the channel noise

• Decoding
• scH, where
• s is the syndrome
• H is the parity-check matrix
• If s is the all zero vector, claim no error
• Otherwise, claim error and try to correct

8
Review Low Density Parity-Check codes (LDPC
codes)

• LDPC codes are linear block codes with long block
  lengths and special structure in its parity-check
  matrix H, which is
• low density
• short-cycle free
• With above features, iterative decoding can be
  applied to get good performance.

9
Review Low Density Parity-Check codes (LDPC
codes)

• Application of iterative decoding in channel
  coding
• Gallagers thesis on the topic of LDPC codes
  (1963)
• Turbo codes (1993)
• Iterative decoding is actually an instance of
  Pearls Belief Propagation Algorithm.

10
Review Low Density Parity-Check codes (LDPC
codes)

• Bipartite graph with connections defined by
  matrix H
• c variable nodes
• corrupted codeword
• s check nodes
• Syndrome, must be all zero for the decoder to
  claim no error

• Given the syndromes and the statistics of v, the
  LDPC decoder solves the equation
• cHTs
• in an iterative manner.

11
Review Low Density Parity-Check codes (LDPC
codes)

• Performance of LDPC codes is VERY good
• For AWGN and block lengths of 106, an LDPC code
  approaching capacity within 0.06 dB has been
  obtained (Richardson, Urbanke, Chung)
• Decoding complexity is linear with time O(n)
• Encoding complexity is substantial
• Encoding requires O(n2) (computation and storage)

12
Low Density Generator Matrix Codes (LDGM Codes)

• Goal To design a coding scheme with O(n)
  complexity for both encoding and decoding
• Question Can we use low density Generator Matrix
  to achieve near-Shannon performance?

13
Low Density Generator Matrix Codes (LDGM Codes)

• Systematic linear block codes with low-density
  generator matrix GI P
• uu1...uk systematic bits
• c uP parity bits
• LDGM codes are LDPC codes, since HPT I is also
  sparse
• Decoding can be performed in the same way as LDPC
  codes or using matrix G (intuitive for source and
  joint source-channel coding)

• Given the syndromes and the statistics of u, the
  LDGM decoder solves the equation
• uPc
• in an iterative manner.

14
Previous works

• LDPC
• Gallager (1963) Original
• MacKay (1995) Re-discovery
• LDGM
• M. Luby (2001) Erasure correction
• R. McEliece (1996), L. Ping (1998), J. Moon
  (2001) High-rate application

15
Low Density Generator Matrix Codes (LDGM Codes)

• Low Density Generator Matrix code has linear time
  complexity O(n) in both encoding and decoding
• How is the performance?

16
Low Density Generator Matrix codes

• As noticed by MacKay, LDGM codes are
  asymptotically bad (error floor does not decrease
  with the block length)
• Solution Concatenated scheme (serial and
  parallel)

17
Density Evolution Algorithm

• Originated for channel coding using LDPC codes
• Assume infinite block size
• Tracks the asymptotic behavior of the iterative
  decoder
• Objective Find the threshold of the code
  systematically instead of running extensive
  simulations
• For LDGM codes, both threshold and error floor
  can be predicted by DE.

18
Density Evolution Algorithm for LDGM

• Originally designed for LDPC codes
• Modified DE for LDGM
• Variable node
• Parity node
• Difference from LDPC is the existence of channel
  message for parity nodes

19
Density Evolution Algorithm, Single Code, BSC

• DE predictions match well simulation results
  (threshold and error floor)

20
Concatenated LDGM Codes for Channel Coding
For BER10-5, resulting performance is .8 dB from
theoretical limit, comparable to state-of-the-art
coding schemes such as Turbo codes or irregular
LDPC codes
21
Density Evolution Algorithm, Serial Concatenated
Code

• Trade-off between convergence threshold and error
  floor

22
Performance of Concatenated LDGM Codes in Channel
Coding

• Performance very close to the theoretical limits

• Within 0.8 dB for AWGN
• Within 0.6 dB for BSC
• Within 1.3 dB for ergodic Rayleigh fading with
  channel side information at the receiver

23
Parallel Concatenated LDGM codes

• Encoding diagram

k/(km)
k info bits
Encoder1
Overall rate k/(kmn)
k/(kn)
Encoder2

• Encoder1 uses the generator matrix G1I P1
• Encoder2 uses the generator matrix G2I P2
• The whole code can be considered as a single
  irregular code with Gwhole I P1 P2
• Intuitive design using parallel framework
• 2nd encoder reduces error floor left by the 1st
  one

24
Parallel Concatenated LDGM Codes

• Decoding exactly the same as single code

Cn2
Cm1
Ul
c1 represent the coded bits generated at the
first constituent encoder
c2 represent the coded bits generated at the
second constituent encoder
Ul represent the nodes corresponding to the
systematic bits
25
DE Results for Parallel Concatenated LDGM, AWGN

• Goal To find scheme that achieves desired
  trade-off between threshold and error floor

• Error floor mostly dependent on high-rate code,
  and always improves with the degree of that code
• For low degrees in low-rate code, threshold
  degrades with the degree of high rate code
• For high degree in low-rate code, threshold
  almost independent of high-rate code

26
Density Evolution Algorithm, Parallel
Concatenated Code
27
Conclusion

• LDGM codes for channel coding
• Very good performance with relatively lower
  complexity
• Serial and parallel design
• Performance analysis using density evolution
• Code optimization

28
Source Coding
Joint-Source-Channel Coding over Independent
Channels
29
Correlated Sources Problem of Interest
Application of turbo-like codes to achieve a
performance close to theoretical limits for

• Source coding (compression)

• Joint source-channel coding (compressible
  sequence transmitted through noisy channel)
• of single and correlated sources

30
Correlated Sources Practical Applications
Sensor networks Several sensors in a given
environment receiving correlated information.
Sensors have very low complexity, do not
communicate with each other, and send information
to processing unit

• Use of turbo-like codes (LDGM codes) to exploit
  the correlation, so that transmitted energy
  necessary to achieve a given performance is
  reduced
• Data compression
• Joint source-channel coding

31
Previous works

• Distributed source coding
• Garcia-Frias (2001) turbo codes
• Xiong (2002) LDPC codes
• Joint-Source-Channel Coding
• Garcia-Frias (2001) turbo codes

32
Joint Source-Channel Coding of Correlated
Sources General Problem

• Two correlated sources U1,U2p(U1,U2)
• Ri Information rate for system i

R1
source 1
channel 1
encoder 1
decoder
R2
source 2
channel 2
encoder 2

• General framework, including single source as a
  particular case

• Noiseless channel?Source coding (compression)
• Noisy channel?Joint source-channel coding
• Features
• Sources S1 and S2 do not communicate with each
  other
• Correlation parameters unknown at the encoders
  Simple encoders
• In many occasions correlation model can be
  estimated in the decoding process Complexity in
  the decoding process

33
Joint Source-Channel Coding of Correlated
Sources Theoretical Limits
Source coding Slepian-Wolf achievable region
Joint source-channel coding Separation principle
applies RiltC?Eb/Nolimit (Barros 2002)

• Why joint source-channel coding?
• Encoder much simpler. Similar complexity at the
  decoder site
• Separated scheme can present error propagation
  between source and channel decoder

34
Joint Source-Channel Coding of Correlated
Sources Rationale of Turbo-Like Codes

• Turbo-like codesRandom-like codes Theoretical
  limit (in both source and channel coding)
  achieved by random coding
• Cover and Thomas
• Turbo-like codes perfectly suited to exploit any
  type of side information Compression of
  correlated sources as a problem of channel coding
  with side information
• Wyner
• Shamai and Verdu

35
Source Coding of Correlated Sources Equivalent
Model as Channel Coding with Side Information

• XS Source 1 ? Systematic bits
• Cx Compressed version ? Coded bits (noiseless)
• YhXs?e Source 2 ? Corrupted systematic bits

36
LDGM Codes for Source Coding of Correlated
Sources Correlation Model

• U2 U1 e, e correlation vector
• Assumption Source U2 is perfectly known at the
  decoder ? same problem as channel coding, where e
  is the error vector
• Correlation/error vector e can be
• Binary Symmetric Channel, BSC (no memory)
• Hidden Markov Model, HMM (with memory)

37
LDGM Codes for Correlated Sources Encoder

• Each source independently encoded using a
  different LDGM code
• Information (compression) rate achieved by
  choosing the number of parity bits

Source coding (data compression)

• Concatenation not necessary

Joint source-channel coding

• Concatenation required to reduce the error floor

38
LDGM Codes for Source Coding of Correlated
Sources Decoder

• Belief propagation over the graph representing
  the whole system
• INTUITIVE IDEA In each iteration, modify the a
  priori probability of the bit nodes depending on
  the information proceeding from the other source

Correlation model
39
LDGM Codes for Joint Source-Channel Coding of
Correlated Sources Decoder

• Concatenation necessary to decrease the error
  floor
• Different scheduling possibilities lead to
  similar performance

40
LDGM Codes for Joint Source-Channel Coding of
Correlated Sources Decoder

• Schedule I (Flooding)u1,c1,in,c1,out,u2,c2,in,c2
  ,out
• Schedule IIu1,c1,in,c1,out,c1,in,c1,out,u1,u
  2,c2,in,c2,out,c2,in,c2,out,u2
• Schedule IIIu1,c1,in,c1,out,u1,u2,c2,in,c2,out,u2

• Schedule IVu1,c1,in,u1,c1,out,u1,u2,c2,in,u2,c2,o
  ut,u2
• Schedule Vc1,out,c2,out,u1,c1,in,u2,c2,in,u1,
  c1,out,u1,c1,outu2,c2,out,u2,c2,out

41
Simulation Results for Source Coding Correlation
Defined by HMMs

• Source 1 i.i.d. binary sequence P(0)P(1)1/2
• U2 U1 ? e, e correlation vector
• Correlation vector e Hidden Markov Model (with
  memory)

• A(aij), aij probability of transition from
  state i to state j
• B(biv), biv probability of getting output v in
  state i

• HMMs can model complicated (unknown) correlations

• In order to achieve good performance, the
  statistical properties of e have to be exploited

42
Simulation Results for Source Coding Correlation
Defined by HMM

• Source 2 assumed perfectly known at the decoder
• Different LDGM (X,Y) codes with K16,000

43
LDGM Codes for Joint Source-Channel Coding of
Correlated Sources Simulation Results

• Performance of different activation schedules for
  correlation parameter p0.1
• Both AWGN and Rayleigh fading channels are
  considered.

44
LDGM Codes for Joint Source-Channel Coding of
Correlated Sources Simulation Results

• Correlation Model
• Source 1 i.i.d. binary sequence P(0)P(1)1/2
• Source 2 Bits of source 1 are flipped with
  probability p
• Message length9,500
• Rate for each LDGM encoderoverall rate, Rc0.475

45
Conclusion

• LDGM codes for distributed source coding
• Describe correlation using Hidden Markov Model
• Very close to source entropy
• LDGM codes for joint-source-channel coding over
  independent channels
• Different decoding recipes
• Very close to theoretical limit

46
Joint-Source-Channel Coding over Multi-Access
Channel
47
Main Picture
N
coding
S1
Joint Decoder r X1X2XnN
coding
S2
coding
Sn
What is the theoretical limit? How to achieve
it? Still an open problem
Separation limit does not hold (codewords should
be correlated)
48
System Model
S1...1010110
N
encoder
Joint Decoder
e
S2.0110111
encoder

• S1, S2 are binary sequences
• Correlated with an i.i.d. correlation
  characterized by Pr(e 1)p, i.e. S1 is different
  from S2 with prob. p
• AWGN

49
Previous Work

• Early work
• MAC with arbitrarily correlated sources (T. M.
  Cover et al., 1980)
• Separate source-channel coding not optimum
• Bounds, non-closed form
• Binary correlated sources
• Turbo-like codes for correlated sources over MAC
  (J. Garcia-Frias et al., 2003)
• Turbo codes
• Low Density Generator Matrix (LDGM) codes
• Interleaver design, exploiting correlation in
  systematic bits
• Correlated sources and wireless channels (H. El
  Gamal et al., 2004)
• LDGM codes
• Not a pure MAC, need independent links for a
  small fraction of parity bit
• Serial concatenated LDGM codes ( J. Garcia-Frias
  et al., 2004)
• Pure MAC
• Good performance for highly correlated sources

50
Main Contributions

• LDGM schemes resulting in good performance for
  the whole correlation range outperforming
  separation limit
• Serial concatenation
• Interleaving trade-off between threshold and
  error floor
• Parallel concatenation
• Interleaving trade-off between threshold and
  error floor
• Identification code for each sender
• Combination of serial and parallel scheme

51
Theoretical Limit Assuming Separation between
Source and Channel Coding

• Theoretical limit unknown
• The separation limit is achieved by
• Slepian-Wolf source coding optimum channel
  coding

R1

• Ei Energy constraint for sender i (we assume
  E1E2)
• Ri Information rate for sender i (we assume
  R1R2R/2)

52
Reducing Error Floors (Channel Coding)
Serial Concatenated Scheme

• GwholeGouterGinner
• Use of Gwhole directly ? worse performance (cycle
  structure)
• GwholeI P1 P2
• Irregular LDGM code can be designed in an
  intuitive manner

outer
inner
Parallel Concatenated Scheme
I P1
I P2
53
LDGM Encoder for Correlated Senders over MAC
Single LDGM Encoder per Sender
u11 uL1
Sender 1
LDGM Encoder
Ok1
u12 uL2
Sender 2
LDGM Encoder
Ok2

• To exploit correlation at encoder site, each
  sender encoded using the same LDGM code
• 11? Twice energy
• 1-1? Erasure like

54
LDGM Encoder for Correlated Senders over MAC
Single LDGM Encoder per Sender
Information bits
Parity bits
Sender 1
Sender 2

• Information bits are
• correlated by pPr(u1k?u2k)
• Parity bits are correlated by
• p Pr(c1k?c2k)

Parity bits are generated as

55
LDGM Encoder for Correlated Senders over MAC
Drawback of Single LDGM Encoder Scheme

• Each sender is encoded by the same LDGM codebook.
• Decoder graph completely symmetric
• At the receiver, even if the decoder can recover
  the sum perfectly, there is no way to tell which
  bit corresponds to sender 1 and which to sender 2

• Solution
• Introduce asymmetry in decoding graph
• Serial and parallel concatenated scheme with
  additional interleaved parity bits (asymmetry)
• One bit acting as a sender ID

56
LDGM Encoder for Correlated Senders over MAC
Serial Concatenated Scheme
u11 uL1
Ok1
Eouter
Einner
Sender 1
Encoder 1
u12 uL2
Channel Interleaver
Sender 2
Eouter
Einner
Ok2
Encoder 2

• Each sender is encoded by a serial concatenated
  LDGM code
• Sender 2s sequence is scrambled by a special
  channel interleaver
• Information bits are not interleaved (most
  correlation preserved).
• Inner coded bits are partially interleaved
  (trade-off between exploiting correlation and
  introducing asymmetry).
• Outer coded bits are totally interleaved (little
  correlation, introduce asymmetry).

57
LDGM Decoder for Correlated Senders over MAC
Serial Concatenated Scheme

• Detailed message passing expressions can be
  obtained by applying Belief Propagation over the
  graph

58
LDGM Encoder for Correlated Senders over MAC
Parallel Concatenated Scheme
u11 uL1
Ok1
Parallel LDGM
Sender 1
u12 uL2
Parallel LDGM
Sender 2
Channel Interleaver
Ok2

• Each sender is encoded by a parallel concatenated
  LDGM code
• Channel interleaver
• Interleave small portion of parity bits
• Preference given to parity bits with higher
  degrees ( less correlation loss)
• A different identification bit is assigned for
  each sender
• Ambiguity at the bit level extends sometimes for
  the whole sequence (decoder obtains both
  codewords but fails to assign to the right
  sender)
• Decoding in the corresponding graph

59
Simulation Results High Correlation, Parallel
Scheme

• Information block size 50k
• 10,560,120 parallel concatenated LDGM code
  with different interleaving ratios
• ID for each sender
• Error floor close to theoretical lower bound
  (calculated in paper)

• Outperforming Shannons separation limit by 1.3
  dB

60
Simulation Results High correlation, Serial
Scheme

• Trade-off between error floor and threshold,
  driven by fraction of interleaved inner parity
  bits
• Information block size 10k, inner (8,4), outer
  (4,76), rate 0.32

61
Simulation Results Low Correlation, Combo Scheme

• Information block size 50k
• Combination of parallel and serial concatenated
  codes
• Parallel inner 2x,x10,10
• Outer 4,76

• Outperforming Shannons separation limit by 0.1
  dB

62
Ergodic Rayleigh Fading MAC

• Consider Ya1x1a2x2N, a1 and a2 being Rayleigh
  fading amplitudes
• Similar coding scheme as for AWGN-MAC
• Knowledge of a1 and a2, i.e. Channel State
  Information (CSI) at receiver
• Non-CSI at receiver, using mean value for a1 and
  a2

63
Simulation Results High Correlation, Serial
Scheme

• Using the same codes in the AWGN-MAC case

64
Simulation Results Low Correlation, Combo Scheme

• Using the same codes in the AWGN-MAC case

65
Conclusion

• LDGM schemes outperforming divide-and-conquer!
• AWGN-MAC outperforming in both low and high
  correlation scenario
• Rayleigh-MAC outperforming in high correlation,
  very close in low correlation

66
Future Work

• Extension of previous work to many users (gt2),
  requires good low-rate code design
• Potential candidates
• repeat-LDGM codes
• repeat-Hadamard codes
• With Hi-rate LDGM as outer code

67
Repeat-Hadamard Codes

• Use high-rate LDGM as outer codes
• Coding rate at 0.015 0.05
