Title: Optimizing LDPC Codes for message-passing decoding.

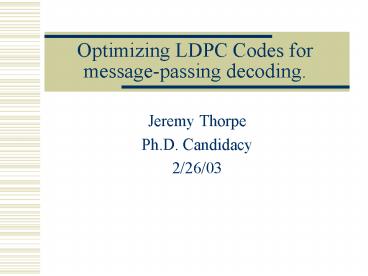

1
Optimizing LDPC Codes for message-passing
decoding.
  • Jeremy Thorpe
  • Ph.D. Candidacy
  • 2/26/03

2
Overview
  • Research Projects
  • Background to LDPC Codes
  • Randomized Algorithms for designing LDPC Codes
  • Open Questions and Discussion

3
Data Fusion for Collaborative Robotic Exploration
  • Developed a version of the Mastermind game as a
    model for autonomous inference.
  • Applied the Belief Propagation algorithm to solve
    this problem.
  • Showed that the algorithm had an interesting
    performance-complexity tradeoff.
  • Published in JPL's IPN Progress Reports.

4
Dual-Domain Soft-in Soft-out Decoding of Conv.
Codes
  • Studied the feasibility of using the Dual SISO
    algorithm for high rate turbo-codes.
  • Showed that reduction in state-complexity was
    offset by increase in required numerical
    accuracy.
  • Report circulated internally at DSDD/HIPL SS
    Architecture Center, Sony.

5
Short-Edge Graphs for Hardware LDPC Decoders.
  • Developed criteria to predict performance and
    implementational simplicity of graphs of Regular
    (3,6) LDPC codes.
  • Optimized criteria via randomized algorithm
    (Simulated Annealing).
  • Achieved codes of reduced complexity and superior
    performance to random codes.
  • Published in ISIT 2002 proceedings.

6
Evalutation of Probabilistic Inference Algorithms
  • Characterize the performance of probabilistic
    algorithms based on observable data
  • Axiomatic definition of "optimal
    characterization"
  • Existence, non-existence, and uniqueness proofs
    for various axiom sets
  • Unpublished

7
Optimized Coarse Quantizers for Message-Passing
Decoding
  • Mapped 'additive' domains for variable and check
    node operations
  • Defined quantized message passing rule in these
    domains
  • Optimized quantizers for 1-bit to 4-bit messages
  • Submitted to ISIT 2003

8
Graph Optimization using Randomized Algorithms
  • Introduce Proto-graph framework
  • Use approximate density evolution to predict
    performance of particular graphs
  • Use randomized algorithms to optimize graphs
    (Extends short-edge work)
  • Achieves new asymptotic performance-complexity
    mark

9
Bacground to LDPC codes
10
The Channel Coding Strategy
  • Encoder chooses the mth codeword in codebook C
    and transmits it across the channel
  • Decoder observes the channel output y and
    generates m based on the knowledge of the
    codebook C and the channel statistics.

Encoder
Channel
Decoder
11
Linear Codes
  • A linear code C (over a finite field) can be
    defined in terms of either a generator matrix or
    parity-check matrix.
  • Generator matrix G (kn)
  • Parity-check matrix H (n-kn)

12
LDPC Codes
  • LDPC Codes -- linear codes defined in terms of H
  • H has a small average number of non-zero elements
    per row or column.

13
Graph Representation of LDPC Codes
  • H is represented by a bipartite graph.
  • There is an edge from v to c if and only if
  • A codeword is an assignment of v's s.t.

Variable nodes
v
c
. . .
. . .
Check nodes
14
Message-Passing Decoding of LDPC Codes
  • Message Passing (or Belief Propagation) decoding
    is a low-complexity algorithm which approximately
    answers the question what is the most likely x
    given y?
  • MP recursively defines messages mv,c(i) and
    mc,v(i) from each node variable node v to each
    adjacent check node c, for iteration i0,1,...

15
Two Types of Messages...
  • Likelihood Ratio
  • For y1,...yn independent conditionally on x
  • Probability Difference
  • For x1,...xn independent

16
...Related by the Biliniear Transform
  • Definition
  • Properties

17
Message Domains
Likelihood Ratio
Probability Difference
Log Likelihood Ratio
Log Prob. Difference
18
Variable to Check Messages
  • On any iteration i, the message from v to c is
  • In the additive domain

v
c
. . .
. . .
19
Check to Variable Messages
  • On any iteration, the message from c to v is
  • In the additive domain

v
c
. . .
. . .
20
Decision Rule
  • After sufficiently many iterations, return the
    likelihood ratio

21
Theorem about MP Algorithm
  • If the algorithm stops after r iterations, then
    the algorithm returns the maximum a posteriori
    probability estimate of xv given y within radius
    r of v.
  • However, the variables within a radius r of v
    must be dependent only by the equations within
    radius r of v,

r
...
v
...
...
22
Regular (?,?) LDPC codes
  • Every variable node has degree ?, every check
    node has degree ?.
  • Best rate 1/2 code is (3,6), with threshold 1.09
    dB.
  • This code had been invented by 1962 by Robert
    Gallager.

23
Regular LDPC codes look the same from anywhere!
  • The neighborhood of every edge looks the same.
  • If the all-zeros codeword is sent, the
    distribution of any message depends only on its
    neighborhood.
  • We can calculate a single message distribution
    once and for all for each iteration.

24
Analysis of Message Passing Decoding (Density
Evolution)
  • We assume that the all-zeros codeword was
    transmitted (requires a symmetric channel).
  • We compute the distribution of likelihood ratios
    coming from the channel.
  • For each iteration, we compute the message
    distributions from variable to check and check to
    variable.

25
D.E. Update Rule
  • The update rule for Density Evolution is defined
    in the additive domain of each type of node.
  • Whereas in B.P, we add (log) messages
  • In D.E, we convolve message densities

26
Familiar Example
  • If one die has density function given by
  • The density function for the sum of two dice is
    given by the convolution

1
3
6
5
4
2
2
4
7
6
5
3
8
10
12
11
9
27
D.E. Threshold
  • Fixing the channel message densities, the message
    densities will either "converge" to minus
    infinity, or they won't.
  • For the gaussian channel, the smallest SNR for
    which the densities converge is called the
    density evolution threshold.

28
D.E. Simulation of (3,6) codes
  • Threshold for regular (3,6) codes is 1.09 dB
  • Set SNR to 1.12 dB (.03 above threshold)
  • Watch fraction of "erroneous messages" from check
    to variable

29
Improvement vs. current error fraction for
Regular (3,6)
  • Improvement per iteration is plotted against
    current error fraction
  • Note there is a single bottleneck which took most
    of the decoding iterations

30
Irregular (?, ?) LDPC codes
  • a fraction ?i of variable nodes have degree i. ?i
    of check nodes have degree i.
  • Edges are connected by a single random
    permutation.
  • Nodes have become specialized.

Variable nodes
p
?2
?4
?3
. . .
. . .
?m
?n
Check nodes
31
D.E. Simulation of Irregular Codes (Maximum
degree 10)
  • Set SNR to 0.42 dB (.03 above threshold)
  • Watch fraction of erroneous check to variable
    messages.
  • This Code was designed by Richardson et. al.

32
Comparison of Regular and Irregular codes
  • Notice that the Irregular graph is much flatter
  • Note Capacity achieving LDPC codes for the
    erasure channel were designed by making this line
    exactly flat

33
Constructing LDPC code graphs from a proto-graph
  • Consider a bipartite graph G, called a
    "proto-graph"
  • Generate a graph G a called an "expanded graph"
  • replace each node by a nodes.
  • replace each edge by a edges, permuted at random

G
a2
G2
34
Local Structure of Ga
  • The structure of the neighborhood of any edge in
    Ga can be found by examining G
  • The neighborhod of radius r of a random edge is
    increasingly probably loop-free as a?8.

35
Density Evolution on G
  • For each edge (c,v) in G, compute
  • and

36
Density Evolution without convolution
  • One-dimensional approximation to D.E, which
    requires
  • A statistic that is approximately additive for
    check nodes
  • A statistic that is approximately additive for
    variable nodes
  • A way to go between these two statistics
  • A way to characterize the message distribution
    from the channel

37
Optimizing a Proto Graph using Simulated Annealing
  • Simulated Annealing is an iterative algorithm
    that approximately minimizes an energy function
  • Requirements
  • A space S over which to find the optimum point
  • An energy function E(s)S?R
  • A random perturbation function p(s)S?S
  • A "temperature profile" t(i)

38
Optimization Space
  • Graphs with a fixed number of variable and check
    nodes (rate is fixed)
  • Optionally, we can add untransmitted (state)
    variables to the code
  • Typical Parameters
  • 32 transmitted variables
  • 5 untransmitted variables
  • 21 parity checks

39
Energy function
  • Ideal density evolution threshold.
  • Practical
  • Approximate density evolution threshold
  • Number of iterations to converge to fixed error
    probability at fixed SNR

40
Perturbations
  • Types of operation
  • Add an edge
  • Delete an edge
  • Swap two edges
  • Note Edge swapping operation not necessary to
    span the space

41
Basic Simulated Annealing Algorithm
  • Take s0 a random point in S
  • For each iteration i, define si' p(si)
  • if E(si') lt E(si) set si1 si'
  • if E(si ') gt E(si) set si1 si' w.p.

42
Degree Profile of Optimized Code
  • The optimized graph has a large fraction of
    degree 1 variables
  • Check variables range from degree 3 to degree 8
  • (recall that the graph is not defined by the
    degree profile)

43
Threshold vs. Complexity
  • Designed codes of rate .5 with threshold 8 mB
    from channel capacity on AWGN channel
  • Low complexity (maximum degree 8)

44
Improvement vs. Error Fraction Comparison to
Regular (3,6)
  • The regular (3,6) code has a dramatic bottleneck.
  • The irregular code with maximum degree 10 is
    flatter, but has a bottleneck.
  • The optimized proto-graph based code is nearly
    flat for a long stretch.

45
Simulation Results
  • n8192, k4096
  • Achieves bit error rate of about 410-4 at
    SNR0.8dB.
  • Beats the performance of n10000 code in 1 by a
    small margin.
  • There is evidence that there is an error floor

46
Review
  • We Introduced the idea of LDPC graphs based on a
    proto-graph
  • We designed proto-graphs using the Simulated
    Annealing algorithm, using a fast approximation
    to density evolution
  • The design handily beats other published codes of
    similar maximum degree

47
Open Questions
  • What's the ultimate limit to the performance vs.
    maximum degree tradeoff?
  • Can we find a way to achieve the same tradeoff
    without randomized algorithms?
  • Why do optimizing distributions sometimes force
    the codes to have low-weight codewords?

48
A Big Question
  • Can we derive the shannon limit in the context of
    MP decoding of LDPC codes, so that we can meet
    the inequalities with equality?

49
Free Parameters within S.A.
  • Rate
  • Maximum check, variable degrees
  • Proto-graph size
  • Fraction of untransmitted variables
  • Channel Parameter (SNR)
  • Number of iterations in Simulated Annealing

50
Performance of Designed MET Codes
  • Shows performance competitive with best published
    codes
  • Block error probability lt10-5 at 1.2 dB
  • a soft error floor is observed at very high SNR,
    but not due to low-weight codewords

51
Multi-edge-type construction
  • Edges of a particular "color" are connected
    through a permutation.
  • Edges become specialized. Each edge type has a
    different message distribution each iteration.

52
MET D.E. vs. decoder simulation
Write a Comment
User Comments (0)
About PowerShow.com
