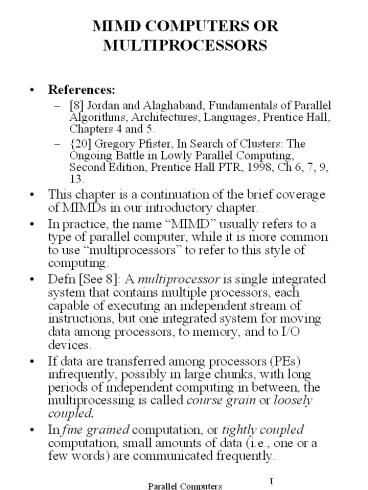

MIMD COMPUTERS OR MULTIPROCESSORS

1
MIMD COMPUTERS OR MULTIPROCESSORS

• References
• 8 Jordan and Alaghaband, Fundamentals of
  Parallel Algorithms, Architectures, Languages,
  Prentice Hall, Chapters 4 and 5.
• 20 Gregory Pfister, In Search of Clusters The
  Ongoing Battle in Lowly Parallel Computing,
  Second Edition, Prentice Hall PTR, 1998, Ch 6, 7,
  9, 13.
• This chapter is a continuation of the brief
  coverage of MIMDs in our introductory chapter.
• In practice, the name MIMD usually refers to a
  type of parallel computer, while it is more
  common to use multiprocessors to refer to this
  style of computing.
• Defn See 8 A multiprocessor is single
  integrated system that contains multiple
  processors, each capable of executing an
  independent stream of instructions, but one
  integrated system for moving data among
  processors, to memory, and to I/O devices.
• If data are transferred among processors (PEs)
  infrequently, possibly in large chunks, with long
  periods of independent computing in between, the
  multiprocessing is called course grain or loosely
  coupled.
• In fine grained computation, or tightly coupled
  computation, small amounts of data (i.e., one or
  a few words) are communicated frequently.

2
Shared Memory Multiprocessors

• There is a wide variation in the types of shared
  memory multiprocessors.
• A shared memory multiprocessors in which some
  memory locations take longer to access than
  others is called a NUMA (for NonUniform Memory
  Access).
• One with the same access is called a UMA
• See earlier discussion in our Ch 1 here.
• Some shared memory processors allow each
  processor to have its own private memory as well
  as to have shared memory.
• An interconnection network (e.g., a ring, 2D
  mesh, or a hypercube) is used to connect all
  processors to the shared memory.
• Characteristics of Shared Memory Multiprocessors
• Interprocessor communication is done in the
  memory interface by read and write instructions
• Memory may be physically distributed and the
  reads and writes from different processors may
  take different time and may collide in the
  interconnection network.
• Memory latency (i.e., time to complete a read or
  write) may be long and variable.
• Messages through the interconnection network are
  the size of single memory words.

3

• Randomization of requests (as by interleaving
  words across memory modules) may be used to
  reduce the probability of collisions.
• Contrasting characteristics of message-passing
  multiprocessors
• Interprocessor communication is done by software
  using data transmission instructions (e.g., send,
  receive).
• Read and write refer only to memory private to
  the processor issuing them.
• Data may be aggregated into long message before
  being sent through the interconnection network.
• Large data transmissions may mask long and
  variable latency in the communications network.
• Global scheduling of communications can help
  avoid collisions between long messages
• SPMD (single program, multiple data) programs
• About only choice in managing a huge number of
  processes (i.e., hundreds, perhaps thousands)
• Multiple processes execute the same program
  simultaneously but normally not synchronously.
• Distinct programs for a large number of processes
  is not feasible.

4
The OpenMP Language Extension forShared Memory
Multiprocessors

• OpenMP is a language extension built on top of an
  existing sequential language.
• OpenMP extensions exist for both C/C and
  Fortran.
• When it is necessary to refer to a specific
  version, we will refer to the Fortran77 version
• Can be contrasted with F90 vector extensions
• OpenMP constructs are limited to compiler
  directives and library subroutine calls.
• The compiler directive format is such that they
  will be treated as comments by a sequential
  compiler.
• This allows existing sequential compilers to
  easily be modified to support OpenMP
• Whether a program executes the same computation
  (or any meaningful computation) when executed
  sequentially) is responsibility of programmer.
• Execution starts with a sequential process that
  forks a fixed number of threads when it reaches a
  parallel region.
• This team of threads execute to the end of the
  parallel region and then join the original
  process.

5
OpenMP (cont)

• The number of threads is constant within a
  parallel region.
• Different parallel regions can have a different
  number of threads.
• Nested parallelism is supported by allowing a
  thread to fork a new team of threads at the
  beginning of a nested parallel region.
• A thread that forks other threads is called a
  master thread of the team.
• User controlled environment variables
• num_threads specifies the number of threads
• dynamic controls whether the number of threads
  can change from one parallel section to another
• nested specifies whether or not nested
  parallelism is allowed or whether nested parallel
  regions are performed sequentially.
• Process Control
• Parallel regions are bracket by parallel and end
  parallel directives.
• The directives, parallel-do and parallel section,
  can be used to combine parallel regions with
  work distribution

6
OpenMP (cont)

• The term, parallel construct, denotes a parallel
  region or block structured work distribution
  contained in a parallel region.
• The static scope of a parallel region consists of
  all statements between the start and end
  statement in that construct.
• The dynamic scope of a parallel region consists
  of all statements executed by a team member
  between the entry to and exit from this
  construct.
• This may include statements outside of the static
  scope of parallel region.
• Parallel directives that lie in the static scope
  but outside the dynamic scope of a parallel
  construct are called orphan directives
• These orphan directives cause special compiler
  problems.
• A SPMD-style program could be written in OpenML
  by entering a parallel region at the beginning of
  the main program and exiting it just before the
  end.
• Includes entire program in the dynamic scope of
  the parallel region.

7
OpenMP (cont)

• Work Distribution consist of parallel loops,
  parallel code sections, single thread execution
  and master thread executions.
• Parallel code sections emphasize distributing
  code sections to parallel processes that are
  already running, rather than on forking
  processes.
• The section between single and end single is
  executed by one (and only one) single thread
• The code between master and end master is
  executed by the master thread and is often done
  to provide synchronization.
• OpenMP synchronization is handled by various
  methods, including
• critical sections
• single-point barrier
• ordered sections of a parallel loop that have to
  be performed in the specified order
• locks
• subroutine calls

8
OpenMP (cont)

• Memory Consistency
• The flush directive allows programmer to force a
  consistent view of memory by all processors at
  the point where it occurs.
• Needed as assignments to variables may become
  visible to different processors at different
  times due to the hierarchically structured memory

• Requires more memory detail to understand
• Also needed as a shared variable may be stored in
  a register, hence not visible to other
  processors.
• Not practical to not allow shared variables to be
  stored in registers.
• Must identify program points and/or variables for
  which mutual visibility affects program
  correctness.
• The compiler can recognize explicit points where
  synchronization is needed.

9
OpenMP (cont)

• Two extreme philosophies for parallelizing
  programs
• In minimum approach, parallel constructs are only
  placed where large amounts of independent data is
  processed.
• Typically use nested loops
• Rest of program is executed sequentially.
• One problem is that it may not exploit all of the
  parallelism available in the program.
• The process creation and termination may be
  invoked many times and may be high.
• The other extreme is the SPMD approach, which
  treats the entire program as parallel code.
• Steps serialized only when required by program
  logic.
• Many programs are a mixture of these two
  parallelizing extremes. (Examples given in 9, pg
  152-158.

10
OpenMP LanguageAdditional References

• The below references may be more accessible
  references than 8,Jordan Alaghband, which was
  used as primary reference here.
• Ohio Supercomputer Center (OSC, www.osc.org) has
  a online WebCT course on OpenMP.  All you have to
  do is create a user name and password.
• The textbook, Introduction to Parallel
  Computing by Kumar, et.al. 25 has a
  section/chapter on OpenMP
• The "Parallel Computing Sourcebook" 23
  discusses OpenMP at a number of places, but
  particularly on pgs 301-3 and 323-329.
• Chapter 10 gives short overview and comparison of
  message passing and multitreaded programming.

11
Symmetric Multiprocessorsor SMPs

• A SMP is a shared memory multiprocessor has
  processors that are symmetric
• Multiple, identical processors
• Any processor can do anything (i.e., access I/O)
• Only shared memory.
• Currently the primary example of shared memory
  multiprocessors.
• A very popular type of computer (with a number of
  variations). See 20 for additional information.
• FOR INFORMATION ON PROBLEMS THAT SERIOUSLY LIMIT
  PERFORMANCE OF SMPS, SEE
• 20 Gregory Pfister, In Search of Clusters The
  Ongoing Battle in Lowly Parallel Computing,
  Second Edition, Prentice Hall PTR, 1998, Ch 6, 7,
  9, 13.
• ABOVE INFORMATION TO BE ADDED IN THE FUTURE

12
Distributed Memory Multiprocessors

• References
• 1, Wilkenson Allyn, Ch 1-2
• 3, Quinn, Chapter 1
• 8, Jordan Alaghband, Chapter 5
• 25, Kumar, Grama, Gupta, Karypis, Introduction
  to Parallel Computing, 2nd Edition, Ch 2
• General Characteristics
• In a distributed memory system, each memory cell
  belongs to a particular processor.
• In order for data to be available to a processor,
  it must be stored in the local memory for a
  processors.
• Data produced by one processor that is needed by
  other processors must be moved to the memory of
  the other processors.
• The data movement is usually handled by message
  passing using send and receive commands.
• The data transmissions between processors have a
  huge impact on the performance
• The distribution of the data among the processors
  is a very important factor in the performance
  efficiency.

13
Some Interconnection Network Terminology

• A link is the connection between two nodes.
• A switch that enables packets to be routed
  through the node to other nodes without
  disturbing the processor is assumed.
• The link between two nodes can be either
  bidirectional or use two directional links .
• Either one wire to carry one bit or parallel
  wires (one wire for each bit in word) can be
  used.
• The above choices do not have a major impact on
  the concepts presented in this course.
• The below terminology is given in 1 and will be
  occasionally needed
• The bandwidth is the number of bits that can be
  transmitted in unit time (i.e., bits per second).
• The network latency is the time required to
  transfer a message through the network.
• The communication latency is the total time
  required to send a message, including software
  overhead and interface delay.
• The message latency or startup time is the time
  required to send a zero-length message.
• Software and hardware overhead, such as
• finding a route
• packing and unpacking the message

14
Communication Methods

• Two basic ways of transferring messages from
  source to destination. (See 1, 25 )
• Circuit switching
• Establishing a path and allowing the entire
  message to transfer uninterrupted.
• Similar to telephone connection that is held
  until the end of the call.
• Links are not available to other messages until
  the transfer is complete.
• Latency (or message transfer time) If the length
  of control packet sent to establish path is small
  wrt (with respect to) the message length, the
  latency is essentially
• the constant L/B, where L is message length and B
  is bandwidth.
• packet switching
• Message is divided into packets of information
• Each packet includes source and destination
  addresses.
• Packets can not exceed a fixed, maximum size
  (e.g., 1000 byte).
• A packet is stored in a node in a buffer until it
  can move to the next node.

15
Communications (cont)

• At each node, the designation information is
  looked at and used to select which node to
  forward the packet to.
• Routing algorithms (often probabilistic) are used
  to avoid hot spots and to minimize traffic jams.
• Significant latency is created by storing each
  packet in each node it reaches.
• Latency increases linearly with the length of the
  route.
• Store-and-forward packet switching is the name
  used to describe the preceding packet switching.
• Virtual cut-through package switching can be used
  to reduce the latency.
• Allows packet to pass through a node without
  being stored, if the outgoing link is available.
• If complete path is available, a message can
  immediately move from source to destination..
• Wormhole Routing alternate to store-and-forward
  packet routing
• A message is divided into small units called
  flits (flow control units).
• flits are 1-2 bytes in size.
• can be transferred in parallel on links with
  multiple wires.
• Only head of flit is initially transferred when
  the next link becomes available.

16
Communications (cont)

• As each flit moves forward, the next flit can
  move forward.
• The entire path must be reserved for a message as
  these packets pull each other along (like cars of
  a train).
• Request/acknowledge bit messages are required to
  coordinate these pull-along moves. (see 1)
• The complete path must be reserved, as these
  flits are linked together.
• Latency If the head of the flit is very small
  compared to the length of the message, then the
  latency is essentially the constant L/B, with L
  the message length and B the link bandwidth.
• Deadlock
• Routing algorithms needed to find a path between
  the nodes.
• Adaptive routing algorithms choose different
  paths, depending on traffic conditions.
• Livelock is a deadlock-type situation where a
  packet continues to go around the network,
  without ever reaching its destination.
• Deadlock No packet can be forwarded because they
  are blocked by other stored packets waiting to be
  forwarded.
• Input/Output A significant problem on all
  parallel computers.

17
Languages for Distributed Memory Multiprocessors

• HPF is a data parallel programming language that
  is supported by most distributed memory
  multiprocessors.
• Good for applications where data can be stored
  and processed as vectors.
• Message passing has to be specified by the
  compiler for each machine and is hidden from the
  programmer.
• MPI is a message passing language that can be
  used to support both data parallel and control
  parallel programming.
• MPI commands are low level and very error prone.
• Programs are typically long due to low level
  commands.
