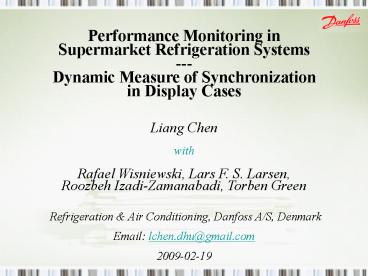

Performance Monitoring in Supermarket
Refrigeration Systems---Dynamic Measure of
Synchronization in Display CasesLiang
ChenwithRafael Wisniewski, Lars F. S. Larsen,
Roozbeh Izadi-Zamanabadi, Torben Green
Refrigeration Air Conditioning, Danfoss A/S,
DenmarkEmail lchen.dhu_at_gmail.com2009-02-19
2
Layout of the supermarket refrigeration system
3
Dynamic Analysis Bifurcation Theory
Phase Plot
4
Bifurcation Diagram
5
The Suction Pressure in Synchronization Chaos
6
Dynamic measure of synchronization --- the Max.
Lyapunov Exponent
For a n-dim. continuous system
7
Methods for Calculation of MLE

• Model-based method
• Smooth system
• Non-smooth system
• Data-based method
• In our case
• Four sub-systems (two display cases)
• Piecewise-smooth affine system
• Practical application future extension

8
Calculation Steps From Small Data Sets

• 1. Reconstruct the phase plot
• For N-point time series
• 2. Calculate Lyapunov points TISEAN
• 3. Estimate the MLE
• Least squares fit

9
Bifurcation
Max. Lyap. Exp.
After Filtering
10
