Efficient String Matching : An Aid to Bibliographic Search

1

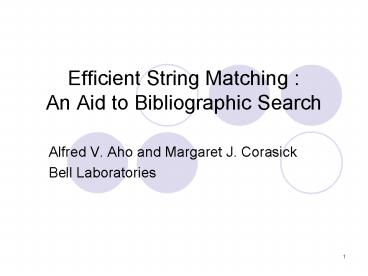

Efficient String Matching An Aid to
Bibliographic Search

• Alfred V. Aho and Margaret J. Corasick
• Bell Laboratories

2
Virus Definition

• Each virus has its peculiar signature
• Example in ClamAV
• _0017_0001_00021b8004233c999cd218bd6b90300b440cd2
  18b4c198b541bb80157cd21b43ecd2132ed
• _0017_0001_000 virus index
• Hex(21)Dec(33)!
• Match the signature for detecting virus

3
Regular Expression

• Use RE to describe the signature
• ? can be any one char
• W32.Hybris.C (Clam)4000?????????????83??????75f2e
  9????ffff00000000
• can be any chars (including no char)
• Oror-fam (Clam)4952435669727553455859330f54554
  b617a61536e617073686f
• n1-n2, there are n1n2 chars between two parts
• Worm.Bagle.AG-empty (Clam)6e74656e742d547970653a2
  06170706c69636174696f6e2f6f637465742d73747265616d3
  b40-1302d2d2d2d2d2d2d2d

4
Introduction

• Locate all occurrences of any of a finite number
  of keywords in a string of text.
• Consists of two parts
• constructing a finite state pattern matching
  machine from the keywords
• using the pattern matching machine to process the
  text string in a single pass.

5
Pattern Matching Machine(1)

• Our problem is to locate and identify all
  substrings of x which are keywords in K.
• K Ky1,y2,,yk be a finite set of strings
  which we shall call keywords
• x x is an arbitrary string which we shall call
  the text string.
• The behavior of the pattern matching machine is
  dictated by three functions a goto function g, a
  failure function f, and an output function output.

6
Pattern Matching Machine(2)

• g (s,a) s or failmaps a pair consisting of a
  state and an input symbol into a state or the
  message fail.
• f (s) smaps a state into a state, and is
  consulted whenever the goto function reports
  fail.
• output (s) keywordsassociating a set of
  keyword (possibly empty) with every state.

7
Pattern Matching Machine Example with keywords
he,she,his,hers
8
(No Transcript)
9

• Start state is state 0.
• Let s be the current state and a the current
  symbol of the input string x.
• Operating cycle
• If g(s,a)s, makes a goto transition, and enters
  state s and the next symbol of x becomes the
  current input symbol.
• If g(s,a)fail, make a failure transition f. If
  f(s)s, the machine repeats the cycle with s as
  the current state and a as the current input
  symbol.

10
Example

• Text u s h e r s
• State 0 0 3 4 5 8 9
• 2
• In state 4, since g(4,e)5, and the machine
  enters state 5, and finds keywords she and he
  at the end of position four in text string, emits
  output(5)

11
Example Contd

• In state 5 on input symbol r, the machine makes
  two state transitions in its operating cycle.
• Since g(5,r)fail, M enters state 2f(5) . Then
  since g(2,r)8, M enters state 8 and advances to
  the next input symbol.
• No output is generated in this operating cycle.

12
Algorithm 1. Pattern matching machine. Input. A
text string x a1 a2 a n where each a i is an
input symbol and a pattern matching machine M
with goto function g, failure function f, and
output function output, as described
above. Output. Locations at which keywords occur
in x. Method. begin state ? 0 for i ? 1
until n do begin while g (state, a i
) fail do state ? f(state) state ? g
(state, a i ) if output (state)? empty
then begin print i
print output (state) end end end
13
Construction the functions

• Two part to the construction
• FirstDetermine the states and the goto function.
• SecondCompute the failure function.
• Output function start at first, complete at
  second.

14
Construction of Goto function

• Construct a goto graph like next page.
• New vertices and edges to the graph, starting at
  the start state.
• Add new edges only when necessary.
• Add a loop from state 0 to state 0 on all input
  symbols other than the first one in each keyword.

15
Construction of Goto function with keywords
he,she,his,hers
16
Algorithm 2
Algorithm 2. Construction of the goto
function. Input. Set of keywords K yl, y2, . .
. . . yk. Output. Goto function g and a
partially computed output function
output. Method. We assume output(s) is empty when
state s is first created, and g(s, a)
fail if a is undefined or if g(s, a) has not yet
been defined. The procedure enter(y)
inserts into the goto graph a path that
spells out y. begin newstate ? 0 for i ?
1 until k do enter(y i ) for all a such that
g(0, a) fail do g(0, a) ? 0 end
17
procedure enter(a 1 a 2 a m ) begin state
? 0 j ? 1 while g (state, aj )? fail do
begin state ? g (state, aj) j ? j
l end for p ? j until m do begin
newstate ? newstate 1 g (state, ap )
? newstate state ? newstate end
output(state) ? a 1 a 2 a m end
18
Construction of Failure function

• Depth of sthe length of the shortest path from
  the start state to state s.
• The states of depth d can be determined from the
  states of depth d-1.
• Make f(s)0 for all states s of depth 1.

19
Construction of Failure function Contd

• Compute failure function for the state of depth
  d, each state r of depth d-1
• 1. If g(r,a)fail for all a, do nothing.
• 2. Otherwise, for each a such that g(r,a)s, do
  the following
• a. Set statef(r) .
• b. Execute state ?f(state) zero or more times,
  until a value for state is obtained such that
  g(state,a)?fail .
• c. Set f(s)g(state,a) .

20
Algorithm 3
Algorithm 3. Construction of the failure
function. Input. Goto function g and output
function output from Algorithm 2. Output. Failure
function fand output function output. Method.
begin queue ? empty for each a such that
g(0, a) s?0 do begin queue ? queue
? s f(s) ? 0 end
21
while queue ? empty do begin let r
be the next state in queue queue ? queue -
r for each asuch that g(r, a) s?fail
do begin queue ? queue ? s
state ? f(r) while g (state,
a) fail do state ? f(state) f(s) ?
g(state, a) output(s) ?output(s) ?
output(f(s)) end end end
22
About construction

• When we determine f(s)s, we merge the outputs
  of state s with the output of state s.
• In fact, if the keyword his were not present,
  then could go directly from state 4 to state 0,
  skipping an unnecessary intermediate transition
  to state 1.
• To avoid above, we can use the deterministic
  finite automaton, which discuss later.

23
Properties of Algorithms 1,2,3

• Lemma 1 Suppose that in the goto graph state s
  is represented by the string u and state t is
  represented by the string v. Then f(s)t iff v is
  the longest proper suffix of u that is also a
  prefix of some keyword.
• Proof
• Suppose ua1a2aj, and a1a2aj-1 represents state
  r, let r1,r2,,rn be the sequence of states 1.
  r1f(r) 2. ri1f(ri) 3.g(ri,aj)fail for
  1?iltn 4.g(rn,aj)t
• Suppose vi represents state ri, v1 is the longest
  proper suffix of a1a2aj-1 that is a prefix of
  some keyword v2 is the longest proper suffix of
  v1 that is a prefix of some keyword, and so on.
• Thus vn is the longest suffix of a1a2aj-1 such
  that vnaj is a prefix of some keyword.

24
Properties of Algorithms 1,2,3

• Lemma 2 The set output(s) contains y if and
  only if y is a keyword that is a suffix of the
  string representing state s.
• Proof
• Consider a string y in output(s).
• If y is added to output(s) by algorithm 2, then
  yu and y is a keyword.
• If y is added to output(s) by algorithm 3, then y
  is in output(f(s)). If y is a proper suffix of u,
  then from the inductive hypothesis and Lemma 1 we
  know output(f(s)) contains y.

25
Properties of Algorithms 1,2,3

• Lemma 3 After the jth operating cycle,
  Algorithm 1 will be in state s iff s is
  represented by the longest suffix of a1a2aj that
  is a prefix of some keyword.
• Proof Similar to Lemma 1.
• THEOREM 1 Algorithms 2 and 3 produce valid
  goto,failure, and output functions.
• Proof By Lemmas 2 and 3.

26
Time Complexity of Algorithms 1, 2, and 3

• THEOREM 2 Using the goto, failure and output
  functions created by Algorithms 2 and 3,
  Algorithm 1 makes fewer than 2n state transitions
  in processing a text string of length n.
• From state s of depth d Algorithm 1 make d
  failure transitions at most in one operating
  cycle.
• Number of failure transitions must be at least
  one less than number of goto transitions.
• processing an input of length n Algorithm 1 makes
  exactly n goto transitions. Therefore the total
  number of state transitions is less than 2n.

27
Time Complexity of Algorithms 1, 2, and 3

• THEOREM 3 Algorithms 2 requires time linearly
  proportional to the sum of the lengths of the
  keywords.
• Proof
• Straightforward
• THEOREM 4 Algorithms 3 can be implemented to
  run in time proportional to the sum of the
  lengths of the keywords.
• Proof
• Total number of executions of state? f(state) is
  bounded by the sum of the lengths of the
  keywords.
• Using linked lists to represent the output set of
  a state, we can execute the statement output(s) ?
  output(s)? output(f(s)) in constant time.

28
procedure enter(a 1 a 2 a m ) begin state
? 0 j ? 1 while g (state, aj )? fail do
begin state ? g (state, aj) j ? j
l end for p ? j until m do begin
newstate ? newstate 1 g (state, ap )
? newstate state ? newstate end
output(state) ? a 1 a 2 a m end
29
while queue ? empty do begin let r
be the next state in queue queue ? queue -
r for each asuch that g(r, a) s?fail
do begin queue ? queue ? s
state ? f(r) while g (state,
a) fail do state ? f(state) f(s) ?
g(state, a) output(s) ?output(s) ?
output(f(s)) end end end
30
Eliminating Failure Transitions

• Using in algorithm 1
• d(s, a), a next move function d such that for
  each state s and input symbol a.
• By using the next move function d, we can
  dispense with all failure transitions, and make
  exactly one state transition per input character.

31
Algorithm 4. Construction of a deterministic
finite automaton. Input. Goto function g from
Algorithm 2 and failure function f from Algorithm
3. Output. Next move function 8. Method. begin
queue ? empty for each symbol a do
begin d(0, a) ? g(0, a) if g (0,
a) ? 0 then queue ? queue? g (0, a) end
while queue ? empty do begin let
r be the next state in queue queue ?
queue - r for each symbol a do
if g(r, a) s ? fail do begin
queue ? queue ? s d(r, a)
? s end elsed(r, a)
?d(f(r), a) end end
32
Fig. 3. Next move function. input symbol next
state state 0 h 1 s 3 . 0 state 1
e 2 i 6 h 1 s 3 . 0
state 9state7 state3 h 4 s 3 . 0
state 5state2 r 8 h
1 s 3 . 0 state 6 s 7 h 1 .
0 state 4 e 5 i 6 h 1 s 3 .
0 state 8 s 9 h 1 . 0
33
Conclusion

• Attractive in large numbers of keywords, since
  all keywords can be simultaneously matched in one
  pass.
• Using Next move function
• can potentially reduce state transitions by 50,
  but more memory.
• Spend most time in state 0 from which there are
  no failure transitions.

34
