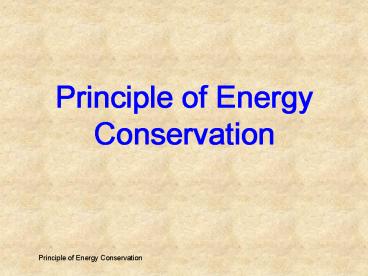

Title: Principle of Energy Conservation


1
Principle of Energy Conservation
2
  • 4.1 Energy, Work and Heat
  • 5.1 1st Law for Control Mass
  • 5.2 Specific Heats for Ideal Gas
  • 5.3 1st Law for Control Volume
  • 5.4 Steady-State, Steady-Flow Process
  • 5.5 Uniform-State, Uniform-Flow Process

3
4.1 Energy, Work and Heat
  • Energy, Work and Heat
  • Two major concepts of thermodynamics are energy
  • and entropy. They are both abstract concepts in
  • classical thermodynamics, which are derived from
  • the 1st and 2nd law of thermodynamics.

Energy, Work and Heat
4
Energy, Work and Heat
5
  • Energy
  • Macroscopic view
  • 1st Law
  • Energy can be transferred in two different forms,
  • heat and work. Energy is an abstract concept
    given
  • as a thermodynamic property, defined in terms of
  • the 1st law of thermodynamics.
  • Microscopic view
  • Energy can be stored in many different forms
  • intermolecular potential energy, molecular
    kinetic
  • energy and intermolecular energy including
    rotational
  • and vibrational energy.

Energy, Work and Heat
6
  • Work and Heat
  • There are only two forms of energy transfer, work
    and
  • heat.
  • Work a form of energy transfer due to an
    externally
  • applied force and resulting displacement of the
    system
  • F can be any generalized force and x is the
  • corresponding generalized displacement.
  • Conventionally work is defined as positive if
    energy is
  • transferred from the system to the surrounding.

Energy, Work and Heat
7
  • Heat a form of energy transfer from a higher
    temperature
  • to a lower temperature. Conventionally heat is
    defined as
  • positive if energy is transferred to the system
    from the
  • surrounding.
  • The system contains energy, not heat. Heat is
    identified
  • at the boundary, as energy transfer occurs across
    the
  • boundary due to difference in T.
  • ,

Energy, Work and Heat
8
  • Units for work are same as those for energy.
  • 1 J 1 Nm
  • Power
  • 1 W 1 J/s
  • 1 hp 550 lbf ft/s
  • Specific work work per unit mass of the system

Energy, Work and Heat
9
  • Units of heat are same as those for work.
  • 1 btu 1.055056 kJ
  • 1 cal 4.1868 J
  • Specific heat transfer heat transfer per unit
    mass of
  • the system
  • Adiabatic process
  • Q0

Energy, Work and Heat
10
  • Example of work crossing the boundary of a system

Energy, Work and Heat
11
  • Example of work crossing the boundary of a system
  • because of a flow of an electric current across
    the
  • system boundary

Energy, Work and Heat
12
Energy, Work and Heat
13
  • Schematic arrangement showing
  • work done on a surface film

Energy, Work and Heat
14
  • Schematic arrangement fir magnetic cooling

Energy, Work and Heat
15
  • Work done at the moving boundary in a quasi-
  • equilibrium process
  • Quasi-equilibrium process internally reversible
    process.
  • Infinitesimal change to maintain equilibrium
    throughout
  • the process.
  • Non-equilibrium process the intermediate states
    can
  • not be defined. The force exerted by the pressure
    of
  • gas does not equal the external force.

Energy, Work and Heat
16
  • Use of pressure-volume diagram to show work done
  • at the moving boundary of a system in a quasi -
  • equilibrium process

Energy, Work and Heat
17
  • Work done depends not only on the two end
  • states but also on the path followed.
  • W
    path function

  • inexact differential
  • Various quasi-equilibrium processes between two
  • given states, indicating that work is a path
    function.

Energy, Work and Heat
18

Energy, Work and Heat
19
point function
Energy, Work and Heat
20
  • Point Functions
  • thermodynamic properties
  • e.g. V, U, H, ?
  • The change in volume depends only on the two end
  • states.
  • dV exact differential

Energy, Work and Heat
21
  • The relationship between P and V is required for
  • integration.
  • Polytropic Process
  • where n1(isothermal process),

Energy, Work and Heat
22
  • Other Modes of Work
  • ? ? ??
  • There is only one mode of heat, while there can
    be
  • many different modes of work.

Energy, Work and Heat
23
  • Non-equilibrium Process No Work is involved.
  • Example of a process involving a change
  • of volume for which work is zero

Energy, Work and Heat
24
  • Heat and Work
  • (1) Both are transient phenomena.
  • They cross the boundary as the system undergoes a
  • change in its state.
  • (2) Both are boundary phenomena.
  • They represent energy crossing the boundary of
    the
  • system.
  • (3) Both are path functions and inexact
    differentials.
  • Thermodynamic properties are state or point
    functions,
  • which do not depend on the previous path or
    history.

Energy, Work and Heat
25
  • Identification of works involved is an important
  • part of many thermodynamic problems.
  • Example showing how
  • selection of the system
  • determines whether work
  • is involved in a process

Energy, Work and Heat
26
  • An example showing the difference
  • between heat and work

Energy, Work and Heat
27
  • Example 4.1
  • Consider as a system the gas in the cylinder. The
    cylinder
  • is fitted with a piston on which a number of
    small weights
  • are placed. The initial pressure is 200kPa, and
    the initial
  • volume of the gas is 0.4m3.
  • Let a Bunsen burner be placed under the cylinder,
  • and let the volume of the gas increase to
    0.1m3
  • while the pressure remains constant.
    Calculate
  • the work done by the system during this
    process.

Energy, Work and Heat
28
  • 2. Consider the same system and initial
    conditions,
  • but at same time the Bunsen burner is under
    the
  • cylinder and the piston is rising, let
    weights be
  • removed from the piston at such a rate that,
    during
  • the process, the temperature of the gas
    remains
  • constant.
  • n1

Energy, Work and Heat
29
  • 3. Consider the same system, but during the heat
  • transfer let the weights be removed at such a
    rate
  • that the expression
    describes the
  • relation between pressure and volume during
    the
  • process. Again the final volume is 0.1m3.
  • Calculate the work.

Energy, Work and Heat
30
  • 4. Consider the system and initial state in the
    first
  • three examples, but let the piston be held by
    a pin
  • so that the volume remains constant. In
    addition,
  • let heat be transferred from the system until
    the
  • pressure drops to 100kPa. Calculate the work.
  • The work is zero, because there is no change
    in
  • volume.

Energy, Work and Heat
31
  • Pressure-volume diagram

Energy, Work and Heat
32
  • Example 4.2
  • Consider a slightly different piston cylinder
    arrangement
  • as shown in Fig.4.8. In this example the piston
    is loaded
  • with a mass, mp, the outside atmosphere P0, a
    linear
  • spring and a single point force F1. The piston is
    restricted
  • in its motion by lower and upper stops trapping
    the gas
  • with a pressure P. A force balance on the piston
    in the
  • direction of motion yields
  • with a zero acceleration in a quasi-equilibrium
    process.
  • The forces, when the piston between the stops,
    are

Energy, Work and Heat
33
  • with the linear spring constant, ks. The piston
    position
  • for a relaxed spring is x0, which depends on how
    the
  • spring is installed. The force balance then gives
    the
  • gas pressure by division with the area, A as
  • To illustrate the process in a P-V diagram, the
    distance
  • x is converted to volume by multiplication with
    A

Energy, Work and Heat
34
  • This relation gives the pressure as a linear
    function of
  • the volume, with the line having a slope of
    C2ks/A2.
  • With the stops installed, the minimum and maximum
  • volumes limit the possible states of the system
    to the
  • Combination of P and V as shown in Fig.4.9.
    Regardless
  • of what substance is inside, any process must
    proceed
  • along the lines in the P-V diagram. The work term
    in a
  • quasi-equilibrium process then follows as

Energy, Work and Heat
35
  • with and , subject to the
    constraint
  • that
  • These limits show that only the part of the
    process
  • that follows the sloped line, when the piston
    moves,
  • contributes to the work. Any part of the process
    with
  • a pressure smaller than Pmin or larger than Pmax
    does
  • not involve work as the piston is held in fixed
    piston
  • by one of the stops. The maximum work then
    arises,
  • when the piston travels the total distance
    between
  • the two stops.

Energy, Work and Heat
36
  • The process curve showing possible P-V combination

Energy, Work and Heat
37
5.1 1st Law for Control Mass
  • The 1st Law of Thermodynamics
  • (Conservation of Energy)
  • Example of a control mass undergoing a cycle

1st Law for Control Mass
38
  • Control Mass Undergoing a Process

  • E all energy of

  • the system
  • Energy Conservation
  • The net change of the energy is always equal to
    the
  • net transfer of energy across the boundary as
    heat
  • and work.

dE
1st Law for Control Mass
39
  • Internal Energy
  • E U KE PE
  • U internal energy
  • E represents all the energy of the system in the
    given
  • state.
  • Kinetic and potential energy(KE and PE) depend on
  • the coordinate frame that we choose to select.
    They
  • can be specified by the macroscopic properties of
  • mass, velocity and elevation.
  • Internal energy(U) is a thermodynamic property,
    which
  • may be uniquely given from the thermodynamic
    state
  • of the system.

1st Law for Control Mass
40
  • No information about the absolute magnitude of
    the
  • internal energy.
  • U extensive property
  • u intensive property

1st Law for Control Mass
41
  • Example 5.2
  • Consider a stone having a mass of 10kg and a
    bucket
  • containing 100kg of liquid water. Initially the
    stone is
  • 10.2m above the water, and the stone and the
    water
  • are at the same temperature, state 1. The stone
    then
  • falls into the water.
  • Determine ?U, ?KE, ?PE, Q, and W for the
    following
  • changes of state, assuming standard gravitational
  • acceleration of 9.80665m/s2
  • a. The stone is about to enter the water,
    state 2.
  • b. The stone has just come to rest in the
    bucket,
  • state 3.

1st Law for Control Mass
42
  • c. Heat has been transferred to the
    surroundings
  • in such an amount that the stone and
    water
  • are at the temperature, , state 4.
  • 1. The stone has fallen from to , and we
    assume no heat transfer as it falls.
  • For the process from state 1 to state 2,
  • and

1st Law for Control Mass
43
  • 2. For the process from state 2 to state 3 with
    zero
  • kinetic energy
  • 3. In final state,


1st Law for Control Mass
44
  • Example 5.3
  • A vessel having a volume of 5m3, contains 0.05m3
    of
  • saturated liquid water and 4.95m3 of saturated
    water
  • vapor at 0.1MPa. Heat is transferred until the
    vessel is
  • filled with saturated vapor. Determine the heat
    transfer
  • for this process.
  • Control mass All the water inside the
    vessel.
  • Initial state Pressure, volume of liquid,
    volume of
  • vapor State 1 is fixed.
  • Final state Somewhere along the saturated-
  • vapor curve the water
    was heated,
  • so P2gtP1.

1st Law for Control Mass
45
  • process constant volume and mass, therefore,
  • constant specific volume.

1st Law for Control Mass
46
  • Then

1st Law for Control Mass
47
  • Problem Analysis
  • Define the system. Control mass or control
    volume?
  • (2) Find out the initial and final states.
  • (3) Description of the process.
  • (4) Diagram of the process helps.
  • (5) How to obtain thermodynamic properties.
  • (6) Analysis of the problem.
  • 1st or 2nd laws? Relevant work modes?
  • (7) Solution technique.
  • Numerical solution? Trial-and-error?

1st Law for Control Mass
48
  • Enthalpy
  • H U PV
  • h u Pv (hH/m)
  • Enthalpy is also a thermodynamic property, which
    may
  • be defined as either an extensive or an intensive
  • property. (H or h)
  • In a constant pressure process

1st Law for Control Mass
49
  • therefore
  • The combination, UPV, appears often in control
  • volume analysis of the 1st law of thermodynamics.

1st Law for Control Mass
50
  • Example 5.4
  • A cylinder fitted with a piston has a volume of
    0.1m3
  • and contains 0.5kg of steam at 0.4MPa. Heat is
  • transferred to the steam until the temperature is
    300?C,
  • while the pressure remains constant.
  • Determine the heat transfer and the work for this
    process.
  • Control mass Water inside cylinder.
  • Initial state P1, V1, m therefore v1 is known,
    state 1 is
  • fixed(at P1, v1, check steam table - two-phase
    region).
  • Final state P2, T2 therefore state 2 is
    fixed(superheated).
  • Process Constant pressure.
  • Model Steam tables.

1st Law for Control Mass
51
1st Law for Control Mass
52
  • No change in kinetic energy, no change in
    potential
  • energy. Work is done by movement at the boundary.
  • Assume the process to be quasi-equilibrium. Since
    the
  • pressure is constant,
  • Therefore , the first law is

1st Law for Control Mass
53
1st Law for Control Mass
54
5.2 Specific Heats for Ideal Gas
  • Specific Heats
  • Specific heat at constant volume
  • Specific heat at constant pressure
  • The specific heats are thermodynamic properties.
  • (A function in terms of thermodynamic properties
    is
  • itself a thermodynamic property.)
  • For solid and liquid,

Specific Heats for Ideal Gas
55
  • Internal Energy, Enthalpy and Specific Heats of
  • Ideal Gas
  • For ideal gas the internal energy and enthalpy
    are the
  • functions of temperature only.
  • Ideal gas specific heats are also called as zero-
  • pressure specific heats, , .
  • from

Specific Heats for Ideal Gas
56
  • The energy in a molecule may be stored in several
  • forms. Translational and rotational energies
    increase
  • linearly with temperature. Vibrational energy is
  • temperature dependent.
  • monoatomic Ar, Ne, He (f3)
  • diatomic Air, O2, H2 (f6)
  • polyatomic CO2, H2O (f9)

Specific Heats for Ideal Gas
57
  • Specific Heats

  • Constant-pressure

  • specific heats for a

  • number of gases at
  • zero
    pressure

Specific Heats for Ideal Gas
58
  • Enthalpy from Specific Heats of Ideal Gas
  • - constant
  • less accurate except for monatomic gases
  • - as an analytical function of T
  • close empirical approximation
  • - Gas Table
  • most accurate

Specific Heats for Ideal Gas
59
  • Example 5.6
  • Calculate the change of enthalpy as 1kg of oxygen
    is
  • heated from 300 to 1500K. Assume ideal-gas
    behavior.
  • Our most accurate answer for the ideal-gas
    enthalpy
  • change for oxygen between 300 and 1500K would be
  • from the ideal-gas tables, Table A.13.

Specific Heats for Ideal Gas
60
  • The empirical equation from Table A.11 should
    give
  • a good approximation to this result.

Specific Heats for Ideal Gas
61
  • If we assume constant specific heat, we must be
  • concerned about what value we are going to use.
    If
  • we use the value at 300K from Table A.10,
  • On the other hand, suppose we assume that the
    specific
  • heat is constant at its value at 900K, the
    average
  • temperature. Substituting 900K into the equation
    for
  • specific heat from Table A.11,

Specific Heats for Ideal Gas
62
  • Example 5.7
  • A cylinder fitted with a piston has an initial
    volume of
  • 0.1m3 and contains nitrogen at 150kPa, 25?C. The
  • piston is moved, compressing the nitrogen until
    the
  • pressure is 1MPa and the temperature is 150?C.
    During
  • this compression process heat is transferred from
    the
  • nitrogen, and the work done on the nitrogen is
    20kJ.
  • Determine the amount of this heat transfer.

Specific Heats for Ideal Gas
63
Control mass Nitrogen. Initial state P1, T1,
V1 state 1 fixed. Final state P2, T2 state 2
fixed. Process work input known. Model Ideal
gas, constant specific heat at 300K, Table A.10
  • First law

Specific Heats for Ideal Gas
64
  • Example 5.8
  • During the charging of a storage battery, the
    current
  • is 20A and the voltage is 12.8V. The rate of heat
  • transfer from the battery is 10W. At what rate is
    the
  • internal energy increasing?

Specific Heats for Ideal Gas
65
5.3 1st Law for Control Volume
  • Control Volume Formulation Mass

1st Law for Control Volume
66
  • Control Volume Formulation Energy

1st Law for Control Volume
67
  • Control Volume Formulation
  • (??)

1st Law for Control Volume
68
5.4 Steady-State, Steady-Flow Process
  • Steady State, Steady Flow(SSSF) Process
  • CV at rest.
  • SS everywhere in the CV.
  • SS for flows across the CS.
  • SS for heat and work.
  • where ,

Steady-State, Steady-Flow Process
69
  • Example 5.10
  • The mass rate of flow into a steam turbine is
    1.5kg/s,
  • and the heat transfer from the turbine is 8.5kW.
    The
  • following data are known for the steam entering
    and
  • leaving the turbine.

Steady-State, Steady-Flow Process
70
  • Determine the power output of the turbine.
  • Control volume Turbine.
  • Inlet state Fixed.
  • Exit state Fixed.
  • Process SSSF.
  • Model Steam tables.
  • First law
  • with

Steady-State, Steady-Flow Process
71
  • hi3137.0kJ/kg
  • he2675.5kJ/kg

Steady-State, Steady-Flow Process
72
  • Example 5.11
  • Steam at 0.6MPa, 200?C enters an insulated nozzle
  • with a velocity of 50m/s. It leaves at a pressure
    of
  • 0.15MPa and a velocity of 600m/s. Determine the
  • final temperature if the steam is superheated in
    the
  • final state, and the quality if it is saturated.
  • Control volume Nozzle.
  • Inlet state Fixed.
  • Exit state Pe known.
  • Process SSSF.
  • Model Steam tables.

Steady-State, Steady-Flow Process
73
Steady-State, Steady-Flow Process
74
  • Example 5.12
  • In a refrigeration system, in which R-134a is the
  • refrigerant, the R-134a enters the compressor at
    200kPa
  • , -10?C and leaves at 1.0MPa, 70?C. The mass rate
    of
  • flow is 0.015kg/s, and the power input to the
    compressor
  • is 1kW.
  • On leaving the compressor the refrigerant enter a
    water-
  • cooled condenser at 1.0MPa, 60?C and leaves as a
    liquid
  • at 0.95MPa, 35?C. Water enters the condenser at
    10?C
  • and leaves at 20?C. Determine
  • The heat transfer rate from the compressor.
  • The rate at which cooling water flows through the
  • condenser.

Steady-State, Steady-Flow Process
75
  • First control volume Compressor.
  • Inlet state Pi, Ti state fixed.
  • Exit state Pe, Te state fixed.
  • Process SSSF.
  • Model R-134a tables.

Steady-State, Steady-Flow Process
76
  • Second control volume Condenser.
  • Inlet states R-134a-fixed water-fixed.
  • Exit states R-134a-fixed water-fixed.
  • Process SSSF.
  • Model R-134a tables steam tables.

Steady-State, Steady-Flow Process
77
Steady-State, Steady-Flow Process
78
  • Example 5.13
  • Consider the simple steam power plant. The
    following
  • data are for such a power plant.

Steady-State, Steady-Flow Process
79
  • Simple steam power plant

Steady-State, Steady-Flow Process
80
  • Determine the following quantities per kilogram
    flowing
  • through the unit.
  • Heat transfer in line between boiler and turbine.
  • Turbine work.
  • Heat transfer in condenser.
  • Heat transfer in boiler.
  • All processes SSSF.
  • Model Steam tables.

Steady-State, Steady-Flow Process
81
  • From the steam tables
  • 1. Control volume Pipe line between the boiler
    and the turbine.

Steady-State, Steady-Flow Process
82
  • 2. Control volume Turbine.
  • 3. Control volume Condenser.
  • 4. Control volume Boiler.

Steady-State, Steady-Flow Process
83
  • Example 5.14
  • The centrifugal air compressor of a gas turbine
    receives
  • air from the ambient atmosphere where the
    pressure is
  • 1bar and the temperature 300K. At the discharge
    of the
  • compressor the pressure is 4bar, the temperature
    is 480
  • K, and the velocity is 100m/s. The mass rate of
    flow
  • into the compressor is 15 kg/s. Determine the
    power
  • required to drive the compressor.
  • We consider a control volume around the
    compressor,
  • and locate the control volume at some distance
    from
  • the compressor so that the air crossing the
    control
  • surface has a very low velocity and is
    essentially at
  • ambient conditions.

Steady-State, Steady-Flow Process
84
  • If we located our control volume directly across
    the
  • inlet section, it would be necessary to know the
  • temperature and velocity at the compressor inlet.
  • Inlet and exit states Both states fixed.
  • Process SSSF.
  • Model Ideal gas with constant specific heat,
    value
  • from Table A.10(300K)

Steady-State, Steady-Flow Process
85
Steady-State, Steady-Flow Process
86
  • A more accurate model for the behavior of the air
    in
  • this process would be the ideal gas and air
    tables,
  • A.12.

Steady-State, Steady-Flow Process
87
5.4 Uniform-State, Uniform-Flow Process
  • Uniform State, Uniform Flow(USUF) Process
  • CV at rest.
  • Uniform state in CV. May change with time.
  • SS for the state of mass across the CS.
  • Mass flow rates may change with time.

Uniform-State, Uniform-Flow Process
88
  • Example 5.15
  • Steam at 800kPa, 300?C is throttled to 200kPa.
    Changes
  • in kinetic energy are negligible for this
    process.
  • Determine the final temperature of the steam,
    and the
  • average Joule-Thomson coefficient.
  • Control volume Throttle valve.
  • Inlet state Pi, Ti known state fixed.
  • Exit state Pe known.
  • Process SSSF.
  • Model Steam tables.

Uniform-State, Uniform-Flow Process
89
Uniform-State, Uniform-Flow Process
90
  • Example 5.16
  • Consider the throttling process across the
    expansion valve
  • or through the capillary tube in a
    vapor-compression
  • refrigeration cycle. In this process the pressure
    of the
  • refrigerant drops from the high pressure in the
    condenser
  • to the low pressure in the evaporator, and during
    this
  • process some of the liquid flashes into vapor. If
    we
  • consider this process to be adiabatic, the
    quality of the
  • refrigerant entering the evaporator can be
    calculated.
  • Consider the following process, in which ammonia
    is the
  • refrigerant. The ammonia enters the expansion
    valve at a
  • pressure of 1.50MPa and a temperature of 32?C.
    Its
  • pressure on leaving the expansion valve is
    268kPa.

Uniform-State, Uniform-Flow Process
91
  • Calculate the quality of the ammonia leaving the
  • expansion valve.
  • Control volume Expansion valve or capillary
    tube.
  • Inlet state Pi, Ti known state fixed.
  • Exit state Pe known.
  • Process SSSF.
  • Model Ammonia tables.

Uniform-State, Uniform-Flow Process
92
  • Example 5.17
  • Steam at a pressure of 1.4MPa, 300?C is flowing
    in a pipe
  • . Connected to this pipe through a valve is an
    evacuated
  • tank. The valve is opened and the tank fills with
    steam
  • until the pressure is 1.4MPa, and then the valve
    is closed.
  • The process takes place adiabatically and kinetic
    energies
  • and potential energies are negligible. Determine
    the final
  • temperature of the steam.
  • Control volume Tank.
  • Initial state(in tank) Evacuated, mass m10.
  • Final state P2 known.
  • Inlet state Pi, Ti (in tank) known.
  • Process USUF.

Uniform-State, Uniform-Flow Process
93
  • Flow into an evacuated vessel-control volume
    analysis

Uniform-State, Uniform-Flow Process
94
  • The temperature corresponding to a pressure of
  • 1.4MPa and an internal energy of 3040.4kJ/kg is
    found
  • to be 452?C.

Uniform-State, Uniform-Flow Process
95
  • Example 5.18
  • Let the tank of the previous example have a
    volume 0.4
  • m3 and initially contain saturated vapor at
    350kPa. The
  • valve is then opened and steam from the line at
    1.4MPa,
  • 300?C flows into the tank until the pressure is
    1.4MPa.
  • Calculate the mass of steam that flows into the
    tank.
  • Control volume Tank.
  • Initial state P1, saturated vapor state fixed.
  • Final state P2.
  • Inlet state Pi, Ti state fixed.
  • Process USUF.
  • Model Steam tables.

Uniform-State, Uniform-Flow Process
96
Uniform-State, Uniform-Flow Process
97
Uniform-State, Uniform-Flow Process
98
  • Example 5.19
  • A tank of 2m3 volume contains saturated ammonia
    at a
  • temperature of 40?C. Initially the tank contains
    50 liquid
  • and 50 vapor by volume. Vapor is withdrawn from
    the
  • top of the tank until the temperature is 10?C.
    Assuming
  • that only vapor(i.e., no liquid) leaves and that
    the process
  • is adiabatic, calculate the mass of ammonia that
    is
  • withdrawn.

Uniform-State, Uniform-Flow Process
99
  • Control volume Tank.
  • Initial state T1, Vliq, Vvap state fixed.
  • Final state T2.
  • Exit state Saturated vapor(temperature
    changing).
  • Process USUF.
  • Model Ammonia tables.

Uniform-State, Uniform-Flow Process
100

Uniform-State, Uniform-Flow Process
101
Uniform-State, Uniform-Flow Process
102
  • For ideal gas the internal energy is a function
    of the temperature only.

Uniform-State, Uniform-Flow Process
103
  • from specific heats.

Uniform-State, Uniform-Flow Process
104
  • Throttling Process
  • SS, no work, no heat transfer, no change in PE
    and KE.
  • Joule-Thomson coefficient
  • T drops during throttling.
  • T drops during throttling.

Uniform-State, Uniform-Flow Process
Write a Comment
User Comments (0)
About PowerShow.com
