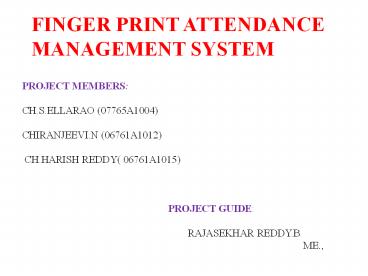

FINGER PRINT ATTENDANCE MANAGEMENT SYSTEM
PROJECT MEMBERS
CH.S.ELLARAO (07765A1004)

CHIRANJEEVI.N (06761A1012) CH.HARISH REDDY(
06761A1015)
PROJECT GUIDE

RAJASEKHAR REDDY.B

ME.,
2
ABSTRACT
The Main objective of this project is to
authenticate and to maintain attendance by
collecting fingerprints using fingerprint
sensors. Nowadays accurate personal
identification is becoming more and more
important. Usual means (smart cards, passwords)
have shown their limits. Currently fingerprint
recognition is the most widely used technique for
personal identification. The use of ink and
paper to get an image from a finger was used for
a long time, but technological advances have
enabled to automate the acquisition stage by
means of solid-state sensors. These sensors
exploit different techniques to acquire the image
(pressure, electrical field, temperature) and
require a static (matrix sensor) or mobile finger
position (sweeping mode sensor). The project
is developed with 3 level securities, i.e. to
provide the authentication here an ID, password
and finger print are required. The project
contains 2 modes, the first one is master mode
and the second is user mode.
3
The fingerprint sensor sense the thumb impression
of the particular person and that image will be
registered with username and password in
fingerprint sensor module. This project is
developed on microcontroller (89S52). The
fingerprint sensor is serially interfaced to the
microcontroller via MAX232 IC. The fingerprint
sensor sense the thumb impression of the
corresponding person and that image will be
compared with registered image and if the both
images are unique, then the microcontroller
activates particular task like authenticating an
image, identification of the employee etc which
also maintains the attendance record of each and
every employee. The process of authentication
is done by entering username and password by
using a keypad.
4
BLOCK DIAGRAM
FINGER PRINT SENSOR
3X4 KEY BOARD
L.C.D
MICRO CONTROLLER 89S52
FINGER PRINT MODULE
MAX 232
5
FINGER PRINT SENSOR FIM10 is a
stand-alone Fingerprint Recognition Device with
many excellent features. It provides the high
recognition performance, the low power
dissipation and the RS-232 serial interface with
the simple protocol for easy integration into a
wide range of applications. It is a durable and
compactable device and made into a fingerprint
recognition module with NITGEN optics-based
fingerprint sensor.
Application 1.Door-Lock System 2. Safe
Box 3.Simple Access Controller 4. Vehicle
Control 5. ATM, POS, and mor e
6
FINGER PRINT IDENTIFICATION MODULE

7

Fingerprint Identification Module) is an
evolutionary standalone fingerprint recognition
module consisted of optic sensor and processing
board. Its voltage is so low(3.3V) enough to
implement a series of 23,000 authentication
consuming 4 piece of AA batteries and executes
average 1.2 seconds of high speed authentication.
As CPU and highly upgraded algorithm are embedded
into a module, it provides high recognition ratio
even to small-size, wet, dry, calloused
fingerprint. Due to technologies of simple and
robust hardware design and including keypad
function of the existed DK in one board, it can
be executed to develop viable applications and
perform user enrollment and authentication needed
for fingerprint recognition without a connection
to PC.
8
  • FEATURES
  • Built-in fingerprint authentication .
  • Various authentication using 11/1N matching
    and
  • Password.
  • Convenient DK without a connection to PC.
  • Accurate authentication ratio even to
    small-size/wet/dry
  • fingerprint.
  • Fast acquisition of difficult finger types under
    virtually any
  • condition.
  • Economical due to low voltage consumption

9
MAX 232
  • 1. The MAX232 is a dual driver/receiver that
    includes a capacitive voltage generator to supply
    EIA-232 voltage levels from a single 5-V
    supply.
  • 2. Each receiver converts EIA-232 inputs to 5-V
    TTL/CMOS levels.
  • 3. These receivers have a typical threshold of
    1.3 V and a typical hysteresis of 0.5 V, and can
    accept 30- V inputs.
  • 4. Each driver converts TTL/CMOS input levels
    into EIA-232 levels. The driver, receiver, and
    voltage- generator function

10
FEATURES OF MAX 232
  • Operate With Single 5-V Power Supply
  • Operate Up to 120 kbit/s
  • Two Drivers and Two Receivers
  • Low Supply Current . . . 8 mA Typical
  • Designed to be Interchangeable With
  • Maxim MAX232
  • 30-V Input Levels

11
MICRO CONTROLLER 89S52
  • The AT89C52 is a low-power, high-performance
    CMOS 8-bit microcomputer with 8K
  • bytes of Flash programmable and erasable read
    only memory (PEROM). The device
  • is manufactured using Atmels high-density
    nonvolatile memory technology and is
  • compatible with the industry-standard 80C51 and
    80C52 instruction set and pinout.
  • The on-chip Flash allows the program memory to be
    reprogrammed in-system or by a
  • conventional nonvolatile memory programmer. By
    combining a versatile 8-bit CPU
  • with Flash on a monolithic chip, the Atmel
    AT89C52 is a powerful microcomputer
  • which provides a highly-flexible and
    cost-effective solution to many embedded control

12
LCD DISPLAY
  • Liquid crystal displays (LCDs) have materials
    which combine the properties of both liquids and
    crystals. Rather than having a melting point,
    they have a temperature range within which the
    molecules are almost as mobile as they would be
    in a liquid, but are grouped together in an
    ordered form similar to a crystal.
  • An LCD consists of two glass
    panels, with the liquid crystal material sand
    witched in between them. The inner surface of the
    glass plates are coated with transparent
    electrodes which define the character, symbols or
    patterns to be displayed polymeric layers are
    present in between the electrodes and the liquid
    crystal, which makes the liquid crystal molecules
    to maintain a defined orientation angle

13
FEATURES OF FINGER PRINT ATTENDANCE
  • Comprehensive organization
  • structure
  • Employee database
  • Finger registration
  • Leave policies
  • Attendance Calculator
  • Daily Attendance
  • Hourly Attendance Summary
  • Tracking of Late Coming
  • Tracking of Early going
