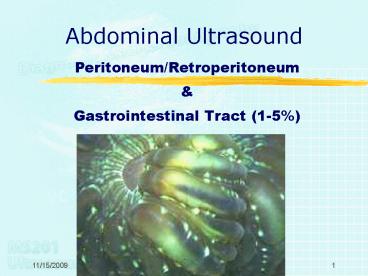

Abdominal Ultrasound

1
Abdominal Ultrasound

• Peritoneum/Retroperitoneum
• Gastrointestinal Tract (1-5)

2
Peritoneum

• Peritoneum
• Thin membrane consisting of two layers
• Parietal peritoneum
• Lines the abdominal cavity wall
• Visceral peritoneum
• Lines the organs

3
Parietal Peritoneum
4
Peritoneal Cavity

• Between the two layers is a potential space for
  fluid accumulation
• Both parietal and visceral peritoneum secrete a
  small amount of serous fluid which functions to
  lubricate the organ surfaces so that there is no
  friction
• Peritoneum allows for mobility of the organs to
  slip and slide
• The peritoneal cavity is divided into a greater
  and lessor sac

5
Peritoneal Cavity

• The cavity is an enclosed sac in males
• The sac has an opening for the fallopian tubes in
  females
• The only communication between the lesser and
  greater peritoneal spaces is an opening a finger
  width in diameter, called the foramen of Winslow.
• The foramen of Winslow lies adjacent to the
  second portion of the duodenum.
• The lesser sac is usually empty, or nearly so,
  even when ascites is present in the greater sac

6
Peritoneal Cavity

• Spaces in the peritoneal cavity for potential
  fluid collection include the
• Subhepatic region (morisons pouch)
• Right and left subphrenic areas (beneath the
  diaphragm)
• Lesser sac
• Paracolic gutters
• Cul-de-sac

7
Subhepatic Space

• Morrison's pouch (hepatorenal pouch) - space
  formed beneath the right lobe of the liver the
  the right kidney
• It is the first location at which ascites
  collects in the right upper quadrant

8
Subhepatic fluid collection
9
Morisons Pouch
10
Subphrenic Space

• Right left subphrenic space - folds in the
  peritoneum in the hepatic region, this space lies
  between the diaphragm the liver and the
  diaphragm and the spleen
• The falciform ligament divides the subphrenic
  space into right and left components.
• The bare area of the liver is delineated by the
  right superior and inferior coronary ligaments,
  which separate the posterior subphrenic space
  from the right superior subhepatic space(Morisons
  pouch)

11
Ascites
12
Morrisons Pouch
13
Subphrenic Space
14
Liver with Ascites
15
Ascites with Spleen
16
Lessor Sac

• Presence of lesser sac fluid indicates two forms
  of pathology.
• First, significant nearby disease, particularly
  pancreas or stomach.
• Second is peritoneal carcinomatosis, causing
  malignant ascites.
• Ordinary transudative ascites does not usually
  enter the lesser sac unless the quantity of
  ascites is massive.

17
Lessor Sac
18
Paracolic Gutters

• Extend downward
• Space between the abdominal wall and colon
• Lies along the lateral medial walls
• Communicates with the pelvis

19
Ascites with Bowel
20
Cul-de-Sacs
21
Cul-de-Sacs
22
Peritoneum

• Organs that are covered by peritoneum
• Liver
• Gallbladder
• Spleen
• Stomach
• Intestines
• Ovaries
• Except for the female pelvis, the peritoneum is
  essentially an empty sac

23
Fluid Collections

• Sonographer must know where to look for the
  fluid.
• The most dependent part of the peritoneal space,
  with the patient supine, is the pelvic cavity.
• The next most likely location is along the
  lateral or anterior aspect of the liver.
• Dont forget to look anterior to the left and
  right lobes of the liver
• The next most common locations are Morisons
  pouch and the right paracolic gutter.

24
Fluid Collections

• Important things to think about when a fluid
  collection is seen
• Where is the fluid collection?
• Peritoneal cavity, retroperitoneal,
  extraperitoneal space, or pleural cavity
• Is the fluid collection simple or complex?
• Septations, debris, or fluid levels
• Is there an explanation for the fluid collection?
• know patient history

25
Ascites

• Free fluid in the peritoneal cavity
• Transudative ascites
• Accumulation of fluid resulting from insufficient
  osmotic pressure to keep fluid in blood vessels
• Benign, often observed in chronic cirrhosis and
  liver failure, renal failure or congestive heart
  disease
• Fluid containing little or no protein and is
  associated with heart, kidney, or liver failure
• Treatment is with a low sodium diet, diuretics
  and removal of fluid (therapeutic paracentesis)
• Transudative ascites is echo free

26
Ascites/Jaundice
27
Pleural Effusion
28
Pleural Effusion
29
Pleural Effusion
30
Ascites
31
Ascites
32
Fetal Ascites
33
Ascites

• Exudative ascites
• It is a reaction to an abnormality, associated
  with malignancy and inflammatory processes
• Causes include hemorrhage, infection and
  peritoneal malignancy (ovarian CA)
• Exudative ascites contains cells or proteinaceous
  debris, and may be echogenic
• May have septations and is not free flowing
• Paracentesis needle aspiration of ascites for
  diagnostic reasons

34
Exudative Effusion
35
Pseudomyxoma Peritonei

• Malignant ascites - it is a condition described
  as the filling of the peritoneal cavity with
  mucinous material and gelatinous ascites
• Adhesions are present which producing matting of
  the mesentery and bowel posteriorly in the
  abdominal cavity

36
Pseudomyxoma Peritonei

• There are three causes of malignant ascites
• Metastasis
• Rupture of a mucinous cystadenocarcinoma of the
  ovary
• Rupture of an appendix

37
Pleural Effusion w/ Mult. Loculations
38
Pleural Effusion w/ Mult. Loculations
39
Pseudomyxoma Peritoneidemonstrated by CT scan
40
Retroperitoneum

• Only their anterior surfaces are covered with
  peritoneum
• Retroperitoneum structures include
• Pancreas
• Portions of the duodenum
• Kidneys ureters
• Ascending descending colon
• Adrenal glands
• IVC
• Aorta
• Prostate
• Lymph nodes
• Uterus
• Bladder

41
Retroperitoneum
?
?
?
?
?
?
?
42
Retroperitoneum

• Retroperitoneal spaces do not normally
  communicate with the peritoneal cavity
• Perinephric space
• Space formed around the kidney and adrenal gland
• Perirenal space
• Anterior pararenal space
• Posterior pararenal space
• Both Lymphoceles and Urinomas are found in the
  retroperitoneal space

43
Retroperitoneal Fibrosis

• A dense fibrous tissue proliferation that
  generally is confined to the paravertebral and
  central abdominal region
• They may occur in association with aortic
  aneurysms
• They may encase the ureters causing secondary
  hydronephrosis
• Sonographically appears as a hypoechoic mass
  anterior to the lower lumbar or sacral region

44
Lymphocele

• Collection of lymphatic fluid
• Typically are complecations of renal
  transplantation and gynecologic surgery
• The etiology is usually leakage of lymph from a
  renal transplant or by a surgical disruption of
  the lymphatic channels
• Loculated ascites, urinoma, hematoma or abscess
  may appear similar to lymphoceles
• The presence of internal echoes within the fluid
  collectin is more consistent with abscesses or
  hematomas than with lymphoceles

45
Lymphocele

• Lymphocele adjacent to transplanted kidney

46
Lymphocele

• Large septated lymphocele between lower pole of
  transplanted kidney and bladder.

47
Urinoma

• Collection of urine
• They result form renal trauma, renal surgery or
  an obstructing lesion
• They are most commonly associated with renal
  transplantation and posterior urethral valve
  obstruction
• They sonographicly appear the same as lymphoceles

48
Ultrasound Appearance

• Ultrasound can not tell you what the fluid is,
  however it can tell you if it is retroperitoneal,
  peritoneal or both
• It is not unusual for fluid to originate in the
  retroperitoneum and involve the peritoneal
  cavity, however the opposite is very unlikely

49
Urinoma
50
Urinoma
51
Urinoma
52
Urinoma
53
Pleural Effusion

• Space formed surrounding the lung
• Pleural effusion's are a non-specific reaction to
  Another underlying problem, like
• Pulmonary disease, Cardiac disease
• Systemic disease, Cirrhosis
• End stage renal disease, Malignancy
• Infection, Trauma

54
Ascites/Pleural Effusion
55
Hemothorax
56
Pleural Effusion
57
Pleural Effusion
58
Pleural Effusion
59
Pleural Effusion
60
CT of Pleural Effusion
61
X-Ray of Pleural Effusion
62
X-Ray of Pleural Effusion
63
GI-Technique

• We typically evaluate these four areas of the GI
  tract with ultrasound
• Stomach-filling the stomach facilitates
  examination of the wall
• Appendix-examined with graded compression, the
  landmarks to identify are the terminal ileum,
  cecum and psoas
• Inguinal hernia-the transducer is placed in the
  groin sagittally. The Inferior epigastric artery
  is identified. Have the patient valsalva and see
  if the hernia will move into the inguinal canal
• Rectum-water enema can be used to evaluate the
  rectum, water is placed in the rectum and sigmoid
  colon to determine whether an apparent mass is
  actually normal gut

64
Esophagus

• Sonoendoscopy can be used to evaluate the
  esophagus above the the diaphgram
• The esophagus is a muscular canal
• Extends from the pharynx to the stomach
• Sonographicly you can visualize the
  gastroesophageal junction (GEJ) in a sagittal
  cross section of the aorta, seen anterior to the
  aorta as a bulls eye structure

65
Stomach

• Sonoendoscopy can be used to evaluate the stomach
• It has a target or bulls eye pattern
  sonographicly
• Hyperechoic mucosal layer (outer layer)
• Hypoechoic intramural layer
• Hyperechoic submucosa
• Hypoechoic muscularis
• Hyperechoic serosal layer (inner layer)
• The wall of the stomach should appear thin and
  uniform when distended and should not exceed 5.0
  mm
• Function is in the storage of food

66
Small Intestine

• Extends from the pylorus to the ileocecal valve
• Surrounded superiorly and laterally by large
  bowel
• Duodenum, Jejunum, Ileum function is in the
  absorption of food
• Sonographic appearance
• Duodenum is usually gas filled, found to the
  right of the pancreas head, fluid may be seen
  within the second portion of the duodenum

67
Colon

• Extends from the ileum to the anus
• Includes the cecum, aapendix, ascending colon,
  transverse colon, descending colon, sigmoid,
  rectum, anal canal
• The function is in the reabsorbtion of liquid and
  wastes formed into solid feces
• Sonographicly normal bowel wall should not
  exceed 4.0 mm and the rectum is best evaluated by
  endorectal ultrasound

68
Hypertrophic Pyloric Stenosis

• HPS is characterized by hypertrophy and
  hyperplasia of the circular muscle which results
  in elongation of the pylorus and constriction of
  the canal
• It is familial and occurs more often in males
  (51)
• Symptoms include
• Projectile vomiting usually starting in the 2-3
  week of life
• Dehydration
• Weight loss
• Palpable abdominal mass

69
Hypertrophic Pyloric Stenosis

• Sonographic appearance includes
• Target lesion seen medial to the gallbladder and
  lateral to the pancreas head
• Appears as a hypoechoic ring of hypertrophied
  pyloric muscle around an echogenic central mucosa
• Measurements
• Transverse abnormal muscle thickness is gt3-4
  mm, and a length gt13-15 mm
• Sagittal over 18 mm in length
• Obstructed fluid-filled stomach will be seen due
  to the stenosis

70
Pyloric Stenosis
71
Pyloric Stenosis
72
Pyloric Stenosis
73
Hypertrophic Pyloric Stenosis
74
Pyloric Stenosis
75
Pyloric Stenosis
76
Pyloric Stenosis
77
Pyloric Stenosis
78
Pyloric Stenosis
79
Appendicitis

• Population - acute appendicitis is more commonly
  seen in young adults
• Symptoms RLQ pain with rebound tenderness and
  elevated WBC
• Sonographic appearance includes
• Target lesion in the RLQ
• Inflamed appendix should measure more than 6 mm
  in diameter with the hypoechoic portion of the
  wall measuring more than 2 mm in thickness
• An inflamed appendix will have increased blood
  flow
• Appendiceal calculus (appendicolith) may be seen
  as an echogenic structure within an acoustic
  shadow, this finding alone is sufficient to
  diagnosis appendicitis even if the appendix is
  not enlarged
• Fluid may be seen around the appendix

80
Acute appendicitis
81
Acute appendicitis
82
Appendicitis
83
Appendicitis
