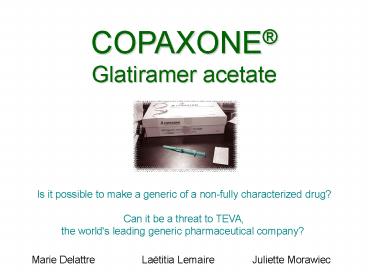

COPAXONE

1
COPAXONE Glatiramer acetate

Is it possible to make a generic of a non-fully
characterized drug? Can it be a threat to TEVA,
the world's leading generic pharmaceutical
company?
Marie Delattre Laëtitia Lemaire Juliette
Morawiec
2
The triggering event
ANDA Abbreviated New Drug Application
3
Copaxone TEVAs blockbuster
4
18 of TEVAs sales
total sales9.4bn
API (external only)
6
synergies
Generic pharmaceuticals
75
19
Copaxone 1.71B Azilect QVAR Albuterol HFA
Innovative pharmaceuticals
(2007)
5
and a major contribution to its profits

• 24 of Teva's profits in 2008
• (32 expected in 2010)

6
Copaxonea complex mixture drug
7
Unexpected properties

• 1960,Weizmann Institute tried to induce
  Experimental Allergic Encephalomyelitis (animal
  model of MS)
• Synthetic copolymer mimicking MBP
• gt no encephalitogenic activity but high
  efficacy in suppressing EAE
• 1987 agreement with TEVA for development

8
A random copolymer

• amino acid sequence vary from one peptide to
  another
• Potential sequence
• ALGTLTGLALALGAGTGLATGGTLLAGTGLAGTLAG
• 50 to 100 amino
  acids

9

• 20 mg subcutaneous daily
• reduces the frequency of relapses in RRMS

10
Proposed mechanism of action
IMMUNOMODULATION
displaces myelin Ag
-
GA-reactive CD4 Th2
NEUROPROTECTION
Proinflammatory cytokines
Anergy, apoptosis
11
Momenta/Sandozs M356 a generic drug of
Copaxone?
12

• Biotechnology company
• Duplicate Re-engineer Create
• Specializing in characterization and engineering
  of complex sugars
• ANDA for M-Enoxaparin (generic of Lovenox)
  filled in 2005

13
Sandoz

• Generic drug subsidiary of Novartis
• First company to launch a biosimilar Omnitrope
  (recombinant human growth hormone)

14
ANDA process with paragraph IV
ANDA Abbreviated New Drug Application
15
Requirements for an ANDA

• 1. Pharmaceutical Equivalence
• Same active ingredient
• Same conditions of use, route of administration,
  dosage form, strength, labeling
• 2. Bioequivalence
• 3. Patent certification (I to IV)
• PE BE Therapeutic Equivalence
• gtSafety Effectiveness presumed

16

• But it is not easily applicable to Copaxone

17
Requirements for an ANDA

• 1. Pharmaceutical Equivalence
• Same active ingredient
• Same conditions of use, route of administration,
  dosage form, strength, labeling
• 2. Bioequivalence
• 3. Patent certification (I to IV)
• PE BE Therapeutic Equivalence
• gtSafety Effectiveness presumed

18
1. Chemical sameness

• Problem Copaxone random copolymer
• gt not fully characterized
• M 356 cannot be identical to Copaxone since
  Copaxones composition is not precisely defined!

19
Copaxones synthesis polymerization
19
20
Synthesis (1) Polymerisation in anhydrous dioxane
Molecular ratio 1,4 3,4 4,2 1,0
21
Synthesis (2) Deprotection
22
Synthesis (3) Separation and purification

• Dialysis against water
• Gel permeation chromatography
• Average molecular weight 5000 - 9000 Da

23
Exact chain composition unknown

• NCA amino acids react in an unpredictable order
• (4)100 possible combinations!

100 amino acids
24
Exact chain length unknown

• In theory, 1 diethylamine 1 chain of 100
  aa
• water can start polymerization more chains but
  shorter ones
• Average length 50 to 100 amino acids

25
Analysis with current analytical methods
impossible

• Peptides highly similar in size, charge and
  hydrophobicity
• Even multidimentionnal analysis and mass
  spectrometry unable to separate (4)100 peptide
  sequences

26
COPAXONEA product defined by its process!
27

Process control
Ratio diethylamides / C-term carboxylates 13
to 38 (according to Momentas patent  Methods
of evaluating peptide mixtures )

28
Biological way of characterization

• - Biological activity mediated by
  immunomodulation on T cells
• - Measurement of potency between 2 batches
  comparing IL-2 release
• - Process patented impossible to compare
  glatiramer acetate and a generic version without
  infringing the patent!!

29

• Requirements for an ANDA
• 1. Pharmaceutical Equivalence
• Same active ingredient
• Same conditions of use, route of administration,
  dosage form, strength, labeling
• 2. Bioequivalence
• 3. Patent certification (I to IV)
• PE BE Therapeutic Equivalence
• gtSafety Effectiveness presumed

30
2. Bioequivalence

• Impossible to measure Copaxones blood
  concentration
• - injection of (4)100 peptides, quickly
  degraded to free amino acids no systemic plasma
  concentrations, urinary or faecal excretion
  detectable
• - no analytical method in biological fluids
• - no human PK studies in Copaxones NDA studies
  conducted in animals using radiolabelled Copaxone

31

• Requirements for an ANDA
• 1. Pharmaceutical Equivalence
• Same active ingredient
• Same conditions of use, route of administration,
  dosage form, strength, labeling
• 2. Bioequivalence
• 3. Patent certification (I to IV)
• PE BE Therapeutic Equivalence
• gtSafety Effectiveness presumed

32
3. Patent certification

• Copaxone composition patents in Orange book,
  expiring 2014
• Momenta/Sandoz have to invalidate those patents
  to obtain a generic
• original patents expired in 1991
• lower molecular weights said to be less toxic
• new patents stretching into 2014
• but all molecular weight ranges equally safe and
  effective

33
From a generic to a biosimilar?
34
From a generic to a biosimilar?

• Modest change in the process slightly higher
  molecular weight
• gt Systemic toxicity (organ damage, death)
  completely distinct immunoreactive and
  toxicological profile!
• Biosimilar clinical studies required to prove
  efficacy and safety

35
Previous FDA decisions in similar cases

• Examples
• Premarin
• Lovenox

36
Another uncharacterized mixture drug

• conjugated estrogens, derived from the urine of
  pregnant mares
• the most widely prescribed drug in the USA for
  estrogen replacement (menopause)

37
Premarin
Nowadays
1942
1970
1992
FDA approval
quantitative composition of Premarin has not been
defined
mixture of sodium estrone sulfate and sodium
equilin sulfate
other constituents described as "concomitant
components"

• If one component disappears, the drug will have a

• different activity.
• Qualitative

FDA has not approved the generic version
38
The case of Lovenox

• Enoxaparin sodium
• a Low-Molecular-Weight Heparin
• Sourced from porcine intestinal mucosa
• Antithrombosis drug prevention and treatment
  of deep vein thrombosis
• Glycosaminoglycan
• ?Can a generic version be approved?

39
Lovenox an uncharacterized mixture

• Mixture of sulfated polysaccharide chains
• Vary in length and made of repeating
  disaccharide units
• The complex set of oligosaccharides have not yet
  been completely characterized

40
Momentas generic version of Lovenox M-enoxaparin
Nov 2007
April 2008
Sept 2008
August 2005
March 1993
FDA non-approvable letter
FDA approval
Sandoz submitted the amendment
ANDA submission of M-enoxaparin
FDA additional animal studies
Momenta duplicates
41
What are the topics prone to discussion?
Teva/AmphastarMomenta/Sandoz
Sanofi-Aventis
1. Lack of full characterization 2. Structural
fingerprints
42

• 1. Lack of full characterization
• Sanofi-Aventis
• Lovenox has chemical characteristics entirely
  dependent on its
• manufacturing process.
• Rivals
• Aventis product by process theory is
  contradicted by the known variability of
  Lovenox itself
• (2 batches of Lovenox are not identical)

43
2. Structural Fingerprints
Sanofi-Aventis The generic product has to
contain a 1,6 anhydro ring structure at
the reducing ends of between 15 and 25 of its
polysaccharide chains.
1,6-Anhydro-ß-D-glucopyranose
? this fingerprint is unachievable with any
process other than Aventis.
Rivals Momentas enoxaparin oligosaccharide
profile has been compared to that of Aventis
Lovenox . Both enoxaparin products show
essentially the same variability.
44
Not approved

• Approved

Glatiramoids?
45
Glatiramoids?

• Premarins example
• - Piperazine estrone sulfate
• - Micronized estradiol
• ?Same indications
• ?Not the same active ingredients
• ?Not interchangeable with Premarin

46
Glatiramoids? Lovenoxs example
Nov 2007
April 2008
Sept 2008
July 2006
August 2005
March 1993

FDA non-approvable letter
FDA approval
ANDA submission of M-enoxaparin
Sandoz submitted the amendment
FDA additional animal studies
Momenta re-engineer
Momenta submitted an IND to begin a Phase I
human clinical study of M118
Might do the same with M 356 if FDA does not
approve the ANDA
47
Conclusion
Copaxone - a chemically synthesized mixture
- uncharacterized

• - defined by its process
• gt Almost impossible to make a generic version
• Approve Copaxone like a biosimilar would require
  clinical studies to prove efficacy and safety
• For rivals the path to follow could be
  glatiramoids

48
PI-2301 a threat for TEVA ?

• Second-generation peptide copolymer
• New patent in July 2008
• Designed to be more efficacious and more
  convenient (weekly versus daily dosing) than
  Copaxone
• Currently in Phase 1b development
• Peptimmune has granted Novartis exclusive option
  to License PI-2301 for Multiple Sclerosis the
  15th of January 2009

49
THANK YOU FOR YOUR ATTENTION! ANY QUESTIONS?
Marie Delattre Laëtitia Lemaire Juliette Morawiec
