Title: Quantum Numbers

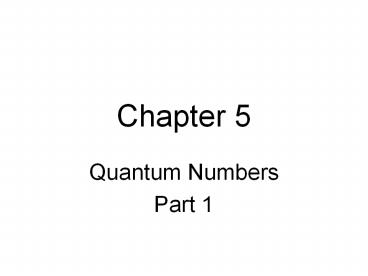

1
Chapter 5
  • Quantum Numbers
  • Part 1

2
Quantum Numbers
  • There are four quantum numbers that describe the
    properties of an electron and the orbital that
    it occupies within an atom.

Apple
3
The 4 Quantum Numbers describe
  • 1. Energy Level or Shell
  • 2. sublevel or subshell
  • 3. atomic orbital
  • 4. spin of the electron in an orbital

4
Four Quantum Numbers alsoDescribe the
following
  • distance from the nucleus
  • shape of the orbital
  • 3 dimensional positioning of the orbital
  • direction of spin of the electron within the
    orbital

5
Now lets put them together and see what we get
  • 1. Energy Level or Shell distance from the
    nucleus
  • 2. sublevel or subshell shape of the orbital
  • 3. atomic orbital 3 dimensional positioning of
    the orbital
  • 4. spin of the electron in an orbital direction
    of spin of the electron within the orbital

6
What are orbitals?
  • The main division of energy for an electron
    within an atom is called the energy level or
    shell.

7
What are orbitals?
  • The main division of energy for an electron
    within an atom is called the energy level or
    shell.
  • The energy level (shell) is subdivided into
    distinct areas called sublevels (subshells).

8
What are orbitals?
  • The main division of energy for an electron
    within an atom is called the energy level or
    shell.
  • The energy level (shell) is subdivided into
    distinct areas called sublevels (subshells).
  • The sublevels are divided into orbitals. The
    orbitals are where the electrons are found. Each
    orbital can hold no more than a pair of electrons.

9
The First Quantum Number The Principal Quantum
Number
10
The First Quantum Number The Principal Quantum
Number
  • Abbreviated as n

11
The First Quantum Number The Principal Quantum
Number
  • Abbreviated as n
  • n 1,2,3...

12
The First Quantum Number The Principal Quantum
Number
  • Abbreviated as n
  • n 1,2,3...
  • Represents the distance of an electron from the
    nucleus the main energy level of the electron.

13
What else does the Principal Quantum Number (n)
tell us?
  • n number of sublevels in the energy level.

14
What else does the Principal Quantum Number (n)
tell us?
  • n2 number of orbitals in the energy level.

15
What else does the Principal Quantum Number (n)
tell us?
  • 2n2 maximum number of electrons possible in the
    energy level.

16
(No Transcript)
17
The Second Quantum Number (Types of Sublevels)
  • The second quantum number identifies the type of
    sublevel that the electron occupies.

18
The Second Quantum Number (Types of Sublevels)
  • The second quantum number identifies the type of
    sublevel that the electron occupies.
  • There are four types of sublevels in atoms.

19
The Second Quantum Number (Types of Sublevels)
  • The second quantum number identifies the type of
    sublevel that the electron occupies.
  • There are four types of sublevels in atoms.
  • The sublevels are identified by the letters
    s, p, d, f.

20
s sublevel and p sublevel
s orbitals have a spherical shape
p orbitals have a dumbbell shape
21
Types of sublevels
  • There are four types of sublevels in atoms.
  • The sublevels are designated s, p, d, f.

22
(No Transcript)
23
Which energy level is higher in energy?
24
Which energy level is higher in energy? 4th
energy level (n 4)
25
Would the 4s sublevel or the 3d sublevel be
filled with electrons first?
26
Would the 4s sublevel or the 3d sublevel be
filled with electrons first? 4s
