Architecture

1

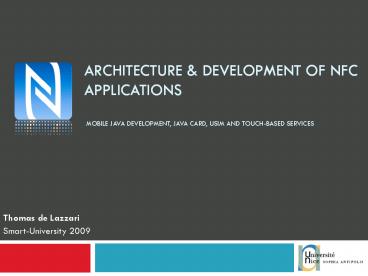

Architecture Development of NFC Applications
Mobile Java development, Java Card, USIM and
touch-based services

• Thomas de Lazzari
• Smart-University 2009

2
Presentation

• Project Managerat the University of Nicewith
  Serge Miranda
• Ticket TAP
• Campus Nova
• NFC Container
• NFC Forum competition (WIMA, Monaco)
• RD Team in Morocco (mobile money transfer)
• Blog http//tdelazzari.blogspot.com

3
Campus Nova

• NFC trial with Credit Agricole and mobile payment
  at the student cafeteria in Sophia-Antipolis

4
Ticket TAP
mobile is digital, targeted and personal
Receive personalized offers ?
Read and seek valuable offers
Present
Future
5
Partners
6
Objectives

• Introduction to NFC, its Ecosystem
• Radio Frequency Identification
• Contactless cards
• Standardization bodies
• Roles and Actors
• NFC tags
• NFC on a SIM card
• Smart Cards
• NFC services
• use cases
• Pilots and business aspect
• Available devices

7
Objectives (2)

• NFC for developers
• Dev kits
• Reading/Writing tags
• APDU
• JSR 257 177
• Java Card
• PC/SC readers JSR-268
• Midlet
• SCWS
• Demo and Examples
• Conclusion

8
Mobiquity

• MOBIlitY (Mobile)
• UbiQUITous (Internet)

One of the major added value for NFC is the
security of third party applications provided by
the SIM card.
9
Google Android
10
ATAWAD

• Google is going from web to mobile. This means
  you can now create a contact or an entry in your
  calendar from your mobile and data is
  automatically replicated not on the SIM but on
  Google servers (trust and private life is another
  debate).
• ATAWAD Any Time, Any Where, Any Device
• They start from the needs without necessarily
  innovate.
• They did not create the search engine, they just
  improved it.
• In 5 years well probably say "they didnt
  create the mobile, theyve just improved it."

11
Needs of NFC ?

• NFC is not like GPS
• The value chain and the different roles are
  complex.
• NFC strenghts
• Smart poster.
• Configuration shortcut.
• NFC in SIM card
• Digital signature.
• Secure payment.
• Handset manufacturersNokia, Apple, ...must
  agreewith MNOs Orange, SFR, ...

12
PART 1
Introduction to NFC, its Ecosystem
13
RFID

• RFID Radio Frequency Identification
• RFID Tags Store and retrieve data (with a
  distant reader)
• History radar technology, cow identification
  (year 1970).
• Use case examples road taxes, trace books in
  libraires, access card, shops (Wall-Mart).
• RFID tags types
• Active
• Passive (without battery)

14
RFIDFrequencies

• 125-135KHz
• Round corners
• Through most things
• No radiation problem
• No reflection problem
• Cheaper electronics

• 13.56MHz
• 1m max range
• Doesnt work through metal and fluids

• UHF
• Long range (up to 10m without battery)

• GHz
• Long range
• High data rate
• Smallest

Best compromise for most cards and tickets
CONVEYANCES, VEHICLES, LIBRARY, LAUNDRY, ITEM
LEVEL TAGGING, BANKNOTES, ERROR PREVENTION,
SECURE ACCESS, AIRPORT BAGGAGE
ANIMALS, BEER BERRELS, GAS CYLINDERS, SHOES OF
MARATHON RUNNERS
15
From RFID to NFC

• Can communicate with objects
• Magnetic field induction
• Contactless technology based on RFID 13,56MHz
• NFC is standardized ECMA-340 and ISO/IEC 18092
• Backward compatibility with ISO14443 and
  SmartCard
• Millions of readers
• Easy to use

16
Contactless Cards

• FELICA (sony) encryption keygenerated dynamicaly
  at each auth.
• Topaz Tag Innovision
• MIFARE Standard
• 512bits UL (no security) used for tickets
• Other formats 1K (768 Bytes data), 4K
• The 16bits random of MIFARE has been hacked
• NXP announced MIFAREplus
• MIFARE DESFirepreprogrammed cardExample Oyster
  Card in London
• Gemalto Mifare 4 Mobile
• Contactless Java Card

85 of the access control / Ticketing ISO14443
market is Mifare
17
NFC
NFC FORUM http//www.nfc-forum.org

• NFC allows a device to read and write a
  contactless card, act like a contactless card and
  even connects to another NFC device to exchange
  data.
• 3 modes
• Card reading (MIFARE )
• Peer to peer (initiator target)
• Card emulating
• Distance 0 - 20 centimeters
• Bandwidth to 424 kbits/s
• NFC Forum NDEF specs
• N-Mark http//www.nfc-forum.org/resources/N-Mark

18
Standardization bodies

• ETSI / SCP (Smart Card Platform) to specify the
  interface between the SIM card and the NFC
  chipset.
• EMVCo for the impacts on the EMV payment
  applications.
• GSM Association
• Mobey Forum for mobile financial services
• AFSCM is French association for mobile
  contactless
• Download specifications here http//afscm.org
• Global Platform to specify a multi-application
  architecture of the secure element.
• Etc.

19
NFC FORUM SPECS
Peer to peer mode
Read/Write mode
Card emulation mode
Applications
LLCP (Logical Link Control Protocol)
RTD (Record Type Definition) NDEF (Data
Exchange Format)
Card Emulation (Smart Card Capability for
Mobile Devices)
RF Layer ISO 18092 ISO 14443 Type A, Type B
FeliCa
20
Smart Poster

• Location based services
• List of proximity services dependingon Points of
  Interest
• Trailers
• Tickets booking

From SMS push to Smart Poster  pull
Specifications NFC Forum releases specification
for NDEF. NFC Data Exchange Format which is a way
to  format  RFID tags to be compatible with NFC
applications. Works with MIME type.
21
Smart Poster RTD
Action record values
Value Action
0 Do the action (send the SMS, launch the browser, make the telephone call)
1 Save for later (store the SMS in INBOX, put the URI in a bookmark, save the telephone number in contacts)
3 Open for editing (open an SMS in the SMS editor, open the URI in an URI editor, open the telephone number for editing).
For example, the Smart Poster record defines a
URI plus some added metadata about that URI.
MAY SHALL
22
NFC Forum tag typeshttp//www.nfc-forum.org/specs
/

• Interoperability between tag providers and NFC
  device manufacturers
• Type 1, based on ISO14443A. Tags are read and
  re-write capable users can configure the tag to
  become read-only. Memory availability is 96 bytes
  and expandable to 2 Kbytes. Communication speed
  is 106 Kbit/s.
• Type 2, same as Type 1 except that memory
  availability is 48 bytes and expandable to 2
  Kbytes.
• Type 3 is based on FeliCa. Tags are
  pre-configured at manufacture to be either read
  and re-writable, or read-only. Memory limit is
  1Mbyte per service. Communication speed is 212
  Kbit/s or 424 Kbit/s.
• Type 4, fully compatible with ISO14443A and B
  standards. Tags are pre-configured. Up to 32
  Kbytes per service.Communication speed is up to
  424 Kbit/s.

23
NFC Roles and actors
Service provider
Application owner
Mobile station holder
POS
NFC
SIM
Trusted Service Manager (MNO or TTP)
OTA NFC Service Management
Contactless service management platform
Card Issuer MNO (SIM Card management system)
SIM Card Manufacturer (Smart Card provider)
24
NFC service provider
NFC service operator
Life cycle management system for mobile NFC
applications
3
NFC applications repository
2
Service profile platform
Profile data
1
cardlets
Customers management database
Webapp
KS FS
Interfaces
TSM
Subscribe a service
SDD management system
KS SSD
Mobile domain
SIM management system
Customers management database
Subscribe a service
Card management system
KS ISD
Customer service
Mobile operator
Network access
Subscribe a service
SIM card
Application
Application data
Final user
GUI
KS FS
25
Use case phone is lost
Service provider

• Tells phone has been lost
• Tells customer has new SIM card

• Service installation request after customer
  registration

Mobile operator
TSM

• Tells phone has been lost
• Tells customer has new SIM card
• Services management referral for SP

• Ask for token (delegated management)
• Ask applet installation via ISD (MNO centric
  model)

Customer

• Install NFC services

26
Global Platform - security domains
Mandated DAP (applications integrity at plaform
level)
DAP Verification (application integrity by SSD)
Issuer Centric (only ISD management)
Delegated Management (token management)
Authorized Management (dual management)
Low TRUST High
High CONTROL Low
By Gemalto
27
NFC on a Mobile Phoneone thing among all
GPS
Screen with a user interface
Security
Keyboard
Contactless
Loudspeaker and Microphone
TV
Camera
Network
etc.
28
NFC Architecture
29
PART 2
NFC in a SIM Card
30
Smart Card

• Piece of plastic the size of a credit card
  hosting an electronic circuit that can store and
  process information.
• The integrated circuit (chip) may contain a
  microprocessor capable of processing this
  information, or it can only contain non-volatile
  memory with a security component (memory card).
• Smart cards are mainly used as means of personal
  identification (identity card, access badge to
  buildings, health insurance card, SIM card) or
  payment (credit card, electronic purse) or proof
  of subscription to prepaid services (calling
  card, ticket).
• Contact or Contactless smart card readers are
  used as a communications medium between the smart
  card and ahost (point of sale).

31
Smart Card used in France for healthcare refunds
(Carte Vitale)
32
Smart Card history

• The automated chip card was invented
  by German rocket scientist Helmut Gröttrup and
  his colleague Jürgen Dethloff.
• French inventor Roland Moreno actually patented
  his first concept of the memory card.
• Michel Ugon from Honeywell Bull invented the
  first microprocessor smart card.
• Bull patented the SPOM (Self Programmable
  One-chip Microcomputer) that defines the
  necessary architecture to auto-program the chip.

1968
1974
1977
1978
33
Smart Card until today

• The first mass use of the cards was for payment
  in French pay phones (Bull CP8).
• Smart Card is standardized ISO 7816.
• The second use was with the integration of
  microchips into all French debit cards.
• First Java Cards.
• Axalto and Gemplus, at the time the world's no.2
  and no.1 smart card manufacturers, merged and
  became Gemalto.

1983
1987
1992
1997
2006
34
Smart Card categories
Contact card
Contactless card
Microprocessor card
Memory card
35
The memory card

• EEPROM read/write memory (4K max)
• Ex Mifare
• Advantages
• Simple
• Cheap
• Drawbacks
• Security (easy to duplicate)

36
Microprocessor card

• Microprocessor used by the application running on
  card to calculate operations.
• Each card can be personalized and updated after
  manufacture (for banks with more than 500 000
  customers).
• Credentials can be updated while the card is
  inserted in a bank automat for example.

Very secure for a reasonable cost
37
Smart Card security

• Information stored can be protected by a PIN code
• Cryptographic operations
• Circuit is shielded
• Unique serial number
• Software security
• Access control to data
• Data integrity
• IN/OUT firewall

38
Smart Card anatomy

• CPU Control Processing Unit
• SRAM Static Random Access Memory
• ROM Read Only Memory
• Static
• Store the Operating System
• EEPROM Electrically Erasable andProgrammable
  Read Only Memory
• Persistent
• CRYPTO  Cryptographic processor
• RNG  Random NumberGenerator
• Used to generate keys

39
Smart Card connectors

• A Smart Card has 8 connectors (ISO7816-2)
• C1 Vcc
• C2 RST
• C3 CLK
• C4 RFU (Reserved for future use)
• C5 GND
• C6 Vpp (old EEPROM)
• C7 I/O (bi-directional, in half-duplex mode)
• C8 RFU (Reserved for future use)

40
Contactless Card

• ISO 14443 defines the standard for Contactless
  Card.

41
Smart Card applications

• Secure a computer
• Store internet security certificate
• Hard drives can be encrypted using and attached
  Smart Card
• Used to authenticate a user on the computer (at
  login screen)

42
Smart card applications

• Payment
• Credit card, SIM card, TV Channel card, Access
  card
• Transports
• Electronic purse (coffee machine)
• Identification
• PKI
• Digital signature
• Can store biometric data
• 2009 in Spain and Belgium eID card
• 2 certificates one used to authenticate and one
  toapply the digital signature (real legal value)

43
Pyramid of Authentication Technologies
Higher level of security offered for highly
valued information
User private key is kept in a device such as a
smart card. Biometrics are also used to protect
key.
Users private key is stored on a portable
computer device such as a disk.
User name and password authenticates User PGP
encrypts data.
SSL encrypts data.
44
Part 3
NFC potential, services and devices
45
NFC on iPhone
http//www.nearfield.org/
NFC already on iPhone Stickers, 30-pin RFID
readers, SIM add-on
46
Added value services

• Exchange data, P2P
• Configuration (bluetooth pairing)
• Vending machines, service maintenance
• Loyalty, couponing
• NFC poster, get information
• Ticketing
• Medical, home care
• Web applications
• Payment solution
• Access control
• Mobile signature
• Etc.

47
NFC Use cases
by Nokia
48
Mobile Ticketing

• A customer books two tickets for a concert.
• He pays and downloads his tickets on his mobile
  phone with a simple touch.
• He meets with his girlfriend and transfers the
  ticket on her mobile.
• They arrives and unlock security gates thanks to
  their NFC mobile phone.

14 millions RFID tickets were produced by ASK for
Olympic Games in China - http//www.ask-rfid.com

• Mobile ticketing will become more popular over
  the next few years, with 2.6 billion tickets
  worth 87 billion, delivered by 2011
• Juniper Research (April 2008)

49
NFC in the World (2009)http//www.nearfieldcommun
icationsworld.com

• Japan with Sony FeliCa, NTT DoCoMoNTT Docomo
  reports 10 million mobile credit card customers
• StoLPaN  Store Logistics and Payment with NFC
  is a pan-European consortium supported by the
  European Commissions Information Society
  Technologies program http//www.stolpan.com
• Akbank and Turkcell test NFC in Istanbul
• Visa launches NFC trial in Brazil
• Citi launches NFC trial in India
• Telefónica launches O2 Money, says it is ready to
  deploy NFC
• Nokia Money
• 41 NFC-related trials and launches in the
  Asia-Pacific region so far
• etc.

50
NFC in France(2009)

• Disneyland Paris to test NFC and contactless
  cards from October 2009, with Crédit Mutuel and
  CIC banks.
• Smart-Park with VINCI Park and Monext.
• Paris Metro Paris transport operators to launch
  NFC ticketing from the end of 2010. STIF will
  coordinate the Paris transport operators (Optile,
  RATP and SNCF Transilien) and the participating
  telecoms operators (Orange, Bouygues Telecom and
  SFR).
• Pegasus workgroup multi-operator (Orange,
  Bouygues Telecom, SFR), multi-bank (BNP Paribas,
  Groupe Crédit Mutuel-CIC, Crédit Agricole,
  Société Générale) with MasterCard, Visa Europe
  and Gemalto for mobile payment in two cities
  Caen and Strasbourg
• Nice NFC cityhttp//www.afscm.org/entreprises/ni
  ce-ville-nfc

51
NFC gives sense to touch based services
Display
Components of an object hyperlinking scheme
Object
Mobile device
Wireless service provider
Reader
Tag URL
Information on Objects
52
NFC tomorrow

• Hard beginning Three years ago, ABI Research
  predicted half of mobile phones in the world will
  be NFC ready in 2009.
• Juniper research, september 2009
• NFC Mobile Payments to Exceed 30bn by 2012,
  Supported by Revenues from Mobile Coupons and
  Smart Posters
• June 2009 Top handset manufacturers begin
  sampling NXPs PN544 NFC chipThe PN544 NFC
  controller is the first fully industry standard
  NFC handset chip, offering compliance with the
  Single Wire Protocoland with Mifare.

53
NFC tomorrow
In a recent presentation, Sony Ericsson says
mobile NFC will take more than 5 years to become
mass market.
54
NFC keys of success

• Reach and availability
• The availability of NFC phones and SIM card
• Variety of use
• Ease of use
• See iphone
• Security
• Be able to lock payment card
• Added value services
• Advantage for customer ?
• Infrastructure
• NFC access points in shops

Complex value chain Mobile OTA B2C battle
55
NFC Devices

• NFC Phones using single wire Protocol and UICC
  (08/2008)
• The Sagem my700X
• The LG L600V
• The Nokia 6131 SWP
• The Motorola SLVR L7
• All devices are more or less concept devices and
  come with an InsideContactless NFC Chip.
• In order to develop applications with these
  devices a Dev Kit (like the Gemalto Developer
  Suite) and a SWP UICC is required. All four
  devices are already capable of using SCWS.

56
NOKIA 6212

• Java MIDP 2.0
• Bluetooth 2.0
• 2 megapixel camera
• 3G connection
• Share business cards, bookmarks, calendar notes,
  images, profiles, and more.
• Contactless payment and ticketing capabilities.
• Access to mobile services and information with a
  simple touch.
• Uses Java specification requirement 257 (JSR 257)
  for third-party NFC applications.
• http//europe.nokia.com/A4991363

Jeremy Belostock on the future of
NFC http//fr.youtube.com/watch?vBoOH7AtCT_E
57
Nokia 6216
normal availability appr. Q1/2010

• First SIM-based NFC handset by Nokia
• Capable of storing credit card, user account and
  other security details on the SIM card,

http//toptunniste.fi/topshop/product_catalog.php?
c72
See video, Jeremy Belostock, NFC, and
operators http//www.youtube.com/watch?v53dhyDPXm
H8
58
Security and memory for RFID tags vs cost
National ID card
Aircraft part tag
Passport label / page
Security and/or memory size
Secure access or credit card
Transit card
Transit ticket
Specification typically ISO 14443 or 15693 (read
distance to 50 cm)
Library book label
Item drug label
Retail pallet / case label
7cents Chip cost 3dollars
59
NFC requirements

• Integration at a POS level define an application
  protocol
• Certification and Mobile signature (Wireless PKI)
• Backward compatibility MIFARE type A / type B
• Service Providers need interfaces (SOA) with MNO
  and TSM
• OTA customization for Service Profiles
• See AFSCM specifications
• Interoperability with different phone OS
  manufacturers
• Allow different secure chip or flash memory ?
• Customer understanding between different
  applications such as paypass, electronic purse,
  credit card emulation
• NFC services such as access control must also
  work if Mobile is OFF
• See, battery levels and thresholds of mobile
  phones
• What is the added value if service already exists
• Mesure social impact before
• Tickets or direct payments

60
Part 4
NFC for developers
61
Developing on a Mobile Phone is
except on iPhone ?
What are the solutions to develop a 3rd
party application on a mobile phone
Different operating systems, browsers, etc.
62
NFC Phone Architecture
OTA

• Single Wire Protocol (SWP) architecture SIM SE
  is same Java Card.
• MIFARE is a storage which enables the phone to
  act like a MIFARE card.

Applications
J2ME
OS
From a developer's point of view it does not
matter at all where the SE is located. You will
still code against the GlobalPlatform specs. The
only difference comes with the distribution/lifecy
cle model and since in most cases, the operators
control both the SIM card and the phone, the
difference is largely academical anyway. Of
course, business people may think differently,
but that's their problem. Jalkanen, Nokia
discussion boards
CPU
UICC SIM
Apps
OS
NFC Chip
External env.
NFC antenna
63
NFC and C (with Java Native Interface)

• JNI allows to call C code and DLL in Java.
•  To use JNI, you must follow the following steps
• Create a Native method in Java
• Once the Java class is compiled, you must
  generate a header file with the tool javah h.
• Compile the native code using the interface
  generated at step 2. Change the methods headers
  and params.
• For example a String becomes a Jstring.

64
NFC and Java

• Java / NFCJava is the key. It allows
  technologies to work together Bluetooth,
  Video, Music, GPRS,
• Problems of JSR not implemented on a mobile phone
• Graphical user Interface are not always
  compatible screen size, different JVM.
• Solution Mobile Distillery ? SVG ? Flash lite ?
  SIM Toolkit ? SCWS ? HTML5 ?
• Native application security problem, no API,
  manufacturer lock Symbian development is heavy.

65
Development Kits

• Java IDE such as Eclipse or Netbeans
• SDK from manufacturers (Nokia)
• Dev Kit from card issuers (Gemalto, Oberthur)
• Dev Kit from MNO (Orange)

66
JCOP Tools

• JCOP tools need
• activation key tools.jcop_at_nxp.com
• compatible PC/SC reader
• Configure SE keyset to 42ENC, MAC and KEY are
  all "404142434445464748494A4B4C4D4E4F

• Applet extends javacard.framework.Applet

• MIDlet

• String uri System.getProperty("internal.se.url")

• ISO14443Connection iseConn (ISO14443Connection)
  Connector.open(uri)

public void process(APDU apdu) byte
buf apdu.getBuffer() // Ignore
Select instruction. if (bufISO7816.OFFSET
_CLA 0x00 bufISO7816.OFFSET_I
NS (byte)0xA4) return
67
Gemalto Developer suite
68
Gemalto Developer suite
69
Nokia 6212 SDK
Compatible with Netbeans and Eclipse http//www.fo
rum.nokia.com/main/resources/tools_and_sdks/nokia_
6212_nfc_sdk/
70
JSR-257 Contactlesscommunication API

• For NFC andInfrared
• Optional packagefor J2ME
• DiscoveryManagerTarget listener (nomatter the
  type)
• Connection NDEF ISO14443

71
MIFARE
Security in a MIFARE 1K CARD

• Card is composed of 16 sectors with 4 blocks of
  16 bytes each.
• In each sector a block is reserved to define
  access bits. Ex block 7.
• A key is initialized to read and write data
  blocks.

72
MIFARE Anti-collision
Request
Transaction time

• An anti-collision system allows to operate with
  many cards in the same magnetic field.
• The algorithm selects each card one by one and
  ensures that the transaction takes place on the
  selected card without data corruption.
• MAD (MIFARE Application Directory) is a table
  written in first sector and used to identify
  which sector is dedicated to a specific
  application.

Identification 3ms 1ms / collision
Anti-collision
Card id ?
Select card
Authentication 2ms
Authentication
Read block 2.5 ms Write block 6ms
Read/Write
GSMA tech guide NFC mobile device and reader
shall be less than or equal to 250ms to meet
Service Provider requirements.
73
Receive read-only data from NDEF tag
NDEF push The MIDlet can see that it was launched
by touching a tag, by reading the
DiscoveryManager property LaunchType.
74
Java Card

• Java Card MIFARE ProX SmartMXare cards with
  microprocessor and OS (for example JCOP).
• An Applet is a JAVA CARD application stored
  inside the Secure Element.
• APDU COMMANDS is a way tocommunicate with Applet
• ISO14443Connection and 7816-4APDUS
• Security Crypto Processor

75
Java Card description

• At the beginning, applications on Smart Card were
  all developed proprietary and native.
• There was a need to find a generic way to develop
  an application that could run on 2 Smart Cards
  issued by different companies.
• The Java Card technology allows developers to
  gather around one way of programming using Java.
  And it openned the path to third party
  applications.
• This technology can also be used to develop on a
  SIM card. A SIM card has more memory than other
  types of Smart Cards like Credit Card.
• Java Card includes
• An API (application programming interface) to
  define Java libraries that can be used
• A virtual machine
• Runtime (JCRE) memory and security management
• Java Card 2.1.1 SDK provides an environment to
  test applets,a tool to upload applets into the
  Java Card, and code examples.

76
Smart Card protocols

T0 Byte-level transmission protocol, defined in ISO/IEC 7816-3
T1 Block-level transmission protocol, defined in ISO/IEC 7816-3
APDU transmission via contactless interface, defined in ISO/IEC 14443-4

• PTS Protocol Type Sélection
• ATR Answer To Reset

77
ISO 7816-4 APDU

• APDU Command (C-APDU), sent by reader to the card
• Header, 4 Bytes
• Class instruction (CLA)
• Code instruction (INS)
• Parameters  P1 et P2
• Optional body (random size)
• Lc length of body (data) in Bytes
• Le length of response to the command (Bytes)
• The data field contains data to be sent to the
  card, to process instructions specified in
  header.

78
APDU command types

• 4 APDUs commands are possible depending on
  whether it expects a response back or if it
  contains data.
• No data, no required answer
• CLA INS P1 P2
• Data, no required answer
• CLA INS P1 P2 Lc Data
• No data, required answer
• CLA INS P1 P2 Le
• Data, required answer
• CLA INS P1 P2 Lc Data Le

79
AID

• AID unique identifier for an application or a
  certain type of files
• First 5 bytes are RID (resource identifier)
• Following bytes are PIX (proprietary identifier
  extension)

80
Java Card

• Select

81
Java Card CAP
A smart card is inserted into a Card Acceptance
Device (CAD) to power on the integrated circuit.
82
Java Card features

• Threads
• CPU on JavaCard does not support multiple tasks
  and you cant use  synchronized  or
   volatile .
• Garbage collector
• Finalize() not supported
• Non-supported types Long, Char, Float, Double
• Supported types

83
Java Card features

• Java Card support atomic transaction
• System.beginTransaction()
• System.commitTransaction()
• System.abortTransaction()

84
Java Card security

•  Sandbox  In Java, code and application data
  (resources) are protected by a sandbox and cant
  interfere with other applications.

85
Java Card applet

• Lets take the example of a Wallet to see how to
  code an applet.
• This applet allows the SIM card to act as a real
  eletronic purse.
• Use cases
• The applet can add and substract money to a
  balance
• Shows the actual balance of the purse
• It includes a mechanism to ask for a PIN code for
  security purposes

See articles on Sun website http//developers.sun.
com/mobility/javacard/articles/intro/index.html
86
Wallet.java
87
Java Card applet Wallet

• Package declaration
• Java naming convention
• Java Card framework

package com.sun.javacard.samples.wallet
import javacard.framework.
88
Java Card applet Wallet

• The Java class must extend Applet. It defines all
  the methods to communicate with JCRE.

public class Wallet extends Applet
89
Java Card 2 modes

• An applet is unactive until it receives an APDU
  command
• Card Emulation
• Reader Emulation

90
Applet PIN code

• In the Wallet source code, the VERIFY method
  checks the PIN code. The APDU command contains
  the parameter PIN (stored inside the data field).
• If PIN code is the same than the one defined
  during the installation process, the method
  returns true.
• PIN_TRY_LIMIT 3

91
CLA and INS

• We choose the hexadecimal value 0xB0 to identify
  our Wallet.
• This value identifies all APDU commands that are
  processed by the applet.
• It means that the APDU commands debit and credit
  all start with the byte CLA 0xB0.

Wallet_CLA (byte)0xB0
92
INS

• The 2nd byte of an APDU command identifies the
  instruction

final static byte VERIFY (byte) 0x20 final
static byte CREDIT (byte) 0x30 final static
byte DEBIT (byte) 0x40 final static byte
GET_BALANCE (byte) 0x50
93
Other values

• Other fixed values of our electronic purse
• The variables

// maximum balance final static short MAX_BALANCE
0x7FFF // maximum transaction amount final
static byte MAX_TRANSACTION_AMOUNT 127 //
maximum number of incorrect tries before the //
PIN is blocked final static byte PIN_TRY_LIMIT
(byte)0x03 // maximum size PIN final static
byte MAX_PIN_SIZE (byte)0x08
OwnerPIN pin short balance
94
Applet structure

• Constructor
• Install
• Select
• Process
• Header analysis (CLA and INS)

public void process(APDU apdu)
95
Send and receive APDUs

• setIncomingAndReceive()
• setOutgoingAndSend()
• Transfer mode
• Expected length for the answer
• Send bytes in response

byte buffer apdu.getBuffer() short
bytes_left (short) bufferISO.OFFSET_LC short
readCount apdu.setIncomingAndReceive() while
(bytes_left gt 0) //process received data in
buffer bytes_left - readCount //get more
data readCount apdu.receiveBytes
(ISO.OFFSET_CDDATA)
byte apduBuffer apdu.getBuffer() apduBuffer0
byte1 apduBuffer1 byte2 apduBuffer2
byte3 //0-offset, 3-number of bytes to
send apdu.setOutgoingAndSend(0, 3)
96
Get Balance

• Retrieve current balance of the electronic purse
• CLA 0xB0
• INS 0x50 GET BALANCE
• P1 0x00 Normal mode
• P2 0x00
• Data
• in none.
• out 2 bytes of balance.

97
Credit

• Mutual authentication
• To send the APDU command, you must first
  initialize a secure transaction with the applet
  (MAC)
• CLA 0xB0
• INS 0x30 CREDIT
• P1 0x00 Normal mode
• P2 0x00
• Data - in 2 bytes of value to credit.
• - out 2 bytes of updated balance.
• - exception ISOException with reason
  SW_SECURITY_STATUS_NOT_SATISFIED (0x6982) if
  authentication failed.

98
JSR-177 SATSA

• JSR-177 Security and Trust Services API for J2ME
• Used to communicate with SIM card
• Used to encrypt/decrypt/sign data
• Example with symmetric algorithm
  herehttp//wiki.forum.nokia.com/index.php/Encryp
  tion_of_data_using_JSR-177

99
Gemalto examples

• APDU commands of GPPurse applet are stored in the
  file APDU_Commands.atf that comes with the
  project. You can open this file with the Jcard
  Manager and execute each command at a time.
• Or manually thanks to the option Send APDU in the
  menu bar.

100
Gemalto developer suite Instance AID
101
(No Transcript)
102
(No Transcript)
103
Nokia 6131 Secure Element

• Secure Element consists of Java Smart Card area
  and Mifare 4K area
• A specific API provided for Applets to access
  Mifare memory
• All access is password protected
• Password is one-way hashed from Mifare KeyA and
  KeyB
• JCSystem atomic transaction management
• The Secure Element IS NOT a play ground

Protected by Issuer specific secret keys
Protected by transport keys
104
PC/SC readers

• SCM reader uses PC/SC driver (Windows)
• Other readers Philips Pegoda, Omnikey Cardman,
  etc.
• The most commonly used smart-card interface is
  PC/SC, a middleware layer backed by Microsoft,
  and part of the Windows operating system.
• JPCSC is a Java-wrapper around the native PC/SC
  API. JCOP Tools includes JPCSC and uses it on
  Linux and MacOS X. On Windows, JCOP Tools uses
  the native PC/SC API directly.
• JCOP Tools also includes the JCOP offcard API,
  which is a comprehensive smart card API with
  special support for Java Card and GlobalPlatform.
  That sits on top of native PC/SC, JPCSC, and some
  other proprietary card middleware.
• OpenCard Framework (OCF), see http//www.opencard.
  org(consortium split up).

105
javax.smartcardio
Java 6 introduces Smart Card I/O API defined by
JSR 268.
106
Dev tools and architecture

• Devices used - Mobile phone NOKIA 6131 - Tags
  MIFARE 1K - Pegoda Reader / Philips - SCM
  Contactless Reader
• For developers Netbeans, Eclipse, Visual Studio,
  etc.
• NFC software layers
• Graphical User Interface (GUI), implemented in
  J2ME (or other).
• Controller / Application logic (as much as
  possible), implemented on the Java Card / Secure
  Element.
• Memory of the Mifare element used for storing
  data.

107
MIDlet proxy
OTA Server
Phone
Secure Element
MIDlet
Mifare
Applet
OTA provisioning can be done through HTTP / HTTPS
or BIP/TCP. BIP is a new generation protocol
allowing remote SIM management over the air
(remote file management, remote application
management).
108
Physical layer

• Steps for astandard NFCcommunication
• Open
• Poll
• Connect
• Exchange
• Disconnect
• Close

109
J2ME Java Midlet

• Java Platform Micro Edition Software Development
  Kit 3.0
• Lightweight UI Toolkit (LWUIT) integration
• http//java.sun.com/products/sjwtoolkit/
• ProGuard (obfuscator)
• Limited storage
• A mobile phone application is divided into 2
  packages, a descriptor JAD file and a JAR file
  containing Java classes.
• Thanks to the JAD file, the JAR file is installed
  on the mobile phone. Developer can set JAD
  attributes to manage permissions, push registry,
  etc.
• Use a Controller to listen and launch threaded
  events
• Call to NFC chip
• Print new screen
• Save data in Record Store

110
J2ME Signature and certificate

• Security exception
• MIDP permissions
• javax.microedition.io.file.FileConnection
• javax.microedition.io.Connector

111
SmartCard Web Server

• SIM Toolkit successor.
• SCWS technology can be installed on new
  generation SIM card and allows GUI management
  thanks to mobile web browser.
• The SIM card is the authorization module for
  secure electronic transactions but its the
  mobile phone that controls and generates
  graphical interfaces. With SCWS, a developer can
  implement the full application in one package and
  deploy it directly on the SIM card. MMI and
  Applets are on the same media. Deployment and
  administration of applications are simplified.
  For example if the user changes his mobile
  phone.
• Moreover, generated interfaces are compatible
  with most phones but the rendering and user
  interaction is not necessarily better.

112
SCWS Demo
113
Example of applications
114
Mobile Signature Service Provider

• See Mobile PKI (ETSI).
• The MSSP platform is a solution to manage digital
  signatures for a MNO.
• Two processes
• Registration to obtain a certificate and a
  private key
• Signature to sign data (with private key)

Service Provider
MSSP
Certification authority
Operator
115
Ex eBanking authentication

• Customer accesses his bank website thanks to his
  login/password.
• Bank sends a request for authentication to
  Operator (WPKI). This request includes the mobile
  number (IMSI International Mobile Subscriber
  Identity)
• Customer enters PIN code
• eBanking service is authorized

Enter PIN code
The application needs to verify your identity

Back
Ok
116
DEMO

• Creating a JavaMidlet
• Netbeans Mobility pack
• Reading a NDEF tag
• Uploading an Applet ona Secure Element
• Send an APDU command to my applet from the mobile
  and from a PC/SC reader.

117
HelloKiosk
118
Conclusion

• NFC in handsets without knowing itreally soon
• Industry is now convinced
• SDK standardization
• Easy to use ! Remember iPhone

119
Conclusion
For developers

• Use J2ME 3.0
• Use JSR 257 or SCWS
• Optimize your code
• Store your data online
• Never trust a MIDlet
• Sign your application
• Use J2ME Polish or LWUIT to adapt your
  application to your target platforms (screen
  size)
• Use web app for cross-platform development
• Use AFSCM specifications for OTA
• NFC is not an exchange protocol but
  identification

120
Resources

• http//discussion.forum.nokia.com/forum/forumdispl
  ay.php?f144
• http//wiki.forum.nokia.com/index.php/NFC
• http//forum.java.sun.com/forum.jspa?forumID23
• http//www.nearfieldcommunicationsworld.com
• http//www.talknfc.com
• http//www.blognfc.com
• http//www.nfcnews.com
• Writing a Java Card Applethttp//developers.sun.c
  om/mobility/javacard/articles/intro/index.html

121
Resources

• Contactless Smart Cards and NFCPeter Harrop,
  Ning Xiao Raghu Das
• http//www.nxp.com, thanks for pictures
• http//www.nearfield.org
• http//www.nfc-forum.org
• http//www.gsmworld.com/documents/
• http//www.rfidjournal.com RFID Information
• http//mobilepayment.typepad.com Mobile payment
  blog
• http//0x9000.blogspot.com Great blog on Java
  Card development

• Special thanks to Nicolas Pastorellywho helped
  me on some slides

122
Contact me

• Master MBDS, University of Nice Sophia-Antipolis
• tdelazzari_at_gmail.com
• http//www.mbds-fr.org
• http//tdelazzari.blogspot.com
• http//twitter.com/tdelazzari
