Title: Multi-Dimensional Data Visualization


1

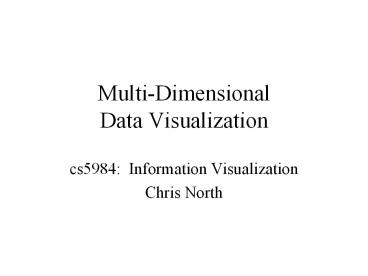

Multi-Dimensional Data Visualization
  • cs5984 Information Visualization
  • Chris North

2
Data Space
  • Multi-dimensional databases,
  • 1D timelines,
  • 2D maps,
  • 3D volumes,
  • Hierarchies/Trees directories,
  • Networks/Graphs web, communications,
  • Document collections digital libraries,

3
Multi-dimensional
  • Fewer dimensions -gt easier
  • 1,2,3-D scatterplots
  • Clevelands rules
  • We will return to some more interesting 1,2,3-D
    cases later
  • What about many dimensional data? n-D


4
Glyphs Chernoff Faces
  • 10 Parameters
  • Head Eccentricity
  • Eye Eccentricity
  • Pupil Size
  • Eyebrow Slope
  • Nose Size
  • Mouth Vertical Offset
  • Eye Spacing
  • Eye Size
  • Mouth Width
  • Mouth Openness
  • http//hesketh.com/schampeo/projects/Faces/chernof
    f.html

5
Glyphs Stars
6
Multiple Views
  • Scatterplot Matrix
  • All pairs of attributes
  • Brushing and linking
  • http//noppa5.pc.helsinki.fi/koe/3d3.html

7
(No Transcript)
8
Brushing and linking
9
Today
  • Inselberg, Multidimensional detective (parallel
    coordinates), book p107
  • margaret, josh s

10
Today
  • Kandogan, Star Coordinates, (web)
  • matt c, fanye

11
Assignment
  • Read for Thurs
  • Rao, Table Lens, p343,597 (marty e,
    purvi)
  • Feiner, Worlds within Worlds, p96 (scott m,
    ajay)
  • Read for next Tues
  • TweedieSpence, Externalizing Abstract
    Mathematical Models (Influence Explorer), p276
  • Keim, VisDB, p126
  • Read for next Thurs
  • Fishkin, Movable filters (Magic Lens), p253
  • Doan, Query Previews, web page
  • Send me your picture
  • Id

12
Homework 1 Thurs Feb 1
  • Get some data (gt1000 items, gt6 attributes)
  • Visualize it (gt2 tools)
  • Spotfire, Advizor, Table Lens, Parallel
    Coordinates, mmvz
  • Written report (2-3 pages)
  • data
  • Usability Rex hartson
  • eye-tracking - Debby hix
  • Biotech lenny Heath, naren R
  • NASA - Layne watson
  • dept - Cliff Shaffer
  • univ - Dennis kafura
  • software eng - Steve Edwards
  • survey data - Jan lee
