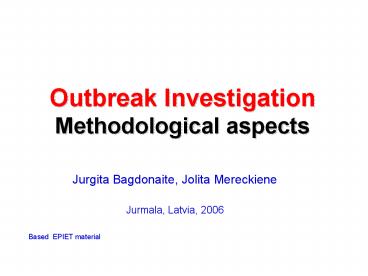

Outbreak Investigation Methodological aspects

1
Outbreak InvestigationMethodological aspects

• Jurgita Bagdonaite, Jolita Mereckiene
• Jurmala, Latvia, 2006
• Based EPIET material

2
Objectives for this session

• Describe
• the principles of outbreak investigation
• the steps in outbreak investigation
• Using practical examples
• Salmonella outbreak in Jura, France
• Next lecture
• some operational and logistical aspects
  of outbreak investigation

3
What is an outbreak ?

• Occurrence of more cases of disease than
  expected
• in a given area
• among a specific group of people
• over a particular period of time

4
Food-or waterborne outbreak (WHO definition)

• two or more persons
• similar illness
• after ingestion of the same type of food or water

• from the same source
• epidemiological evidence - the food or the water
  - the source of the illness

5
Why investigate outbreaks?

• Stop the outbreak
• Find and neutralise the source (cause)
• Prevent additional cases
• Prevent future outbreaks
• Improve surveillance and outbreak detection
• Improve our knowledge
• Keep the publics confidence
• Training

6
Retrospective investigation

• Often the outbreak exists since days, weeks,
  months
• Many cases already occurred
• Count on the memory of people
• Many data already collected use them or start
  all over?
• Never too late, but more difficult

7
Community wide outbreak of
Salmonellosis, Jura,
spring 1997

• Context
• Alert District medical officer
• 80 cases of salmonellosis in 5 weeks
• Salmonella Typhimurium
• No link identified between cases
• High political and media profile
• Local outbreak team set up
• Cases continued to occur

8
Specific demands when
investigating outbreaks

• Unexpected event
• Act quickly
• Rapid control
• Bias caused by media reports
• Legal and financial pressure
• Interdisciplinary coordination
• Work carried out in the field

9
Dead
Sick
Surveillance
Investigation
Exposed
Prediction
Clinicians
Epidemiology
Vector Reservoir
Food safety
Laboratory
Clinical
Supply channels
Specimen transfer
Trace back
Investigation
Diagnostic
Authorities
Media
Decisions Infrastructure Regulations Vaccinations
etc
10
Role of the Epidemiologist

• Systematic Description
• Identification of risk factors (by descriptive or
  analytical means)
• Identification of interventions
• Work with others to implement control measures
• Evaluate the impact of control measures

YOU MAY BE THE ONE TO COORDINATE !
11
Steps of an outbreak investigation

• Confirm outbreak and diagnosis
• Define a case
• Identify cases obtain information
• Describe data collected and analyse
• Develop hypothesis
• Test hypothesis analytical studies
• Special studies
• Communicate results,
• including outbreak report
• Implement control measure

12
Routine surveillance Clinical /
Laboratory General public Media
Detection
13
Surveillance and outbreak detection Salmonella
Goldcoast strains by month of
isolation, 1993-1996
Number of isolates
Epidemic threshold facilitates detection
1993
1994
1995
1996
Month
14
Confirm outbreak and diagnosis

• Is this an outbreak?
• More cases than expected?
• Surveillance data
• Surveys hospitals, labs, physicians
• Caution!
• Seasonal variations
• Notification artefacts
• Diagnostic bias (new technique)
• Diagnostic errors (pseudo-outbreaks)

15
Number of cases
3
6
9
12
15
18
21
24
27
30
33
1996
1997
Week of notification
16
Number of cases
National meeting legionellosis diagnosis and
reporting
3
6
9
12
15
18
21
24
27
30
33
1996
1997
Week of notification
17
Confirm outbreak and diagnosis

• Laboratory confirmation
• serology
• isolates, typing of isolates
• toxic agents
• Contact (visit) the laboratories
• Meet attending physicians
• Examine some cases

Not always necessary to confirm all the cases but
confirm a proportion throughout the outbreak
18
Outbreak confirmed ?
- prophylaxis - exclusion / isolation - public
warning - hygienic measures - others
- aetiological agent - mode of transmission -
vehicle of transmission - source of
contamination - population at risk - exposure
causing illness
19
Outbreak confirmed, further investigations
warranted
Epidemiologist Microbiologist Clinician Environmen
talist Engineers Veterinarians Others
20
Descriptive epidemiology

• Who are the cases? (person)
• - Where do they live? (place)
• - When did they become ill? (time)

21
Case definition

• Standard set of criteria for deciding
  if a person should be classified
  as suffering from the disease
  under investigation
• Criteria
• clinical and/or biological criteria
• time
• place
• person

22
Case definition

• Simple, practical, objective
• Sensitive?
• Specific?
• Multiple case definitions
• confirmed
• probable
• possible

23
Case definitionOutbreak of salmonellosis in the
Jura, spring 1997

• Confirmed case
• diarrhoea (gt 2 liquid stools per day) or fever
  (gt 38C, at least one day)
• and
• isolate of S. Typhimurium
• in a resident of Jura or neighbouring
  communities
• after May 1997

• Probable case
• diarrhoea (gt 2 liquid stools per day)
• and
• contact (same household) with confirmed case
• in a resident of the Jura or neighbouring
  communities
• after May 1997

24
Identify count cases
25
Salmonellosis outbreak in the Juracase finding

• All laboratories in the Jura district
• Major laboratories in neighbouring districts
• National reference laboratory
• Food borne outbreak notifications
• Interview of cases

26
Identify count cases
Obtain information
27
Salmonellosis in the JuraObtaining information

• Trawling questionnaire
• Attendance of events
• Places visited
• Food histories including, regional products

28
Identify count cases
Obtain information
Analysis of descriptive data
29
TimeEpi Curve

• Histogram
• Distribution of cases by time of onset
  of symptoms, diagnosis or identification
• time interval depends on incubation period
• Cases

Days
30
Epi curve
Cases

• Describe
• start, end, duration
• peak
• importance
• atypical cases
• Helps to develop hypotheses
• incubation period
• etiological agent
• type of source
• type of transmission
• time of exposure

Days
31
Epicurves
Common point source
Common persistent source
cases
cases
hours
days
Propagated source
cases
weeks
32
Estimation of time
or period of exposure
cases
exposure
33
Outbreak of typhoid fever, Germany, 2004(source,
Marion Muehlen)
34
Cases of Salmonella Typhimurium infection
by week of onset of
symptoms, Jura, May - June 1997.
35
Place

• Place of residence
• Place of possible exposure
• work
• meals
• travel routes
• day-care
• leisure activities
• Maps
• identify an area at risk

36
Distribution of cases of
cholera, London 1854
37
Person

• Distribution of cases by age, sex, occupation,etc
  (numerator)
• 60 female
• 50 male
• Distribution of these variables in population
  (denominator)
• 600 females
• 350 males
• Attack rates
• female 60/600
• Males 50/350

38
S.Typhimurium infection distribution of cases by
age group, Jura, May - June 1997
39
S.Typhimurium infection attack rates by age
group, Jura, May - June 1997
40
Develop hypotheses

• - Who is at risk of becoming ill?
• - What is the disease?
• - What is the source and the vehicle?
• - What is the mode of transmission?

41
Outbreak of S. Typhimurium infections, Jura,
spring 1997
42
Food consumption by cases, outbreak of
Salmonellosis, Jura, spring 1997
43
Compare hypotheses with facts
44
Testing hypothesis

• Cohort
• attack rate exposed group
• attack rate unexposed group
• Case control
• of cases exposed
• of controls exposed

45
Food consumption by cases and controls,
outbreak of salmonellosis, Jura, spring 1997
46
Verify hypothesis Special investigations/studies

• Microbiological investigation
• Environmental investigation
• Veterinarian investigation
• Trace back investigations (origin of foods)
• Meteorological data
• Entomological investigations

47
Special complementary investigations, outbreak
of S. Typhimurium infections, Jura, spring 1997

• Microbiological investigations
• cheese samples cases homes, retail shops
• human and food isolates by phage and molecular
  typing
• Trace back investigation supply channels
• Production plant
• veterinarian (herds supplying milk)
• occupational medicine
• environmental

48
Investigation of supply channels
Whole saler
Production plant
CREMERIE
49
Morbier vehicle of infection?

• Raw cows milk
• Eaten by children
• Regional product
• Morbier sampled at the residence of cases
• S. Typhimurium isolated from 3 Morbiers leftovers
• all other cheeses sampled tested negative
• Trace back single producer
• No source of contamination identified

50
Implement control measures
At first, general measures According to findings,
more specific measures
May (must) occur at any time during the
outbreak!!
51
Control measures, Outbreak of S. Typhimurium
infections, Jura, 1997

• At the beginning of the outbreak
• Personal hygiene advice
• Thorough cooking of meat and poultry
• After the investigation
• Recall of the incriminated batches
  of Morbier cheese

52
Outbreak report

• Regular updates during the investigation
• Detailed report at the end
• communicate public health messages
• influence public health policy
• evaluate performance
• training tool
• legal proceedings

53
Steps of an outbreak investigation

• Confirm outbreak and diagnosis
• Define case
• Identify cases and obtain information
• Descriptive data collection and analysis
• Develop hypothesis
• Analytical studies to test hypotheses
• Special studies
• Communication,including outbreak report
• Implement control measures

54
The Tasks !
Meet minister
Outbreak control team meeting - urgent!
TV inter view
Laboratory confirmation
Source
Control measures ?
