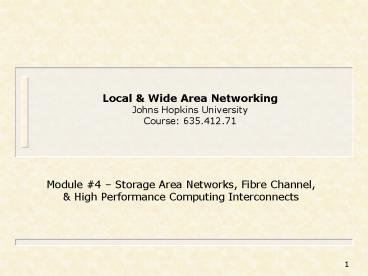

Local Wide Area NetworkingJohns Hopkins
University Course 635.412.71

• Module 4 Storage Area Networks, Fibre Channel,
  High Performance Computing Interconnects

2
SANs, Fibre Channel, HPCIntroduction

• As computing network technologies evolve, these
  technologies are intersecting in new ways
• High Performance Storage Storage Area Networks
  (SANs)
• High Performance Computing Clusters
• Reasons for the rise of High Performance Storage
  SANs
• Growth of Storage Needs
• Growth of Physical Storage Capacity
• Need to solve issues of
• Performance
• Reliability
• Cost Efficiency
• Management
• Security

3
SANs, Fibre Channel, HPCTerminology

• Common Storage Terminology
• Channel
• Interconnect
• PCI, PCI-X, PCI-e (Peripheral Component
  Interconnect)
• SCSI/iSCSI (Small Computer Systems Interface)
• ATA/SATA
• RAID (Redundant Array of Inexpensive Disks)
• HBA (Host Bus Adapter)
• DAS (Direct Attached Storage)
• JBOD (Just a Bunch of Disks)
• NAS (Network Attached Storage)
• And, of course SAN

4
SANs, Fibre Channel, HPCSo What does a SAN
look like?
5
Low-Cost SAN iSCSIIntroduction

• Introduction
• iSCSI (i for internet) is a basic protocol that
  allows storage links to traverse TCP/IP-based
  networks
• Standardized by the IETF in 2004 (RFC 3720)
• Encapsulates block-level SCSI commands for
  transport across TCP/IP
• An initiator uses iSCSI to access a remote
  target (typically a LUN)
• Design Goal match performance of existing SCSI
  transport
• Key Uses
• Storage Virtualization (especially SMB)
• Storage Consolidation
• Disaster Recovery

6
Low-Cost SAN iSCSITechnology

• Technical Details (1)
• Encapsulates block-level SCSI (CDB) commands for
  transport
• Appears as application-level TCP/IP traffic
• Uses TCP and (optionally) IPsec for transport
• Multiple TCP connections can be used for an iSCSI
  session
• CHAP can be used for initial authentication of a
  session
• Follows the SCSI Remote Procedure Invocation
  model
• SCSI Commands carried in iSCSI request PDUs
• SCSI responses, data, status reports carried in
  iSCSI response PDUs
• Uses DNS, SLP, and iSNS for resource
  location/discovery
• SLP Service Location Protocol (RFC 2608/4108)
• iSNS internet Storage Naming Service (RFC 4171)

7
Low-Cost SAN iSCSITechnology

• Technical Details (2)
• Examples of iSCSI PDUs carrying SCSI Payloads
• SCSI Command/Response
• SCSI Data-Out/Data-In
• Examples of iSCSI PDUs with iSCSI-only payload
• Login Request/Response
• Logout Request/Response
• SNACK Request (Retransmission)
• Example iSCSI PDU -gt Next Slide

8
Low-Cost SAN iSCSITechnology

• Example is SCSI DATA-IN PDU (WRITE operation)

9
Low-Cost SAN iSCSIImplementation

• Most iSCSI implementations use TCP/IP over
  Ethernet
• Cost advantages
• Familiarity Ease of Troubleshooting
• Storage infrastructure parallels the rest of LAN
  infrastructure
• For most low/mid-range applications performance
  is not an issue (especially when Jumbo frames
  are used)
• iSCSI Gateways allow low-cost iSCSI-enabled
  servers to talk to high-end Fibre Channel-based
  storage resources
• Windows 2003, Linux 2.6, VMware have iSCSI
  support
• Example iSCSI HBA/NIC (Qlogic 4052C)
• 100/1000 Full Duplex Ethernet
• 133-MHz PCI-X
• Full TOE iSCSI Offload
• QoS VLAN enabled

10
Fibre ChannelIntroduction

• Originally developed for mainframe
  supercomputing environments to connect together
  high speed clusters storage
• Development began in 1988 under the auspices of
  the ANSI T11 committee (device level interfaces)
  as a standard in 1994
• Besides its use as a very high bandwidth I/O
  channel technology, there is interest in Fibre
  Channel as a LAN technology because of its high
  speed and unique combination of channel network
  oriented properties
• Data-type qualifiers for routing data into
  specific interface buffers
• Link-level constructs designed to support
  individual I/O operations
• Support for existing I/O interface specifications
  (SCSI, HIPPI, etc.)
• Full multiplexing capabilities
• Peer-to-peer connectivity between any two ports
  in a FC network
• Ability to internetwork with other LAN, WAN,
  I/O technologies
• This reflects the book ca. 2000 but does not
  appear to be the case

11
Fibre ChannelIntroduction

• Comparison of Fibre Channel with Gigabit Ethernet
  and ATM Table 9.1 with updates

12
Fibre ChannelArchitecture

• Designed to provide a common, efficient,
  high-speed transport to a wide variety of devices
  through a single port type
• Requirements outlined by the Fibre Channel
  Association
• Full-duplex links over a fiber pair (one
  transmit/one receive)
• Bi-directional performance up to 6.4-Gbps on a
  single link
• Support over distances up to 10 kilometers
• Small connectors for high density applications
• High-capacity utilization with distance
  insensitivity
• Greater connectivity than existing multi-drop
  channels
• Broad availability at reasonable cost
• Support for multiple cost/performance levels,
  from PCs to clusters
• Ability to carry multiple protocols and command
  sets
• The best way to meet such demanding requirements
  was to develop a transport mechanism based on
  simple point-to-point links a switching network

13
Fibre ChannelTerminology

• Fibre Channel, having a different heritage than
  other LAN/WAN technologies, has different
  terminology Table 9.2
• Dedicated Connection A circuit guaranteed and
  retained by the fabric for two specified N_Ports
• Exchange The basic mechanism that transfers
  information, consisting of one or more related
  non-concurrent sequences in one or both
  directions
• Fabric The entity that interconnects various
  N_Ports attached to it and handle the routing of
  frames
• Intermix A mode of service that reserves the
  full FC capacity for a dedicated (Class 1)
  connection but allows the transport of additional
  connectionless data if space is available
• Node A collection of one or more N_Ports

14
Fibre ChannelTerminology (continued)

• Fibre Channel, having a different heritage than
  other LAN/WAN technologies, has different
  terminology Table 9.2
• Operation A set of one or more (possibly
  concurrent) exchanges associated with a logical
  construct above the FC-2 layer
• Originator The logical function associated with
  an N_Ports that initiates an exchange
• Port The hardware entity within a node that
  performs data communications over a FC link
• Responder The logical function in a N_Port
  responsible for supporting an exchange initiated
  by an originator
• Sequence A set of one or more data frames with
  a common sequence ID transmitted unidirectionally
  from one N_Port to another N_Port, with a
  corresponding response, if applicable,
  transmitted in response to each data frame

15
Fibre ChannelTerminology

• Fibre Channel Elements
• The key elements of a FC network are the end
  devices called nodes and the collection of
  switching elements called the fabric
• Communication between FC-attached nodes consists
  of transmission of frames across point-to-point
  links or fabric
• Each node has one or more N_Ports for connection
  to the fabric
• Nodes connect to F_Ports on the fabric via
  bi-directional point-to-point links
• Fabrics can be a single switch or a general set
  of switching elements
• Frames may be buffered within the fabric, making
  it possible for nodes to connect to the fabric at
  different data rates
• The fabric is a switched architecture, not a
  shared access medium, so no MAC issues are
  encountered and no MAC sublayer is necessary
• The FC network scales easily in terms of ports,
  data rate, and distance covered and through its
  layered protocol architecture interworks with
  existing LAN and I/O protocols

16
Fibre ChannelTerminology

• Basic Fibre Channel Architectural Diagram

17
Fibre ChannelExample Architecture
18
Fibre ChannelProtocol Specifications

• Fibre Channel Protocol Architecture
• The Fibre Channel standard reference model is
  organized into five levels Figure 9.3 and Table
  9.3
• These are not levels in the strict sense of the
  OSI model but are instead functional groupings of
  services and/or definitions
• The standard does not dictate actual
  implementations, relationships between the
  levels, or the specific interfaces between levels
• Levels FC-0, FC-1, and FC-2 are defined together
  in a standard called the Fibre Channel Physical
  Signaling Interface (FC-PH)
• No final standard has been issued for FC-3
• A number of standards have been developed at FC-4
  specifying how Fibre Channel interfaces to
  existing LAN and I/O technologies

19
Fibre ChannelProtocol Specifications

• Fibre Channel Protocol Architecture (continued)

20
Fibre ChannelProtocol Specifications

• Fibre Channel Protocol Architecture (continued)
• Details on the FC-0 level
• A variety of physical media and data rates are
  allowed
• Data rates 100-Mbps to 3.2-Gbps
• Media fiber optic, coaxial cable, and STP
• Distance 50 m to 10 km depending on data rate
  and media
• The FC-1 level uses a 8B/10B encoding scheme in
  which 8 bits of data from the FC-2 level are
  encoded into a 10 bit binary symbol
• Note the raw vs. effective speeds quoted
  are due to the 8B/10B scheme (a 4-Gbps raw stream
  actually carries 3.2-Gpbs of data)

21
Fibre ChannelProtocol Specifications

• Fibre Channel Protocol Architecture (continued)
• The FC-2 level is responsible for the
  transmission of data between N_Ports, which
  requires the following
• Addressing of N_Ports
• Permissible topologies of the fabric
• Classes of service
• Segmentation and reassembly of frames as well as
  higher level grouping of frames (sequences and
  exchanges)
• Sequencing, flow control, and error control
• The FC-3 level provides a common set of services
  across multiple N_Ports
• Striping the process of using multiple ports to
  transmit a single data unit in parallel
• Hunt groups allows a connection to any
  available N_Port in the group
• Multicast (and broadcast)

22
Fibre ChannelProtocol Specifications

• Fibre Channel Protocol Architecture (continued)
• The FC-4 level defines how other protocols
  interoperate with Fibre Channel (specifically
  FC-PH)
• SCSI a common device interface standard for
  computer peripherals
• HIPPI a high speed I/O channel used in
  mainframe and supercomputing environments
• IEEE 802 how IEEE 802 MAC frames map to Fibre
  Channel frames
• ATM
• IP how to map packets into Fibre Channel frames
  (RFC 4338)

23
Fibre ChannelPhysical Media and Topologies

• One FC strength is the range of allowed options
  for the physical medium, the data rate, and
  network topology
• Transmission Media
• A special shorthand nomenclature has been
  developed for FC media it basically consists of
  the following
• Speed-Medium-Transmitter-Distance
• FC-0 options are listed in Figure 9.4
• Allowable Media Types
• Fiber Optic both SM and both 50?m and 62.5?m MM
• Coaxial Cable three 75 ohm cable types
  specified, a thick RG-6/U, a thinner RG-59/U, a
  miniature coax cable 0.1 in diameter
• Shielded Twisted Pair two types of 150 ohm
  cables are specified for use over short distances
  at data rates up to 200-Mbps EIA-568 Type 1 STP
  (two shielded twisted pair) or EIA-568 Type 2
  STP (four pair STP)

24
Fibre ChannelPhysical Media and Topologies

• Topologies
• The most general FC topology is the (switched)
  fabric
• Four basic topologies are available
  point-to-point, fabric, arbitrated loop (no hub),
  and arbitrated loop with hub
• Point-to-point connects two end nodes with no
  switches or routing
• The fabric topology can contain an arbitrary
  number of switches, some connecting to nodes and
  others that just provide transport between other
  switches
• The fabric topology allows for easy scalability
• In the fabric topology the overhead on nodes is
  minimized they are only responsible for managing
  the point-to-point link to their local switch
• Each port requires a unique address to allow
  frames to be delivered to the proper destination

25
Fibre ChannelPhysical Media and Topologies

• Topologies (continued)
• The arbitrated loop topology allows up to 126
  nodes to be connected in a simple, low-cost loop
• The ports on the loop are a special kind called
  NL_Ports because they must perform loop
  management functions
• Operation is roughly equivalent to other token
  ring protocols
• A token acquisition protocol controlling loop
  access is required
• The fabric loop topologies can be connected as
  long as one node can act as both an arbitrated
  loop a fabric node that participates in routing
  decisions on the fabric
• The topology of a given FC network is discovered
  automatically as part of network initialization

26
Fibre ChannelPhysical Media and Topologies

• Fibre Channel Topologies (continued)

27
Fibre ChannelFraming Classes of Service

• Framing Protocol
• The FC-2 layer defines the rules for the transfer
  of frames between nodes, comparable to the OSI
  data link layer
• FC-2 specifies frame types, procedures for frame
  exchange, frame formats, flow control, and
  classes of service
• FC-2 Classes of Service
• Multiple classes of service are defined by the
  way communication is established between two
  ports and their flow/error control capabilities
• Five classes of service are currently defined
• Class 1 Acknowledged Connection-oriented
  service
• Class 2 Acknowledged Connectionless service
• Class 3 Unacknowledged Connectionless service
• Class 4 Fractional Bandwidth Connection-oriented
  service
• Class 6 Unidirectional Connection service

28
Fibre ChannelFraming Classes of Service

• FC-2 Classes of Service
• Class 1 Service
• Provides a dedicated path through the fabric
  which behaves to the end nodes like a
  point-to-point link
• Also provides a guaranteed data rate with
  sequenced delivery of frames
• The end node requests the setup of a Class 1
  service connection using a special start-of-frame
  delimiter (SOFc1)
• Class 1 service is advantageous for long constant
  bandwidth transfers of data (e.g. - streaming
  backups over a network)

29
Fibre ChannelFraming Classes of Service

• FC-2 Classes of Service (continued)
• Class 2 Service
• Provides an acknowledged data transmission
  service without connection setup overhead
• Acknowledgements frames are returned by the
  receiving port, if a delivery cannot be made due
  to congestion a busy frame is returned
• This is not the case with frames that cannot be
  delivered due to frame errors
• Sequenced delivery is not guaranteed frames can
  take different paths through the fabric if
  possible
• Multiplexing of frames from different sources
  and/or destinations is allowed
• Class 2 service is good for Storage Area Networks
  (SANs)

30
Fibre ChannelFraming Classes of Service

• FC-2 Classes of Service (continued)
• Class 3 Service
• Provides a basic datagram service (no connection
  setup)
• No guaranteed nor acknowledged delivery
• Good for short data bursts or multicast/broadcast
  data
• Class 4 Service
• Provides service similar to Class 1 but adds
  Quality of Service (QoS) guarantees and
  reservations
• Allows the specification of guaranteed bandwidth
  bounded latency
• QoS parameters established separately for each
  direction
• Good for time-critical real-time applications
  (e.g. -- VTC)
• Class 6 Service
• Provides the reliable unicast delivery found in
  Class 1 but also supports reliable multicast and
  preemption
• Good for video streaming and broadcasting

31
Fibre ChannelFrame Types and Uses

• There are two general types of frames data and
  control
• Three types of data frames are used to transfer
  higher level information between N_Ports
• FC-4 Device Data used to transfer higher-layer
  data units from protocols specified in FC-4
  standards (IP, SCSI, etc.)
• FC-4 Video Data used to transmit streamed video
  between buffers without an intermediate storage
• Link Data used to support higher level control
  information between N_Ports
• Three types of link control frames are currently
  defined
• Link Continue functions as an acknowledgement
  in Fibre Channel sliding-window based data
  transfer
• Link Response used as a negative
  acknowledgement in FC sliding-window based data
  transfer
• Link Command A reset command used to
  reinitialize the sliding-window based transfer
  mechanism

32
Fibre ChannelFrames, sequences, and exchanges

• There is much more to the FC-2 layer than frames
  classes of service it defines a set of
  functional building blocks for higher layer
  services
• Also defines a number of protocols used to
  implement services at a port
• Typical protocols are creating or terminating a
  connection, transferring data, etc.
• Protocols consist of an exchange of information
  between N_Ports, which in turn consists of
  sequences, and sequences a composed of a related
  set of frames

33
Fibre ChannelFrames, sequences, and exchanges
(continued)
34
Fibre ChannelFrames, sequences, and exchanges
(continued)

• Sequences
• With Fibre Channel a maximum frame size is
  imposed at the FC-2 layer but is transparent to
  higher layers
• Higher layers set down chunks of data to FC-2,
  which may need to break them up into a sequence
  of frames
• The sequence of data frames needed to carry a
  single higher-layer chunk of data may also be
  accompanied by one or more link control frames
  for acknowledgement
• FC-2 provides segmentation reassembly that
  supports the transmission of sequences as well as
  error control
• Errors in a frame that belongs to a sequence
  causes the retransmission of that whole sequence
  (and any others transmitted after it go back N
  ARQ)

35
Fibre ChannelFrames, sequences, and exchanges
(continued)

• Exchanges
• Exchanges are mechanisms for organizing multiple
  sequences into a higher-level construct to allow
  easier interfacing to applications
• Examples of exchanges are SCSI disk operations
  like a read or write
• Can involve either a unidirectional or
  bi-directional transfer of sequences
• Within a given exchange, only a single sequence
  can be active (though sequences from different
  exchanges can be simultaneously active)

36
Fibre ChannelFrames, sequences, and exchanges
(continued)

• Protocols
• An exchange is tied to a protocol that provides a
  specific service for higher levels
• Some common protocols that may be used by any
  higher application
• Fabric Login executed upon initialization of an
  N_Port, requires the exchange of the N_Port
  address, classes of service supported, and
  flow-control parameters
• N_Port Login the exchange of service parameters
  between a pair of N_Ports before data exchange
  (buffer space, service classes supported, etc.)
• N_Port Logout the termination of a connection
  between a pair of N_Ports

37
Fibre ChannelFraming Classes of Service

• Flow Control
• Fibre Channel provides a sophisticated set of
  flow control mechanisms at two levels
  end-to-end and buffer-to-buffer
• Key concept is credit -- negotiated at login
  denotes the number of unacknowledged frames
  allowed at any time
• End-to-End Flow Control
• Paces the flow of frames between N_Ports
• Requires acknowledgements to operate, so
  end-to-end flow control can be used only with
  Class 1 and Class 2 services
• Acknowledgement Types (Class 1 or Class 2
  service)
• ACK_1 ACKs one data frame decrements credit
  by 1
• ACK_N ACKs N data frames decrements credit by
  N
• ACK_0 acknowledges a whole sequence,
  decrementing the credit count by the number of
  frames in the sequence

38
Fibre ChannelFlow Control (continued)

• End-to-End Flow Control (continued)
• Acknowledgement types cannot be mixed if ACK_1
  is initially used for a Class 1 connection than
  it must be used for the entire connection
• Busy Reject control frames are also used for
  flow control
• The F_BSY frame indicates the fabric is busy and
  cannot deliver a frame
• The P_BSY frame indicates the destination port is
  busy and cannot accept a frame the sender will
  try a predefined number of times to retransmit
  the frame
• With the Reject (F_RJT and P_RJT) frames,
  delivery of the data frame is being denied (for
  some reason other than congestion)
• When a frame belonging to a sequence is rejected
  the whole sequence must be retransmitted

39
Fibre ChannelFlow Control (continued)

• Buffer-to-buffer Flow Control
• Operates across a pair of ports connected by a
  point-to-point link assures that buffers are
  available at either end of the link
• Applicable to all classes of service (including
  Class 3)
• A single type of control signal, the R_RDY frame,
  is used for buffer-to-buffer flow control
• As a data frame is transmitted across the link,
  the sender increments its credit count for the
  link
• At the receiving port the data frame is buffered
  as received
• Once the data frame is switched to another ports
  buffer on the switch, the receiving port sends
  back the R_RDY frame to the sending port
• When the sending port receives the R_RDY frame it
  decrements the credit count, opening its window
  by a frame

40
Fibre ChannelFraming Classes of Service

• Frame Format Figure 9.10
• The Fibre Channel Frame contains five general
  fields
• Start Delimiter
• Frame Header
• Data
• Cyclic Redundancy Check (CRC)
• End Delimiter

41
Fibre ChannelFraming Classes of Service

• Frame Format - Start of Frame Delimiter
• The start of Frame Delimiter includes a four byte
  set of non-data symbols denoting the start of a
  frame and allowing synchronization
• The SOF delimiter comes in several varieties,
  each of which will specify the frames type and
  class of service
• Examples are SOF Class 1 connection (SOFc1), SOF
  normal (for data frames), and SOF fabric (for
  control frames in the fabric)

42
Fibre ChannelFraming Classes of Service

• Frame Format - FC- 2 Frame Header
• Contains the control data required at this level
  consists of
• Routing control contains two subfields, one for
  frame type (device data, link control, etc.) and
  one for data type in the frame
• Destination Identifier destination N_Port or
  F_Port
• FC uses two levels of addressing a globally
  unique identifier (world wide port/node names)
  a lower level port identifier
• World wide/port name is used by higher layers and
  for network management
• Port identifier is the 3-byte that is used for
  frame routing that consists of three parts
  domain, area, and port
• The hierarchical addressing structure facilitates
  routing and management of the fabric
• A mechanism for mapping between the two addresses
  is necessary

43
Fibre ChannelFraming Classes of Service

• Frame Format - FC- 2 Frame Header (continued)
• Contains the control data required at this level
  consists of
• Source Identifier source N_Port or F_Port
• Type if the routing control field specifies an
  FC-4 frame, then this field specifies the payload
  protocol (SCSI, IP, etc.)
• This field and the Route control field allow the
  destination N_Port to deliver the data to the
  correct higher layer user
• Frame control control information relating to
  frame content
• Is frame a retransmission? Is frame part of a
  sequence?
• Sequence ID unique identifier for a sequence
  used for all frames belonging to it
• Data Field control specifies which, if any, of
  four optional headers are present

44
Fibre ChannelFraming Classes of Service

• Frame Format - Frame Header (continued)
• Contains the control data required at this level
  consists of
• Sequence count A unique number assigned
  sequentially to each frame in a sequence (for
  flow control and proper reassembly of frames
  within a sequence)
• Originator Exchange Identifier a unique
  identifier assigned to the higher layer initiator
  of an exchange
• Responder Exchange Identifier a unique
  identifier assigned to the higher layer
  destination of an exchange
• Parameter used in different ways for link
  control and data frames
• Link control frames carry information specific to
  the control function in this field
• Data frames may carry an address meaningful to
  the upper layer protocol

45
Fibre ChannelFraming Classes of Service

• Frame Format - Data Field
• Contains user data in a multiple of four bytes
  chunks up to a maximum of 2112 bytes
• Can also include one or more optional headers
  whose presence is denoted in the Data Field
  control field
• Optional Expiration Security header can carry a
  frame expiration date plus other security data
  over and above the FC-PH standard
• Optional Network Header may be used by a bridge
  or gateway node interfacing to an external
  network to allow tunneling (includes 8 bit source
  and destination network addresses)
• Optional Association Header may help specify an
  upper layer process (or group of processes)
  associated with an exchange
• Optional Device Header if used the format is
  specified by the upper layer protocol used with
  the frame

46
Fibre ChannelFraming Classes of Service

• Frame Format - CRC End Delimiter
• CRC field the error detection algorithm is the
  same 32 bit CRC used with FDDI and IEEE 802
• End of Frame Delimiter
• A four byte field denoting the end of the frame
• The EOF field may be modified by a switch in the
  fabric if it finds an error in the frame or some
  other condition that invalidates the frame
• There are three different EOF delimiters for
  valid frames
• EOFt denotes the end of a valid sequence
• EOFdt is used with Class 1 service to indicate
  that the frame is the last frame on the logical
  connection (i.e. the connection is being
  terminated)
• EOFn is used to denote successful transmission of
  frames not covered by the first two

47
Fibre ChannelExamples of Equipment

• Fibre Channel Equipment Manufacturers
• High-end (Director-Class) Switches
• Brocade Silkworm 2400 (http//www.brocade.com/prod
  ucts-solutions/products/directors/product-details/
  48000-director/index.page )
• Cisco MDS 9513 (http//www.cisco.com/en/US/produc
  ts/ps6780/index.html )
• Low-end (Edge) Switches
• EMC DS-300B (http//www.emc.com/collateral/hardwar
  e/specification-sheet/h5528-connectrix-ds300b-ss.p
  df )
• Cisco MDS 9134 (http//www.cisco.com/en/US/product
  s/ps8414/index.html )
• Host-Bus Adapters (HBA)
• HP Storageworks 8-Gbps PCIe HBA
  (http//h18006.www1.hp.com/products/storageworks/f
  c81q_pci/index.html )
• Qlogic QLA2340 2-Gbps PCI-x (http//www.qlogic.com
  /Products/SAN_products_FCHBA_QLA2340.aspx )

48
High Performance ComputingIntroduction

• Throughout the 1960s, 1970s, 1980s
  Supercomputers defined the high-end of computing
  performance
• Within the past decade the notion of gluing
  collections of lower powered computers together
  to harness their collective power has been a
  force in the HPC arena
• Come in two general forms
• Clusters
• Grids
• Clusters are usually homogenous resources owned
  and maintained by a single organization
• Grids are usually heterogeneous and dynamic
  resources distributed many times shared among
  organizations
• The key in both situations is network
  interconnections!

49
High Performance ComputingIntroduction to
Infiniband

• Several high performance network technologies
  have been developed for HPC connectivity
• Infiniband
• A promising technology in both HPC SAN
  environments
• Developed by the Infiniband Trade Association a
  vendor consortium with 190 members (notably
  Dell, Sun, IBM, HP)
• Goal is to provide an extensible high-speed,
  low-latency interconnection platform that is cost
  effective in a number of scenarios
• Version 1.0 ratified in Sept 2000, currently at
  version 1.2.1
• Specification provides a comprehensive protocol
  architecture through the transport layer
  (including management)

50
High Performance ComputingInterconnects
Infiniband Protocol Architecture
51
High Performance ComputingInterconnects
Infiniband

• Physical Layer Layer
• Overall architecture designed on switch-based P2P
  links
• Individual links based on 4-wire 2.5-Gbps (1x)
  full-duplex connection
• Higher speed interfaces use multiple 1x links
  (e.g. 4x link has 16 wires and runs at 10-Gbps
  full-duplex)
• Links use 8B/10B encoding 1x throughput is
  2-Gbps
• Copper Links
• PCB/bus links run at maximum of 30 inches
• TP copper links run up to 17m currently specd
  for 4x and 12x
• Mechanical connectors and cables defined in
  specification
• Fiber Links
• SX (850nm MM) and LX (1310nm SM) versions of 1x,
  4x, 12x
• Use multiple lanes like copper except for 4x-LX
  (10GBase-LR)
• Variety of Physical Connectors specified (MPO,
  SC, etc.)

52
High Performance ComputingInterconnects
Infiniband

• Data Link Layer
• Defines Management Data Packets (Max. size of
  4kB)
• Within a subnet packets forwarded using LID
  assigned to interface
• Each link has 15 Virtual Lanes (VLs) prioritized
  from 0 to 15
• Subnet Management packets have highest priority
  (VL-15)
• Allows QoS schemes only VL-0 and 15 are
  mandatory
• Each data packet has a Service Level (SL) used to
  map it to a VL
• Unicast and Multicast support
• Uses a credit-based flow control scheme
• Two CRCs for comprehensive error detection
• Link-based 16-bit CRC checked hop-to-hop
• End-to-end invariant 32-bit CRC checks fields
  that do not change hop-by-hop

53
High Performance ComputingInterconnects
Infiniband

• Network Layer
• Defines Management Data Packets (Max. size of
  4kB)
• Within a subnet packets forwarded using LID
  assigned to interface (Max. 65k nodes per subnet)
• Outside a subnet packets routed using GRH/GID
• Routers vs. Switches
• Transport Layer
• Defines five different services associated PDUs
• Reliable Connection
• Reliable Datagram
• Unreliable Connection
• Unreliable Datagram
• Raw Datagram

54
High Performance ComputingInterconnects
Infiniband

• Application Layer
• A number of service interfaces and verbs are
  defined
• User interfaces follow the VIA (Virtual Interface
  Architecture) specification
• Management
• Includes two general management
  packages/protocols
• Subnet Manager (SM)
• Configures the local subnet provides essential
  services
• LID assignment, SL-to-VL mapping, Link failover,
  etc.
• All devices must talk to SM, can have standby SMs
• SM traffic is highest priority (VL-15) with no
  flow control
• General Services Interface (GSI)
• Other operations like out-of-band mgmt., chassis
  mgmt.
• Lower priority and subject to flow control

55
High Performance ComputingInterconnects
Infiniband

• Product Examples (Low-End) Cisco SFS-7000P
• Provides 24 fixed Infiniband 4x ports (10-Gbps)
  in 1U enclosure
• 480-Gbps switch fabric, non-blocking, 200ns
  latency
• Integrated Subnet Manager, ITBA v1.2 compliant
• Managed via Web, Java clients, or command line
• List price (2/2006) 14,495

56
High Performance ComputingInterconnects
Infiniband

• Product Examples (High-End) Voltaire ISR 9288
• Up to 288 Infiniband 4x ports in a 14U modular
  enclosure
• Up to 11.5-Tbps bandwidth non-blocking with 420ns
  latency
• Integrated subnet manager, comprehensive mgmt.
  packages
• Multiple redundant components failover options
• ITBA v1.1 compliant
• GSA price 43,000 for 24 ports

57
High Performance ComputingInterconnects
Infiniband

• Uses

58
High Performance ComputingOther choices for
interconnects

• Other Alternatives for Interconnect Technologies
• Myrinet
• ANSI standard protocol architecture with
  limited support beyond one company (Myricom)
• Low-latency, full-duplex switch fabric 2
  10-Gbps links
• Older Copper (HSSDC, LAN, SAN) connections
  fiber preferred
• Comprises 2 of current Top500 list (28 for
  Infiniband)
• Q-net/Quadrics (1 of Top500)
• Proprietary high-speed (900-MBps) low latency
  interconnect
• Copper/Fiber connections up to 100m
• Fat-tree switch fabric up to 4096 nodes
• Gigabit/10-Gigabit Ethernet (56 of Top500)
• The interconnect of choice because of cost
  convenience
• Latency can be an issue so can frame size

59
SANs, Fibre Channel, HPC InterconnectsReading

• Reading
• This modules material Stallings chapter 9
• Next module Last-Mile Technologies
