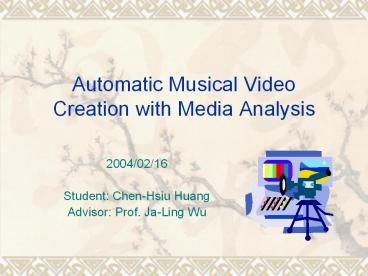

Automatic Musical Video Creation with Media Analysis

1
Automatic Musical Video Creation with Media
Analysis

• 2004/02/16
• Student Chen-Hsiu Huang
• Advisor Prof. Ja-Ling Wu

2
Outline

• Problem Formulation
• Current Solutions
• Our Goal
• Gory Details
• Performance Evaluation
• Whats Next?
• Questions and Discussion

3
Problem Formulation

• The digital video capture devices such as DVs are
  made more affordable for end users.
• Its interesting to shoot videos but frustrating
  for editing them.
• Theres still a tremendous barrier between
  amateurs (home users) and the powerful video
  editing software.
• Finally people leave their precious shots in
  piles of DV tapes without editing and management.

4

• According to a survey on DVworld, the relations
  between the video length and how many times will
  user review them after days
• Video clips with no more then 5 minutes are best
  for humans concentration.

http//www.DVworld.com.tw/
5
Facts about Musical Video

• People are inpatient for videos without scenario
  or voice-over, especially for those with no
  music.
• The improved soundtrack quality improved
  perceived video image quality.
• Synchronizing video and audio segments enhance
  the perception of both.
• One study at MIT showed that listener judge the
  identical video image to be higher quality when
  accompanied by higher-fidelity audio.

6

• Home videos can be roughly classified by its
  nature property.

• Four profiles are proposed to deal with videos of
  different nature.

7
Current Solutions

• A consumer product called muvee autoProducer
  has been announced to ease the burden of
  professional video editing.
• Its application scenario is quite simple

Pick-up your video
Select profiles to apply
Produce a quality musical video
Choose your favorite music
8
Our Goal

• Although there are commercial products in the
  market, only few academic publications related.
• Jonathan Foote, Matthew D. Cooper, Andreas
  Girgensohn, "Creating music videos using
  automatic media analysis," ACM Multimedia 2002
  553-560
• The content-analysis technologies are developed
  for years can we adopt those technologies to
  help auto-creation of musical videos?
• Goal To achieve the near or beyond quality in
  the similar application scenario with the
  content-analysis technologies developed in
  multimedia domain.

9
Volume ZCR Brightness Bandwidth
Proposed Framework
Audio segment cutting
Shot change Scene change
Human face Flash light Motion strength Color
variance Camera Operation ...
10
Audio Analysis

• We should cut the input audio into several clips
  according to its audio features.
• Frame-level features
• Volume defined as the MSR of audio samples
• ZCR the number of times that the audio waveform
  crosses the zero axis in each frame.
• Spectral features
• Brightness the centroid of frequency spectrum
• Bandwidth the standard deviation of frequency
  spectrum

11

• Generally the brightness distribution curve is
  almost the same as ZCR curve, so here we use ZCR
  feature only.
• Bandwidth is an important audio feature but we
  can not easily tell whats the real physical
  meaning in music when the bandwidth reaches its
  high/low value.
• Furthermore, the relations between musical
  perceptual and bandwidth values are not clear and
  not regular.

12
Audio Segmentation

• First we cut the input audio into clips when the
  volume changes dramatically.
• For each clip, we define the burst of ZCR as an
  attack, which may be a beat of base drum or the
  singers voice.

13

• The dramatic volume change defines the audio clip
  boundary, while the burst of ZCR (attack) in each
  clip defines the granular sub-segment within it.

?????

• Here we define the dynamic of each clip as

? The dynamic feature can be used as a good
reference later for video/audio synchronization
14
Video Analysis

• First we need to apply shot change detection to
  segment video into scenes.
• Here we use the combination of pixel MAD and
  pixel histogram method to perform the shot change
  detection.

15

• Flashlight detection
• The flashlight event will be detected as shot
  change.
• When the shot change is founded, check if
• If so, then its a flashlight event, should not
  be treated as shot change.
• Sub-Shot segmentation
• Here we use MPEG-7 ColorLayout descriptor to
  measure each frames similarity.
• The first frame in each shot is selected as the
  basis, each consecutive frames are compared with
  the basis. If
• Then we say that in frame i, a sub-shot is
  occurred.

16
Camera Operation

• Camera operations such as pan or zoom are widely
  used in amateur home videos. By detection those
  camera operations can help catch the video
  takers intention.
• Our camera operation detection is performed base
  on the MPEG videos motion vectors in P-frames.

Pan
Zoom

• This method is simple and efficient. However, it
  does well when detecting camera operations.

17
Video Features

• Frame-level features
• The presence of human faces.
• Use OpenCV library as face detection module.
• Motion intensity
• Flashlight detection
• Mean and standard deviation of luminance plane
• (Dcolor(i) Thcolor Dhist(i) defines the unsuitable frames
• Shot-level features
• Numbers and types of camera operation in each
  shot.
• Numbers of faces and flashlight event in each
  shot.
• The accumulation of distance between each frame
  and first frame can be used to describe the
  shots homogeneity.

18
Importance Measure
A scaling coefficient according to synchronized
audio clips feature

• Frame-level score function

• The face and flashlight event have the highest
  weighting.
• Camera operation and higher motion intensity
  represent the video takers intension, so its
  more important.
• Frames with higher luminance and larger standard
  derivation are more suitable.
• The penalty of unsuitable frames will be
  discussed later.

19

• The shot-level importance is motivated by
  observing that
• Shots with larger motion intensity take longer
  duration.
• The presence of face attracts viewer.
• Shots of higher heterogeneity can taker longer
  playing time.
• Shots with more camera operations are more
  important.
• Of course, shots with longer length in origin are
  more important.
• Shot-level importance

• The shot-level importance function is used in the
  medium profile to reassign each shots length
  according to its importance.
• Static shots takes shorter, while dynamic shots
  can take longer.? Gets better results after
  editing
• muvee autoProducer does not reassign each
  shots length!

20
Example 1

• ????? (3155)
• Music SHE / ?????
• Length 425
• Profile Sequential Medium

21
Proposed Profiles

• The usage of profiles allows users to customize
  their videos according to its content property
  and users preference in a easy way.
• We said that home videos have four types
• Causal, Non-causal, Recreational, Memorial
• For causal or non-causal videos, we use the
  sequential or non-sequential parameter to deal
  with.
• For memorial or recreational videos, the rhythmic
  or medium parameter is developed to cope with.
• In rhythmic, the music tempo/rhythm is better
  preserved, while some shots of video will be
  neglected.
• In medium, the accompany of music tempo/rhythm is
  not so clear as rhythm, but most of the shots
  will be promised to shown. The medium parameter
  preserved the original video the most.

22

• Thus we have four profiles
• Sequential Rhythmic, Sequential Medium
• Non-Sequential Rhythmic, Non-Sequential Medium

23
Rhythmic vs. Medium

• The video is segmented according to the audio
  clips and sub-clips.
• After projecting to the video time-line,
  searching in the video range to find the video
  segments with the highest score as the same
  length as audio segment.
• Finally concatenate all the selected segments.

24

• Each shot will be reassign to a new length
  according to its shot importance, shots may
  becomes longer or shorter in proportion to the
  total length.
• After projection to the video space, the length
  budget is calculated according to the reduction
  rate then allocate the budget to each inner
  shots according to its length.
• If the allocated shot length is to short (frames), then its budget will be transfer to near
  shots.

25

• However, there are some issues
• The fast tempo/rhythm audio clip may be aligned
  to a static video shot, which will be annoying
  for viewer.
• The slow audio clip may be aligned to a dynamic
  video shot.
• ? We apply an audio scaling coefficient in
  synchronization stage. The motion intensity of
  video shots weight will be decreased when
  aligned with a slow audio clip nearly preserved
  when synchronized with fast audio clip.
• Another issue when the media length differ

• Its unavoidable when the sequential policy is
  enforced. ?

26

• For some video sources, the order of shots is not
  so important, and re-order shots will not degrade
  the original.
• If we allow re-order the input video shots,
  things may be better

• It sounds simple and intuitive, but its not an
  easy problem if we want to develop an efficient
  algorithm to find such permutation.
• Furthermore, the best solution may not exist
  and the optimal solution may not be only one
  permutation.

27
Non-Sequential Permutation

• So we developed a randomize algorithm to find a
  not-bad solution within predictable computation
  time.
• First randomly permute each video shot
• Then we compute the Ravc audio-to-video
  coverage in the corresponding time-line for each
  shot

• Then we calculate the average Ravc, each
  permutation will has its Ravc.
• After lots of iterations, find the minimal Ravc,
  theoretically we can approach to the optimal
  solution efficiently and predictable, only
  depends on how many iterations we perform.

28

• For an example, 10000 iterations are performed

• We can get better solution with more iterations,
  but through experiments, 10000 iterations are
  quite enough and will not be a burden for our
  computation power (actually its really fast)
• Since its random property, each synchronization
  result will be different. But we have discussed
  before that its normal to have lots of solutions.

29
Example 2
??? (1908) Music ???? Length 425 Profile
Sequential Medium and Non-Sequential Medium
30
Performance Evaluation

• Development environment
• AMD Duron 1.2G Hz with 386 MB RAM
• Analysis complexity
• For videos, about 1.21.31 comparing to the
  original video time.
• For audios, about 2 minutes for a 5 minute audio
  if perform the spectral analysis, 4-5 minutes are
  needed.
• The audio/video analysis will be saved as
  description files, so the analysis is required
  only once.
• The synchronization can be regarded as O(n)
  complexity.
• When analyzing, usually less than 20 MB RAM is
  required (depends on how many shots in video)
• The synchronization result is saved as an
  AviSynth script. Then we use VirtualDub to encode
  the produced musical video.

31
Sample Videos
????? (3155)
??????? (1759)
??? (1908)
???? (4342)
????? (6034)
littleco ??? (2022)
32
Whats Next?

• How to design the experimental result?
• The subjective test should not over-burden the
  viewer.
• Adding the shot transition effects? Such as
  dissolve, fade in, fade out.
• Ive tried, but not so easy as I thought.
• The automatic approach may not always product a
  satisfaction result and the experience is highly
  subjective and differs from people to people.
• Semi-automatic is probably the best compromise.
  The automatic result is served only as a
  pre-process basis and a labor-saving tool.
• But the video editing tool is hard to develop,
  and I doubt if its necessary to develop one from
  startup on the purpose of thesis.

33
Questions and Discussion

• Any comments are welcomed.
• Acknowledgment
• Special thanks for Mr. ???, for his videos and
  suggestions. ?
• Thanks friends in DVworld who provide lots of
  ideas and comments.
• Thanks Chih-Hao Shen for his dancing video.
