Internet Routing (COS 598A) Today: Topology Size

1

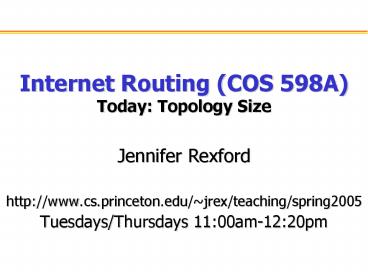

Internet Routing (COS 598A)Today Topology Size

• Jennifer Rexford
• http//www.cs.princeton.edu/jrex/teaching/spring2
  005
• Tuesdays/Thursdays 1100am-1220pm

2
Outline

• BGP distribution inside an AS
• Full-mesh iBGP
• Route reflectors
• Routing anomalies caused by route reflectors
• Pros and cons of proposed solutions
• IGP topology
• OSPF areas
• Summarization
• Multiple ASes

3
Routers Running eBGP, iBGP, and IGP
destination
AS A
AS B
Legend eBGP session iBGP session IGP link
2
1
2
4
Route r1 has closest egress point
4
Roles of eBGP, iBGP, and IGP

• eBGP External BGP
• Learn routes from neighboring ASes
• Advertise routes to neighboring ASes
• iBGP Internal BGP
• Disseminate BGP information within the AS
• IGP Interior Gateway Protocol
• Compute shortest paths between routers in AS
• Identify closest egress point in BGP path
  selection

5
Full Mesh iBGP Configuration

• Internal BGP session
• Forward best BGP route to a neighbor
• Do not send from one iBGP neighbor to another
• Full-mesh configuration
• iBGP session between each pair of routers
• Ensures complete visibility of BGP routes

6
Why Do Point-to-Point Internal BGP?

• Reusing the BGP protocol
• iBGP is really just BGP
• except you dont add an AS to the AS path
• or export routes between iBGP neighbors
• No need to create a second protocol
• Another protocol would add complexity
• And, full-mesh is workable for many networks
• Well, until they get too big

7
Scalability Limits of Full Mesh on the Routers

• Number of iBGP sessions
• TCP connection to every other router
• Bandwidth for update messages
• Every BGP update sent to every other router
• Storage for the BGP routing table
• Storing many BGP routes per destination prefix
• Configuration changes when adding a router
• Configuring iBGP session on every other router

8
Route Reflectors

• Relax the iBGP propagation rule
• Allow sending updates between iBGP neighbors
• Route reflector
• Receives iBGP updates from neighbors
• Send a single BGP route to the clients
• Very much like provider, peer, and customer
• To client send all BGP routes
• To peer route reflector send client-learned
  routes
• To route reflector send all client-learned
  routes

9
Example Single Route Reflector
1
2
2
4
r2
Router only learns about r2
10
The Problem About Route Reflectors

• Advantage scalability
• Fewer iBGP sessions
• Lower bandwidth for update messages
• Smaller BGP routing tables
• Lower configuration overhead
• Disadvantage changes the answers
• Clients only learn a subset of the BGP routes
• Does not result is same choices as a full mesh
• ... especially if RR sees different IGP distances

11
Routing Anomaly Forwarding Loop
r1
r2
1
1
r1
r2
1
Picks r2
Picks r1
Packet deflected toward other egress point,
causing a loop
12
Routing Anomaly Protocol Oscillation
1
2
3
1
1
1
5
5
5
RR1 prefers r2 over r1 RR2 prefers r3 over r2 RR3
prefers r1 over r3
13
Avoiding Routing Anomalies

• Reduce impact of route reflectors
• Ensure route reflector is close to its clients
• so the RR makes consistent decisions
• Sufficient conditions for ensuring consistency
• RR preferring routes through clients over peers
• BGP messages should traverse same path as data
• Forces a high degree of replication
• Many route reflectors in the network
• E.g., a route reflector per PoP for correctness
• E.g. have a second RR per PoP for reliability

http//www.acm.org/sigs/sigcomm/sigcomm2002/papers
/ibgp.pdf
14
Possible Solution Disseminating More Routes

• Make route reflectors more verbose
• Send all BGP routes to clients, not just best
  route
• Send all equally-good BGP routes (up to IGP cost)
• Advantages
• Client routers have improved visibility
• Make the same decisions as in a full mesh
• Disadvantages
• Higher overhead for sending and storing routes
• Requires protocol changes to send multiple routes
• Not backwards compatible with legacy routers

1
2
2
4
r1, r2, r4
http//www.acm.org/sigs/sigcomm/sigcomm2002/papers
/bgposci.pdf
15
Possible Solution Customized Dissemination

• Make route reflector more intelligent
• Send customized BGP route to each client
• Tell each client what he would pick himself
• Advantages
• Make the same decisions as in a full mesh
• Remain compatible with legacy routers
• Disadvantages
• Intelligent RR must make decisions per client
• and select closest egress from each viewpoint

1
2
2
4
r1
http//www.rnp.br/ietf/internet-drafts/draft-bonav
enture-bgp-route-reflectors-00.txt http//www.cs.p
rinceton.edu/jrex/papers/rcp-nsdi.pdf
16
Possible Solution Multicast/Flooding

• Replace point-to-point distribution
• Apply a multicast protocol to distribute messages
• Or, flood the BGP messages to all routers
• Advantages
• Complete distribution without route reflectors
• Avoids configuration overhead of a full mesh
• Disadvantages
• Requires an additional, new protocol
• Not backwards-compatible with legacy routers
• Large BGP routing tables, like in a full mesh

http//www.nanog.org/mtg-0302/ppt/van.pdf
17
Possible Solution Tunnel Between Edge Routers

• Tunneling through the core
• Ingress router selects ingress point
• Other routers blindly forward to the egress
• Advantages
• No risk of forwarding loops
• No BGP running on interior routers
• Disadvantages
• Overhead of tunneling protocol/technology
• Still has a risk of protocol oscillations

18
State-of-the-Art of BGP Distribution in an AS

• When full-mesh doesnt scale
• Hierarchical route-reflector configuration
• One or two route reflectors per PoP
• Some networks use confederations (mini ASes)
• Recent ideas
• Sufficient conditions to avoid anomalies
• Enhanced RRs sending multiple or custom routes
• Flooding/multicast of BGP updates
• Tunneling to avoid packet deflections
• Open questions
• Are the sufficient conditions too restrictive?
• Good comparison of the various approaches

19
IGP Topology
20
Interior Gateway Protocols (IGPs)

• Protocol overhead depends on the topology
• Bandwidth flooding of link state advertisements
• Memory storing the link-state database
• Processing computing the shortest paths

2
1
3
1
3
2
1
5
4
3
21
Improving the Scaling

• Dijkstras shortest-path algorithm
• Simplest version O(N2), where N is of nodes
• Better algorithms O(Llog(N)), where L is
  links
• Incremental algorithms great for small changes
• Timers to pace operations
• Minimum time between LSAs for the same link
• Minimum time between path computations
• More resources on the routers
• Routers with more CPU and memory

22
Introducing Hierarchy OSPF Areas

• Divide network into regions
• Backbone (area 0) and non-backbone areas
• Each area has its own link-state database
• Advertise only path distances at area boundaries

23
Summarization at Area Boundaries

• Areas only help so much
• Advertising path costs to reach each component
• Single link failure may change multiple path
  costs
• Summarization LSA for multiple components
• LSA for an IP prefix containing the addresses
• LSA carries cost for the maximum path cost

2
1
3
1
To area 0
3
2
1
5
cost 8
4
3
24
Assigning OSPF Areas

• Group related routers
• E.g., in a Point-of-Presence
• Assign to single OSPF area
• Put inter-PoP links in area 0
• Enable summarization
• Select an address block for the equipment in the
  area
• Assign IP addresses in the block to router CPUs
  and interfaces

Inter-PoP
Intra-PoP
Other networks
25
Pros and Cons of Summarization

• Advantages scalability
• Reduce the size of the link-state database
• One entry per summary prefix
• Isolate the rest of the network from changes
• Only advertise when max path cost changes
• Disadvantages
• Complexity
• Extra configuration details for areas
  summarization
• Requires tight coupling with IP address
  assignment
• Inefficiency
• Summarization hides details that affect path
  selection
• Data packets may traverse a less-attractive path

26
Dividing into Multiple ASes

• Divide the network into regions
• Separate instance of IGP per region
• Interdomain routing between regions
• Loss of visibility into differences within region

50
50
100
100
50
100
20
20
20
20
20
20
100
100
100
50
50
50
North America
Europe
Asia
27
Multi-AS Networks, Not Just for Scalability

• Administrative reasons
• Separate networks per geographic region
• Mergers/acquisitions that combine networks
• Why not merge to single AS?
• Using different intradomain protocols
• Managed by different people
• Fear of encountering scalability problems
• Fear of losing the benefits of isolation
• Why merge to a single AS?
• Simpler configuration
• More efficient routing
• Avoid having separate AS hop in BGP AS paths

28
Which Approach is Better?

• Ideal flat IGP network
• Single AS
• Single IGP instance, no areas
• Hierarchical IGP
• Single AS
• Single IGP instance, using areas summarization
• Multiple ASes
• Multiple ASes
• Separate IGP instances
• Some other approach???

29
Comparison Metrics

• Scalability
• Protocol overhead
• Storing and flooding link-state advertisements
• Overhead of Dijkstra shortest-path computation
• Effects of topology changes
• Number of advertisements after a change
• Likelihood a change must be propagated
• Efficiency
• Stretch comparing path lengths
• In ideal flat intradomain routing
• In alternative scheme
• How much longer do the paths get?

30
Interesting Research Questions

• Routing protocols that achieve small stretch
• Theory work on algorithms to minimize stretch
• Protocol work on hierarchy and aggregation
• Any new distributed protocols with low stretch?
• Avoid sharp boundaries between areas/ASes?
• Identifying good places to hide information
• Given a network graph with link weights
• Decide where to put area and AS boundaries
• with the goal of minimizing stretch
• within some max size of each area or AS

31
Conclusion

• Networks are getting bigger
• Growth of a network topology
• Merger/acquisition of other networks
• Techniques for scaling the routing design
• BGP route reflection
• OSPF areas
• Multiple BGP ASes
• Relatively open research area
• Rich theoretical tradition on compact routing
• Common operational practices for protocol scaling
• Not much work has been done in between

32
Next Time Router Configuration

• Two papers
• Automated provisioning of BGP customers (just
  sections 1-3)
• Detecting BGP faults with static analysis
• Review only of second paper
• Summary
• Why accept
• Why reject
• Future work
• Optional
• Short survey on BGP routing policies for ISPs
• NANOG video covering material in second paper
