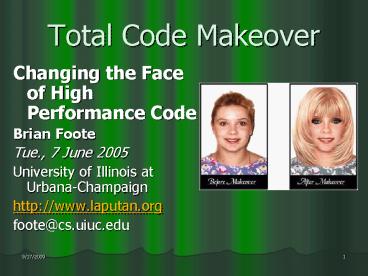

Total Code Makeover

1
Total Code Makeover

• Changing the Face of High Performance Code
• Brian Foote
• Tue., 7 June 2005
• University of Illinois at Urbana-Champaign
• http//www.laputan.org
• foote_at_cs.uiuc.edu

2
A Scene from a Nightmare
3
Big Ball of Mud

• The de-facto standard software architecture
• Why is the gap between what we preach and what we
  practice so large?

4
Crescit Eundo

• It Grows as it Goes

5
The Medusa

• An apparition so hideous that all who gaze upon
  her are turned to stone
• "This thing you call language, though...most
  remarkable. You depend on it for so very much,
  but is any one of you really its master?"
• -- Spock/Kollos, Is There in Truth No Beauty?

6
HPC Programming Languagesand Objects

• FORTRAN (77, Carter era, James VI)
• Fortran 90 (Bush the Elder, George II)
• Fortran 2003 (Bush the Younger, George III)
• ANSI C
• C
• Matlab and Friends
• Assembler?

7
Refactoring

• Behavior Preserving code transformation
• Rename
• Extract method
• Verifies preconditions
• Reconciles all occurrences
• More reliable than cut n paste, or search and
  replace

8
Reasons to Refactor

• Make code more readable / comprehesible
• Improve structure
• Improve design
• Remove duplication
• Improve performance

9
What is a Refactoring?

• A Behavior Preserving Program Transformation
• Source-to-Source
• Program Restructuring -gt Batch
• Refactoring Incremental / Interactive

10
From http//www.refactoring.com

• Refactoring is a disciplined technique for
  restructuring an existing body of code, altering
  its internal structure without changing its
  external behavior. Its heart is a series of small
  behavior preserving transformations. Each
  transformation (called a 'refactoring') does
  little, but a sequence of transformations can
  produce a significant restructuring. Since each
  refactoring is small, it's less likely to go
  wrong. The system is also kept fully working
  after each small refactoring, reducing the
  chances that a system can get seriously broken
  during the restructuring.
• --Martin Fowler

11
Refactoring?

• So, why do we want to make changes to our
  programs that dont do anything?
• Havent programmers always been doing this?

12
Legacy1.for
13
Legacy 1 ? Legacy 2

• There are three changes
• 1000 ? 100
• Added whitespace
• Simplified the expression in the assignment to
  buf()
• Only one is a refactoring (literally!)
• Simplify Expression or Apply Arithmetic
  Identity

14
Legacy2.for
15
Legacy 1 ? Legacy 3

• Changes
• Introduce / Add Local Variable
• Replace Manifest Constant with Variable
• Magic Numbers ? Evil
• Tools sometimes treat a series of composable,
  fine-grained refactorings as a single refactoring

16
Legacy3.for
17
Legacy 3 ? Legacy 4

• Weve introduced and initialized six more
  variables, and replaced a number of constants
  with references to these variables
• Weve also changed the case of npts
• No new refactorings were introduced

18
Legacy4.for
19
Legacy 4 ? Legacy 5

• Weve converted several variables to parameters
• In old-school Fortran, we can use these to
  declare array dimensions now
• Refactor to make code more general
• Refactor to make code more clear

20
Legacy5.for
21
Style vs. Substance

• I know what your are all thinking
• Who cares what the code does?
• How does it look?
• Are refactorings merely cosmetic?
• If so, is that a bad thing?
• If not, why not?
• Does style matter?
• How can I make my Fortran look fabulous?
• Coding Conventions / Style / Design / Structure /
  Architecture / Clarity matter
• The machine, by and large doesnt care about the
  differences among these programs, but we do

22
Legacy5.for ? Legacy6.f95

• Labeled the INTRINSIC
• Coalesced PARAMETERS
• Introduced modern declarations
• Added initial values
• Converted old to new-style DO Loops
• and last but not least
• Converted from Fixed to Free Format

23
Legacy6.f95
24
Legacy6.f95 ? Legacy7.f95

• Introduced a MODULE Goodies
• Moved function IROUND into it
• A major modernization

25
Legacy7.f95
26
Legacy7.f95 ? Legacy8.f95

• Extract Procedure Square
• What Martin calls the Refactoring Rubicon
  the real test of a refactoring tools mettle

27
Legacy8.f95
28
Legacy8.f95 ? Legacy9.f95

• Introduced IMPLICIT NONE
• Declared heretofore implicit variables explicitly
• Introduced INTENTS

29
Legacy9.f95
30
Legacy9.f95 ? Legacy10.f95

• Extracted Print, Sum
• Changed Sum to use the INTRINSIC version
• Changed IROUND to PURE, ELEMENTAL (removed debug
  statements)
• Is this a behavior preserving transformation?

31
Legacy10.f95
32
Legacy10.f95 ? Legacy11.f95

• Added Comments
• Renamed things
• Whats in a name? Plenty
• Intention-revealing names have a dramatic impact
  on readability and code comprehesion
• Some advocate method extraction and renaming as a
  superior alternative to comment cards (comments a
  smell?)

33
Legacy11.f95
nchan,npts,chan INTEGER, INTENT(IN)
buf(nchan,npts) INTEGER i DO i 1,npts
34
Legacy11.f95 ? Legacy12.f95

• Refactoring to Objects
• Created a Waveform TYPE
• Changed the procedures in our MODULE to
  type-bound procedures in TYPE (Waveform)
• Changed the calls to these procedures
  accordingly
• Many existing refactoring tools have extensive
  suppport for object-oriented program cultivation.
  A state-of-the-art Fortran tools should be no
  different (once F2003 is here)

35
Legacy12.f95
nchan,npts,chan INTEGER, INTENT(IN)
buf(nchan,npts) INTEGER i DO i 1,npts
36
Legacy13.f95
37
Photran A Fortran Plugin For Eclipse
38
Photrans Pedigree

• Opdykes C Tool
• Refactory and the Refactoring Browser
• IBM Eclipse Innovation Grant
• IBM PERCS High Performance Computing Initiative
• NASA IBEAM Project
• CRefactory

39
Status November 2004

• Produced two MS Theses
• Brought aboard two PhD Candidates
• Repaired numerous parser bugs
• Greatly Enhanced Stability
• Implemented Outline Views
• Make / Run / Debug under Linux
• Polished the GUI

40
Status June 2004

• Hyperion Release (14 January 2005)
• Parsed Full IBEAM Codebase
• Support for g77, g95, debugging under Windows /
  Linux
• Support for Lahey Fortran for Windows
• Intel Support
• Mac Support
• Eos (Eclipse 3.0.1) (4 February 2005)
• AST / DOM design in progress

41
Why Refactor Fortran

• Make code easier to understand
• Make code easier to reuse
• Improve structure
• Banish duplication
• Make code your own
• Incrementally Cultivate the Code (XP)
• Refactor to Components
• Refactor to Patterns
• Refactor to Objects

42
What would you pay for a tool like this?

• http//www.photran.org

43
Refactoring IBEAM

• Separating IBEAM and PARAMESH (calling PARAMESH
  as a LIBRARY)
• Problem Data structures must be dynamically
  allocated
• Problem Sizes must be dynamic, not compile time
  quantities
• Problem Many fixed quanties are now runtime
  parameters

44
Conjoined Twins

• Things that are hard to separate?
• Marriage, Omelets, Nations, Urban Decay
• Divorce, Secession, Gentrification, Renewal are
  possible

45
Dynamic vs. Static Allocation
46
Dynamic vs. Static Allocation
47
Parameter Object
48
The Hippocratic Oath

• First, do no harm
• --Hippocrates? Galen?
• Good advice anyway

49
Something Wonderful

• Tension between performance and flexibility is
  high
• Moore and Amdahl are conspiring to help
• Computational Science ? Science
• HP Computing ? Computing
• HPC Pioneers will lead the way
• Pattern mining needs to begin now

50
An Embarrassment of Riches?

• Cycles too Plentiful to burn
• Bandwidth too Cheap to meter
• Realtime Photorealism

51
Overcoming Fear

• Safe Refactorings
• Reversible Refactorings
• Unit Tests
• Regression Tests
• Emergent Substructures
• Tangible Incremental Results
• Visible Results

52
On Reading Legacy Code

• The final alternative is to copy the original
  program. This copy is altered to meet the new
  requirements. I call this approach
  metastisization.
• Reading and fully comprehending such code is
  among one of the most difficult intellectual
  challenges one might have the misfortune to
  encounter.
• --Designing to Facilitate Change Foote 1988

53
Things You Should Never Do

• They did it by making the single worst strategic
  mistake that any software company can make
• They decided to rewrite the code from scratch.
• --Joel Spolsky

54
From No Silver Bullet

• Some years ago, Harlan Mills proposed that any
  software system should be grown by incremental
  development. That is, the system first be made to
  run, even though it does nothing useful except
  call the proper set of dummy subprograms. Then,
  bit by bit, it is fleshed out, with the
  subprograms in turn being developed into actions
  or calls to empty stubs in the level below.
• Nothing in the past decade has so radically
  changed my own practice, and its effectiveness.
• One always has, at every stage, in the process, a
  working system. I find that teams can grow much
  more complex entities in four months than they
  can build.
• -- From "No Silver Bullet" Brooks 1995

55
PTP and Photran
56
Things People Would Rather Write than Read

• Web Log Entries
• Poetry
• Code
• Its easier in general to work with ones own
  work than reuse someone elses
• For example Whod like to get up here and finish
  my talk?

57
IBEAM and PARAMESH
58
The Importance of Tools
59
Refactoring Tools

• First developed at UIUC for Smalltalk
• Made popular by Fowler, Kerievsky
• Coming soon to a HPC near you

60
Reconstruction / Demolition

• Atlantas Fulton County Stadium was built in 1966
  and razed in 1997.
• Two single purpose stadia, with sky boxes, are
  replacing it

61
Our Fortran Heritage

• The First Fortran Program was run on 20 September
  1954

62
Draining the Swamp

• Panama and the Canal

63
The Fumigation Brigade
64
Refactoring Engine

• Typically Tree to Tree Transformations at the AST
  / Parse Tree Level
• This means you need about 60 of a full compiler
  (All but the back end)
• Source to AST must be a round trip conversion
• Pretty Printing (un-parsing) is necessary to
  present refactored results

65
From the Mythical Man-Month

• Lehman and Belady have studied the history of
  successive releases in a large operating system.
• They find that the total number of modules
  increases linearly with release number, but that
  the number of modules affected increases
  exponentially with release number.
• All repairs tend to destroy the structure to
  increase the entropy and disorder of the system.
• Less and less effort is spent fixing original
  design flaws more and more is spent on fixing
  flaws introduced in earlier fixes.
• As time passes, the system becomes less and less
  well ordered...

66
Holes in a Failing Dike

• ...Systems program building is an entropy
  decreasing process, hence inherently metastable.
• Program maintenance is an entropy increasing
  process, and even its most skillful execution
  only delays the subsidence of the system into
  unfixable obsolescence...
• Maintenance, it would seem, is like fixing holes
  in a failing dike. Eventually it fails, and must
  be rebuilt. Only then are lessons learned during
  its tenure exploited

67
Fortran Refactorings

• IMPLICIT NONE
• Extract Derived Type
• Move procedure to module
• Many Larger Tasks can be seen as a series of
  smaller refactorings
• Object-Oriented Refactorings will be on the table
  soon
• You tell us!

68
Bibliography
69
The Olfactory Method

• Kent Beck May be Best Remembered as the Man Who
  brought Scatology and Software Engineering
  together
• If it stinks, change it!
• --Grandma Beck
• Code Smells are (not so) subtle indications a
  piece of code is in need of attention and is a
  likely candidate for refactoring

70
Common Code Smells

• Procedure is too Long
• Name conveys no useful information
• Code is duplicated

71
Fowlers Catalog

• Extract Method (Procedure)
• Add / Remove Parameter
• Introduce Parameter Object
• Rename Variable / Proc etc.
• Replace Global w/ Pararmeter
• Etc. Etc. Etc.
