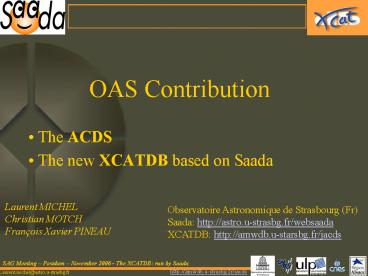

OAS Contribution

1

• OAS Contribution
• The ACDS
• The new XCATDB based on Saada

Laurent MICHEL Christian MOTCH François Xavier
PINEAU
Observatoire Astronomique de Strasbourg
(Fr) Saada http//astro.u-strasbg.fr/websaada XCA
TDB http//amwdb.u-starsbg.fr/jacds
2
The ACDS

• Delivered Products
• FITS catalogue extractions
• X-ray source counterparts
• Archival sources in the XMM field of view
• Graphical products (PDF)
• Finding charts
• Rosat Images
• Catalogue plots
• HTML product
• Browsing pages for ACDS data with many links to
  CDS resources

3
The ACDS
Simbad (Strasbourg France)
NED (Caltech USA)
Vizier at CDS (Strasbourg France)
Vizier at CADC (Victoria Canada)

• ACDS
• 2 Sparcs 400 Mhz
• 1Gb RAM
• 8 Agents in //

Pipeline (Leicester)
Vizier at Cambridge (UK)
Vizier at CFA (Harvard USA)

• Correlation computing
• A lot of remote server accesses
• A few computation
• File product generation
• Some remote server accesses (Aladin)
• A lot of computation

Aladin (Strasbourg France)
4
The ACDS

• Actual Throughput (8 process in //)
• 3300 sec /dataset
• (8360024)/3300 209 datasets/day

• Most part of the time is pure CPU (graphical prd)
• IDL, Distiller.
• Easy to improve
• new hardware

5
The ACDS

• Operation issues
• Support the pipeline throughput (but not more)
• gt 2200 datasets processed since October 13th
• 157 pending this morning due to a 2 days Aladin
  shutdown
• No need to improve the hardware
• CDS database upgrades
• Vizier is being moved on PSQL without serious
  consequences for us
• Major Simbad to be release late 2006
• New error definition (no effect for standard
  users)
• External failures
• Remote server shutdown
• Corrupted products returned (cache
  miss-synchronization after crash)
• Internal failures
• Empty Rosat images/wrong PPS index
• Hardware failure
• Spare available/never used
• Miss-configuration
• Holidays

6
The ACDS
7
The ACDS
8
The XCATDB

• The XCATDB is not a data repository but a tool to
  make science
• N to M persistent relationship
• Difficult to implement in an efficient way for
  complex queries
• Possibility of doing more than with dynamic
  cross-matches
• Data-mining feature

9
Saada in a few Words

• Saada An Astronomical Database generator
• Making automatic the process of building a
  database
• Hosting heterogeneous datasets
• Highlighting scientific content
• Publishing personal data into the VO

• Databases are installed on local machines
• Any Linux/Windows/Mac box
• Tomcat 5.xx
• PostrgreSQL 8.xx

10
The XCATDB

• Based on Saada
• Queries expressed in SaadaQL
• Data loader
• How to build quickly millions of correlation
  links
• How to restore archival source uniqueness
• GUI
• Layout inspired from the 1XMM XCatDB
• Architecture based on native Saada GUI
• Prototype based on RC2 data open for the
  community
• http//amwdb.u-strasbg.fr/jacds

11
2nd Release of the XMM Catalogue
Native Saada Data-loader
150,000 X-ray sources In 2800 observations
Implemented with Saada relationships
Specific Module
1,000,000 links
Native Saada Data-loader
1,400,000 archival sources
Demo
12
A simplified example Looking for High Mass
X-ray Binaries
HR3 (F2-4.5keV F1-2keV) / (F2-4.5keV
F1-2keV) HR4 (F4.5-12keV F2-4.5keV) /
(F4.5-12keV F2-4.5keV)
kT 5 50keV
lt 1.5keV
Demo
Hardness ratio limit for stars
13
(No Transcript)
14
Using UCDs in queries

• Selecting X-Rays sources by correlation patterns
  on 200 classes of X-Ray sources requires to
  handle a lot of meta-data

select oidsaada from Arch_9037AEntry where (
_Flux gt 1e-13 ) select oidsaada from
Arch_7181AEntry where ( _Flux2 gt 1e-16 ) select
oidsaada from Arch_9032AEntry where ( _FX gt 1e-16
) select oidsaada from Arch_9015AEntry where (
_fX gt 1e-16 ) select oidsaada from
Arch_9031AEntry where ( _Fx gt 1e-13 ) .

• Solution Expressing queries using UCDs and Units

Demo
15
UCD Issue
UCDgtx1 and UCDltx2
Usually makes no sense
Solution Using unambiguous operators
UCDIn(x1,x2)
16
UCD Issue (continued)

• Query language issue using a simple syntax
• One operator for one UCD
• Query execution
• Editable execution plan
• UCD attribution a sensible issue
• Using multi-words UCDs as often as possible
• Limit the columns accessible per UCDs
• Take care with units
• Existence
• Name known by the converter
• Result presentation another sensible issue
• The client must understand how resources have
  been selected and accessed

17
XCATDB Status and Prospects

• Data loader
• Correlation setup works fine
• Other products can be loaded with the native
  data-loader
• GUI
• HTML form improvements
• Display of constrained values
• Interoperability
• External Xmatch in SaadaQL (F.X. Pineau)
• Connection with ESAC resources (XSA, VOSpec)
• Connections with CDS clients (VO portals)
• VO protocols

18
