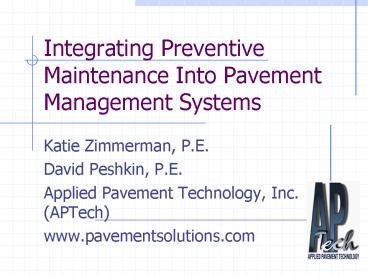

Integrating Preventive Maintenance Into Pavement Management Systems

1
Integrating Preventive Maintenance Into Pavement
Management Systems

• Katie Zimmerman, P.E.
• David Peshkin, P.E.
• Applied Pavement Technology, Inc. (APTech)
• www.pavementsolutions.com

2
Setting the Stage

• Pavement Preservation
• all activities undertaken to provide and
  maintain serviceable roadways this includes
  corrective maintenance and preventive maintenance
  as well as minor rehabilitation projects

(FHWA)
3
Traditional Approaches to Preservation

• Highest priority is given to corrective
  activities to address safety needs
• Treatments are triggered when a pavement section
  falls below an acceptable level
• Funding for routine maintenance is typically
  unreliable, so treatment application cycles vary

4
Typical Pavement Cycle
Routine Maintenance Applied Over Time
5
More Recent Trends

• Integrate preventive maintenance into planning
  and design activities
• Reduce the life cycle cost of preserving a
  pavement through the use of preventive
  maintenance
• Keep good roads in good condition
• Planned, early application of preventive
  maintenance treatments

6
Modified Pavement Cycle
7
Challenges to the Use of Preventive Maintenance

• Agencies find it difficult to address roads in
  good condition when they have a large backlog
• Agencies havent set a goal for what they want to
  accomplish with their preventive maintenance
  program
• The funding isnt dedicated to the program

8
Factors Influencing Integration

• Maintenance and rehabilitation are often
  programmed by different groups within the highway
  agency
• Maintenance activities are frequently not
  reported in accordance with a referencing system
  used by pavement management
• The same maintenance treatment can be used as a
  preventive, corrective, or stop-gap treatment

9
How Do We Integrate These Programs?

• Pavement Condition Surveys
• Are surveys collecting the information needed?
• Pavement Condition Indexes
• Do they provide guidance regarding the
  appropriate treatment?
• Pavement Performance Models
• Is the performance of treatments reflected?
• Treatment Rules
• Are preventive maintenance treatments recommended?

10
Condition Surveys and Indexes

• Type of Index
• Composite versus individual indexes
• Survey Procedures
• In some cases, survey procedures work against a
  preventive maintenance program
• South Dakota patching example

11
SDDOT Survey Procedures

• Rate each 0.250-mile section of road
• Identify distress type, severity, and extent
• Distress reported on flexible pavements
• Transverse cracking
• Fatigue cracking
• Patching
• Block cracking
• Also report rutting and roughness
• Use a 0 to 5 rating scale

12
Rating Procedures
0.250-mile
Rate patch condition and rate distress showing
through the patch
Only distress are rated (not patch)
13
Impact on Condition Indexes
14
Impact on Condition Indexes
15
Pavement Performance Models

• Must know the date the treatment is performed
• Difficult to account for differences in pavement
  performance based on differences in treatment use
  (preventive vs. stop-gap)

16
Treatment Rules

• Determine when each treatment is feasible
• Define the reset rules that apply after the
  treatment has been selected for a section
• Do all indexes return to a perfect score?
• What performance model is used?
• Check reasonableness of rule using historical data

17
Verifying Treatment Rules
Block Cracking
18
Verifying Treatment Rules
Fatigue Cracking
19
Demonstrating Benefits

• North Carolina DOT Example
• Recent legislation supported preventive
  maintenance efforts
• Allowed the use of accumulated funds in the
  Highway Trust Fund (470M)
• Funds used to jumpstart the pavement
  preservation efforts
• The DOT added additional funds
• Used pavement management to demonstrate benefits

20
NCDOT Simulation

• 1000-mile network
• Distribution of network conditions based on
  actual conditions
• Evaluated a worst first strategy
• 50 miles of roads in poor condition resurfaced
• Evaluated a pavement preservation strategy
  (PavePres)
• 100 miles of roads in fair condition addressed
  first before roads in poor condition

21
NCDOT Simulation Results
22
Conclusion

• There are technical issues that have to be
  addressed to successfully integrate preventive
  maintenance treatments into a pavement management
  system
• Even after the technical issues are addressed,
  there are still institutional issues that have to
  be addressed
