Low Power System Design

1

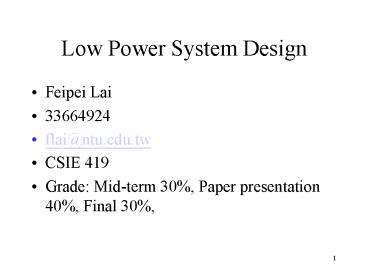

Low Power System Design

• Feipei Lai
• 33664924
• flai_at_ntu.edu.tw
• CSIE 419
• Grade Mid-term 30, Paper presentation 40,
  Final 30,

2
Key references

• Intl Conf. on CADs
• Intl Symp. on Low Power Electronics and Design
• IEEE Trans. on CADs
• ACM Trans. on DAES
• IEEE/ACM DAC
• Intl Symp. on Circuits and Systems
• IEEE Intl Solid-State Circuits Conference

3
Outline

• 1. Low-Power CMOS VLSI Design
• 2. Physics of Power Dissipation in CMOS FET
  Devices
• 3. Power Estimation
• 4. Synthesis for Lower Power
• 5. Low Voltage CMOS Circuits
• 6. Low-Power SRAM Architectures
• 7. Energy Recovery Techniques
• 8. Software Design for Low Power
• 9. Low Power SOC design
• 10. Embedded Software

4
Motivation

• Energy-efficient computing is required by
• Mobile electronic systems
• Large-scale electronic systems
• The quest for energy efficiency affects all
  aspects of system design
• Packaging costs cooling costs
• Power supply rail design
• Noise immunity

5
Technology directions
6

• Just as with CMOS replacement of HBTs
  (heterojunction bipolar transistor) , a lower
  performance/lower power technology ultimately
  will deliver superior system throughput because
  of the higher integration it enables.

7

• The International Roadmap for Semiconductor
  (ITRS) projects that MOSFETs with equivalent
  oxide thickness of 5A and for junction depths
  less than 10nm will be in production in the next
  decade.
• While 6nm gate lengths MOSFETs have been
  demonstrated, performance and Manufacturability
  problems remain.

8
Electronic system design

• Conceptualization and modeling
• From idea to model
• Design
• HW computation, storage and communication
• SW application and system software
• Run-time management
• Run-time system management and control of all
  units including peripherals

9
Examples

• Modeling
• Choice of algorithm
• Application-specific hardware vs. programmable
  hardware (software) implementation
• Word-width and precision
• Design
• Structural trade-off
• Resource sharing and logic supplies
• Management
• Operating system
• Dynamic power management

10
(No Transcript)
11
System models

• Modeling is an abstraction
• Represent important features and hide unnecessary
  details
• Functional models
• Capture functionality and requirements
• Executable models
• Support hw and/or sw compilation and simulation
• Implementation models
• Describe target realization

12
Algorithm selection

• Inputs
• A target macro-architecture
• Abstract functional/executable spec.
• Constraints
• Library of algorithms
• Objective
• Select the most energy-efficient algorithm that
  satisfies constraints

13
Issues in algorithm selection

• Applicable only to general-purpose primitives
  with many alternative implementation
• Pre-characterization on target architecture
• Limited search space exploration

14
Approximate processing

• Introducing well-controlled errors can be
  advantageous for power
• Reduced data width (coarse discretization)
• Layered algorithms (successive approximations)
• Lossy communication

15
Processing elements

• Several classes of PEs
• General-purpose processors (e.g. RISC core)
• Digital signal processors (e.g. VLIW core)
• Programmable logic (e.g. LUT-based FPGA)
• Specialized processors (e.g. custom DCT core)
• Tradeoff flexibility vs. efficiency
• Specialized is faster and power-efficient
• General-purpose is flexible and inexpensive

16
Constrained optimization

• Design space
• Who does what and when (binding scheduling)
• Supply voltage of the various PEs
• TCLK K Vdd/(Vdd Vt)2
• Design target
• Minimize power
• Performance constraint (e.g. Titeration 21
  µsec)

17
Datasheet Analysis
18
System Design

• Input
• The output of the conceptualization phase
• A macro-architectural template
• A hardware-software partition
• Component by component constraints
• Output
• Complete hardware design

19
Design process

• Specify computation, storage, template
  components, and software
• Synergic process
• Fundamental tradeoff general-purpose vs.
  application-specific
• Flexibility has a cost in terms of power

20
Application-specific computational units

• Synthesized from high-level executable
  specification (behavioral synthesis)
• Supply voltage reduction
• Load capacitance reduction
• Minimization of switching activity

21
CMOS Gate Power equations

• P CLVDD2f 0?1 tsc VDD Ipeak f 0 ? 1 VDD
  Ipeak
• Dynamic term CLVDD2f 0?1
• Short-circuit term tsc VDD Ipeakf 0 ? 1
• Leakage term VDD Ipeak

22
Power-driven voltage scaling

• From faster to power efficient by scaling down
  voltage supply
• Traditional speed-enhancing transformations can
  be exploited for low power design
• Pipelining
• Parallelization
• Loop unrolling
• Re-timing

23
Advanced voltage scaling

• Multiple voltages
• Slow down non-critical path with lower voltage
  supply
• Two or more power grids
• High-efficiency voltage converters

24
Clock frequency reduction

• fclk ?does not decrease energy
• But it may increase battery life
• Reduce power
• Multi-frequency clocks

25
Reducing load capacitance

• Reduce wiring capacitance
• Reduce local loads
• Reduce global interconnect
• Global interconnect can be reduced by improving
  spatial locality trade off communication for
  computation

26
Reduce switching activity

• Improve correlation between consecutive input to
  functional macros
• Reduced glitching
• All basic high-level-synthesis steps have been
  modified
• A synergic approach lead best results

27
Application-specific processors

• Parameterized processors tailored to a specific
  application
• Optimally exploit parallelism
• Eliminate unneeded features
• Applied to different architectures
• Single-issue cores ?instruction subsetting
• Superscalar cores ? and type of Functions
• VLIW cores ?Functions and compiler

28
Low power core processors

• Low voltage
• Reduce wasted switching
• Specialized modes of operations/instructions
• Variable voltage supply

29
Exploiting variable supply

• Supply voltage can be dynamically changed during
  system operation
• Quadratic power savings
• Circuit slowdown
• Just-in-time computation
• Stretch execution time up to the max tolerable

30
Variable-supply architecture

• High-efficiency adjustable DC-DC converter
• Adjustable synchronization
• Variable-frequency clock generator
• Self-timed circuits

31
Memory optimization

• Custom data processors
• Computation is less critical than data storage
  (for data-dominated applications)
• General-purpose processors
• A significant fraction of system power is
  consumed by memories
• Key idea exploit locality
• Hierarchical memory
• Partitioned memory

32
Optimization approaches

• Fixed memory access patterns
• Optimize memory architecture
• Fixed memory architecture
• Optimize memory access patterns
• Concurrently optimize memory architecture and
  accesses

33
Optimize memory architecture

• Data replication to localize accesses
• Implicit multi-level caches
• Explicit buffers
• Partitioning to minimize cost per access
• Multi-bank caches
• Partitioned memories

34
Optimize memory accesses

• Sequentialize memory accesses
• Reduce address bus transitions
• Exploit multiple small memories
• Localize program execution
• Fit frequently executed code into a small
  instruction buffer (or cache)
• Reduce storage requirements

35
Design of communication units

• Trends
• Faster computation blocks, larger chips
• Communication speed is critical
• Energy cost of communication is significant
• Multifaceted design approach
• On chip, networks, wireless
• Protocol stack

36
Optimize memory architecture and access patterns

• Two phase-process
• Specification (program) transformations
• Reduce memory requirements
• Improve regularity of accesses
• Build optimized memory architecture

37
Data encoding

• Theoretical results
• Bounds on transition activity reduction
• The higher the entropy rate of the source is, the
  lower is the gain achievable by coding
• Practical applications
• Processor-memory (and other) busses
• Data busses, address busses
• Transition activity reduction does not guarantee
  energy savings

38
Bus-Invert coding for data busses

• Add redundant line INV to bus
• When INV0
• Data is equal to remaining bus lines
• When INV1
• Data is complement of remaining bus lines
• Performance
• Peak at most n/2 bus lines switch
• Average code is optimal. No other code with
  1-bit redundancy can do better

39

• Average switching reduction is bus-width
  dependent
• Ex 3.27 for an 8-bit bus
• Average switching per line decreases as busses
  get wider
• Use partitioned codes
• No longer optimal (among redundant codes)
• Implementation issues
• Different (XOR) of two data samples and majority
  vote

40
Encoding instruction addresses

• Most instruction addresses are consecutive
• Use Gray code
• Word-oriented machines
• Increments by 4 (32 bit) or by 8 (64 bit).
• Modify Gray code to switch 1 bit per increment
• Gray code adder for jumps
• Harder to partition
• Convert to Gray code after update

41
T0 Code

• Add redundant line INC to bus
• When INC 0
• Address is equal to remaining bus lines
• When INC 1
• Transmitter freezes other bus lines
• Receiver increments previously transmitted
  address by a parameter called stride
• Asymptotically zero transitions for sequences
• Better than Gray code

42
Mixed bus encoding techniques

• T0_BI
• Use two redundant lines INC and INV
• Good for shared address/data busses
• Dual encoding
• Good for time-multiplexed address busses
• Use redundant line SEL
• SEL 1 denotes addresses
• SEL is already present in the bus interface
• Dual T0
• Use T0 code when SEL is asserted.
• Dual T0_BI
• Use T0 when SEL is asserted otherwise use BI

43
Impact of software

• For a given hardware platform, the energy to
  realize a function depends on software
• Operating system
• Different algorithms to embody a function
• Different coding styles
• Application software compilation

44
Coding styles

• Use processor-specific instruction style
• Function calls style
• Conditionalized instructions (for ARM)
• Follow general guidelines for software coding
• Use table look-up instead of conditionals
• Make local copies of global variables so that
  they can be assigned to registers
• Avoid multiple memory look-ups with pointer chains

45
Example ARM variable types

• Default int variable type is 18.2 more energy
  efficient than char or short
• Sign or zero extending is needed for shorter
  variable types

46
ARM conditional execution

• All ARM instructions are conditional
• Conditional execution reduces the number of
  branches

47
Instruction-level analysis

• Analyze loop execution containing specific
  instructions
• Loop should be long enough to neglect overhead
  and short enough to avoid cache misses
• About 200 instructions
• Measure instruction base cost
• Measure inter-instruction effects

48
Compilation for low-power operation scheduling

• Reorder instructions
• Reduce inter-instruction effects
• Switching in control part
• Cold scheduling
• Reorder instructions to reduce inter-instruction
  effects on instruction bus
• Consider instruction op-codes
• Inter-instruction cost is op-code Hamming
  distance
• Use list scheduler where priority criterion is
  tied to Hamming distance

49
Scheduling to reduce off-chip traffic

• Schedule instructions to minimize Hamming
  distance
• Scheduling algorithm
• Operations within each basic block
• Searches for linear orders consistent with
  data-flow
• Prunes search space by avoiding redundant
  solutions (hash sub-trees) and heuristically
  limits the number of sub-trees

50
Compilation for low-power register assignment

• Minimize spills to memory
• Register labeling
• Reduce switching in instruction register/bus and
  register file decoder by encoding
• Reduce Hamming distance between addresses of
  consecutive register accesses
• Approaches is complementary to cold scheduling

51
Other compiler optimizations

• Loop unrolling to reduce overhead
• Contra increased code space
• Software pipelining
• Decreases the number of stalls by fetching
  instructions in different iterations
• Eliminate tail recursion
• Reduce overhead and use of stack

52
Dynamic power management

• Systems are
• Designed to deliver peak performance
• Not needing peak performance most of the time
• Components are idle at times
• Dynamic power management (DPM)
• Put idle components in low-power non-operational
  states when idle
• Power manager
• Observes and controls the system
• Power consumption of power manager is negligible

53
Structure of power-manageable systems

• Systems consists of several components
• E.g., Laptop Processor, memory, disk, display
• E.g., SOC CPU, DSP, FPU, RF unit
• Components may
• Self-manage state transitions
• Be controlled externally
• Power manager
• Abstraction of power control unit
• May be realized in hardware or software

54
Power manageable components

• Components with several internal states
• Corresponding to power and service levels
• Abstracted as a power state machine
• State diagram with
• Power and service annotation on states
• Power and delay annotation on edges

55
Predictive techniques

• Observe time-varying workload
• Predict idle period Tpred Tidle
• Go to sleep state if Tpred is long enough to
  amortize state transition cost
• Main issue prediction accuracy

56
When to use predictive techniques

• When workload has memory
• Implementing predictive schemes
• Predictor families must be chosen based on
  workload types
• Predictor parameters must be tuned to the
  instance-specific workload statistics
• When workload is non-stationary or unknown,
  on-line adaptation is required.

57
Operating system-based power management

• In systems with an operating system (OS)
• The OS knows of tasks running and waiting
• The OS should perform the DPM decisions
• Advanced Configuration and Power Interface (ACPI)
• Open standard to facilitate design of OS-based
  power management

58
(No Transcript)
59
Implementations of DPM

• Shut down idle components
• Gate clock of idle units
• Clock setting and voltage setting
• Support multiple-voltage multiple-frequency
  components
• Components with multiple working power states
