Post-Attack Analysis of Unknown Vulnerabilities

1

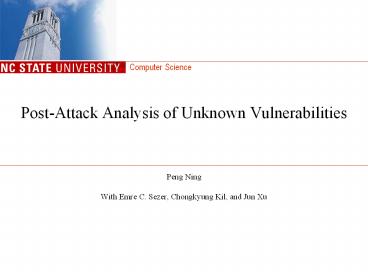

Post-Attack Analysis of Unknown Vulnerabilities

• Peng Ning
• With Emre C. Sezer, Chongkyung Kil, and Jun Xu

2
Motivation

• Vulnerability analysis
• Essential for
• Patching
• Vulnerability based signature generation
• Painstakingly slow
• Depends on human efforts
• Existing approaches
• Static analysis (e.g., Chen et al. 04 , Feng
  et al. 04, Larochelle Evans 01)
• False positives
• Dynamic analysis (e.g., Minos Crandall et al.
  04, TaintCheck Newsome Song 05, DIRA
  Smirnov Chiueh 05)
• Used for detection inadequate vulnerability
  information
• Symbolic execution (e.g., Exe Cadar et al. 06,
  DACODA Crandall et al. 05)
• Scalability issues
• Recovery (e.g., STEM Sidiroglou et al. 05, SEAD
  Lacosto et al. 07)
• Change of application semantics

3
MemSherlock

• MemSherlock is an automated debugger
• Automated analysis of unknown memory corruption
  vulnerabilities
• Appeared in ACM CCS 07
• MemSherlock provides
• Statement that causes the memory corruption
• Dynamic program slice leading to the corruption
• Program variables involved in the vulnerability
• All presented at programming language level
• Implications
• Generating vulnerability conditions
• Improves signature or patch generation speed

4
General Framework Web Application Example
Traffic
5
MemSherlock Overview

• Goal is to provide vulnerability information
• Intuitive, easy to understand for the programmer
• Not only the corruption point
• Slice of program involved in the vulnerability
• Effects of user inputs
• Program variables involved
• Variable relationships (e.g., pointer aliasing)
• Type of vulnerability (e.g., stack buffer
  overflow)
• MemSherlock performs two important tasks
• Finding the corruption point
• Tracking program state

6
MemSherlock Finding Corruption Point

• Observation A memory object is modified by a
  small set of statements (inspired by AccMon)
• For memory object m, write set of m is the set of
  statements that legitimately modify m, WS(m)
• Security Condition Memory object m should only
  be updated by statements in WS(m)

7
MemSherlock Assembly Line

• Pre-Debugging Phase
• Instruments the program for debugging phase
• Extracts program information via static analysis
• Needs to be performed once
• Debugging Phase
• Tracks program state
• Monitors memory writes and checks for violation
  of security condition
• Tracks tainted data and its propagation

8
MemSherlock Architecture
9
Pre-debugging Generating Write Sets

• MemSherlock analyses source code to determine
  write sets
• For a program variable v, WS(v) includes
• Assignment statements (i.e., vexpr)
• Library function calls where v is passed as an
  argument that can be modified (i.e.,
  memcpy(v,src))
• MemSherlock treats DLLs as black boxes
• Assumption A DLL is internally secure, but
  externally insecure
• e.g., no stack overflows in the library functions
• Sound for common, well tested libraries (e.g.,
  clib)
• Requires library specifications
• For each DLL, a list of functions and the
  arguments they might modify

10
Dealing with Pointers

• For a pointer variable p two write sets are kept
• WS(p) Statements that modify p
• WS(ref(p)) Statements that modify the referent
  (e.g., p5)
• ref(p) is resolved during runtime (debugging)
• Perform the same analysis for pointer-type
  function arguments at function calls
• Removes the requirement for inter-procedural
  static analysis

11
Chained Dereferences
1 int z 2 int y z 3 int x y 4 x 10 1 int z 2 int y z 3 int x y 4 int temp x 5 temp 10

• Earlier technique can only handle simple
  dereferences
• Source code rewriting is used to convert all
  chained dereferences to simple dereferences
• Any other dereference that is not simple is
  converted in the same manner

12
Output of Pre-debugging Phase

• Simplified program
• Simplified pointer dereferences
• Compiled with debugging options
• Input file for the debugger
• Program variables and their write sets
• Addresses of global symbols
• Frame pointer offsets of local variables
• Other flags that help the debugger

13
MemSherlock Architecture Debugging
14
Debugging Dynamic Monitoring

• Runtime monitoring
• State Maintenance
• Incorporates taint analysis from TaintCheck
• Produces a dynamic slice of the program leading
  to the vulnerability
• Write Checking
• Monitors and validates memory writes
• Write sets are file name and line number pairs
  ltf,lgt
• Instruction pointer IP is translated into ltf,lgt
• Write sets are associated with program variables
• A destination address is translated into a
  program variable

15
Keeping Program State
Virtual Address Space
Stack base
Stack base
main
main
fnc A
fnc A
fnc B
fnc C
Memory write 0xABABABAB
Memory write 0xABABABAB
Program State 1
Program State 2

• A given memory region may correspond to different
  program variables depending on program state
• Dynamic monitor keeps track of memory mapping

16
Debugging Key Data Structures

• Keeps two lists of memory regions
• ActiveMemoryRegions
• Memory corresponding to program variables or
  their referent memory regions
• NonWritableRegions
• Saved registers, return addresses, metadata
  encapsulating dynamically allocated memory
  regions

17
Debugging State Maintenance

• Function calls/returns (memory)
• Local variable addresses are calculated and added
  to ActiveMemoryRegions
• Location of return address and saved registers
  are added to NonWritableRegions list
• Heap memory (memory)
• malloc/free calls are intercepted
• Allocated memory is added to ActiveMemoryRegions
• The metadata encapsulating the buffer is added to
  NonWritableRegions
• Pointer value updates (write sets)
• Searches ActiveMemoryRegions to find the referent
  and updates its WS

18
Debugging Write Checking

• When instruction IP modifies memory m
• if m is in ActiveMemoryRegions
• determines the variable v it belongs to
• converts IP into ltf,lgt
• checks if ltf,lgt is in WS(v)
• If the memory write check fails or m is in
  NonWritableRegions
• Marks the operation as a memory corruption
• Displays the vulnerability information

19
Generating Vulnerability Information

• The slice of program contributing to the
  vulnerability
• Statements that have propagated tainted values
• Statements that have modified related memory
  regions
• Dependency between memory objects involved in the
  vulnerability
• Points to analysis shows memory regions and how
  they were accessed
• Program state
• Call stack information
• Write set information

20
Example Test Case Null HTTP

• http.c
• 91 void ReadPOSTData(int sid)
• 100 connsid.PostDatacalloc(connsid.dat-gtin_C
  ontentLength1024, sizeof(char))
• 101 if (connsid.PostDataNULL) ...
• 107 do
• 108 rcrecv(connsid.socket, pPostData, 1024,
  0)
• 109

• Error Report

• --20361-- Error type Heap Buffer Overflow
• --20361-- Dest Addr 3AB3E360
• --20361-- IP 0x804E5C7 ReadPOSTData
  (http.c108)
• --20361-- Dest address resolved to
• --20361-- Global variable "heap var"
• _at_ 3AB3E280 (size 224)
• --20361--
• --20361-- Memory allocated by 0x804E531
• ReadPOSTData (http.c100)

• --20361-- TAINTED destination 3AB3E360
• --20361-- Fully tainted from
• --20361-- 0x804E5C7 ReadPOSTData
  (http.c108)
• --20361--
• --20361-- TAINTED size used during allocation
• --20361-- Tainted from
• --20361-- 0x804E456 ReadPOSTData
  (http.c100)
• --20361-- 0x804FBB5 read_header (http.c153)
• --20361-- 0x805121B sgets (server.c211)

21
Vulnerability Analysis Example
http.c 91 void ReadPOSTData(int sid) 92
char pPostData ... 100 connsid.PostDatacal
loc( connsid.dat-gtin_ContentLength1024,
sizeof(char)) ... 107 do 108
rcrecv(connsid.socket, pPostData, 1024,
0) ...
Create
Heap Object
22
Vulnerability Analysis Example
http.c 119 int read_header(int sid) 121
char line2048 ... 127 do 128
memset(line, 0, sizeof(line)) 129 sgets(line,
sizeof(line)-1, connsid.socket)
... 153 connsid.dat-gtin_ContentLengthato
i((char )line16) ... 169 if
(connsid.dat-gtin_ContentLengthltMAX_POSTSIZE)
170 ReadPOSTData(sid)
Object
Taint
http.c 91 void ReadPOSTData(int sid) 92
char pPostData ... 100 connsid.PostDatacal
loc( connsid.dat-gtin_ContentLength1024,
sizeof(char)) ... 107 do 108
rcrecv(connsid.socket, pPostData, 1024,
0) ...
Object
Use
23
Vulnerability Analysis Example
http.c 119 int read_header(int sid) 121
char line2048 ... 127 do 128
memset(line, 0, sizeof(line)) 129 sgets(line,
sizeof(line)-1, connsid.socket)
... 153 connsid.dat-gtin_ContentLengthato
i((char )line16) ... 169 if
(connsid.dat-gtin_ContentLengthltMAX_POSTSIZE)
170 ReadPOSTData(sid)
Create
server.c 202 int sgets(char buffer, int
max, int fd) 203 ... 209
connsid.atimetime((time_t)0) 210 while
(nltmax) 211 if ((rcrecv(connsid.socke
t, buffer, 1, 0))lt0) ...
Taint
Object
Taint
Object
24
Implementation

• Source code is rewritten using CIL (C
  Intermediate Language)
• CodeSurfer was used to extract program variables
  and their write sets
• A commercial static analysis tool
• objdump and dwarfdump were used to extract global
  symbol information
• Dynamic Monitoring is implemented in Valgrind
• An open source emulator

25
Evaluation

• Tested 11 real-world applications with known
  memory corruption vulnerabilities
• Test cases included
• Stack/Heap buffer overflow, Format string
• Both control flow and non-control data attacks
• Testing methodology
• Programs were run under MemSherlock
• Exploit programs were used to attack the
  applications
• Log and replay was not used

26
Evaluation Results
Application Name Vuln.Type Description Captured? FP
GHTTP S A small HTTP server Yes 7
Icecast S An mp3 broadcast server Yes 0
Sumus S A game server for mus Yes 0
Monit S Multi-purpose anomaly detector Yes 0
Newspost S Automatic news posting Yes 2
Prozilla S A download accelerator for Linux No 0
NullHTTP H An HTTP server Yes 0
Xtelnet H A telnet server Yes 4
Wsmp3 H Web server with mp3 broadcasting Yes 0
OpenVMPS F Open source VLan management policy server Yes 2
Power F UPS monitoring utility Yes 10

• Type abbreviations (S)tack overflow, (H)eap
  overflow and (F)ormat string

27
False Negatives

• Prozilla
• memcpy uses a kernel function to manipulate page
  tables when copying entire pages
• Valgrind cannot trace into kernel
• Can be prevented by function wrappers
• Other false negatives are theoretically possible
• structs within unions or arrays
• Current implementation does not support unions
• Currently do not differentiate between elements
  of an array
• Memory corruption errors inside DLLs

28
False Positives

• Embedded assembly
• Incomplete library specification
• library functions keeping internal state (e.g.,
  strtok(Null, delim) )
• library functions that modify global variables as
  side effects (e.g., optarg, errno)
• pointers that point to hidden global structures
  (e.g., getdatetime() in time.h)
• struct pointers
• void pointers that are type-cast to modify struct
  variables
• since the pointer is not of type struct,
  MemSherlock fails to update accordingly

29
Conclusion

• Fully automated vulnerability analysis
• The analysis output is intuitive and human
  readable
• Future Challenges
• Automated, long-term fix of vulnerabilities
• Semantic consistency is a great challenge
• Automated, temporary fix of vulnerabilities
• Generating vulnerability condition
• Improving signature generation

30
Thank You
