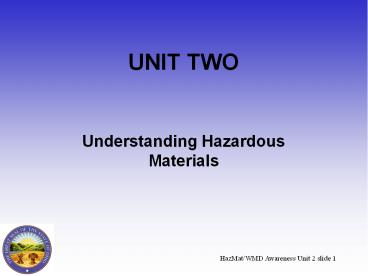

HazMat/WMD Awareness Unit 2 slide 1

1
UNIT TWO

• Understanding Hazardous Materials

2
Potential OutcomesTRACEM

• Thermal (Fire and/or Explosion)
• Radiological
• Chemical exposure
• Asphyxiation (Oxygen Deficiency)
• Etiological (Biological Hazards)
• Mechanical

3
Thermal (Fire and/or Explosion)

• Heat from a fire or the heat released by a
  chemical reaction
• Extreme cold, such as liquefied gas or cryogenic
  liquids

4
Radiological
Alpha - Most damaging, but least
penetrating Hazard Internal Shielding Paper,
dead layer of skin, travels 1 to 2 cm in air
Beta - Small particle low penetration Hazard -
Primarily external, but also internal Shielding -
Plastic, safety glasses, travels several feet in
air
-
?-
5
Gamma / X - Highly penetratingHazard - External
- most external dose due to gammaShielding -
Lead, steel, concrete, thick layers of water
Radiological (cont.)
?

• Neutron - Highly penetrating
• Hazard - External - most external dose due to
  gamma
• Shielding plastic, water

N
6
Asphyxiation

• Oxygen Deficiency
• Chemical Reaction  THE RELEASE OF CERTAIN
  PRODUCTS (I.E. NITROGEN) CAN DEPLETE THE OXYGEN
  LEVEL BELOW SURVIVAL LIMITS.

7
Chemical

• Toxic or poisonous effects
• Destructive effects from the exposure of the
  chemical on human tissue

8
Etiological

• Bacteria
• Viruses

Bacillus anthracis
9
Mechanical

• Debris
• Excessive percussion (Noise)

10
Routes of exposure

• Inhalation
• Ingestion
• Absorption
• Injection

11
Inhalation

• Nose
• Throat
• Trachea
• Lungs

12
Ingestion

• Mouth
• Throat
• Esophagus
• Stomach
• Intestines

13
Absorption

• Eyes
• Skin

14
Injection

• Needles
• Projectiles
• Shards
• Nails

15
Exposure to Hazards

• Acute
• Chronic
• Both types of exposures can have acute
  (immediate) and/or chronic (long term) effects.

16
Terrorist Events

• Intentional release
• Secondary devices
• Inflict mass casualties

17
Terrorist Chemical Agents

• Choking Agents
• Blood Agents
• Blister Agents
• Nerve Agents

The symptoms of these exposures can range from a
runny nose to rapid death and are considered to
be available to terrorist groups worldwide.
18
Emergency Medical Care

• Treatment only after emergency decon
• Safety First

19
Emergency Decon

• If a rescue is attempted and is successful
• the victim and the rescuer should be flushed
• with copious amounts of water
• Strip their outer level of clothing
• await hazardous materials operations level
• responders to arrive
• THE RESCUER NOW BECOMES A VICTIM BECAUSE OF
  UNKNOWN HAZARD EXPOSURE!!!

20
UNIT TWO TEST
