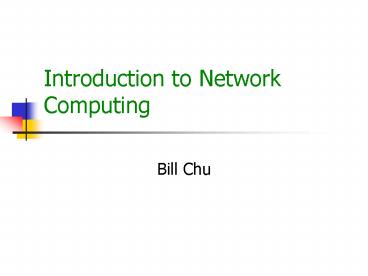

Introduction to Network Computing

1
Introduction to Network Computing

• Bill Chu

2
The World-Wide-Web revolution

• Virtually all the general purpose computers are
  connected in the past five years.
• Killer applications
• Visical
• World Wide Web
• Email
• E-commerce / On-line trading
• Napster
• E-Business
• The Internet has changed the way we
• Understand computing
• Use/write applications
• Deliver application
• Maintain applications

3
Sample network-based applications

• Hotmail
• Yahoo
• Amazon.com
• Tax return
• Games
• E-bay
• Cracking of DES

• The network has become the
• computer
• storage
• library
• market

4
Introduction to computer communication networks

• Bei-Tseng (Bill) Chu

5
Protocol

• A protocol is a series of steps, involving two or
  more parties, designed to accomplish a task
• Everyone involved in the protocol must know the
  protocol and all of the steps to follow in
  advance
• Everyone in the protocol must agree to follow it
• The protocol must be unambiguous each step must
  be well defined and there must be no chance of a
  misunderstanding.
• The protocol must be complete there must be a
  specified action for every possible situation.

6
Communication Protocol Model

• A template to describe a protocol
• It has three components
• Address naming
• Format messages
• Behavior rules

7
Protocol Example Phone
8
Can a single protocol do it all?

• Computer communication has to deal all sorts of
  problems
• Electrical/Optical signals/noise
• Errror detection and recovery
• medium control access
• message boundary
• routing, fragmentation
• flow control (net congestion)
• loss and duplicated messages
• synchronization
• representation
• application specific
• Yes. It can be done but
• how to develop in timely fashion (debug, verify
  and low cost)
• how to maintain it
• how to extend and evolve it

9
Layered Approach

• Divide and conquer
• partition into multiple layers of software
• each layer has clear programming interfaces
• each interface provides a service to adjacent
  layers
• each layer solves a limited set of problems
• each layer encapsulates the related details
• Pros
• reduce complexity, isolate changes, promote
  manageability
• Cons
• efficiency

10
ISO Reference Model

• Not every layer is created equal
• physical and data link are hardware heavy
• network and transport are software heavy
• session and presentation are typically light
  layers

Some functions occurs in multiple layers
Error handling may be in every layer
Flow control can be in multiple layers
11
ISO vs. TCP/IP
7.Application
Application
6.Presentation
5.Session
4.Transport
Transport
3.Network
Internet
2.Data Link
Host to network
1. Physical
12
Physical layer protocols

• Highly physical network technology dependent
• Main tasks
• define the signaling protocol
• what is the meaning of 1s or 0s
• voltages or frequencies
• what is bad signals
• define the physical connections required
• RS232 connectors for RS232 serial line
  communication
• RJ45 or BNC connectors for Ethernet
• define the communication media
• define the network topology

13
Physical Network Technologies

• Circuit-switched network (CS)
• connection-oriented network
• establish connection before communication
• once communication established, a circuit line is
  reserved for the communicating partners
• example telephone network
• Packet-switched network (PS)
• store-forward based network
• packet sent from a node to another node
• the intermediate node stores the packet and
  decides to forward to another node towards the
  destination
• no circuit line is reserved
• example Ethernet

14
Circuit connection
15
Comparisons CS and PS
16
Network Types by Scope

• WAN
• wide area network
• cross large span of space (continental)
• typically heterogeneous and low speed
• example Internet
• MAN
• metro-area network
• regional scope (city-wide)
• LAN
• local area network
• limited scope (a couple of buildings)
• typically homogeneous high speed
• example Ethernet Token ring

17
Network Transmission Medium

• Open air
• radio, microwaves, satellites, infrared
• noise signals, collision
• Optical
• clear signals, low power and high rate (Gbps)
• Copper wire
• Lower cost interfaces
• Bi-directional

18
Bus Network Topology

• Every nodes tap into a common medium
• Signals may collide with each other
• need to arbitrate who will get the bus
• capable of broadcasting message (one send many
  listen)
• the common medium is the bottleneck
• single node failure causes no network failure
• the medium failure brings down the network
• Example (old, 10BASE2, 10BASE5) Ethernet

19
Cable Modem
20
Star Network Topology

• One node at the center as the master node
• Other nodes linked to the master as slaves
• slaves communicate via master
• easy to arbitrate among slaves (master decides)
• not scalable (the master is the bottleneck)
• normally for small networks or that requires
  predictable performance
• master failure shutdowns the whole net
• Example Ethernet, DSL

21
Ring Network Topology

• Nodes are arranged in a ring
• One node receives from its predecessor sends to
  its successor
• arbitrate who can access the ring
• messages forwarded by each node
• sender deletes its messages from the ring
• the common ring is the single point of failure
  (complicated connectors needed)

22
Mash Network Topology

• Nodes are arranged in grids
• each node can talk to its neighbors directly
• non-neighbor nodes needs store-and-forward for
  communication

23
Hyper Network Topology

• No restrictions on how to link the nodes
• Topology can adapt to individual organization
  needs

24
Data Link Layer Protocols

• Main tasks
• medium access control
• arbitrate who can use the transmission medium
• framing
• define the boundaries of a packet
• Physical technology dependent (like physical
  layer)
• typically implemented in hardware or firmware
• when you buy a network card, you get both
  physical and data link layer protocols in the
  card

25
Introduction to Internet and TCP/IP

• Bei-Tseng (Bill) Chu

26
Motivations for Internet

• Observations
• Different physical networks everywhere
• connection between limited hosts
• different needs for different technologies
• legacy networks
• Limited connectivity
• each physical technology has its limits
• Different technologies use different languages
• Need for a uniform virtual network
• universal connectivity
• every host speaks the same language independent
  of physical networks

27
Virtual Network over Physical Networks
28
Design Goals of Internet

• A virtual (global) network
• independent of physical technologies
• independent of locations
• universal language
• Universal connectivity
• every host is equal no matter of
• its architecture and system origin
• its physical network attachment
• Scalable
• growth without limits
• Robust
• no single point of failure

29
Problems to be Solved

• Universal naming
• how to translate the universal name to local name
  used by local physical network?
• Routing
• how to route IP packages among different local
  networks to reach the destination?
• Fragmentation
• different physical networks use different package
  sizes.
• how this should be handled?
• Error handling

30
Internet Architecture

• Internet the mother of all networks
• THE network of (interconnected) networks
• Physical networks interconnected via gateways
• Gateway(router) is a host glues nets together
• attached to multiple nets
• forward IP packages between nets

31
IP Packet Format

• IP packet consists of header and data portions

IP header
IP data portion
32
IP Address

• IP address specifies a connection to a network
  instead of a host
• IP address NetID HostID
• Dotted notation
• each byte in an IP address represented as a
  decimal
• bytes are separated with a period (.)
• example 152.15.35.44
• Classes

class A
class B
class C
class D
class E
33
How do computers talk to each other on an
ethernet bus
8.2.1.1
8.2.1.2
8.2.1.3
02550JA2F5D82
00550DA2F5D82
02950JX2F5Y82

• Each computer on the internet as a unique IP
  address.
• Each network interface (e.g. ethernet card) has a
  unique address
• 8.2.1.1 wants to send a message 8.2.1.3
• It yells yaahoo, who is 8.1.2.3
• Each computer listens to messages on the bus
  (collision detection and resolution) for yaahoo
• 8.2.1.3 replies to 00550DA2F5D82 I am
  02950JX2F5Y82
• 8.2.1.1 sends the message to 8.2.1.3.

34
IP Routing

• Principles
• Route packages according to their destination IP
  net ID
• Forward packages hop by hop
• each gateway has the routing knowledge of its
  nearby neighbors
• hosts route packages to gateway and gateway does
  the rest.
• Routing types
• direct routing
• If the destination net ID is the same as the
  local net ID, no routing to gateway is needed and
  send the package via underlying physical network
• indirect routing
• if the destination net ID is different from the
  local net ID, send the package to an appropriate
  gateway.

35
IP Rules

• Fragmentation rules
• if underlying net size lt packet size not final
  dest
• break packet into small packets and send them
• if final dest is reached packets are fragmented
• reassemble fragmental packets into original size
• Error rules
• if IP header is erroneous, drop/report it

36
Table-Driven IP Routing

• Each IP host has a IP routing table
• each entry associates a destination net ID with a
  forwarding gateway
• each route has a performance metrics
• number of hops to reach the destination

Route table for 152.15.36.9
163.29.x.x
Dest. Net ID Next hop host NIF
163.29 152.15.254.254 e0
Default 152.15.35.1 e0
ncsu
152.15.36.9
163.29.10.88
152.15.254.254
e0
152.15.x.x
uncc
net3
152.15.35.1
37
Routes in an IP Routing Table

• Next-hop routes
• the destination is an IP net ID a packages
  addressed to any host in the net, send to the
  associated gateway
• Host-specific routines
• the destination is a complete IP address route
  all packages to the specified host via the
  associated gateway
• Default routes
• the catch all routing all packages not
  specified by the above, send the gateway
  associated with the default route.
• the gateway associated with the default route is
  called default gateway

38
Topology of the internet
9.1.1.2
8.2.1.1
9.1.1.3
9.1.1.1
8.2.1.2
8.2.1.3
b
c
a
net 9.1.1.x
9.1.1.4
1
2
3
d
net 8.2.1.x
4
hardware addresses
net 3.1.1.x
8.2.1.4
net 1.1.1.x
net 2.1.1.x
39
Sub-netting

• All hosts in a network must have the same net
  work number
• As the number of networks grow, so does the need
  for net work numbers
• Solution subnet, divide the host name portion of
  the IP address into subnet id and the host
• Subnet mask and routing table.

40
Intranet example home networking
Broadband provider
Internet
Intranet IP address
PC
Internet IP Address
PC
Router
PC
Intranet IP address
Intranet IP address
Intranet IP address
41
PPP protocol (phone dialin)

• Computer (client) dials to a modem.
• Computer on the other (ISP server) end is on the
  internet.
• The ISP server assigns an ip address for the
  dialing computer
• All messages send from the client are routed by
  the isp host to the rest of the internet.

42
DHCP protocol (most ethernet)

• Client sends a message (on the local bus) to a
  DHCP server requesting an IP address for the
  session
• DHCP server assigns an ip address

43
IP Fragmentation

• IP packages are broken to fit underlying physical
  network when a package is sent
• locations of fragmentation
• original package sender
• gateways that forward the package
• IP packages are reassembled at the final
  destination

44
IP Fragmentation Example
fragmentation
45
ISO vs. TCP/IP
7.Application
Application
6.Presentation
5.Session
4.Transport
Transport
3.Network
Internet
2.Data Link
Host to network
1. Physical
46
Transport Layer

• Why do we need a transport layer?
• Network layer provides delivery only
• from a host to a host
• in a best effort fashion
• Users want to transport data
• from application to application
• in a reliable delivery
• Transport layer fits the gap between user needs
  and IP messaging
• provide communication endpoint for applications
• deliver messages reliably

47
Problems to Be Solved in Transportation layer

• Missing packets
• Duplicated packets
• Out of order packets
• Flow control
• Synchronization

48
Reliable Delivery via Unreliable Networks

• Missing packet
• acknowledge and timeout
• retransmission
• Duplicate messages
• sequencing packets
• Out of order messages
• sequencing packets
• Flow control
• wait and stop
• window-sliding
• Synchronization
• hand shaking

49
Transport Protocols in TCP/IP

• User Datagram Protocol (UDP)
• provide communication endpoint for applications
• best effort delivery of messages (packets)
• message boundary is observed
• the protocol embedded in Internet Datagram
  sockets
• Transmission Control Protocol (TCP)
• provide communication endpoint for applications
• reliable delivery via connection-based
  communication
• no message boundary between packages
• the protocol embedded in Internet Stream sockets

50
Establish a TCP Connection

• Three way handshaking

51
Denial of service attacks

• Exploits the TCP session establishment protocol.
• An attacker will send syn, but never sends ack.
  This type of attack is also called sync flood.
• Synchronized attacks launched on multiple (often
  victim) machines.

52
TCP Retransmission

• Sender
• is free to divide user stream data in packets
• expects an ack for each packet sent
• starts a timer when a packet is sent
• upon an ack reception, advances seq_no expected
• upon a timer expiration, resends the packet
• Receiver
• sends an ack whenever a packet is received
• deletes the packet if it duplicated
• is free to pass acknowledged packets to user
• is forced to pass to user the data when receives
  a PUSH
