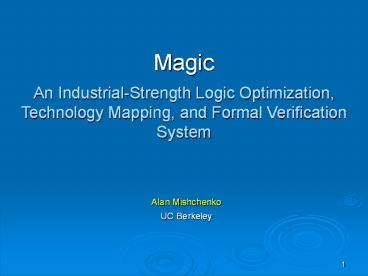

Magic An Industrial-Strength Logic
Optimization, Technology Mapping, and Formal
Verification System
Alan Mishchenko UC Berkeley
2
Overview

• Motivation
• Big picture
• Problem representation
• Algorithms
• Sequential synthesis
• Combinational synthesis with choices
• Technology mapping
• Minimum-perturbation retiming
• Experimental results
• Future work

3
Historical Perspective
Design size, gate count
ABC, Magic
1,000,000
SIS, VIS, MVSIS
10,000
Espresso, MIS, SIS
100
And-Inverter Graphs
Binary Decision Diagrams
Sum-of-products
Conjunctive normal forms
10
Truth tables
Time, years
1950-1970
1980
1990
2000
2010
4
Motivation

• ABC is a public-domain system for logic synthesis
  and formal verification under development at
  Berkeley since 2005
• A successor of Espresso, MIS, SIS, VIS, MVSIS
• The baseline version of ABC is not applicable to
  industrial designs because it does not support
• Complex flops
• Multiple clock domains
• Special objects (adders, RAMs, DSPs, etc)
• Standard-cell libraries
• A fresh start, called Magic, was taken in Fall
  2009
• Includes new design database that supports these
• Integrates application packages for better
  memory/runtime
• Achieves better scalability

5
Big Picture
Verilog, EDIF, BLIF
Programmable APIs
A. Mishchenko, N. Een, R. K. Brayton, S. Jang, M.
Ciesielski, and T. Daniel, "Magic An
industrial-strength logic optimization,
technology mapping, and formal verification
tool". Proc. IWLS'10.
6
Application Packages

• Combinational optimization
• AIG rewriting
• Choice computation
• Technology mapping
• Sequential optimization
• Retiming
• Merging equivalence nodes
• Technology mapping
• Mapping with choices
• Speedup
• Verification
• Simulation
• Comb equivalence checking
• Seq equivalence checking

• Framework
• Design database
• File input / output
• Programmable APIs

7
Representations

• Netlist
• Original / current / resulting design with
  industrial stuff
• AIG The main data-structure of ABC / Magic
• Represents local / global functions
• Gets synthesized / mapped / verified
• Logic network
• Represents the result of technology mapping

8
AIG Definition and Examples
AIG is a Boolean network composed of two-input
ANDs and inverters
cdab 00 01 11 10
00 0 0 1 0
01 0 0 1 1
11 0 1 1 0
10 0 0 1 0
F(a,b,c,d) ab d(acbc)
6 nodes 4 levels
F(a,b,c,d) ac(bd) c(ad) ac(bd)
bc(ad)
cdab 00 01 11 10
00 0 0 1 0
01 0 0 1 1
11 0 1 1 0
10 0 0 1 0
7 nodes 3 levels
9
AIG A Unifying Representation

• An underlying data structure for various
  computations
• Representing both local and global functions
• Used in rewriting, resubstitution, simulation,
  SAT sweeping, induction, etc
• A unifying representation for the whole flow
• Synthesis, mapping, verification pass around AIGs
• Stored multiple structures for mapping (AIG with
  choices)
• The main functional representation in ABC
• Foundation of contemporary logic synthesis
• Source of signature features (speed,
  scalability, etc)

10
Magic Optimization Flow

• The design is entered from file or through
  programmable APIs
• Internal representation is based on a
  light-weight data-structure for improved memory
  and runtime
• Sequential synthesis is applied to detect and
  merge seq equiv objects
• Combinational synthesis and mapping are iterated
  several times, while saving the best result
• Optionally, min-perturbation retiming and
  resynthesis are applied to reduce delay/area
  after mapping
• The design is saved into file or through
  programmable APIs
• Verification is performed between any two points
  in the flow

Inputting the design
Sequential synthesis
Comb synthesis with choices
Verification
Tech mapping
Retiming and resynthesis
Outputting the design
11
Sequential Synthesis (Motivation)
F
G

• Combinational equivalence
• Two functions, F and G, produce the same output
  for all input combinations
• Sequential equivalence
• Two functions, F and G, produce the same value
  for all reachable states

00 01 11 10
00 0 1 0 0
01 0 1 1 0
11 1 1 0 0
10 0 1 0 0
00 01 11 10
00 0 1 0 0
01 0 1 1 0
11 1 1 0 0
10 0 1 0 0
Complete Boolean space
is shown by highlighting
G
F
00 01 11 10
00 0 1 0 0
01 0 1 0 0
11 0 1 0 0
10 0 1 0 0
00 01 11 10
00 0 1 1 0
01 0 0 0 0
11 0 0 0 0
10 0 0 0 0
Reachable state space of 1-hot encoding is shown
by highlighting
12
Sequential Synthesis

• Detect, prove, and merge sequentially equivalent
  nodes
• Seq equiv nodes are equivalent on reachable
  states
• Special case Comb equiv nodes are equivalent on
  for any state
• Observations
• Can be done using simulation and SAT (without
  BDDs)
• Leads to substantial reduction for large designs
  (gt 10 in area)
• Works for large designs (10-15 minutes for 1M
  gates)

B
A
B
A
A. Mishchenko, M. L. Case, R. K. Brayton, and S.
Jang, "Scalable and scalably-verifiable
sequential synthesis", Proc. ICCAD'08.
13
Experiment Results
Results collected using a suite of 20 industrial
designs
13
14
Comb Synthesis (AIG rewriting)

• Restructures AIG by applying the following
  transforms
• Rewriting/refactoring/redecomposition
• Tree-balancing
• Resubstitution
• Minimization with don't-cares, etc
• Case study AIG rewriting

Pre-compute AIG subgraphs for F abc
Rewriting node A
?
a
b
a
a
c
b
c
b
a
c
Subgraph 1
Subgraph 2
Subgraph 3
A. Mishchenko, S. Chatterjee, and R. Brayton,
"DAG-aware AIG rewriting A fresh look at
combinational logic synthesis", Proc. DAC '06.
15
Combinational Synthesis with Structural Choices

• Perform synthesis and keep track of changes
• Iterate fast local AIG rewriting with a global
  view (via hash table)
• Collect AIG snapshots and prove equivalences
  across them
• Use equivalences (choices) during technology
  mapping
• Observations
• Leads to improved QoR after technology mapping
• Successfully applied to 1M gate designs

Traditional synthesis
D1
D2
D3
D4
Synthesis with choices
D1
D4
HAIG
D2
D3
16
Technology Mapping
Mapped network
AIG

• Customizable structural mapping with priority
  cuts
• Computes a small subset of cuts without impacting
  the QoR
• Uses structural choices
• Observations
• Controls QoR tradeoffs
• Minimizes delay/area, wire count, switching
  activity, etc
• Successfully applied to 1M gate designs

f
b
c
d
e
a
A. Mishchenko, S. Cho, S. Chatterjee, R. Brayton,
"Combinational and sequential mapping with
priority cuts", Proc. ICCAD '07.
17
Minimum-Perturbation Retiming

• Reduces delay, while minimizing the number of
  flops moved
• Produces a trade-off delay gain vs. the number
  of flops moved
• Handles industrial stuff retimes over white
  boxes such as adders!
• Computes new initial state after backward
  retiming
• Allows the user to control the resources
• Desired delay gain
• Maximum allowed number of flops moved
• Maximum area increase after retiming
• Observations
• Can be useful before and after placement
• Can be implemented efficiently
• Runs in less than a minute for 1M gates

S. Ray, A. Mishchenko, R. K. Brayton, S. Jang,
and T. Daniel, "Minimum-perturbation retiming for
delay optimization". Proc. IWLS'10.
18
Sequential Verification

• Property checking
• Takes design and property and makes a miter (AIG)
• Equivalence checking
• Takes two designs and makes a miter (AIG)
• The goal is to transform AIG until the output can
  be proved const 0
• Equivalence checking in Magic is based on the
  model checker that won Hardware Model Checking
  Competition in 2008 and 2010
• http//fmv.jku.at/hwmcc10/results.html

19
A Naïve Way to Use ABC

• Convert all persistent logic to black boxes
• Box IOs are treated as PI/POs in synthesis
• Adverse effects
• Losing the correlation of box outputs/inputs
• Restricting synthesis due to broken logic paths
• Not being able to propagate delays through the
  boxes
• Sequential synthesis doesnt work well

19
20
A Better Way to Use ABC

• Clock domains
• Represent clock signal in the data-base
• Annotate flops with their clock-domain number in
  the AIG
• Separate clock domains in sequential transforms
• Complex controls of the flops
• Use parametrized flop model
• Perform elaboration of control signals if needed
• Handle asynchronous reset carefully!
• Industrial primitives (adders, RAMs, DSPs, etc)
• Use boxes (black/white, comb/seq, merge/no_merge,
  etc)
• Currently propagates timing information, improves
  quality of synthesis
• Elaborate boxes for seq synthesis, but do not map
  them
• Need better support for user-specified attributes
  (dont-touch, etc)

21
Experimental Setup

• Integrated Magic into an industrial FPGA
  synthesis flow
• Experimented with the full flow, including PR
• Did not use retiming
• Did not use post-placement re-synthesis
• Verified by running Magic and in-house simulation
  tools
• Experimented with 20 designs, from 175K to 648K
  LUT4
• Two experimental runs
• Reference stands for the typical industrial
  flow without Magic
• Magic stands for the new flow with Magic

Frontend
Magic
Backend
Design entry, high-level synthesis, quick mapping
Placement, routing, design rule checking, etc
Seq and comb synthesis, mapping, legalization
22
Experimental Results
23
Cumulative Improvement(retiming excluded)
23
24
Future Work

• Continue to improve application packages
• AIG rewriting, tech-mapping, sequential
  synthesis, etc
• Improve integration of logic and physical
  synthesis
• Synthesis/mapping/retiming before placement
• Retiming/restructuring after placement
• Extend the flow to work for other technologies
• Macro cells
• Standard cells
