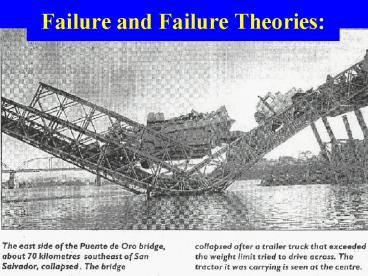

Failure and Failure Theories:

1
Failure and Failure Theories
2
Stress-Analysis is performed on a component to
determine

• The required size or geometry (design)
• an allowable load (service)
• cause of failure (forensic)
• For all of these, a limit stress or allowable
  stress value for the component material is
  required.
• Furthermore, a Failure-Theory is needed to define
  the onset of failure.

3
Failure

• Component can no longer function as intended.
• Failure Mode
• yielding a process of global permanent plastic
  deformation.
• Change in the geometry of the object.
• low stiffness excessive elastic deflection.
• fracture a process in which cracks grow to the
  extent that the
• component breaks apart.
• buckling the loss of stable equilibrium.
  Compressive loading
• can lead to bucking in columns.
• creep a high-temperature effect. Load carrying
  capacity drops.

4
Failure Theories

• 1. The Tresca Criterion.
• also known as the Maximum Shear Stress criterion.

• yielding when the shear stress reaches its
  maximum value.
• In a tensile test, this occurs when the diameter
  of the largest
• Mohrs circle is equal to the tensile yield
  strength.
• If the principal stresses are ordered such that
  s1 gt s2 gt s3,
• then the Tresca criterion is expressed as

5
2. The maximum principal stress criterion.

• states that a tensile yield (fracture) will
  occur in a
• previously un-cracked isotropic material when
  the
• maximum principal stress reaches a critical
  value.
• The critical value is usually the yield
  strength, Sy, or
• the ultimate tensile strength, Su.
• This criterion does not characterize fracture in
  brittle
• materials with cracks.

smax Sy (or Su)
6
3. Von-Mises Criterion

• Also known as the Maximum Energy of Distortion
  criterion
• based on a more complex view of the role of the
  principal stress
• differences. In simple terms, the von Mises
  criterion considers the
• diameters of all three Mohrs circles as
  contributing to the
• characterization of yield onset in isotropic
  materials.
• When the criterion is applied, its relationship
  to the the
• uniaxial tensile yield strength is

7
Von Mises

• For a state of plane stress (s30)
• It is often convenient to express this as an
  equivalent stress, se

8
And the von-Mises failure criterion becomes se
Sy
9
Plane Stress Biaxial Failure Envelopes
Von-Mises
sc critical value of stress so yield
stress sut ultimate tensile stress
10
4. Mohrs failure criterion

• Applies to brittle materials much stronger in
  compression
• than in tension.
• Data from tension and compression tests
  establish limiting
• Mohrs circle envelope.
• For any given stress state, failure will not
  occur if the
• largest Mohrs circle lies within the failure
  envelope.

11
Try it!
Determine if failiure will occur for the
following Complex stress state, given the
material has a tensile yield strength of 250 MPa
and an ultimate tensile strength of 300 MPa.
12
Material Behaviour in Tension
Stress
Ultimate Su 300 MPa
300
Yield Sy 250MPa
200
100
Strain
0 0.002 0.010
13
Solution
For the following state of stress, find the
principal and critical values.
80 MPa
y
50 MPa
120 MPa
Tensor shows that sz 0 and t xz t yz 0
x
14
The other 2 faces
x
80 MPa
y
0 MPa
0 MPa
z
z
15
3-D Mohrs Circles
t max 77 MPa
Shear Stress, MPa
16
s1 0 MPa s2 45 MPa s3 154 MPatmax 77
MPa.
1. Tresca Criterion Sy / 2 250/2 125 MPa
t max 77 lt 125 MPa, SAFE! FS 1.62 2.
Maximum Principal Stress Criterion Su
350MPa smax s3 154 lt 350 MPa, SAFE! FS
2.27 3. Von-Mises Criterion
1/?2(0-45)2 (45-154)2 (154-0)2 1/2 137
MPa lt 250 MPa, SAFE! FS 250/1371.82
17
BUCKLING!
Load, P
I 2nd Moment of Area about weak axis. E
Youngs Modulus
Le
Deflected shape
18
The effective length, Le, depends on the Boundary
Conditions
19
Try It!
Find the Buckling load for a pin-ended
aluminum column 3m high, with a rectangular
x-section as shown
P
Weak axis Iyy 100 (50)3/12 1.04x106 mm4
100 mm
50 mm
82246 N
P
