10 Binary Tree Data Structures

1

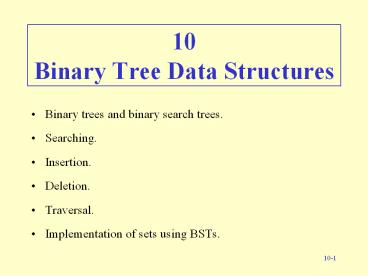

10Binary Tree Data Structures

• Binary trees and binary search trees.
• Searching.
• Insertion.
• Deletion.
• Traversal.
• Implementation of sets using BSTs.

2
Binary trees (1)

• A binary tree consists of a header, plus a number
  of nodes connected by links in a hierarchical
  data structure
• Each node contains an element (value or object),
  plus links to at most two other nodes (its left
  child and right child).
• The header contains a link to a node designated
  as the root node.

3
Binary trees (2)

• A leaf node is one that has no children (i.e.,
  both its links are null).
• Every node, except the root node, is the left or
  right child of exactly one other node (its
  parent). The root node has no parent the only
  link to it is the header.
• The size of a binary tree is the number of nodes
  (elements).
• An empty binary tree has size zero. Its header is
  null.

4
Binary trees and subtrees (1)

• Each node has both a left subtree and a right
  subtree (either of which may be empty). The
  nodes left (right) subtree consists of the
  nodes left (right) child together with that
  childs own children, grandchildren, etc.

5
Binary trees and subtrees (2)

• Each subtree is itself a binary tree.
• This gives rise to an equivalent recursive
  definition. A binary tree is
• empty, or
• nonempty, in which case it has a root node
  containing an element, a link to a left subtree,
  and a link to a right subtree.

6
Node and tree depths (1)

• Observation For any node N in a tree, there is
  exactly one sequence of links between the root
  node and N.
• The depth of node N is the number of links
  between the root node and N.
• The depth of a tree is the depth of the deepest
  node in the tree.
• A tree consisting of a single node has depth 0.
• By convention, an empty tree has depth 1.

7
Node and tree depths (2)

• Illustrations

8
Node and tree depths (3)

• Illustrations (continued)

very ill-balanced
9
Balanced binary trees

• A binary tree of depth d is balanced if all nodes
  at depths 0, 1, , d2 have two children.
• Nodes at depth d1 may have two/one/no children.
• Node at depth d have no children (by definition).
• A binary tree of depth 0 or 1 is always balanced.
• A balanced binary tree of depth d has at least 2d
  and at most 2d1 1 nodes. Conversely
• Depth of balanced binary tree of size n
  floor(log2 n)
• An ill-balanced binary tree of depth d could have
  as few as d1 nodes. Conversely
• Max. depth of ill-balanced binary tree of size n
  n1

10
Binary search trees (1)

• A binary search tree (or BST) is a binary tree
  with the following property. For any node in the
  binary tree, if that node contains element elem
• Its left subtree (if nonempty) contains only
  elements less than elem.
• Its right subtree (if nonempty) contains only
  elements greater than elem.

11
Binary search trees (2)

• Illustrations

12
Binary search trees (3)

• An equivalent recursive definition is also
  possible. A binary search tree is
• empty, or
• nonempty, in which case it has
• a root node containing an element elem
• a link to a left subtree in which (if it is not
  empty) all elements are less than elem
• a link to a right subtree in which (if it is not
  empty) all elements are greater than elem.

13
Binary search trees (4)

• Java class implementing BST nodes
• public class BSTNode
• protected Comparable element protected
  BSTNode left, right
• protected BSTNode (Comparable elem) element
  elem left null right null

BSTNode methods (to follow)
14
Binary search trees (5)

• Java class implementing BST headers
• public class BST
• private BSTNode root
• public BST () // Construct an empty
  BST. root null

BST methods (to follow)
15
BST search (1)

• Problem Search for a given target value in a
  BST.
• Idea Compare the target with the element in the
  root node.
• If it is equal, the search is successful.
• If it is less, search the left subtree.
• If it is greater, search the right subtree.
• If the subtree is empty, the search is
  unsuccessful.

16
BST search (2)

• BST search algorithm
• To find which if any node of a BST contains an
  element equal to target
• 1. Set curr to the BSTs root.2. Repeat 2.1. I
  f curr is null 2.1.1. Terminate with answer
  none. 2.2. Otherwise, if target is equal to
  currs element 2.2.1. Terminate with answer
  curr. 2.3. Otherwise, if target is less than
  currs element 2.3.1. Set curr to currs left
  child. 2.4. Otherwise, if target is greater than
  currs element 2.4.1. Set curr to currs right
  child.

17
BST search (3)

• Animation (successful search)

18
BST search (4)

• Animation (unsuccessful search)

19
BST search (5)

• Analysis (counting comparisons)
• Let the BSTs size be n.
• If the BST has depth d, the number of
  comparisons is at most d1.
• If the BST is well-balanced, its depth is
  floor(log2 n)
• Max. no. of comparisons floor(log2 n) 1
• Best-case time complexity is O(log n).
• If the BST is ill-balanced, its depth is at most
  n1
• Max. no. of comparisons n
• Worst-case time complexity is O(n).

20
BST search (6)

• Implementation as a Java method (in class BST)
• public BSTNode search (Comparable target) int
  direction 0 BSTNode curr root for ()
  if (curr null) return null direction
  target.compareTo(curr.element) if
  (direction 0) return curr else if
  (direction lt 0) curr curr.left else curr
  curr.right

21
BST insertion (1)

• Idea To insert a new element into a BST, proceed
  as if searching for that element. If the element
  is not already present, the search will lead to a
  null link. Replace that null link by a link to a
  leaf node containing the new element.

22
BST insertion (2)

• BST insertion algorithm
• To insert the element elem into a BST
• 1. Set parent to null, and set curr to the BSTs
  root.2. Repeat 2.1. If curr is
  null 2.1.1. Replace the null link from which
  curr was taken (either the BSTs root or
  parents left child or parents right child)
  by a link to a newly-created leaf node with
  element elem. 2.1.2. Terminate. 2.2. Otherwise,
  if elem is equal to currs element 2.2.1. Term
  inate. 2.3. Otherwise,

23
BST insertion (3)

• BST insertion algorithm (continued)
• 2.3. Otherwise, if elem is less than currs
  element 2.3.1. Set parent to curr, and set
  curr to currs left child. 2.4. Otherwise, if
  elem is greater than currs element 2.4.1. Set
  parent to curr, and set curr to currs right
  child.

24
BST insertion (4)

• Animation (empty BST)

25
BST insertion (5)

• Animation (nonempty BST)

26
BST insertion (6)

• Analysis (counting comparisons)
• No. of comparisons is the same as for BST
  search.
• If the BST is well-balanced
• Max. no. of comparisons floor(log2 n) 1
• Best-case time complexity is O(log n).
• If the BST is ill-balanced
• Max. no. of comparisons n
• Worst-case time complexity is O(n).

27
BST insertion (7)

• Implementation as a Java method (in class BST)
• public void insert (Comparable elem) int
  direction 0 BSTNode parent null, curr
  root for () if (curr null)
  BSTNode ins new BSTNode(elem) if (root
  null) root ins else if (direction lt
  0) parent.left ins else parent.right
  ins return

28
BST insertion (8)

• Implementation (continued)
• direction elem.compareTo(curr.element) if
  (direction 0) return parent curr if
  (direction lt 0) curr curr.left else curr
  curr.right

29
BSTs in practice insertions (1)

• Whether a BST is well-balanced or ill-balanced
  depends on the order of insertions.
• If the inserted elements are randomly ordered,
  the BST will probably be reasonably
  well-balanced.
• If the inserted elements happen to be in
  ascending (or descending) order, the BST will be
  extremely ill-balanced.

30
Example 1 successive insertions (1)

• Animation (inserting lion, fox, rat, cat,
  pig, dog, tiger)

31
Example 1 (2)

• Animation (inserting cat, dog, fox, lion,
  pig, rat)

32
BSTs in practice insertions (2)

• The following trials show the results of loading
  a BST with n randomly-generated elements.
• First trial with n 35

33
BSTs in practice insertions (3)

• Second trial with n 35

34
BST deletion

• Deleting a subtrees leftmost element.
• Deleting a subtrees topmost element.
• Deleting an arbitrary given element in a BST.

35
Deleting a leftmost element (1)

• Problem Delete the leftmost element in a
  subtree.
• Two cases to consider
• The subtrees topmost node has no left child.
• The subtrees topmost node has a left child.
• Note By definition, the leftmost node has no
  left child.

36
Deleting a leftmost element (2)

• Case 1 (topmost node has no left child) Replace
  the subtree by its own right subtree. E.g.

leftmost node
37
Deleting a leftmost element (3)

• Case 2 (topmost node has a left child) Link the
  leftmost nodes parent to the leftmost nodes
  right child. E.g.

leftmost node
garbage
38
Deleting a leftmost element (4)

• Algorithm
• To delete the leftmost element in the (nonempty)
  subtree whose topmost node is top
• 1. If top has no left child 1.1. Terminate
  with tops right child as answer.2. If top has a
  left child 2.1. Set parent to top, and set curr
  to tops left child. 2.2. While node curr has a
  left child, repeat 2.2.1. Set parent to curr,
  and set curr to currs left child. 2.3. Set
  parents left child to currs right
  child. 2.4. Terminate with top as answer.

case 1
case 2
39
Deleting a leftmost element (5)

• Implementation as a Java method (in class
  BSTNode)
• private BSTNode deleteLeftmost () if
  (this.left null) return this.right else
  BSTNode parent this, curr
  this.left while (curr.left ! null)
  parent curr curr curr.left paren
  t.left curr.right return this

40
Deleting a topmost element (1)

• Problem Delete the topmost element in a subtree.
• Four cases to consider
• The topmost node has no children.
• The topmost node has a right child but no left
  child.
• The topmost node has a left child but no right
  child.
• The topmost node has two children.

41
Deleting a topmost element (2)

• Case 1 (topmost node has no children) Replace
  the subtree by an empty subtree. E.g.

42
Deleting a topmost element (3)

• Case 2 (topmost node has a right child but no
  left child)Replace the subtree by its own right
  subtree. E.g.

43
Deleting a topmost element (4)

• Case 3 (topmost node has a left child but no
  right child)Replace the subtree by its own left
  subtree. E.g.

44
Deleting a topmost element (5)

• Case 4 (topmost node has two children) Copy the
  right subtrees leftmost element into the topmost
  node, then delete the right subtrees leftmost
  element. E.g.

garbage
45
Deleting a topmost element (6)

• Algorithm
• To delete the topmost element in the subtree
  whose topmost node is top
• 1. If top has no left child 1.1. Terminate
  with tops right child as answer.2. If top has
  no right child 2.1. Terminate with tops left
  child as answer.3. If top has two
  children 3.1. Set tops element to the leftmost
  element in tops right subtree. 3.2. Delete
  the leftmost element in tops right
  subtree. 3.3. Terminate with top as answer.

cases 1, 2
cases 1, 3
case 4
46
Deleting a topmost element (7)

• Auxiliary algorithm
• To determine the leftmost element in the
  (nonempty) subtree whose topmost node is top
• 1. Set curr to top.2. While curr has a left
  child, repeat 2.1. Set curr to currs left
  child.3. Terminate with currs element as
  answer.

47
Deleting a topmost element (8)

• Implementation as a Java method (in class
  BSTNode)
• public BSTNode deleteTopmost () if (this.left
  null) return this.right else if
  (this.right null) return this.left else
  // this node has two children this.element
  this.right.getLeftmost() this.right
  this.right.deleteLeftmost() return this

48
Deleting a topmost element (9)

• Auxiliary method (in class BSTNode)
• private Comparable getLeftmost () BSTNode
  curr this while (curr.left ! null) curr
  curr.left return curr.element

49
Deleting a given element (1)

• BST deletion algorithm
• To delete the element elem in a BST
• 1. Set parent to null, and set curr to the BSTs
  root node.2. Repeat 2.1. If curr is
  null 2.1.1. Terminate. 2.2. Otherwise, if
  elem is equal to currs element 2.2.1. Delete
  the topmost element in the subtree whose
  topmost node is curr, and let del be a link
  to the resulting subtree. 2.2.2. Replace
  the link to curr by del. 2.2.3. Terminate. 2.3.
  Otherwise,

50
Deleting a given element (2)

• BST deletion algorithm (continued)
• 2.3. Otherwise, if elem is less than currs
  element 2.3.1. Set parent to curr, and set
  curr to currs left child. 2.4. Otherwise, if
  elem is greater than currs element 2.4.1. Set
  parent to curr, and set curr to currs right
  child.

51
Deleting a given element (3)

• Animation

52
Deleting a given element (4)

• Implementation as a Java method (in class BST)
• public void delete (Comparable elem) int
  direction 0 BSTNode parent null, curr
  root for () if (curr null)
  return direction elem.compareTo(curr.element)
  if (direction 0) BSTNode del
  curr.deleteTopmost() if (curr root) root
  del else if (curr parent.left) parent
  .left del else parent.right
  del return

53
Deleting a given element (5)

• Implementation (continued)
• parent curr if (direction lt 0) curr
  parent.left else // direction gt 0 curr
  parent.right

54
BSTs in practice deletions

• Whether a BST is well-balanced or ill-balanced
  depends on the order of insertions and deletions.
• Deletion can make a well-balanced BST
  ill-balanced, or vice versa.

55
Example 2 successive deletions

• Animation (deleting lion, fox, pig)

56
Binary tree traversal

• Binary tree traversal Visit all nodes (elements)
  of the tree in some predetermined order.
• During a binary tree traversal, we must visit the
  root node, traverse the left subtree, and
  traverse the right subtree. But in which order?
• In-order traversal Traverse the left subtree,
  then visit the root node, then traverse the right
  subtree.
• Pre-order traversal Visit the root node, then
  traverse the left subtree, then traverse the
  right subtree.
• Post-order traversal Traverse the left subtree,
  then traverse the right subtree, then visit the
  root node.

57
Binary tree in-order traversal (1)

• Schematic

58
Binary tree in-order traversal (2)

• Illustration

• In-order traversal of a BST visits the elements
  in ascending order.

59
Binary tree in-order traversal (3)

• Binary tree in-order traversal algorithm
  (generic)
• To traverse, in in-order, the subtree whose
  topmost node is top
• 1. If top is not null 1.1. Traverse, in
  in-order, tops left subtree. 1.2. Visit
  top. 1.3. Traverse, in in-order, tops right
  subtree.2. Terminate.

60
Example 3 printing elements in order

• Java method
• public static void printInOrder (BSTNode top)
  // Print, in ascending order, all the elements
  in the BST subtree // whose topmost node is
  top. if (top ! null) printInOrder(top.left)
  System.out.println(top.element) printInOrder
  (top.right)

visit top
61
Binary tree pre-order traversal (1)

• Schematic

62
Binary tree pre-order traversal (2)

• Illustration

63
Binary tree pre-order traversal (3)

• Binary tree pre-order traversal algorithm
  (generic)
• To traverse, in pre-order, the subtree whose
  topmost node is top
• 1. If top is not null 1.1. Visit
  top. 1.2. Traverse, in pre-order, tops left
  subtree. 1.3. Traverse, in pre-order, tops
  right subtree.2. Terminate.

64
Binary tree post-order traversal (1)

• Schematic

65
Binary tree post-order traversal (2)

• Illustration

66
Binary tree post-order traversal (3)

• Binary tree post-order traversal algorithm
  (generic)
• To traverse, in post-order, the subtree whose
  topmost node is top
• 1. If top is not null 1.1. Traverse, in
  post-order, tops left subtree. 1.2. Traverse,
  in post-order, tops right subtree. 1.3. Visit
  top.2. Terminate.

67
Implementation of sets using BSTs (1)

• Represent an (unbounded) set by a BST whose
  elements are the set members.

68
Implementation of sets using BSTs (2)

• Note The BST representation of a set is not
  unique

69
Implementation of sets using BSTs (3)

• Summary of algorithms and time complexities

Operation Algorithm Time complexity
contains BST search O(log n) bestO(n) worst
add BST insertion O(log n) bestO(n) worst
remove BST deletion O(log n) bestO(n) worst
