Target Selection Activity

1

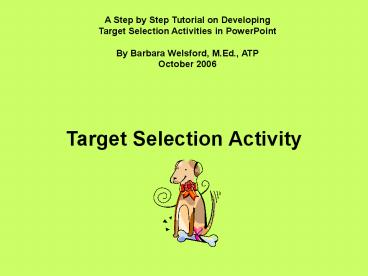

Target Selection Activity
A Step by Step Tutorial on Developing Target
Selection Activities in PowerPoint By Barbara
Welsford, M.Ed., ATP October 2006
2
Click on the Cat
3
(No Transcript)
4
Click on the Fish
5
(No Transcript)
6

• Target Selection Activities
• Easy to develop powerpoint activities that
  develop switch skills and mouse use/target
  selection skills with fun interactive and
  reinforcing effects
• You will learn how to use and apply
• Action Buttons
• Custom Animations
• Right Mouse ClickOrder
• Slide Transitions (automatic move to next slide)
• Hit Enter or click the mouse anywhere on the
  screen to move from slide to slide

7
Steps

• Launch new project in ppt
• Insert new slide select blank design
• Duplicate slide 5 x
• Format / Background choose colour
• Apply to all slides
• Click on first slide
• Click on text box on bottom toolbar

8

• Click on slide one and type your title Target
  Selection Activity
• you will now record an introduction to your
  activity that will start on the launch of the PPT

• Record your introduction (eg. Say Target
  Selection Activity. Click the Dog to begin)
• Go to Start/All Programs /Accessories/Entertainmen
  t/
• Sound Recording and record your sound
• Save the wav file to a folder for your project

9

• To Add Effects to your Text
• Click on the text box
• Select Custom Animation (this will
• add animation features to the text box)
• On the right of the PPT screen you
• will see the Custom Animation
• Palette

10

• Click on Add Effect Down Arrow
• Select Entrance / Appear
• On the right you will see
• a list being generated of the
• animations you have assigned
• to this text.click on Start With
• Previous (this refers ito the previous
• action performed)
• Also go to Effect Options
• in the same menu

11

• Insert the sound
• you recorded earlier
• Scroll down to Add Other locate your .wav file
  where you stored it
• Click OK
• On start up the
• text will appear and the sound will begin
  automatically
• Inserting Pictures
• Go to Insert/Picture/ClipArt
• Find a picture you want as target selection image
  on slide 1
• The pictures will appear on the right of the
  screen in the Clip Art palette

12

• You can search for the pictures then drag and
  drop them to your slide
• Click on the picture, hold down the mouse and
  drag them to where you want them on the screen
• Resize the pictures by clicking on one of the
  white circular handles surrounding the picture
• Drag to resize

13

• Leave the picture until later
• Deactivate the rest of the screen so when you
  click randomly on slide one nothing will happen
• We want the user to develop target selection in
  specific areas / on specific targets/pictures.
• When the click on the target they will get a
  positive reinforcement of some kind sound,
  animation, praisethese are achieved through
  custom animations and action buttons

14

• To deactivate the slide to random mouse clicks
  follow these steps
• Make sure you are on slide 1
• Go to Slide Show/Action Buttons
• Select a blank button
• Once selected a cross hair
• will appear on your screen
• hold down the mouse and drag over
• the entire slide.
• An action button will now cover the slide
• When you let go of the mouse a prompt box will
  appear

15

• You want the random clicks on the screen to be
  ignored so leave the Action on Click as None
• Click OK
• Your button will now cover the screen. We must
  make it transparent.
• Double click on the button

16

• Click on the down arrow by Colour and select No
  Fill
• Make sure the colour of the Line says No Line
• Click OK

17

• Right mouse click on the invisible button and
  Send to Back (objects etc. are layered in PPT)
• Animating Pictures
• Click on your picture
• We are now going to add animation features to
  your picture
• Go to Slide Show/Custom Animation
• Click on Add Effect drop down menu
• Choose Entrance/Bounce
• The numbers of the Effects on the right relate to
  the objects on the screen
• After the animation on this slide we want the
  user to click on the image and move to the next
  slide (target selection)
• We have to add an Action Button over the picture
  area only this will respond to the mouse click
  and move to the next slide

18

• Go to Slide Show
• Action Buttons
• Select the button that goes to the next slide
• The cross hair will now be on your slide
• Hold down the mouse and drag over your picture
• Click ok on the prompt box (making sure that the
  action is to the next slide)
• Double click on the button and change the colour
  to None
• Click OK

19

• Now your first slide should be active with the
  title automatically appearing on launch of the
  Powerpoint and the title and instructions being
  readclick on the dog to begin
• The area on the main part of the slide will be
  inactive and only the area over the dog will
  respond to a mouse click
• Try your activity

20

• To develop target selection skills the same
  principles of design applies
• Choose two pictures you know the student
  recognizes
• Record the directions related to the picture you
  want to be chosen by the user
• Add text and animate it with the recording,
  ensure that start with previous is selected in
  the Effects box
• Insert the two pictures you have chosen
• Add an Action Button over the entire screen and
  ensure that No Action is selected, double click
  on the button and make it transparent

21

• Right mouse click on the transparent button
  covering the entire slide and select Order / Send
  to back
• Make an Action Button over the picture that is to
  be selected by the user and have it move to the
  next slide. Add an applause sound on the mouse
  click or record a positive response (i.e Great
  Job Joey).. The next slide will provide the
  visual reinforcment
• Make this action button invisible by double
  clicking on the button and choosing no colour
• Right mouse click on the invisible button and
  select Order/Bring to Front
• The other picture will be inactived by making an
  action button over that picture and choosing NONE
  for the Action on Click

22

• On the 3rd slide you will use the same picture
  the user has clicked on (the desired target)
• Add a custom animation to the picture and record
  another positive response OR applause etc.
• We want the slide to move forward on its own
  after the reward so.
• You can add an Action Button with no Action (in
  case the user overclicks or clicks randomly
  onscreen) and then
• Choose Slide Show / Slide Transition
• Under Advance Slide click Automatically after and
  insert 3 seconds. Deselect On mouse click

23

• Test your activity by clicking on the first slide
  and Slide Show / View Show
• Make any changes necessary
• To remove an action off an image or text etc.
  simply click on the Effect listed in the Custom
  Animation palette, and select Remove

24

• Continue adding pictures and changing the
  location and size of the targets to challenge the
  user to develop mouse and target selection skills
• Have fun and enjoy
