Proximity Sensors Potentiometer Sensors

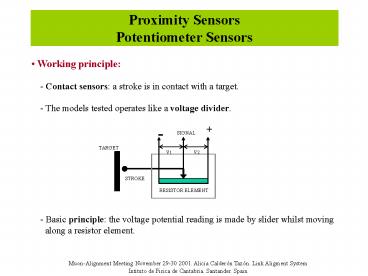

• Working principle
• - Contact sensors a stroke is in contact
  with a target.
• - The models tested operates like a voltage
  divider.

- Basic principle the voltage potential
reading is made by slider whilst moving
along a resistor element.
Muon-Alignment Meeting November 29-30 2001.
Alicia Calderón Tazón. Link Aligment
System Intituto de Fisica de Cantabria.
Santander. Spain
2
Betatronix, Model 04LF9316
3
PennyGile, Model HLP129/BC1/50/2K/RR
Voltage V1
1
y 0.031428 0.018339x R 1
0.8
0.6
0.4
0.2
0
0
10
20
30
40
50
Distance (mm)
4
Gefran, Model PY2 F50S
5
Betatronix, Model 04LF9316 polynomial function
of thrird degree
