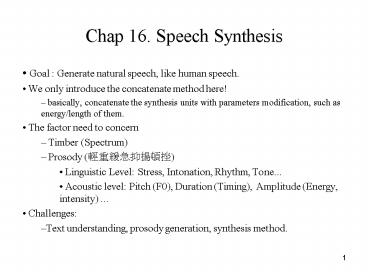

Chap 16. Speech Synthesis

1
Chap 16. Speech Synthesis

• Goal Generate natural speech, like human
  speech.
• We only introduce the concatenate method here!
• basically, concatenate the synthesis units with
  parameters modification, such as energy/length of
  them.
• The factor need to concern
• Timber (Spectrum)
• Prosody (????????)
• Linguistic Level Stress, Intonation, Rhythm,
  Tone...
• Acoustic level Pitch (F0), Duration (Timing),
  Amplitude (Energy, intensity)
• Challenges
• Text understanding, prosody generation, synthesis
  method.

2
Text to speech system model
3
Overlap and Add method

• SOLA (Synchronous Overlap and Add)

Hamming window, length2N330
Epoch
Both duration and pitch frequency changed in this
example
4
PSOLA (Pitch Synchronous Overlap And Add)

• Overlap and add units were pitch synchronous

Pitch mark (Glottal Closure Instants, GCI)
5

• PSOLA 3 frames example

Tn
Overlap windowed signals(Tn New pitch duration)
Result of addition(synthesized speech)
6

• Change speech duration remove whole period of
  speech signal
• Change sampling rate will change the spectrum

Insert pitch to increase duration
Delete pitch to reduce duration
7

• Example change 5 pitch periods into 3 pitch
  periods

Pitch marks
Adding signal
Windowing signal
8
PSOLA Synthesis

• Voice part Modification
• How to change pitch contour.
• Change the offset when overlapping.
• How to change length of speech.
• Insert or delete pitches (change number of
  pitches).
• How to change energy.
• Multiply a factor to change amplitude.
• Unvoiced part
• Copy, no pitch change need.
• Deletion or duplication to change period.
• How to put desired pitch mark in the vertical
  waveform (y-axis) in previous page? Energy gain
  of each epoch?
• The pitch scaling factor should be 0.7-1.5.

9
Analysis WaveTable

• Problems
• Speech corpus
• sentence, word, syllable
• Determine Synthesis Unit
• syllable, diphone, etc
• Process
• voiced/unvoiced determination.
• Pitch marking
• Store all the speech pieces to create unit
  database.

10
Other synthesis techniques

• Frequency domain PSOLA
• using PSOLA for LPC (RPE-LP) residual signal only
• The spectral information, LPC or LSP, should be
  interpolated.
• Synthesis Unit selection
• Larger concatenate units (words or event phrases)
• ? corpus based TTS, size of WaveTable (20G?)
• Good Text analysis (understanding)
• Good prosodic information
• Emotion ?
