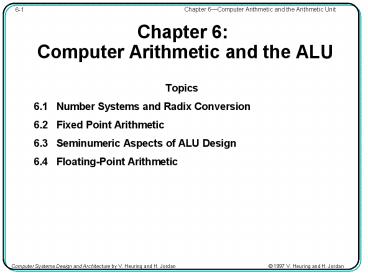

Chapter 6: Computer Arithmetic and the ALU

1
Chapter 6 Computer Arithmetic and the ALU

• Topics
• 6.1 Number Systems and Radix Conversion
• 6.2 Fixed Point Arithmetic
• 6.3 Seminumeric Aspects of ALU Design
• 6.4 Floating-Point Arithmetic

2
Number Systems

• Number systems consist of a base or radix and a
  set of symbols

decimal notation (0d1234) Base 10 Symbols
0-9 Values obvious
binary notation (0b1010) Base 2 Symbols
0,1 Values obvious
hexidecimal notation (0x10EF) Base 16 Symbols
0-9,A,B,C,D,E,F Values 0-9 0-9 A 10 B
11 C 12 D 13 E 14 F 15
octal notation (0c077) Base 8 Symbols
0-7 Values obvious
3
Number Representation

• An m digit, base b number is written as a string
  of m digits

x xm-1 xm-2 ... x1 x0
where digits xi are in the range of 0 ? xi ? b-1

• So base 2 0 ? xi ? 1 xi 0,1
• base 8 0 ? xi ? 7 xi 0-7
• base 10 0 ? xi ? 9 xi 0-8
• base 16 0 ? xi ? 15 xi 0-9, A-F

• The value of the ith digit is

value(xi) xi b i

• The value of x is

4
Number Representation Examples
32710 3 102 2 101 7
100 102 101 100 3 2 7
10112 1 23 0 22 1 21 1 20
1110 23 22 21 20 1 0 1 1
ED716 14(E) 162 13(D) 161 7 160
3584 208 7 379910 162 161 160
E D 7
37558 3 83 7 82 5 81 5 80
1536 448 40 5 202910
83 82 81 80 3 7 5 5
5
Number Representation

• For a base b number of m digits, the maximum
  number that can be represented is

• Examples

4 digit base 10 xmax 104 -1 999910
4 digit base 2 xmax 24 -1 11112 1510
3 digit base 8 xmax 83 -1 7778 51110
6
Fractions

• Fractions are numbers with a radix point
• xn-1xn-2...x1x0 . x-1x-2...x-m
• A number in a fixed-length computer register with
  its radix point assumed to be in a fixed position
  (even all the way to the right) is called a fixed
  point number
• Each digit to the right of the radix point has a
  value of

radix point
value(xi) xi b i, but now i goes from -1 to -m

• Examples

43.510 4 101 5 100 5 10-1 1101.10102
1 23 1 22 1 20 1 2-1 1 2-3
13.62510
7
Radix Conversion

• Converting from base b to calculators base c -
  eg., converting numbers into base 10

• 1) Start with base b x xm-1 xm-2 ... x1 x0
• 2) Initialize base c value y 0
• 3) Left to right, get next digit (symbol) xi
• 4) Convert base b symbol xi to base c number yi
  (by means of a table)
• 5) Update the base c vaule by y y?b yi
• 6) If there are more digits, repeat from step 3

• Example convert AC216 to base 10

y 0 y 0 A(10) 10 y 1016 C(12)
172 y 17216 2 275410

• Example convert 7538 to base 10

y 0 y 0 7 7 y 178 5 61 y 618
3 49110
8
Radix Conversion

• Converting from calculators base c to base b -
  eg., converting numbers from base 10 to another
  base

• 1) Start with the base c integer x to be
  converted
• 2) Initialize i 0 and v x and produce digits
  right to left
• 3) Calculate Di v mod b and v ?v/b?. Convert
  Di to base b to get yi
• 4) Set i i 1 If v ? 0, repeat from step 3

• Example convert 366110 to base 16
• 3661 ? 16 228 (rem 13) ? y0
  D(13)
• 228 ? 16 14 (rem 4) ? y1 4
• 14 ? 16 0 (rem 14) ? y2 E
• Thus 366110 E4D16

9
Radix Conversion Examples

• Example convert 23510 to base 2
• 235 ? 2 117 (rem 1) ? y0 1
• 117 ? 2 58 (rem 1) ? y1 1
• 58 ? 2 29 (rem 0) ? y2 0
• 29 ? 2 14 (rem 1) ? y3 1
• 14 ? 2 7 (rem 0) ? y4 0
• 7 ? 2 3 (rem 1) ? y5 1
• 3 ? 2 1 (rem 1) ? y6 1
• 1 ? 2 0 (rem 1) ? y7 1
• Thus 23510 111010112

10
More Radix Conversion Examples

• Example convert 125710 to base 8
• 1257 ? 8 157 (rem 1) ? y0 1
• 157 ? 8 19 (rem 5) ? y1 5
• 19 ? 8 2 (rem 3) ? y2 3
• 2 ? 8 0 (rem 2) ? y3 2
• Thus 125710 23518

11
Radix Conversion - a more ad-hoc approach

• Example convert 113510 to base 2
• 210 29 28 27 26 25 24
  23 22 21 20
• 1 0 0 0 1 1
  0 1 1 1 1
• 111 47 15
  7 3 1 0
• Thus 113510 100011011112

8
4
2
1
64
32
16
512
256
128
1024
?
?
?
?
?
?
?
12
Radix Conversion - Digit Grouping
Hex Binary 0 0000 1 0001 2 0010 3 0011 4 0100 5 01
01 6 0110 7 0111 8 1000 9 1001 A 1010 B 1011 C 110
0 D 1101 E 1110 F 1111

• Example convert 100011011112 to base 16
• 0100 0110 1111
• 4 6 F
• Thus 100011011112 46F16
• Example convert 100011011112 to base 0
• 010 001 101 111
• 2 1 5 7
• Thus 100011011112 21578

Octal Binary 0 000 1 001 2 010 3 011 4
100 5 101 6 110 7 111
13
Representing Negative Integer Numbers

• There are four methods that can be used to
  represent negative numbers
• Sign-magnitude
• decimal 435, -3102, etc.
• binary use a sign bit, e.g. 310 00112,
  -310 10112
• radix compliment (eg. 2s compliment)
• diminished radix compliment (eg. 1s compliment)
• bias or excess - used in floating point numbers

14
Complement Operationsfor m-Digit Base b Numbers

• Radix complement of m-digit base b number x is
• xc (bm - x) mod bm
• Diminished radix complement of x is
• xc bm - 1 - x
• The complement operation is used to define the
  relationship between the unsigned number
  representing a negative number and its absolute
  value
• Complement number systems use unsigned base b
  numbers to represent both positive and negative
  numbers
• The complement of a number in the range 0?x?bm-1
  is in the same range

15
Tbl 6.1 Complement Representations of Negative
Numbers
Radix Complement
Diminished Radix Complement
Number
Number
Representation
Representation
0
0
0
0 or bm-1
0ltxltbm/2
x
0ltxltbm/2
x
xc bm - 1 - x
-bm/2?xlt0
xc bm - x
-bm/2ltxlt0

• For even b, radix complement system represents
  one more negative than positive value
• While diminished radix complement system has 2
  zeros but represents same number of positive
  negative values

16
Tbl 6.2 Base 2 Complement Representations
8 Bit 2s Complement
8 Bit 1s Complement
Number
Number
Representation
Representation
0
0
0
0 or 255
0ltxlt128
x
0ltxlt128
x
255 - x
-128?xlt0
256 - x
-127?xlt0

• Numbers go from -128 to 127

• Numbers go from -127 to 127

• In 1s complement, 255 111111112 is often
  called -0
• In 2s complement, -128 100000002 is a legal
  value, but trying to negate it gives overflow

17
Example base 2 - 4 bits

• 2s complement
• Number Representation Negative
• 0 0000 0000
• 1 0001 1111
• 2 0010 1110
• 3 0011 1101
• 4 0100 1100
• 5 0101 1011
• 6 0110 1001
• 8 ----- 1000

• calculation of negative value
• xc (bm - x) mod bm
• Ex. 7
• -7 10000 - 0111
• 10000
• 0111
• 01001
• simply invert and add 1
• 0111c 0111 1 1000 1 1001

• 1s complement
• Number Representation Negative
• 0 0000 1111
• 1 0001 1110
• 2 0010 1101
• 3 0011 1100
• 4 0100 1011
• 5 0101 1010
• 6 0110 1001
• 8 0111 1000

18
Shifting

• Shifting a number left one digit is equivalent to
  multiplication by base b (insert a 0 on the
  right)
• Examples

32710 left shift Þ 327010 01012 510 left
shift Þ 10102 1010 11012 -310 left shift Þ
10102 -62 (2s complement)

• In a left shift, overflow occurs if the sign
  changes
• Example

10102 -610 left shift Þ 01002 Overflow!
19
Shifting (cont.)

• Shifting a number right one digit is equivalent
  to division by base b (copy sign bit from MSB to
  MSB-1 bit for signed numbers - called arithmetic
  right shifting)
• No overflow can occur, but any fractional part of
  the division is lost
• Examples

01112 710 right shift Þ 00112 310 (-½ -
fraction lost) 10112 -510 right shift Þ 10102
-62 (½ - fraction lost)
20
Fixed Point Arithmetic - Addition

• Complement number systems allow the addition of
  signed numbers with an adder for unsigned numbers
• Overflow only occurs when numbers are of the same
  sign and overflow can be detected when the result
  is of opposite sign from the operands
• Unsigned addition of m digit base b numbers x and
  y

1) Initialize digit counter j 0 and carry in co
0 2) Produce digit j of sum (xj yj cj)
mod b and carry cj1 ?(xj yj cj)/b? 3)
Increment j j 1 and repeat from 2 if j lt m
21
Fixed Point Arithmetic - Addition

• Example

• Hardware implementation - ripple carry adder

FA
FA
FA

• Carry and sum of jth1 stage depends on the carry
  from the jth stage - thus the correct values
  ripple from right to left

Sj xj Ä yj Ä cj cj1 xjyj xjcj yjcj
22
Fig 6.2 Base b Radix Complement Subtracter

• To do subtraction in the radix complement system,
  it is only necessary to negate (radix complement)
  the 2nd operand
• It is easy to take the diminished radix
  complement, and the adder has a carry-in for the
  1

23
Fig 6.3 2s ComplementAdder/Subtracter

• A multiplexer to select y or its complement
  becomes an exclusive OR gate

qj yjr yjr yj Ä r
24
Problem with Ripple Carry Addition/Subtraction
tc - full adder carry propagation time ts - full
adder sum propagation time
tc
2tc
mtc
FA
FA
FA
ts
tc ts
(m-1)tc ts

• Total propagation time of adder is proportional
  to the number of bits
• A 64 bit adder with tc200ps would take 12.8ns to
  compute the final carry out - which corresponds
  to less than an 80MHz clock speed - SLOW!

25
Solution - Carry Look Ahead

• Generate a carry across groups of bits using only
  the bits to be summed and the carry into that
  group
• Consider the jth bit (stage) of an addition
  operation - there will be a carry out of this
  stage if
• the bits in this stage generate a carry, or
• there is a carry into this stage and the bits in
  this stage propagate that carry to the next stage
• What conditions generate and propagate carry bits?

26
Binary Propagate and Generate Signals

• Generate for digit j is Gj xj?yj
• Propagate for digit j is Pj xjyj
• Of course xjyj covers xj?yj but it still
  corresponds to a carry out for a carry in
• Carries can then be written cj1 Gj Pj?cj
• c1 G0 P0?c0
• c2 G1 P1?G0 P1?P0?c0
• c3 G2 P2?G1 P2?P1?G0 P2?P1?P0?c0
• c4 G3 P3?G2 P3?P2?G1 P3?P2?P1?G0
  P3?P2?P1?P0?c0
• Eg., in words, the c2 logic is c2 is one if
  digit 1 generates a carry, or if digit 0
  generates one and digit 1 propagates it, or if
  digits 0 and 1 both propagate a carry-in

27
Speed Gains with Carry Lookahead

• It takes one gate to produce a G or P, two levels
  of gates for any carry, and 2 more for full
  adders
• The number of OR gate inputs (terms) and AND gate
  inputs (literals in a term) grows as the number
  of carries generated by lookahead
• The real power of this technique comes from
  applying it recursively
• For a group of 4 digits an overall generate is
• G10 G3 P3?G2 P3?P2?G1 P3?P2?P1?G0
• An overall propagate is
• P10 P3?P2?P1?P0

28
Recursive Carry Lookahead Scheme

• It is not practical to apply this directly to
  wide (eg. 64) bit widths directly - however, the
  idea extends to a multilevel scheme
• Rewrite equation for c4
• c4 G01 P01 c0 where G01 G3 P3G2
  P3P2G1 P3P2P1G0
• and P01 P3P2P1P0
• For the next level up (level 2 - assuming 4
  bits per group) for group 0
• G02 G31 P31G21 P31P21G11 P31P21P11G01
• P02 P31P21P11P01
• Keep building up in groups of k bits (tree
  structure)
• Now delay is proportional to logkm because there
  are logkm levels in the carry-look ahead tree

29
Fig 6.4 Carry Lookahead Adder for Group Size k
2
30
64 Bit Adder using Carry Look Ahead with Group
Size, k 4
Delays Level 0 Propagate Generate 1
delay Level 1 Propagate Generate 2
delays Level 2 Propagate Generate 2
delays Level 3 intermediate carry 2
delays Level 2 intermediate carry 2
delays Level 1 intermediate carry 2 delays MSB
sum co from carry in 1 delay Total gate
delays 12
31
Binary Multiplication (unsigned)

• Multiplication can be done using successive
  addition (as you have seen in the lab assignment)
• A faster method is to multiply Y by X, k bits at
  a time and add the resulting terms (k usually
  equals 1) - as is done by hand
• Example

• There are many ways to implement this in
  hardware, but perhaps the simplest is the
  shift-add mechanism

32
Unsigned Binary Multiplication Datapath
Control Unit
n-Bit Adder
Multiplier
Product
2n1 bit shift register
33
Unsigned Binary Multiplication Algorithm
START
C, A ? 0 M ? Multiplicand Q ??Multiplier Count ? 0
No
Yes
Q0 1?
C, A ??A M
Shift C,A,Q Count ??Count 1
No
Yes
Count n?
END
34
Unsigned Binary Multiplication Example
(Y) (X)
M C A Q 1010 0 0000
1101 initialize registers count 0 testQ01
- 0 1010 1101 A AM -
0 0101 0110 shift C,A,Q
count1 testQ00 - 0 0010
1011 shift C,A,Q count2 test Q01 -
0 1100 1011 A AM - 0
0110 0101 shift C,A,Q count3 test
Q01 - 1 0000 0101 A
AM - 1 1000 0010 shift
C,A,Q count4 end
Product
35
Signed Binary Multiplication

• Many algorithms for signed multiplication exist,
  but the simplest one is similar to the one for
  unsigned multiplication except
• Shifts are arithmetic (sign bit is copied)
• Adder is 2s complement - carry out is ignored
• if the sign bit of the multiplier is 1 (it is
  negative) then the last arithmetic operation
  before the final shift is a subtraction vs. an
  addition
• A data path very similar to the one for unsigned
  multiplication can be used - the C register is
  not needed, the shift register must be
  arithmetic, and the adder must be modifed to do
  2s complement addition and subtraction
• The algorithm is also very similar with the
  exception of the final arithmetic operation

36
Signed Binary Multiplication Example
(Y3) (X
-5) M A
Q 00000011 00000000
11111011 initialize registers count 0
testQ01 - 00000011
11111011 A AM -
00000001 11111101 arithmetic shift A,Q
count1 testQ01 -
00000100 11111101 A AM -
00000010 01111110 arithmetic
shift A,Q count2 testQ00 -
00000001 00111111 arithmetic shift
A,Q count3 testQ01 -
00000100 00111111 A AM -
00000010 00011111 arithmetic
shift A,Q count4 testQ01 -
00000101 00011111 A AM -
00000010 10001111 arithmetic
shift A,Q count5 testQ01 -
00000101 10001111 A AM -
00000010 11000111 arithmetic
shift A,Q count6 testQ01 -
00000101 11000111 A AM -
00000010 11100011 arithmetic
shift A,Q count7 testQ01 -
11111111 11100011 A A-M (subtract
because X was neg.) -
11111111 11110001 arithmetic shift A,Q
count8 end
Product -15
37
Booths Algorithm for Signed Multiplication

• A more efficient algorithm was developed by Booth
  in 1951
• It uses a single bit register to the right of the
  least significant bit of Q called Q-1
• The action to be taken on the next step depends
  on the value of Q0 and Q-1
• if Q0Q-1 01 then A A M arithmetic shift
  A,Q,Q-1
• if Q0Q-1 10 then A A- M arithmetic shift
  A,Q,Q-1
• if Q0Q-1 00 or 11 then arithmetic shift A,Q,Q-1
• This algorithm is more efficient that the
  previous one in that it skips over groups of
  all 1s or all 0s

38
Booths Algorithm Datapath
Control Unit
n-Bit 2s Complement Adder/Subtractor
Multiplier
Q-1
Product
2n1 bit arithmetic shift register
39
Booths Algorithm
40
Booths Algorithm Example
(Y3) (X
-5) M A
Q Q-1 00000011 00000000
11111011 0 initialize registers
count 0 testQ0Q-110 -
11111101 11111011 0 A A - M
- 11111110 11111101
1 arithmetic shift A,Q,Q-1 count1
testQ0Q-111 - 11111111
01111110 1 arithmetic shift A,Q,Q-1
count2 testQ0Q-101 -
00000010 01111110 1 A AM
- 00000001 00111111 0
arithmetic shift A,Q,Q-1 count3
testQ0Q-110 - 11111110
00111111 0 A A - M -
11111111 00011111 1
arithmetic shift A,Q,Q-1 count4 testQ0Q-111
- 11111111 10001111
1 arithmetic shift A,Q,Q-1 count5
testQ0Q-111 - 11111111
11000111 1 arithmetic shift A,Q,Q-1
count6 testQ0Q-111 -
11111111 11100011 1 arithmetic
shift A,Q,Q-1 count7 testQ0Q-111 -
11111111 11110001 1
arithmetic shift A,Q,Q-1 count8 end
Product -15
41
Floating Point Numbers

• Fixed point numbers with a limited number of bits
  suffer from two problems
• limited range
• limited precision
• The solution is to use an equivalent
  representation to the decimal scientific notation
  of the form -2.72 X 10-2
• This format has four parts
• sign (,-) -
• significand (also sometimes called the
  mantissa) 2.72
• exponent -2
• base of the exponent 10

42
Fig 6.14 Floating-PointNumber Format

• s is sign, e is exponent, and f is significand
• base of the exponent is implied by the specific
  format
• radix point in the fraction is also implied
  (i.e., the fraction is really fixed point)

43
Signs in Floating-Point Numbers

• Both significand and exponent have signs
• A complement representation could be used for f,
  but sign magnitude is most common now
• The sign is placed at the left instead of with f
  so test for negative always looks at left bit
• The exponent could be 2s complement, but it is
  better to use a biased exponent
• If -emin ? e ? emax, where emin, emax gt 0, then
• e emin e is always positive, so e
  replaced by e
• emin is called the bias

44
Normalized Floating-Point Numbers

• There are multiple representations for a
  floating-point number
• If f1 and f2 2df1 are both fractions and e2
  e1 - d, then(s, f1, e1) and (s, f2, e2) have
  same value
• Scientific notation example 0.819 ??103 0.0819
  ??104
• A normalized floating-point number has a leftmost
  digitnonzero (exponent small as possible)
• Zero cannot fit this rule usually written as all
  0s
• In normal base 2, when the number is normalized,
  the bit to the immediate right if the radix point
  is always 1, so it can be left out
• So-called hidden or implied bit

45
Comparison of Normalized Floating Point Numbers

• If normalized numbers are viewed as integers, a
  biased exponent field to the left means an
  exponent unit is more than a significand unit
• The largest magnitude number with a given
  exponent is followed by the smallest one with the
  next higher exponent
• Thus normalized FP numbers can be compared forlt,
  ?, gt, ?, , ? as if they were integers
• This is the reason for the s,e,f ordering of the
  fields and the use of a biased exponent, and one
  reason for normalized numbers

46
Example 32 bit Floating Point Format
S
i
g
n
E
x
p
o
n
e
n
t
F
r
a
c
t
i
o
n
s
e
f
31
30
23
22
0

• MSB is sign bit
• 8 bit exponent to the left of the sign bit
• exponent is biased by 127
• exponent base is 2
• 23 bit significand
• normalized - radix point is to the left of the
  significand
• implied 1 to the left of the radix point yields
  24 bit effective significand
• The largest positive number that can be
  represented is

1.111111111111111111111112 X 2128
4.789048279756 X 1052
47
Numbers in the Example Format

• Example 3.0

Significand 11.000000000000000000000002
Exponent 000000002
Sign 02

• Normalization requires moving the radix point one
  place to the left

New exponent 000000012
New significand 1.100000000000000000000002

• Biasing the exponent requires adding 12710
  (11111112)

New exponent 100000002

• Now construct the final result (sometimes called
  packing)

Result 0 10000000 10000000000000000000000 2
Sign bit
Significand 1.12
Exponent
(leftmost 1 and radix point are implied)
48
Numbers in the Example Format (cont.)

• Example 4.6283 X 1015

4.6283 X 1015 1.027689044975 X 252
Exponent 01101002
Significand 1.000001110001011010100002

• Biasing the exponent requires adding 12710
  (11111112)

New exponent 101100112

• Significand is already normalized

• Now pack the final result

Result 0 10110011 00000111000101101010000 2
Sign bit
Significand
Exponent
(leftmost 1 and radix point are implied)
49
Comparison of Numbers in the Example Format

• Example 4.6283 X 1015 vs. 3.0

4.6283 X 1015
01011001100000111000101101010000 2
01000000010000000000000000000000 2
3.0

• Example 256.25 vs. 375.75

256.25
01000011100000000010000000000000 2
01000011101100101110000000000000 2
375.75

• Example 14.0 vs. 10.0

01000001011000000000000000000000 2
14.0
01000001001000000000000000000000 2
10.0
50
Floating Add, FA, and Floating Subtract, FS,
Procedure

• Add or subtract (s1, e1, f1) and (s2, e2, f2)
• 1) Unpack (s, e, f) handle special operands
• 2) Shift fraction of number with smaller exponent
  right bye1 - e2 bits
• 3) Set result exponent er max(e1, e2)
• 4) For FA and s1 s2 or FS and s1 ??s2, add
  significands, otherwise subtract them
• 5) Count lead zeros, z carry can make z -1
  shift left z bits or right 1 bit if z -1
• 6) Round result, shift right, and adjust z if
  rounding overflow occurs
• 7) er ? er - z check over- or underflow bias
  and pack

51
Decimal Floating-Point Add and Subtract Examples
Operands Alignment Normalize round
6.144 ?102 0.06144 ?104 1.003644
?105 9.975 ?104 9.975 ?104 .0005
?105 10.03644 ?104 1.004 ??105
Operands Alignment Normalize round
1.076 ?10-7 1.076 ?10-7 7.7300 ?10-9
-9.987 ?10-8 -0.9987 ?10-7 .0005 ?10-9
0.0773 ?10-7 7.730 ?10-9
52
Floating Point Add Example
91673.4375 - 01000111101100110000110010111000
357.75 - 010000111011001011100000000000
00
Unpack
91673.4375
10001111
1.01100110000110010111000
1.01100101110000000000000
357.75
10000111
Shift until exponents are equal
10001111
1.01100110000110010111000
0.0000000101100101110000000000000
10001111
Add Significands
10001111
1.0110011101111111001100000000000
Round
10001111
1.01100111011111110011000
Pack
92031.1875
010001111 01100111011111110011000
53
Another Floating Point Add Example
256.25 - 01000011100000000010000000000000 357.75
- 01000011101100101110000000000000
Unpack
256.25
10000111
1.00000000010000000000000
1.01100101110000000000000
357.75
10000111
Add Significands
10.01100110000000000000000
10000111
Renormalize
1.001100110000000000000000
10001000
Round
10001000
1.00110011000000000000000
Pack
614.0
010001000 00110011000000000000000
54
Fig 6.17 Hardware Structure for Floating-Point
Add and Subtract

• Adders for exponents and significands
• Shifters for alignment and normalize
• Multiplexers for exponent and swap of
  significands
• Lead zeros counter

55
Floating-Point Multiply ofNormalized Numbers

• Multiply (sr, er, fr) (s1, e1, f1)?(s2, e2, f2)
• 1) Unpack (s, e, f) handle special operands
• 2) Compute sr s1?s2 er e1e2 fr f1?f2
• 3) If necessary, normalize by 1 left shift and
  subtract 1from er round and shift right if
  rounding overflow occurs
• 4) Handle overflow for exponent too positive and
  underflow for exponent too negative
• 5) Pack result, encoding or reporting exceptions

56
Decimal Floating-Point Examples for Multiply and
Divide

• Multiply fractions and add exponents

Sign, fraction exponent Normalize round (
-0.1403 ?10-3) -0.4238463
?102 ?(0.3021 ?106 ) -0.00005
?102 -0.04238463 ?10-36 -0.4238
?102

• Divide fractions and subtract exponents

Sign, fraction exponent Normalize round (
-0.9325 ?102) 0.9306387 ?109 ?(
-0.1002 ?10-6 ) 0.00005 ?109
9.306387 ?102-(-6) 0.9306 ?109
57
Floating Point Multiply Example
201.5 - 01000011010010011000000000000000 14.0
- 01000001011000000000000000000000
Unpack
10000110
1.10010011000000000000000
201.5
1.11000000000000000000000
14.0
10000010
Multiply significands - add exponents (subtract
bias)
10000110
10000010

10.11000001010000000000000
1111111
-127
10001001
Normalize
1.011000001010000000000000
10001010
Round
1.01100000101000000000000
10001010
Pack
2821.0
01000101001100000101000000000000
58
Floating-Point Divide ofNormalized Numbers

• Divide (sr, er, fr) (s1, e1, f1)?(s2, e2, f2)
• 1) Unpack (s, e, f) handle special operands
• 2) Compute sr s1?s2 er e1- e2 fr f1?f2
• 3) If necessary, normalize by 1 right shift and
  add 1 to er round and shift right if rounding
  overflow occurs
• 4) Handle overflow for exponent too positive and
  underflow for exponent too negative
• 5) Pack result, encoding or reporting exceptions

59
Fig 6.15 IEEE Single-Precision Floating Point
Format

e e Value
Type 255 none none
Infinity or NaN 254 127
(-1)s?(1.f1f2...)?2127 Normalized ...
... ...
... 2 -125
(-1)s?(1.f1f2...)?2-125 Normalized 1
-126 (-1)s?(1.f1f2...)?2-126
Normalized 0 -126 (-1)s?(0.f1f2...)?2-1
26 Denormalized

• Exponent bias is 127 for normalized s

60
Special Numbers in IEEE Floating Point

• An all-zero number is a normalized 0
• Other numbers with biased exponent e 0 are
  called denormalized
• Denorm numbers have a hidden bit of 0 and an
  exponent of -126 they may have leading 0s
• Numbers with biased exponent of 255 are used for
  ? and other special values, called NaN (not a
  number)
• For example, one NaN represents 0/0

61
Fig 6.16 IEEE Standard,Double-Precision,
BinaryFloating Point Format

• Exponent bias for normalized numbers is 1023
• The denorm biased exponent of 0 corresponds to an
  unbiased exponent of -1022
• Infinity and NaNs have a biased exponent of 2047
• Range increases from about 10-38?x?1038 to
  about10-308?x?10308
