The Current Status and Future Direction of Geospatial Grid

1

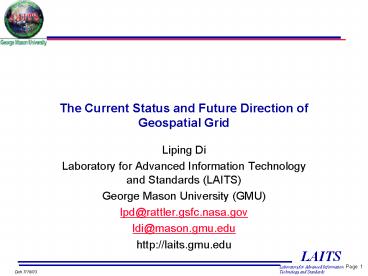

The Current Status and Future Direction of
Geospatial Grid

• Liping Di
• Laboratory for Advanced Information Technology
  and Standards (LAITS)
• George Mason University (GMU)
• lpd_at_rattler.gsfc.nasa.gov
• ldi_at_mason.gmu.edu
• http//laits.gmu.edu

2
The Grid Technology

• The Grid technology is developed for secured
  computational resource sharing and coordinated
  problem solving in dynamic, multi-institutional
  virtual organizations.
• Computer CPU cycles
• Storage
• Networks.
• Data, Information, algorithms, software,
  services.
• Human expertise.
• It was originally motivated and supported from
  sciences and engineering requiring high-end
  computing, for sharing geographically distributed
  high-end computing resources.
• The core of the technology is the the open source
  middleware called Globus Toolkit.
• The latest version of Globus is version 3.0 which
  implements the Open Grid Service Architecture
  (OGSA)

3
What Grid Provides

• Enabling new large-scale scientific research and
  applications through the coordinated use of
  geographically distributed resources
• E.g., distributed collaboration, data access and
  analysis, distributed computing
• Persistent infrastructure for Grid computing
• E.g., certificate authorities and policies,
  protocols for resource discovery/access

4
Why Now

• The key infrastructure for Grid is the high-end
  computing resouces. And the key enabling
  technology is the high-speed network.
• Moores law and highly functional end-systems
• Ubiquitous Internet Þ universal connectivity
• Network exponentials produce dramatic changes in
  geometry and geography
• 9-month doubling double Moores law!
• 1986-2001 x340,000 2001-2010 x4000?
• New modes of working and problem solving
  emphasize teamwork, computation
• New business models and technologies facilitate
  outsourcing

5
The Layered Grid Architecture
6
Grid Funding

• US government puts about 100m/year for Grid
  research (40) and infrastructure building (60).

• NASA is putting approximately 10 million per
  year
• DOEs Office of Science is putting at least
  7M/yr into Grid software development, deployment
  of the DOE Science Grid, and several major Grid
  application integration projects (high energy
  physics, earth sciences, fusion energy)
• NSF is putting 10-20M/yr into Grid software
  development and several major Grid application
  integration projects e.g.
• National Earthquake Engineering Systems Grid
  (bring all major US earthquake engineering
  instruments onto a Grid)
• National Virtual Observatory (a Grid application
  to provide uniform access to all major astronomy
  datasets)
• NSF is putting 50M/yr into its new Grid based
  supercomputer centers (Distributed Terascale
  Facility)
• UK eScience Grid is building a UK-wide science
  Grid (50M/yr )
• European Union Data Grid (high energy physics)
  7M/yr,EU GridLab (numerical relativity) 3M/yr,
  others.
• China, Japan.
• Currently most of Grid projects are in areas of
  Physics, Astronomy, Bioinformatics etc.
• Small part of those funding is used in the
  geospatial Grid research and development.

7
Why Grid is useful to the Geospatial community?

• Geospatial community is responsible for
  collection, management, processing, archive,
  distribution, and applications of geospatial data
  and information.
• Because of importance of geospatial data, many
  public and private organizations have been
  engaged in geospatial data and information
  activities. As such, Geospatial data and
  associated computational resources are naturally
  distributed.
• The multi-discipline nature of geospatial
  research and applications requires the integrated
  analysis of huge volume of multi-source data from
  multiple data centers. This requires sharing of
  both data and computing powers among data
  centers.
• Most geospatial modeling and applications are
  both data and computational intensive.
• Therefore, Grid is an ideal technology for the
  geospatial community.

8
Geospatial Grids

• Geospatial Grids in this presentation include
• Geospatial data and information Grids which
  emphasizes on data access and information
  services on large, distributed geospatial data
  archives.
• Geospatial computational Grids, mainly on
  coordinating the computational resources for
  large-scale Earth science modeling and
  applications. e.g., climate modeling.
• Or combination of both.
• Geospatial Grids are considered as the extensions
  and domain-specific applications of the
  fundamental Grid Technology in the geospatial
  disciplines.
• The power sources for geospatial data,
  information, and knowledge.

9
Why Needs the geospatial extensions of Grid

• Geospatial data and information are significantly
  different from those in other disciplines.
• Very complex and diverse.
• Formats, projection, resolutions.
• Hyper-dimensions spatial, temporal, spectral,
  thematic.
• Raster vs. vectors
• Large data volume
• more than 80 of data human beings has collected
  is spatial data.
• The geospatial community has developed a set of
  standards specifically for geospatial data and
  information that users have been familiar with.
  (e.g., OGC, ISO, FGDC).
• The core Grid technology is developed for general
  sharing of computational resources and not aware
  of the specialty of geospatial data.
• In order to make Grid technology applicable to
  geospatial data, we have to do the geospatial
  domain-specific extensions.

10
The Current Status of Geospatial Grids

• The geospatial community started to look into the
  potentials of the Grid technology about three
  years ago.
• Dozens of geospatial Grid projects are going on
  worldwide
• US, EU, Japan, China, CEOS
• Most of the projects are in the stage of learning
  the Grid technology and evaluating its
  applicability to the geospatial domain.
• A few prototype applications are being developed.
• Some projects are working on extending Grid for
  meeting the specific requirements of geospatial
  applications.
• No large-scale multi-organization, operational
  geospatial Grids are existing today.

11
Selected Geospatial Grid Projects
12
Selected Geospatial Grid Projects
13
The CEOS Grid Testbed

• Committee on Earth Observation Satellites (CEOS)
  is an inter-government organization responsible
  for coordinating the international civilian Earth
  observation (EO) activities.
• All major space agencies in the world are members
  of CEOS
• The CEOS Working Group on Information Systems and
  Services (WGISS) are responsible for exploring
  and coordinating the data and information
  technologies for EO.
• WGISS started to explore the potentials of Grid
  technology for EO in September 2001.
• The CEOS Grid Testbed was established in
  September 2002.
• Currently the testbed consists of six Grid
  prototypes supported by individual space
  agencies.

14
Objectives of the CEOS Grid Testbed

• Objective 1 (Phase I) Establish a CEOS Grid
  Technology Core Testbed with at least three major
  participating agency nodes. The purpose of the
  Grid Technology Core is to establish an immediate
  Grid capability base (including technologies,
  pilot applications, and knowledgeable people)
  within the participating CEOS agencies --
  Finished.
• Objective 2 (Phase II) Demonstrate at least
  three CEOS Grid-enabled Applications, each
  involving at least one CEOS agency and partner
  site which could include other CEOS agencies.
  The purpose of the Grid-enabled Application
  Demonstrations is to show proof of concept,
  evaluate benefits, and obtain lessons learned,
  from infusion of Grid technologies from the
  Technology Core into real CEOS agency information
  systems and applications on going, to be
  finished by the end of 2003.
• Objective 3 (Phase III) Infuse applicable Grid
  technologies into member agency information
  systems and into at least one WGISS Test Facility
  (WTF). The outcome of this Grid technology
  infusion would be to create a persistent CEOS
  Grid that would be available to support future
  CEOS agency initiatives.
• The ultimate goal of the CEOS Grid testbed is to
  establish a CEOS Data Grid that covers most of
  CEOS member agencies to support major
  international science and EO initiatives.

15
Applications in CEOS Grid testbed
16
Applications in CEOS Grid testbed
17
Future Directions-Research

• Both Grid and Semantic Web community adopted
  Service-Oriented Architecture (SOA).
• OGSA represents the next step in evolution of
  Grid technology.
• The research directions in geospatial Grids
• Extend the Grid functions to
• Make them spatially aware.
• Provide community-specified interfaces, data
  models, metadata-implement geospatial standards.
• Handle the complexity and diversity of geospatial
  data.
• Scale-up to handle petabytes of geospatial data.
• Enable geospatial services under OGSA
• The virtual geospatial datasets-geo-object,
  geo-tree, geospatial service modules, geospatial
  models.
• Development of geospatial service modules and
  models
• Service-based dynamic Geospatial model
  construction and execution under OGSA.
• Semantic/intelligent geospatial Grid
• intelligent geospatial Grids that can
  automatically generate answers to users
  questions.
• Ontology-driven automatic query decomposition and
  service model/workflow construction is the most
  promising approach.

18
Future Direction-Implementation

• Establishment of large-scale operational
  geospatial Grids for supporting operational
  sharing of geospatial data, information and
  resources at agency, national, or international
  levels.
• NASA EOS data pool Grid.
• National Geospatial Data Gridto be proposed very
  soon.
• EU data Grid.
• The CEOS Grid.
• With the current on-going research, establishment
  of such geospatial Grids will be technically
  feasible within two years.
• However, the implementation is not just a
  technical issue, it is also a
• policy issue- such as data policy.
• organization issue.
• Resource issue.
• Operational issue.

19
Lessons Learned for Building Large-Scale Grids

• The following slides are mainly from presentation
  given by Williams Johnston of NASA IPG.
• Those lessons-learned are mainly from building
  large-scale Grids in disciplines other than
  geospatial ones, but should be useful for
  building large-scale geospatial Grid.
• Establishing good working relationships among all
  of the people involved is essential.
• Successful Grids involve almost as much sociology
  as technology.
• Deploying Operational Human Infrastructure as
  early as possible
• Establish an Engineering Working Group that
  involves the Grid deployment teams at each site
• Set up liaisons with the systems administrators
  for all systems that will be involved.
• Identify the computing and storage resources to
  be incorporated into the Grid.

20
Lessons Learned for Building Large-Scale Grids

• Establishing good working relationships among all
  of the people involved is essential.
• Successful Grids involve almost as much sociology
  as technology.
• Deploying Operational Human Infrastructure as
  early as possible
• Establish an Engineering Working Group that
  involves the Grid deployment teams at each site
• Set up liaisons with the systems administrators
  for all systems that will be involved.
• Identify the computing and storage resources to
  be incorporated into the Grid.

21
Grid Information System

• Plan for a GIS/GIIS sever at each distinct site
  with significant resources
• this is important in order to avoid single points
  of failure
• Structure of the GIIS is one of the basic scaling
  issues for Grids

22
Cross Site Trust

• Set up or identify a CA to issue Grid user
  identity certificates the basis of the GSI
• the basic trust management mechanism
• The Certificate Policy Statement codifies how you
  will run your CA and to whom you will issue
  certificates
• cross site trust is based on this
• Dont try and invent your own CPS!
• Look at ESnet CP (envisage.es.net) and Grid Forum
  CP

23
Defining / Understanding the Extent of Your Grid

• The boundaries of a Grid are primarily
  determined by two factors
• what CAs you trust
• this is explicitly configured in each Globus
  environment
• however there is no guarantee that every
  resourcein what you think is your Grid trusts
  the same set of CAs i.e. each resource
  potentially has a different space of users
• in fact, this will be the norm if the resources
  are involved in multiple virtual organizations as
  they frequently are in the high energy physics
  experiment communities
• how you scope the searching of the GIS/GIISs
• this depends on the model that you choose for
  structuring your directory services

24
Maintaining Local Control

• Establish the conventions for the Globus mapfile
• maps user Grid identities to system UIDs
• this is the basic local control / authorization
  mechanism for each individual compute and storage
  platform

25
Take Good Care of the Users as Early as Possible

• Establish a Grid/Globus application specialist
  group
• they should be running sample jobs as soon as the
  prototype-production system is operational
• they should serve as the interface between users
  and the Globus system administrators to solve
  Globus related application problems
• Identify early users and have the Grid/Globus
  application specialists assist them in getting
  jobs running on the Grid
