Title: Nerve activates contraction


1

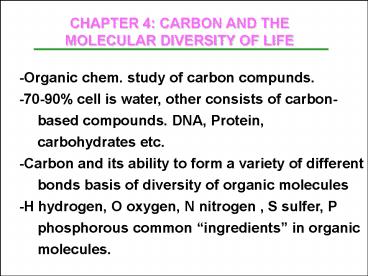

CHAPTER 4 CARBON AND THE MOLECULAR DIVERSITY OF
LIFE
  • -Organic chem. study of carbon compunds.
  • -70-90 cell is water, other consists of
    carbon-based compounds. DNA, Protein,
    carbohydrates etc.
  • -Carbon and its ability to form a variety of
    different bonds basis of diversity of organic
    molecules
  • -H hydrogen, O oxygen, N nitrogen , S sulfer, P
    phosphorous common ingredients in organic
    molecules.

2
Beginnings of organic chemistry
  • The Swedish chemist Berzelius
  • distinguished living things from non-living
    things by separating
  • organic chemicals present in living things and
    inorganic chemicals present in non-living

Vitalism Early 19th century
3
Vitalism
  • Initially it was believed that organic compounds
    have to be made by living things.
  • Such as
  • Simplest CO2 or CH4 to
  • - Complex macromolecules
  • (milk protein, sugars
  • Cellulose, pigments)
  • Only half a century later it was found not to be
    true e.g.

4
  • Organic compounds can be synthesized in lab
  • 1828 Friedrich Wöhler urea using inorganic
    starting materials.
  • In 1953, Stanley Miller simulated chemical
    conditions on the primitive Earth
  • synthesized organic compounds
  • such as amino acids, simple sugars etc.

Fig. 4.1
5
  • Organic chemistry was redefined as the study of
    carbon compounds regardless of origin.
  • The important points are
  • 1) Living things have innate capability to make
    organic compounds in an amazing diversity and
    complexity
  • 2) One can synthesize the same organic compounds
    outside the living things environment such as lab
    conditions and now in factories.

6
  • Advanced Biotech Co. Patterson, NJ

7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
Carbon atoms are the most versatile building
blocks of molecules
  • Carbon has 6 electrons
  • 4 in the outer most valance shell
  • Cannot transfer / or gain 4 electrons
  • Shares four electrons
  • Forming 4 bonds
  • tetravalence by carbon makes large, complex
    molecules possible.

11
Carbons tetravalence gives rise to many covaent
bonding alternatives
H-C-C-H
  • 4 single bonds
  • Two double bonds
  • One double, two single bonds
  • One triple, one single bond

H-CCC-H
H-CC-H
H-CC-H
12
Bonding
Double bond
Single bonds
Triple bond
13
  • Examples of small organic molecules
  • 1) CO2
  • In atmosphere
  • 2) Urea
  • Found in urin

180
CO2 Double bonds
O
C
H
H
N
N
H
H
14
How can carbon generate such diverse organic
molecules?
  • 1) Variation in Length/shape/size of the carbon
    chain
  • 2) Formation of Isomers
  • 3) Bonding with various functional groups

15
1) Variation in Length/shape/size of the carbon
chain
  • The skeletons may
  • 1) vary in length and may be straight, branched,
    or arranged in closed rings.
  • 2) may also include double and triple bonds.
  • Double and triple bonds have different bond
    lengths change shape of molecule due to bond
    length

16
Straight chains, simple carbon backbones
  • Hydrocarbons carbon and hydrogen atoms only!
  • Hydrocarbons are the major component of
    petroleum.
  • Hydrocarbons NOT present in living cells, but are
    regions of fat molecules.
  • Hydrophobic!!

17
  • Fats are biological molecules that have long
    hydrocarbon tails attached to a non-hydrocarbon
    component.

Fig. 4.5
18
Rings
  • Carbon skeletons can form ring structures
  • There can also be multiple rings such as steroid
    molecule

steroid
19
Branched, other shapes (examples)
  • Carbon backbone can be highly branched and a mix
    of rings, straight chains, branched areasall
    lend to great variety of molecules

20
  • Isomers
  • are such compounds that have same molecular
    formula
  • but different structural formula different
    chemical properties
  • Different types of isomers
  • 1) Structural isomers
  • 2) Geometrical isomers
  • 3) Enantiomers

21
  • Structural Isomers
  • molecules with the same molecular formula
  • but differ in the covalent arrangement of atoms.

C4H10
Fig. 4.6a
-as Benjamin Cummings
22
  • Geometric isomers
  • same covalent molecular formula
  • but differ in their spatial arrangement around a
    carbon-carbon double bond.
  • The double bond does not allow atoms to rotate
    freely around the bond axis.

-as Benjamin Cummings
23
  • Biological example of geometric isomer
  • The biochemistry of vision involves a
    light-induced change in the structure of
  • rhodopsin in the retina from one geometric isomer
    to another.

24
  • Enantiomers
  • molecules that are mirror images of each other
  • Enantiomers are only possible if there are four
    different atoms or groups of atoms bonded to a
    carbon.
  • Center carbon is called asymmetric carbon.

-as Benjamin Cummings
25
  • Like left-handed and right-handed versions.
  • Usually one is biologically active, the other
    inactive.
  • Cell can distinguish one over the other!
  • The following is an example of amino acid of
    which only one isomer is biologically active
  • Known as
  • R and S
  • or
  • D and L

26
  • Biological example of enantiomers
  • Thalidomide reduced morning sickness, its
    desired effect,
  • -but the other isomer caused severe birth
    defects.
  • The L-Dopa isomer is an effective treatment of
    Parkinsons disease,
  • but the D-Dopa isomer is inactive.

1957
27
Functional groups attachments that replace one
or more hydrogen atoms to the carbon skeleton of
the hydrocarbon
  • Each functional group has unique chemical
    properties
  • The common property shared by all these
    functional groups is
  • they are hydrophilic therefore increase
    solubility of organic compounds in water.

28
  • There are six functional groups that are most
    important to the chemistry of life
  • hydroxyl -OH
  • carbonyl -CO
  • carboxyl -COOH
  • Amino -NH2 OR NH3
  • sulfhydryl -SH
  • phosphate groups. -PO4

29
  • Hydroxyl group (-OH),
  • Organic compounds with hydroxyl groups are
    alcohols and their names typically end in -ol.
  • Found in carbohydrates

-as Benjamin Cummings
30
  • Carbonyl group (-CO) consists of an oxygen atom
    joined to the carbon skeleton by a double bond.
  • 2 types
  • Aldehyde carbonyl group is _at_ end of the
    skeleton
  • Ketone carbonyl group in not at the end.

31
  • Carboxyl group (-COOH)
  • carbon atom with a double bond with an oxygen
    atom
  • single bond to a hydroxyl group.
  • ACIDIC! carboxylic acids

32
  • Amino group (-NH2) consists of a
  • nitrogen atom attached to two hydrogen atoms

33
  • Organic compounds with amino groups are amines.
  • Forms basic, charged molecules.
  • Amino acids the building blocks of proteins, have
    amino and carboxyl groups.

amino acid structure
34
  • A sulfhydryl group (-SH)
  • sulfur atom bonded to a hydrogen atom
  • Organic molecules with sulfhydryl groups are
    thiols.
  • Important in protein folding

35
  • A Phosphate group (-OPO42-)
  • phosphorus bound to
  • four oxygen atoms (three with single bonds and
    one with a double bond).
  • Phospholipids, DNA, RNA, ATP

2 negative charges!
36
IDENTIFY THE FUNCTIONAL GROUPS
