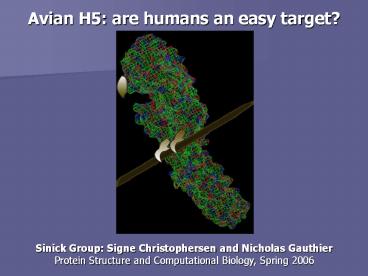

Avian H5: are humans an easy target?

1
Avian H5 are humans an easy target?
Sinick Group Signe Christophersen and Nicholas
GauthierProtein Structure and Computational
Biology, Spring 2006
2
Presentation Outline

• Introduction to H5
• Function
• Structure
• H5 Model
• Quality Validation
• H1/H5/H9 Comparisons
• Conclusions
• The Uncharacterized Protein
• Questions?

3
Introduction H5 Function

• Target cell attachment
• Target receptors consist of sialic acid residues
  of glycosylated receptor proteins
• prefers binding a2-6 in humans
• prefers a2-3 linkage in avian
• Release of viral contents into the cell
• Lower pH in endosome causes change in HA that
  induces fusion of cell and virus membrane

Image taken from (then modified)
http//www.ch.ic.ac.uk/local/projects/sanderson/im
munology.htm
4
Introduction H5 Structure 1

• Homotrimer of Heterodimers
• Synthesized in the cell as HA0
• Trimerizes and is transferred to cell surface

5
Introduction H5 Structure 2

• Proteolytically cleaved to yield HA1 and HA2
  which are held together by disulfide bonds
• HA1 is shown in blue
• It contains the receptor binding site which is
  bound to an a2-3 (avian) linkage
• HA2 is shown in green
• 20 residues at the N-terminal are involved in
  cell/virus fusion

6
Models of human H5

• Has avian H5 adapted to become human specific?
• Chose newest H5 isolated from human, DQ435202
• Create models using CPHmodels and HHPred
• Check quality of template
• Validate models
• Differences between H5 found in human and avian

7
Quality of Template
1JSM was chosen as template for both
models Resolution 1.9Å R 0.234 Rfree 0.264

• PROCHECK ramachandran plot
• Most favoured regions 84.9
• Additionally allowed regions 14.2
• Generously allowed regions 0.5
• Disallowed regions 0,5

8
Model Validation - ProQ
LG gt 2.5 very good model LG gt 4 extremely good
model MaxSub gt 0.1 fairly good model MaxSub gt
0.8 extremely good model
Template 1JSM CPH model
Template 1JSM HHPred model
9
Model Validation VERIFY3d
HA1
HA2
10
Receptor Binding Site
HHPred model CPH model Template, 1JSM
11
Receptor Binding Site
Differences between H5 avian and H5 human isolate
193
221
186
12
Receptor Binding Site
186 Av N Hu - S
193 Av K Hu - R
CPH model Template, 1JSM
13
Human Adaptation How Can it Happen

• Avian H1 can become human specific E190D and
  G225D
• Avian H3 can become human specific Q226L and
  G228S
• Mutations introduced into H5 (A/Vietnam/1203/2004
  )

14
Receptor Analogues
15
Avian H5 Receptor binding
E190
Q226
G228
G225
16
H1 vs. H5 Receptor Binding
Differences between H5 (1JSM) and H1 (1RVX)
17
H1 vs. H5 Receptor Binding
H1 N193 H5 K193
H1 D225 H5 G225
H1 P186 H5 N186
H1, a2-6 receptor, H5, a2-3 receptor
18
H9 from swine
a2-6 receptor a2-3 receptor
19
H9 vs. H5 Receptor Binding
Differences between H5 (1JSM) and H9 (1JSD)
20
H9 vs. H5 Receptor Binding
H9 V190 H5 E190
H9 L226 H5 Q226
H9 P186 H5 N186
H1, a2-6 H5, a2-3
21
Conclusion

• H5 has not been adapted for humans
• Mutations rendering H5 a2-6 specific have not
  been identified
• We propose that human adaptation of H5 might
  happen via an H9 pathway, including the
  mutations E190V and Q226L. Also, the mutations
  N186P, L193N and G225D and might play a role.
• We suggest performing mutational analysis
  (including these mutations), followed by analyses
  of receptor binding properties to gain further
  information of a possible human adaptation of
  bird flu.

22
Nonstructural Protein 1

• Structural model created from first 73 residues
• Structural model created using CPHmodels (shown
  at right)
• This domain is suggested to be a nucleic acid
  binding motif.
• Last 152 residues had no structural homolog

23
Nonstructural Protein 1 (cont)

• Using the remaining 152 residues we
• Used HHpred to predict folds (see at right)
• ProtFun predicted to be an enzyme (65),
  involvement in amino acid biosynthesis (28)
• SignalP no signal peptide, and is non-secretory
• TMHMM found no transmembrane regions

24
Questions?
Sinick Group Signe Christophersen and Nicholas
GauthierProtein Structure and Computational
Biology, Spring 2006
