Optimizing FMeasure with Support Vector Machines

1

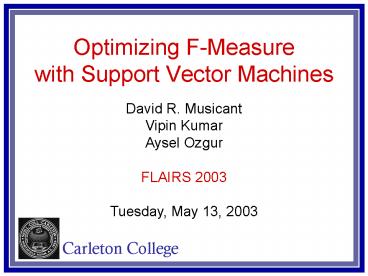

Optimizing F-Measurewith Support Vector Machines
David R. Musicant Vipin Kumar Aysel Ozgur FLAIRS
2003 Tuesday, May 13, 2003
Carleton College
2
Overview

• Classification algorithms often evaluated by test
  set accuracy
• Test set accuracy can be a poor measure when one
  of the classes is rare
• Support Vector Machines (SVMs) are designed to
  optimize test set accuracy
• SVMs have been used in an ad-hoc manner on
  datasets with rare classes
• Our new results current ad-hoc heuristic
  techniques can be theoretically justified.

3
Roadmap

• The Traditional SVM and variants
• Precision, Recall, and F-measure metrics
• The F-measure Maximizing SVM
• Equivalence of traditional SVM and F-measure SVM
  (for the right parameters)
• Implications and Conclusions

4
The Classification Problem
A
A-

• margin

Separating Surface
5
The Classification Problem

• Given m points in the n dimensional space Rn
• Each point represented as xi
• Membership of each point Ai in the classes A or
  A- is specified by yi 1
• Separate by two bounding planes such that
• More succinctlyfor i1,2,,m.

6
Misclassification Count SVM

• () is the step function (1 if ? gt 0, 0
  otherwise)
• Push the planes apart, and minimize number of
  misclassified points.
• C balances two competing objectives
• Minimizing w 0 w pushes planes apart
• Problem NP-complete, objective non-differentiable

7
Approx Misclassification Count SVM

• where we use some differentiable approximation,
  such as

• ? gt 0 is an arbitrary fixed constant that
  determines closeness of approximation.
• This is still difficult to solve.

8
Standard Soft Margin SVM

• Push the planes apart, and minimize distance of
  misclassified points.
• We minimize total distances from misclassified
  points to bounding planes, not actual number of
  them.
• Much more tractable, does quite well in
  optimizing accuracy
• Does poorly when one class is rare

9
Weighted Standard SVM

• Push the planes apart, and minimize weighted
  distance of misclassified points.
• Allows one to choose different C values for the
  two classes.
• Often used to weight rare class more heavily.
• How do we measure success when one class is rare?
  Assuming that A is the rare class

10
Measures of success

• Precision and Recall are better descriptors when
  one class is rare.

11
F-measure

• F-measure commonly used average of precision
  and recall
• Can C and C- in the weighted SVM be balanced to
  optimize F-measure?
• Can we start over and invent an SVM to optimize
  F-measure?

12
Constructing an F-measure SVM

• How do we appropriately represent F-measure in an
  SVM?
• Substitute P and R into F
• Thus to maximize F-measure, we minimize

13
Constructing an F-measure SVM

• Want to minimize
• FP misclassified A-FN misclassified A
• New F-measure maximizing SVM

14
The F-measure Maximizing SVM

• Approximate with sigmoid
• Can we connect with standard SVM?

15
Weighted misclassification count SVM
F-measure maximizing SVM

• How do these two formulations relate?
• We show
• Pick a parameter C.
• Find classifier to optimize F-measure SVM.
• There exist parameters C and C- such that
  misclassification counting SVM has same solution.
• Proof and formulas to obtain C and C- in paper.

16
Implications of result

• Since there exist C, C- to yield same solution
  as F-measure maximizing SVM, finding best C and
  C- for the weighted standard SVM is the right
  thing to do.(modulo approximations)
• In practice, common trick is to choose C, C-
  such thatThis heuristic seems reasonable but
  is not optimal. (Good first guess?)

17
Implications of result

• Suppose that SVM fails to provide good F-measure
  for a given problem, for a wide range of C and
  C- values.
• Q Is there another SVM formulation that would
  yield better F-measure?A Our evidence suggests
  not.
• Q Is there another SVM formulation that would
  find best possible F-measure more directly?A
  Yes, the F-measure maximizing SVM.

18
Conclusions / Summary

• We provide theoretical evidence that standard
  heuristic practices in using SVMs for optimizing
  F-measure are reasonable.
• We provide a framework for continued research in
  F-measure maximizing SVMs.
• All our results apply directly to SVMs with
  kernels (see paper).
• Future work attacking F-measure maximizing SVM
  directly to find faster algorithms.

19
The Classification Problem
A
A-

• Which line is the better classifier?

20
The Classification Problem
A
A-

• margin

Separating Surface
21
Hard Margin SVM

• Push the planes as far apart as possible, while
  maintaining points on proper sides of bounding
  planes.
• Distance between planes
• Minimizing w 0 w pushes planes apart.
• What if there are no planes that correctly
  separate classes?
