CSC 262

1

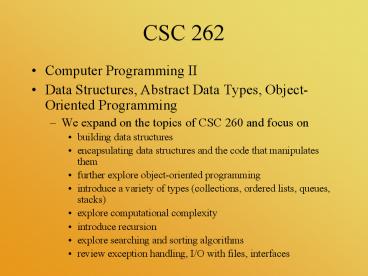

CSC 262

• Computer Programming II
• Data Structures, Abstract Data Types,
  Object-Oriented Programming
• We expand on the topics of CSC 260 and focus on
• building data structures
• encapsulating data structures and the code that
  manipulates them
• further explore object-oriented programming
• introduce a variety of types (collections,
  ordered lists, queues, stacks)
• explore computational complexity
• introduce recursion
• explore searching and sorting algorithms
• review exception handling, I/O with files,
  interfaces

2
Chapter 1 Software Development

• Phases of the software development lifecycle
• Specification of the task
• Design of the solution
• Implementation of the solution (coding)
• Analysis of the solution
• Testing and debugging
• Maintaining and evolution of the system
• Obsolescence
• We will combine 4 and 5, add Documentation to
  6, and remove 7!
• Before we examine the software lifecycle in
  detail, lets look over some definitions

3
Definitions

• Object-oriented programming (OOP)
• taking ADTs further by including such abilities
  as inheritance, message passing and polymorphism
• Code Reuse
• a feature of OOP supported by inheritance the
  ability to reuse a previously written class
  through inheritance
• Procedural Abstraction
• an older form of abstraction, using methods
  (procedures) to perform specific tasks. This is
  a way to implement information hiding

• Data Structures
• collection of data in some organization
• Encapsulation
• collecting data structures and the operations
  that manipulate them into one structural entity
  (one definition or package or file)
• Information Hiding
• ensuring that outside users of a data structure
  cannot directly manipulate the data structure,
  but instead, force the outsider users to
  manipulate the data structures through the
  encapsulated operations
• Abstract Data Type (ADT)
• a data structure which provides both
  encapsulation and information hiding

4
Problem Specification

• The first stage in the software development
  lifecycle is to clearly specify the problem
• Specification includes
• Understanding the problem
• Coming up with a platform for the solution (what
  language, what machine type, what is the input,
  what should the output look like?)
• The specification should be provided in a formal
  way to be referenced by others involved in the
  problem solving efforts
• We will not only create specifications for the
  problem in general, but for each class and each
  method
• The book uses this approach to aid development of
  example code get used to it!

5
Example Specification

• Example a method to convert from Celsius to
  Fahrenheit
• Public static double celsiusToFahrenheit(double
  C)
• Convert a temperature from Celsius degrees to
  Fahrenheit degrees
• Parameters
• c a temperature in degrees Celsius
• Precondition
• c - 273.16
• Returns
• The temperature c converted to Fahrenheit degrees
• Throws List
• IllegalArgumentException indicates that c is
  less than the smallest Celsius temperature
  (-273.16)

• A method specification will consist of
• a short introduction (including the complete
  header of the method),
• a description of the parameters,
• preconditions,
• description of what is to be returned (the
  methods postcondition),
• and throws lists (what exceptions, if they
  arise, should be thrown)

6
Providing Specifications

• It is important that a programmer provide the
  specifications for how a method is intended to be
  used
• This information can help another programmer use
  the method correctly
• Place the preconditions and postcondition(s) in
  comments prior to the method itself
• In Java, this information can be viewed in a
  .class file even though you cant see the code
  itself

// Precondition x 0. // Postcondition
The square root of x has // been written to
the standard output. public void writeSqrt(
double x)
// Precondition letter is an uppercase or //
lowercase letter (in the range 'A' ... 'Z, 'a'
... 'z') // Postcondition The value returned
by the // method is true if letter is a
vowel // otherwise the value returned by the
method is // false. public boolean isVowel(
char letter )
7
Design

• Perhaps the most critical phase of the software
  cycle is the design
• Here, we figure out how to solve the problem by
  creating the design of the program
• The design is created using decomposition
• This indicates what components are needed in the
  design what methods, and how they will relate
  to each other
• We sometimes create a top-down design to
  illustrate this decomposition
• Next, we specify the sequence of operations using
  an algorithm, written in pseudocode
• Thus, we create a design in at least two levels
  of specificity, if not more
• Older designs used flowcharts to indicate control
  flow, pseudocode is adequate for this

8
Example Decomposition

• Problem create a conversion chart between
  Celsius and Fahrenheit for temperatures between 0
  and 100 C (by units of 10)
• Design
• Display the labels at the top of the chart
• Repeat for each line in the chart
• Set celsius equal to the next Celsius temperature
• Compute fahrenheit given celsius
• Print celsius rounded to nearest hundredth
• Print the letter C
• Print some blank spaces
• Print fahrenheit rounded to the nearest hundredth

• Print the letter F
• Return the cursor
• Print lines to indicate the bottom of the table
• - indicates that these instructions can be done
  using separate methods to promote procedural
  abstraction

9
Implementation

• Given a good design, creating the program is
  easy!
• The decomposition illustrates the following
• Control structures
• a loop, what kind?
• Since we know the starting and ending points, a
  for loop
• Variables
• celsius
• fahrenheit
• a loop variable
• we can use constants or literals for 0 and 100
• Methods
• rounding off a value to the nearest hundredth
• converting Celsius to Fahrenheit

10
Exception Handling

• The decomposition did not tell us what exceptions
  to handle
• We need to think about this when specifying a
  method
• Exceptions situations that arise that might be
  of interest or might cause a run-time error
• Exception Handlers code that will handle an
  exception when it arises
• Java offers many built-in exceptions and
  exception handlers that we can use, or we can
  build our own

11
Three ways to handle Exceptions

• Add throws exceptiontype to the method header
• If that type of exception arises, the method will
  execute throw exceptiontype which is handled by
  that class exception handler
• Example add throws IOException to the method if
  it is suspected that the method may contain an IO
  exception note that this requires importing the
  IOException class
• Use if statements to explicitly look for an
  exception and if found, throw the exception
• Example
• if (c n (Argument c is too small)

• Place the code that might raise the exception in
  a try-catch block
• try // code goes here
• catch (exceptiontype e) // code goes here

• You can have as many catch blocks as you want,
  one for each type of exception that might be
  caught

12
How and When to Throw Exceptions

• When
• if there is a situation where your program may
  cause a run-time error, use an exception handler
• How
• Using throws Exception will cause the program to
  terminate, not necessarily a good move
• You can explicitly look for an exception and if
  found, throw it
• this will also cause the program to terminate,
  but the message you include may provide you a
  clue in debugging the program
• try catch block is useful if you do not want
  the program to terminate

// Precondition x 0. // Postcondition
Square root of x has been written to standard
output public void writeSqrt( double x) if
(x
(Negative x)
13
Computational Complexity

• There are numerous ways to solve a problem
• What makes one way better than another?
• Simplicity
• Accuracy
• Correctness
• User-friendliness
• Computational Complexity

• Computational Complexity is a mathematical way to
  determine how efficient your code is
• Book refers to this as run-time analysis
• Count the number of instructions executed for
  your algorithm when executed on input of size n
• We can compare algorithms to determine which has
  the best computational complexity
• It turns out that the complexity of an algorithm
  has more of an impact on a computers performance
  than the speed of the processor

14
Example Stairs Counting

• You and a friend are at the top of the Eiffel
  Tower
• Your friend asks how many steps are there?
• 3 approaches
• Walk down and keep a tally for each step, write
  a mark on a sheet of paper, then return to the
  top
• Have your friend keep tally, each time you get to
  a new step, put your hat there, run back up and
  tell your friend to write another mark, then go
  back to the step with your hat and repeat until
  you have reached the bottom, then return to the
  top
• Ask someone else!

15
Complexities of the 3 Approaches

• The Eiffel Tower has 2689 steps
• First approach walk down 1 step, write a check
  mark, walk down second step, write a checkmark,
  etc until you reach the bottom, then return
• 2689 steps, so 2689 2 operations going down
  plus 2689 steps returning, or 2689 3 8067
  operations
• Second approach walk down one step, return to
  the top to tell your friend to make a mark,
  repeat for step 2 (2 down, 2 back, mark) and for
  step 3, etc until you reach the bottom
• Takes 2 (1 2 3 2689) 2689 total
  operations
• Note that 1 2 3 n n (n 1) / 2, for
  n 2689, this is 3,616,705
• The second approach then takes 3,616,705 2
  2689 7,236,099 operations!
• Third approach ask someone then pass on the
  answer, 2 operations (1 input and 1 output)

16
Big-O Notation

• This defines the computational complexity of some
  code given input of size n
• If the number of operations is bounded by f(n)c,
  where f is a function and c is some constant,
  then we say that the complexity of the code is
  O(f(n))
• We boil down Big-O notation to one of
• O(1) constant time
• O(log n) logarimthic time
• O(n) linear time
• O(n log n)
• O(n2) quadratic time
• O(nx) some other polynomial time
• O(2n) exponential time

17
Eiffel Tower Solution Complexities

• Solution 1 took 3 2689 operations
• This is 3 n or c n, so this becomes O(n)
• Solution 2 took 2 (1 2 3 2689) 2689
  2 (n (n 1) / 2) 2689 2 n2 / 2
  n / 2 n
• This has the form c1 n2 c2 n n
• We round this off to c1 n2 which is O(n2)
• Solution 3 took 2 steps (1 input, 1 output)
• Notice that no matter how many steps there were,
  we have a constant number of operations, 2, so
  this is O(1)
• If the Eiffel Tower had 1,000,000 steps instead
  of 2689, solutions 1 and 2 will have a different
  number of operations but solution 3 will stay
  take 2 operations

18
Comparison of Complexities
19
Best/Average/Worst Case

• Notice in our Eiffel Tower example
• the three complexities were based on the size of
  n, but no other factors
• Some algorithms are not only dependent on the
  size of the input, but what the input is
• Consider searching for an item in a list where
  the item is the first item, how long does it
  take?
• What if you are looking for an item and it is the
  last item?
• Problems that are input-dependent may have
  different complexities depending on the input

• These describe best versus worst-case situations
• Best case the complexity of the algorithm when
  the input is in such a form that it provides the
  for the least number of operations necessary
• Worst case the complexity of the algorithm when
  input is in a form that requires the most number
  of operations necessary
• Average case the complexity required to solve
  the average problem (or on average, what is the
  complexity?)

20
Example Sequential Search

• Here is a simple loop to find the location of a
  particular item in an array
• while(target!ai) i
• Assume the array stores n items
• Best case complexity O(1) find it in the
  first location
• Worst case complexity O(n) find it in the
  last location (or it is not found at all)
• Average case complexity on average, we will
  find the item in location (n/2) giving a
  complexity of O(n/2) which is O(n c) or O(n)
• We can also compute this by finding the number of
  operations needed to find every element, and
  dividing the result by n
• What is the complexity of searching using a
  for-loop?
• for(i0i

21
Example Selection Sort

• for(j0j
• smallest aj
• location j
• for(kjk
• if (ak
• smallest ak
• location k
• temp aj
• aj alocation
• alocation temp

• Two for-loops
• Outer loop iterates from 0 to n-2
• Inner loop iterates from j to n-1
• the first time it iterates n-1 times
• the second time it iterates n-2 times
• the third time it iterates n-3 times
• the last time it iterates once
• The number of operations is then
• (n-1) (n-2) (n-3) 1
• this is equal to n (n-1) / 2
• Therefore, Selection Sort has complexity of O(n2)
  so it has the same best, worst and average case
  complexity

22
Example Insertion Sort

• We have a for-loop and a nested while loop
• How many times will the for-loop iterate? n-1
• How many times will the inner while loop iterate
  each time through?
• could be 0, could be j, so somewhere between 0
  and j
• The number of operations range between
• n-1 1 to n-1 j
• where j goes from 1 to n-1
• Best case O(n)
• Worst case O(n2)
• Average case O(n2)

• for(j1 j
• current aj
• position j
• while(position 0
• aposition-1 current)
• aposition aposition-1
• position--
• aposition current

23
Testing and Debugging

• The last phase of the software lifecycle that we
  will consider in this course
• How do you determine if your program is working
  correctly?
• Test it out on a variety of data
• Know the correct output when you test your
  program!
• What data?
• Try boundary values
• Try values outside of legal ranges to see if your
  exceptions are handled properly
• The book contains some tips on debugging, see
  pages 30-31
