Title: Finding Photospheric Flows with I LCT


1

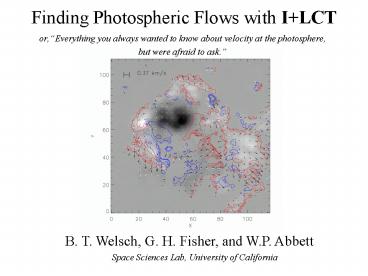

Finding Photospheric Flows with ILCT
  • or,Everything you always wanted to know about
    velocity at the photosphere,
  • but were afraid to ask.

B. T. Welsch, G. H. Fisher, and W.P. Abbett
Space Sciences Lab, University of California
2
Outline
  • Context Why do we care?
  • Background What has been done before?
  • ILCT Whats this new approach?
  • Results How well does it work?
  • Punchline What have we learned?

3
Context Why study photospheric velocities?
  • Coronal magnetic field flares and/or erupts.
  • Can affect Earth satellites, power grids, etc.
  • We dont know how flares/eruptions work!
  • But wed like to know!
  • Clearly magnetically driven
  • Evolution of the coronal magnetic field is driven
    (primarily?) by evolution of the field at the
    photosphere.

4
Q How do photospheric flows affect corona?
  • Coronal field is line-tied to photospheric
    field drive coronal MHD code with observed
    photospheric B(x,y,t) and v(x,y,t) MURI goal
  • Flux of energy into corona (Poynting)
  • Flux of helicity into corona
  • ( is inward normal to corona, ? is perp to
    not B!)

5
Background How have flows in magnetic
photosphere been measured?
  • Doppler can give line-of-sight velocity.
  • Magnetogram data B(x,y) alters line profile, so
    interpreting line shift in magnetogram data as
    Doppler shift is not necessarily appropriate!
    (Why? Ask Metcalf!)
  • Other data sets often unavailable.

6
Previous methods, contd
  • Local Correlation Tracking (LCT) finds shifts
    that maximize local correlation functions between
    successive images (white light, G-band, etc.)
  • To drive MHD codes, correlate photospheric
    magnetograms (chromospheric probly better!)
  • Shifts are features apparent transverse
    velocities, , not real flow v?

7
Demoulin Berger (Sol. Phys. 2003) showed
isnt necessarily just horizontal motion
  • Apparent horizontal motion can be true horizontal
    motion, or vertical motion of a tilted flux tube.

8
What are the implications of the DB conjecture
for determining vz, v? ?
  • One additional equation can close system!
  • Since velocities along B cant change Bz , we
    assume
  • (According to DB, assuming v?
    implies vz 0.)

9
Then algebra yields all components of v!
  • B is averaged from times ti, ti1, so
  • uLCT and v? are flows at ti1/2
  • Need vector B!
  • Derived flows should be consistent with

10
Apply to solar data!
  • NOAA A.R. 8210, 1 May 1998
  • Halo CME on this day MURI/SHINE event
  • IVM data 15 magnetograms, 18 min. cad.
  • CME shortly after IVM sequence.
  • Reduced by Stephane Regnier at M.S.U.
  • One of two data sets with vector magnetogram
    coverage around time of halo CME, with good
    interplanetary coverage (Canfield Li).

11
LCT movie to follow. Details
  • G. Fishers LCT code --- standard FFT correlation
    function
  • Sub-region of MDI full-disk magnetogram
  • 24 hours, 15 min. cadence, 5 min. avg.d
  • 100 G threshold normal field strength
  • Ran separately on (/-) masks, then combined ---
    significant difference near PIL.

12
(No Transcript)
13
Now use LCT w/DB to find v
  • Used first and last images in IVM sequence
  • higher cadence led to spurious shifts
  • 4 hours elapsed time
  • LCT with 50 G threshold, (/-) masks

14
Vectors are v?(km/s), contours are vz (red
receding, blue approaching).
15
The DB conjecture also greatly simplifies the
z-component of the ideal induction equation
  • (Only z-component is completely determined by
    photospheric vector magnetograms.)
  • Since and Bz are known, we can compute
    expected from , and
    compare it with the observed .

16
(No Transcript)
17
(No Transcript)
18
To get flow consistent w/LCT indn eqn
  • Express u as
  • Div. gives Poissons equation for f
  • Approximate uILCT by uLCT and take curl to get
    Poissons equation for y

19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
Q How to check accuracy of methods?
  • Compare with ANMHD simulations!
  • Generate false magnetograms with this anelastic
    MHD code --- velocities known!
  • Want , so simulate flux emergence.
  • Simulate convection, too, while youre at it.
  • Can test both LCT and algebraic method!

24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
Still working on this! Current issues
  • z component of induction equation does not
    adequately constrain v !
  • Both LCT z-comp. of ind. eqn. ignore evolution
    of B? --- bad for simulations!
  • codes B? can diverge from observed B?
  • MHD codes require specification of data in
    guard/ghost cells below z 0!
  • Metcalfs Na D line method can be used to measure
    , so other comps of ind. eqn. can
    be used to derive velocities.

34
Sources of Error
  • Inaccuracy in DB approximation.
  • Diffusion ignored!
  • Evolution of emerging field ignored over Dt.
  • Errors in maggram data, esp.
  • LCTs intrinsic errors
  • Aliasing
  • Many flows possible w/ , so
    LCT fails
  • Comparisons with MHD simulations are apples to
    oranges?
  • ???

35
Tests of ILCT with other data?
  • Use shift of line center from magnetogram
    inversion to find Doppler shift. (Messy work ---
    ask Metcalf!)
  • Use SOI/MDI data (w/five-minute oscillations
    removed) to determine vz?
  • Compare LCT on magnetograms with LCT on other
    features (e.g., white light).
