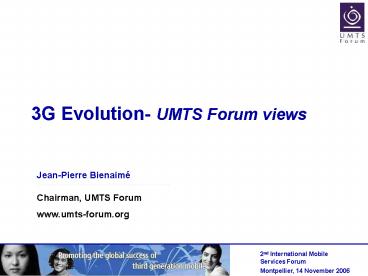

3G Evolution- UMTS Forum views

Jean-Pierre Bienaimé
Chairman, UMTS Forum www.umts-forum.org
2
About The UMTS Forum
The UMTS Forum is an international, cross-sector
industry body comprising operators,
manufacturers, regulators, application
developers, research organisations and IT
industry players.

• OBJECTIVES
• To promote a common vision of the development and
  evolution of 3G/UMTS and to ensure its worldwide
  commercial success
• by expressing a strong industry voice promoting
  3G/UMTS technology and its evolutions through
  lobbying and promotional actions globally
• by forging dialogue between operators,
  manufacturers, administrations regulators, and
  other market players that can ensure commercial
  success for all
• by providing market knowledge to aid rapid
  development and uptake of new services and
  applications
• To provide practical support to industry,
  administrations and policy-makers
• by offering guidance to governmental and
  financial communities, providing marketing input
  to technical standardization bodies (the Forum is
  a Market Representation Partner of 3GPP), and
  advising on spectrum requirements both for the
  present and future 3G systems
• through its membership of the three sectors of
  ITU, in the activities of which it participates
  regularly - such as the ITU-R WP8F in view of
  preparation for the next World Radio Conference
  2007 (WRC-07)

The UMTS Forum serves the interests of all its
members through educational and promotional
activities in its role as the voice of the 3G
mobile market.
3
UMTS Forum Key Focus Areas
Work-plan 2006 in summary

4
The mass market embraces 3G/UMTS
Some big numbers
Almost 130 million 3G subscribers worldwide,
including more than 92 million 3G/UMTS subscribers
about 3 times as many UMTS/W-CDMA subscribers as
CDMA2000 EV-DO worldwide
Around 130 W-CDMA networks launched commercially
More than 65 HSDPA networks launched commercially
Over 400 W-CDMA/HSDPA devices launched or
announced
Industry sources including Wireless Intelligence,
November 2006
5
3G EDGE Global deployment status

6
Complementary EDGE / WCDMA deployments in Europe

7
A regional viewAsia Pacific and W. Europe
largest W-CDMA markets
Total global W-CDMA subscriber base 92 million
(November 2006)
Source Wireless Intelligence
8
3G Operator Evolution Options
3G/UMTS
PDC
HSDPA/ HSUPA
TD-CDMA
TD-SCDMA
GSM
GPRS
W-CDMA
90
TDMA
EDGE
CDMA One
CDMA2000 1x RTT
CDMA2000 1x EV-DV
CDMA2000 1x EV-DO
ENHANCED 3G
2G
2.5G
3G
9
HSDPA (High Speed Downlink Packet Access)The
next step in evolution of the 3GPP air interface
HSDPA high speed mobile broadband, enabling a
wide variety of high bandwidth multimedia
services including - high quality streaming
video, - fast downloads of high resolution
images and large files, - interactive e-mails
gaming, - telematics,

• Compared with WCDMA, HSDPA
• increases throughput (2?14.4 Mbps) total and
  average per user
• reduces latency
• increases data capacity up to 5x in dense urban
  environments (micro-cells)

10
HSDPA Global deployment status

11
HSDPA Now a market reality
- 65 HSDPA networks already in commercial
service- 60 HSDPA networks planned, in trial or
in deployment

• EUROPE
• Orange France launched September 06
• T-Mobile Germany-Austria Hungary
  launched March 06 May 06
• Mobilkom Austria launched Jan 06
• H3G Italy launched Feb. 06
• Amena (Spain) launched June 06
• Vodafone Germany-Portugal Italy-Spain-UK-Romani
  a launched Mar. 06 June 06
• SFR (France) launched June 06
• Optimus Portugal launched April 06
• Elisa Finland Estonia launched April 06
• Swisscom Switzerland launched Mar. 06
• TIM (Italy) launched May 06
• Mobiltel Bulgaria launched March 06
• Eurotel Czech Rep. launched Apr. 06
• Cosmote Greece launched June 06

• ASIA PACIFIC
• NTT DoCoMo launched September 06
• SmarTone Hong Kong launched June 06
• SKT KTF Korea launched May July 06
• Dialog Telecom Sri Lanka launched August 06
• TIME dotCom Celcom (Malaysia) June 06
• Smart Com Globe (Philippines) April 06

• MIDDLE EAST / AFRICA
• Wataniya Kuwait launched Feb. 06
• Etisalat UAE launched April 06
• MTN Vodacom (RSA) launched March 06
• Mobily Etisalat STC (Saudi Arabia) June 06

• NORTH AMERICA
• Cingular ATT US launched Dec 05
• Rogers Wireless Canada in trial

plus HSUPA launches from 2007
12
Mobile Broadband strategies in EuropeSelected
examples of HSDPA operator offerings

• ORANGE FRANCE
• HSDPA services introduced for business customers
  in summer 2006, followed by mass-market consumer
  offering by Christmas 2006
• 2-3 handsets available from launch (Samsung,
  Nokia, Motorola)
• 3G available in 24 new cities since beginning of
  2006
• Complementary EDGE coverage reached 93 POP by
  May 2006

• VODAFONE UK
• Launched HSDPA business service as 3G
  broadband brand in June 2006
• Accessible via Mobile Connect Card, exclusive
  laptops from Dell, Acer Lenovo, or by HSDPA
  network router for office workgroups
• Data Unlimited price plan offers 1GB per month
  for 65

• T-MOBILE GERMANY
• HSDPA available in entire WCDMA network (1,000
  towns) by June 2006
• Three Web and Walk HSDPA / WLAN boxes
  available from September, with three flat-rate
  data tariffs up to 5GB per month for 50
• HSDPA integrated LIFEBOOK notebook PC from
  Fujitsu Siemens

• AMENA SPAIN
• HSDPA commercial launch June 2006
• 29 POP initial coverage in Madrid, Barcelona,
  Seville and major cities
• 41 POP targeted by late 2006

13
Wireless Networks Will Co-Exist
Source WiMAX Forum
LAN
PAN
WAN
MAN
WiMAX 802.16,HiperMAN Broadband

3G HSDPA WCDMA EDGE GPRS
Wi-Fi 802.11

UWB and Bluetooth
RFID/ TAG
The Result Always Best Connected
14
WiMAX Services Applications Roadmap

• 2005 Fixed Outdoor
• E1/T1 level service for enterprises
• Backhaul for hotspots
• Limited residential broadband access

• 2006 (802-16d) Fixed Indoor
• Indoor last mile access for consumers
• Wireless DSL
• Metrozone / Enterprise campus piconet

2007/2008 (16e) Portable/Mobile - Portable
broadband access for consumers - Always best
connected
Metrozone
Portable/Mobile
Fixed Outdoor
Fixed Indoor
Backhaul
Enterprise Campus Piconet
Wi-Fi Hotspot
15
WLAN / WiMAX complementary to 3G/UMTS

• WLAN gives hot spot coverage
• WiMAX extends coverage to metropolitan area
  networks
• 3G/UMTS gives full mobility

• WLAN is useful for high-speed Internet/Intranet
  access for low mobility stationary users
  (especially corporates)
• WLAN coverage of a major city may require
  typically approx 1001 as many access points
  compared with number of UMTS base stations for
  equivalent coverage WLAN also requires
  substantial investment in backhaul capacity
• Concerns regarding WLAN performance when hot
  spot capacity is shared by a large number of
  simultaneous users
• WiMAX broadband wireless access (BWA) system
  for metropolitan area networks
• 3G/UMTS offers benefits of wide area coverage,
  full mobility, integral security, roaming, full
  integration with charging/billing systems

WLAN WiMAX coupled/combined with 3G/UMTS/HSPA
will offer mobile broadband for EVERYBODY and
EVERYWHERE, whatever the technology and access
mode
16
Technology Trends - HSPA in a bigger picture
Throughput Mbps
IMT Advanced LTE / Super3G
100M
802.xx
HSDPA HSUPA
10M
IP Optimization
1M
W-CDMA R99
Low
Mobility Source NEC
High
17
3G/UMTS Long Term Evolution (LTE) basic
principles

• HSPA is the first progressive step toward
  delivering triple play (telephony, broadband
  and TV) in a mobile broadband environment
• Likely acceptance of mobile broadband and mobile
  triple play will raise the need for evolved UMTS
  therefore it is vital that operators ensure the
  long term competitiveness of 3G infrastructure
• The 3GPP RAN Long Term Evolution (LTE) task force
  was created at end 2004, notably considering the
  Super 3G proposal of NTT DoCoMo
• The proposed RAN architecture, placing increasing
  functionality within the NodeB, will be based on
  IP routing with existing 3G spectrum, providing
  speeds up to 100 Mbps by using channel
  transmission bandwidth between 1.25MHz and 20MHz
• 3GPP Evolved UMTS specifications should target
  availability of commercial products around
  2008-2010

18
3G/UMTS Evolution UMTS / HSDPA in context of
other wireless technologies

• W-CDMA and its enhancement HSDPA cover the
  biggest area in the diagram of mobility vs.
  user rate
• WiMAX technologies (IEEE802.16d/e) are bandwidth
  scalable and cover additional areas for fixed
  wireless and nomadic access

Wireless Technology Positioning
Mobility / Range
High Speed
Vehicle
VehicularRural
FlashOFDM (802.20)
VehicularUrban
GSMGPRS
3G/WCDMA
Pedestrian
Walk
HSDPA
EDGE
Nomadic
IEEE802.16e
Fixed urban
DECT
Fixed
Indoor
User data rate
WLAN(IEEE 802.11x)
IEEE802.16a,d
UWB
Personal Area
bluetooth
Mbps
100
10
0.1
1
19
3G Long Term Evolution (LTE)distinction by
characteristic parameters
20
3G Long Term Evolution (LTE)schematic
positioning in time and generation
Generation
IMT Advanced
IMT Advanced
OFDM other RATs
3G
3G LTE
UMTS (HSUPA)
UMTS (HSDPA)
UMTS (Rel.99)
EDGE
(EDGE Phase II?)
2G
GSM/GPRS
Time
2005/6
2007/8
2009/10
2011/12
2015
lt2005
2020
21
